1. What Are Semiconductors?

1.1 What Are Semiconductors?

From the smartphone in your pocket to the advanced chips powering artificial intelligence, semiconductors are the unseen heroes of modern electronics. These fascinating materials possess electrical conductivity that falls between that of a conductor (like copper) and an insulator (like glass). This unique property allows us to precisely control electrical current, making complex electronic devices possible. The most common semiconductor materials are silicon (Si) and germanium (Ge), both of which have four valence electrons in their outermost shell, enabling them to form stable covalent bonds in a crystal lattice.

1.2 The Band Theory of Solids

To understand why semiconductors are so special, it helps to consider the band theory of solids. In conductors such as metals, the valence band and conduction band overlap, so electrons flow freely at all times. In insulators, the energy gap — known as the bandgap — between the two bands is so large that electrons practically never cross it. Semiconductors occupy the middle ground: their bandgap is small enough that electrons can be pushed into the conduction band by heat, light, or — crucially — chemical doping.

1.3 Intrinsic vs. Extrinsic Semiconductors

Semiconductors are broadly categorized into two types: intrinsic and extrinsic. Intrinsic semiconductors are pure materials, like perfectly crystalline silicon, where the number of free electrons and “holes” (electron vacancies) is equal. While pure semiconductors have some utility, their conductivity is too low for most practical electronic applications. To enhance and control their conductivity, we introduce a process called doping.

Doping involves adding tiny, controlled amounts of impurity atoms to an intrinsic semiconductor. This process transforms a pure material into an extrinsic semiconductor, dramatically altering its electrical properties. Depending on the type of impurity added, we create either P-type or N-type semiconductors, each with distinct electrical characteristics and crucial roles in the functionality of virtually every electronic component. Understanding these two fundamental types is key to grasping how modern technology works.

2. P-Type Semiconductors: Harnessing Positive Holes

A P-type semiconductor is an extrinsic semiconductor created by doping a pure (intrinsic) semiconductor with trivalent impurities. Trivalent elements are those from Group III of the periodic table, possessing three valence electrons. Common examples include boron (B), aluminum (Al), and gallium (Ga). When these impurity atoms are introduced into a silicon crystal lattice, they attempt to form covalent bonds with the surrounding silicon atoms.

2.1 The Doping Process

Since each silicon atom has four valence electrons and the trivalent impurity atom only has three, there is a “missing” electron in one of the bonds. This electron deficiency creates a vacancy known as a “hole.” These holes behave as if they carry a positive charge and are readily available to accept an electron from a neighboring atom. In a P-type material, these holes are the majority charge carriers, meaning they are primarily responsible for carrying electrical current. The trivalent impurity atoms are therefore called “acceptor” impurities because they “accept” electrons, thereby generating holes.

When an electric field is applied, electrons from adjacent covalent bonds jump into these holes, effectively causing the holes to move in the opposite direction to the electron flow. This movement of holes constitutes the electric current. While electrons are still present in P-type material, their concentration is significantly lower than that of holes, making them the minority charge carriers. The higher the concentration of acceptor impurities, the greater the density of holes, and consequently, the higher the conductivity of the P-type semiconductor.

2.2 Band Structure and Fermi Level

In terms of energy band structure, the acceptor impurities create energy levels just above the valence band. This causes the Fermi level — the energy level at which an electron has a 50% probability of occupation — to shift closer to the valence band than in an intrinsic semiconductor. The small energy difference between the valence band and these acceptor energy levels means that electrons can easily transition to the acceptor levels, leaving behind holes in the valence band. This is why P-type materials are rich in holes and have a Fermi level positioned near the bottom of the bandgap.

2.3 Electrical Conductivity

In P-type semiconductors, conductivity is dominated by the movement of holes under an applied electric field. Holes migrate from regions of high potential to low potential, constituting the current flow. Both temperature and doping concentration affect conductivity: raising the temperature increases thermal generation of electron-hole pairs, boosting conductivity; raising the doping concentration directly increases the number of acceptor-generated holes, also increasing conductivity. However, hole mobility is inherently lower than electron mobility, since holes “hop” between bonds rather than moving as free particles.

2.4 Applications of P-Type Semiconductors

P-type semiconductors are essential to a wide range of electronic devices:

• PN junction diodes: The P-type side provides the positive terminal, enabling current rectification.
• PNP transistors: P-type regions sandwich an N-type base, allowing the device to amplify or switch current.
• Photodiodes and solar cells: Illumination generates electron-hole pairs, separated by the junction electric field.
• CMOS circuits: P-type MOSFETs (PMOS) work alongside N-type MOSFETs in complementary logic gates.

3. N-Type Semiconductors: Leveraging Negative Electrons

In contrast, an N-type semiconductor is formed by doping an intrinsic semiconductor with pentavalent impurities. Pentavalent elements belong to Group V of the periodic table, meaning they have five valence electrons. Typical examples include phosphorus (P), arsenic (As), and antimony (Sb). When these atoms are incorporated into a silicon crystal lattice, four of their five valence electrons form covalent bonds with the surrounding silicon atoms.

3.1 The Doping Process

The fifth valence electron of the pentavalent dopant is not needed for bonding and remains very loosely bound to the impurity atom. This excess electron requires very little energy — far less than the bandgap energy — to break free and become a conduction electron that can move through the crystal lattice. In an N-type material, these free electrons are the majority charge carriers, responsible for most of the electrical current flow. The pentavalent impurity atoms are called “donor” impurities because they “donate” an extra electron to the semiconductor.

When an electric field is applied, these free electrons migrate from high-potential to low-potential regions, producing a current. While holes are still present due to thermal excitation, their concentration is far lower than that of the free electrons, making them the minority charge carriers. The greater the concentration of donor impurities, the higher the density of free electrons, leading to increased conductivity of the N-type semiconductor.

3.2 Band Structure and Fermi Level

In N-type semiconductors, donor impurities create energy levels just below the conduction band. This shifts the Fermi level upward, closer to the conduction band. Because the energy gap between these donor levels and the conduction band is very small, electrons can easily transition into the conduction band without needing to cross the full bandgap. This abundance of near-conduction-band electrons is what gives N-type materials their high free electron concentration and explains why the Fermi level is positioned near the top of the bandgap.

3.3 Electrical Conductivity

Free electrons in N-type semiconductors move very efficiently under an electric field, giving these materials high conductivity. Because electrons are the primary current carriers and possess higher mobility than holes (they travel as free particles, not by hopping between bonds), N-type regions typically exhibit somewhat higher conductivity than equivalently doped P-type regions. As with P-type, both temperature and doping concentration influence conductivity: higher temperature increases thermal carrier generation, while higher doping concentration directly increases the donor electron supply.

3.4 Applications of N-Type Semiconductors

N-type semiconductors are equally fundamental to modern electronics:

• NPN transistors: N-type emitter and collector regions surround a P-type base, forming a versatile amplifier and switch.
• N-type MOSFETs (NMOS): Widely used in digital logic and power electronics for their high carrier mobility and switching speed.
• Voltage regulators and rectifier diodes: N-type material forms the cathode of diodes used to control and convert electrical power.
• Solar cells: N-type silicon serves as the electron-collecting layer, paired with P-type to form the photovoltaic junction.

4. The Core Differences: P-Type vs. N-Type

While both P-type and N-type semiconductors are extrinsic materials, their fundamental differences in doping elements, charge carrier types, and band structures make them distinct and complementary. The table below provides a comprehensive side-by-side comparison:

A key nuance worth emphasizing is the overall charge neutrality of both types. Although P-type material has an abundance of positive holes and N-type material has an abundance of negative electrons, both are electrically neutral overall. This is because the impurity ions are fixed in the crystal lattice and carry a charge that exactly cancels the mobile carriers they produce. For example, in N-type silicon, each donor ion becomes a fixed positive ion after donating its electron — perfectly balancing the free negative electron it contributed.

Another important distinction is carrier mobility. Electrons in N-type semiconductors can move freely as independent particles through the conduction band, while holes in P-type semiconductors “move” by a successive exchange of electrons between adjacent bonds — a slower, hopping mechanism. As a result, at equal doping levels, N-type regions generally conduct electricity slightly more efficiently than P-type regions.

5. The PN Junction

While P-type and N-type semiconductors are powerful on their own, their true potential is unleashed when they are joined together to form a PN junction. This junction is the fundamental building block of almost all modern electronic devices. Understanding the PN junction requires examining what happens at the interface between the two materials.

5.1 Formation of the Depletion Region

When P-type and N-type materials are brought into contact, a critical process called carrier diffusion occurs immediately. Free electrons from the N-type region diffuse across the junction into the P-type region (where electron concentration is lower), while holes from the P-type region diffuse in the opposite direction into the N-type region. As this exchange takes place:

• Electrons from the N-side fill holes near the junction on the P-side, creating fixed negative ions in the P-type region.
• The departure of electrons from near the junction on the N-side leaves behind fixed positive donor ions.
• This creates a narrow zone — the depletion region — devoid of mobile charge carriers.
• The separated fixed charges generate an internal electric field (built-in potential) that opposes further diffusion, eventually reaching equilibrium.

The depletion region acts as an insulating barrier at equilibrium. Its width and the strength of the internal electric field depend on the doping concentrations on each side.

5.2 Forward and Reverse Bias

The behavior of a PN junction changes dramatically depending on how an external voltage is applied:

Forward bias: When the positive terminal of a power supply is connected to the P-type side and the negative terminal to the N-type side, the applied voltage counteracts the internal electric field, narrowing the depletion region. Once the applied voltage exceeds the built-in potential (approximately 0.7 V for silicon), charge carriers flow freely across the junction, and current passes readily.

Reverse bias: When the connections are reversed — positive to N-type, negative to P-type — the applied voltage reinforces the internal electric field, widening the depletion region. This prevents majority carriers from crossing, and only a tiny leakage current flows. If the reverse voltage is increased sufficiently, breakdown occurs (exploited deliberately in Zener diodes) and current surges through the junction.

5.3 Synergistic Effect

The PN junction operates because P-type and N-type regions collaborate through diffusion and field effects. The P-type side supplies holes that can receive electrons under forward bias, while the N-type side supplies electrons that can recombine with those holes. This cooperative behavior is what gives the junction its rectifying properties — and makes it the cornerstone of modern electronics.

6. Key Applications of PN Junctions

6.1 Diodes: The One-Way Valve

The simplest and most direct application of a PN junction is the diode. Acting like a one-way valve for electric current, a diode permits current to flow easily in forward bias and blocks it under reverse bias. This rectifying property is essential for converting alternating current (AC) to direct current (DC) — a step required to power virtually all electronic devices from household appliances to computing equipment.

6.2 Transistors: Amplifiers and Switches

More complex structures such as transistors are formed by combining multiple PN junctions into NPN or PNP configurations. Transistors serve two vital roles: as switches, they turn current on or off to encode binary logic; as amplifiers, they boost weak signals for use in communications, audio systems, and sensors. The speed and reliability of transistor switching is what makes modern computing possible.

6.3 Integrated Circuits: The Brains of Devices

Thousands, millions, or even billions of PN junctions — configured as diodes and transistors — can be fabricated onto a single tiny silicon chip to create an integrated circuit (IC). ICs are the brains of modern electronics, performing complex calculations, storing data, and managing operations in everything from microprocessors to memory chips. The miniaturization enabled by controlled P-type and N-type doping has driven the extraordinary pace of technological progress over the past half-century.

6.4 Solar Cells: Harnessing Light

PN junctions also excel at energy conversion. In a solar cell, incoming photons excite electrons in the semiconductor, generating electron-hole pairs. The built-in electric field of the depletion region separates these carriers — electrons are swept toward the N-type side and holes toward the P-type side — producing a usable electric current. This direct conversion of light to electricity is the basis of all photovoltaic technology and a cornerstone of modern renewable energy.

6.5 LEDs: Emitting Light

In a light-emitting diode (LED), the process runs in reverse from a solar cell. Under forward bias, electrons and holes are injected into the junction from opposite sides and recombine. The energy released during recombination is emitted as a photon of light. By selecting semiconductor materials with specific bandgap energies, engineers can produce LEDs that emit virtually any visible color, as well as infrared and ultraviolet light — enabling applications from display backlighting to fiber-optic communications.

7. Frequently Asked Questions

Q1: Are P-type and N-type semiconductors positively or negatively charged overall?

Both are electrically neutral. Although P-type material contains an abundance of positive holes and N-type material contains an abundance of free electrons, the impurity ions fixed in the crystal lattice carry an equal and opposite charge. For instance, each donor ion in N-type silicon becomes a fixed positive ion that exactly cancels the mobile electron it donated.

Q2: What is the primary difference between intrinsic and extrinsic semiconductors?

Intrinsic semiconductors are pure materials (e.g., undoped silicon) whose conductivity is determined entirely by thermal excitation, resulting in equal numbers of electrons and holes. Extrinsic semiconductors are doped with impurities to increase conductivity and to make either electrons (N-type) or holes (P-type) the dominant carriers, enabling precise engineering of electrical behavior.

Q3: Why are silicon and germanium the most common semiconductor base materials?

Both silicon (Si) and germanium (Ge) are Group IV elements with four valence electrons, forming stable and symmetric covalent lattice structures. This tetrahedral bonding makes them ideal hosts for doping: substituting a Group III or Group V atom fits naturally into the lattice, creating predictable numbers of holes or electrons. Silicon has largely superseded germanium for most applications due to its wider bandgap (better high-temperature performance), its abundance, and the exceptional quality of its native oxide (SiO₂), which is critical for MOSFET gate insulation.

Q4: Can doping concentration be changed after fabrication?

In general, no — once a semiconductor device is fabricated, its doping profile is fixed. However, during manufacturing, engineers use techniques such as ion implantation and diffusion to build up complex doping profiles within a single chip, creating precisely defined regions of P-type and N-type material separated by nanometers. This is how modern transistors with feature sizes below 5 nm are built.

Q5: Why do N-type semiconductors typically have slightly higher conductivity than P-type at equal doping levels?

Electron mobility in silicon (approximately 1,400 cm²/V·s) is roughly 2–3 times higher than hole mobility (approximately 450 cm²/V·s). Electrons move freely through the conduction band, while holes advance by a sequence of electron transfers between adjacent bonds — a slower, indirect process. At equal doping concentrations, the higher mobility of electrons gives N-type regions a conductivity advantage.

8. Summary

N-type and P-type semiconductors are the backbone of the electronic age. Through the precise process of doping, intrinsic semiconductors like silicon are transformed into extrinsic materials with tailored electrical properties. P-type semiconductors, doped with trivalent (Group III) impurities, rely on “holes” as their majority charge carriers; their Fermi level resides near the valence band. N-type semiconductors, doped with pentavalent (Group V) impurities, utilize free electrons as their majority carriers; their Fermi level sits near the conduction band.

When placed in contact, these two materials form a PN junction — featuring a depletion region, a built-in electric field, and the ability to selectively conduct under forward bias while blocking under reverse bias. This simple yet profound interface is the foundation of diodes, transistors, solar cells, LEDs, and integrated circuits, underpinning nearly every electronic device in use today.

A clear grasp of P-type and N-type semiconductors, their differences, and their synergy in PN junctions is essential for anyone seeking to understand modern electronics — from the principles of circuit design to the physics driving the next generation of computing and energy technologies.

Key Takeaways

• P-type semiconductors use trivalent (Group III) impurities — boron, aluminum, gallium — to create “holes” as majority charge carriers.
• N-type semiconductors use pentavalent (Group V) impurities — phosphorus, arsenic, antimony — to create free electrons as majority charge carriers.
• Both P-type and N-type semiconductors are electrically neutral; their conductivity comes from mobile charge carriers, not from net charge.
• The Fermi level in P-type material is closer to the valence band; in N-type material, it is closer to the conduction band.
• Electrons have higher mobility (~1,400 cm²/V·s) than holes (~450 cm²/V·s), so N-type regions typically conduct more efficiently at equal doping concentrations.
• Combining P-type and N-type materials forms a PN junction — the essential building block of diodes, transistors, LEDs, solar cells, and integrated circuits.
• Forward bias narrows the depletion region and allows current flow; reverse bias widens it and blocks current.

1. Introduction: Why SMD Resistor Codes Matter

In the intricate world of modern electronics, Surface Mount Device (SMD) resistors are ubiquitous. These tiny electronic components are fundamental to the functionality of virtually every Printed Circuit Board (PCB) today. From smartphones to sophisticated industrial controls, their compact form factor and reliability make them indispensable. However, unlike their larger, through-hole counterparts that use intuitive color bands, SMD resistors rely on numerical codes for identification. Understanding these SMD resistor codes is not merely a technicality; it’s an essential skill for anyone involved in electronics.

Mastering SMD resistor codes will significantly enhance your efficiency and accuracy. For quick lookups, try our SMD Resistor Code Calculator.

Key Takeaways

• SMD resistor codes are essential for identifying electronic components in compact, surface-mount designs.
• Distinguish between 3-digit (e.g., 102), 4-digit (e.g., 4701), and EIA-96 (e.g., 47C) codes based on their structure.
• The ‘R’ in codes like ‘4R7′ or ’10R0’ denotes a decimal point, crucial for precise value identification.
• Zero-ohm resistors are marked with ‘0’, ‘000’, or ‘0000’ and act as jumpers or fuses.
• Always use magnification and cross-reference with documentation (like BOMs) to avoid misreading, especially for critical circuit performance.

2. Understanding the Basics: Why Codes, Not Color Bands?

The shift from traditional through-hole components to surface-mount technology (SMT) brought with it significant advantages: smaller footprints, higher component density on PCBs, and suitability for automated assembly processes. However, this miniaturization rendered the familiar color band system impractical for resistors. The physical size of SMD resistors is simply too small for legible color bands, making numerical codes the only viable option for identification.

These numerical code systems are designed not just for human readability but also for machine vision systems, which play a crucial role in automated optical inspection (AOI) during manufacturing. The ability of machines to reliably interpret these codes ensures correct component placement and functionality, thereby improving manufacturing yield and product quality. The resistive element inside these tiny components, often made of a thick or thin film on a ceramic substrate, requires an accurate marking system for proper selection and use.

3. The 3-Digit SMD Resistor Code System

The 3-digit system is one of the most common coding methods for SMD resistors, typically used for standard tolerance values (e.g., 5% tolerance). It’s straightforward and easy to interpret once you understand the pattern.

How it Works:

• The first two digits represent the significant figures of the resistance value.
• The third digit is the multiplier, indicating the power of ten by which the significant figures are multiplied.

For example:

• 102means 10 x 10² = 10 x 100 = 1000 Ω or 1 kΩ
• 473means 47 x 10³ = 47 x 1000 = 47000 Ω or 47 kΩ
• 220means 22 x 10⁰ = 22 x 1 = 22 Ω

When a decimal point is involved, an “R” is used to indicate its position. The “R” acts as a decimal point, and any trailing digits are significant figures.

• 1R0means 1.0 Ω
• R56means 0.56 Ω
• 4R7means 4.7 Ω

4. The 4-Digit SMD Resistor Code System

The 4-digit system is similar to the 3-digit system but is typically used for resistors with tighter tolerances, such as 1%. It offers higher precision in value representation.

How it Works:

• The first three digits represent the significant figures of the resistance value.
• The fourth digit is the multiplier, indicating the power of ten by which the significant figures are multiplied.

For example:

• 1002means 100 x 10 ² = 100 x 100 = 10000 Ω or 10 kΩ
• 4701means 470 x 10¹ = 470 x 10 = 4700 Ω or 4.7 kΩ
• 2200means 220 x 10⁰ = 22 0 x 1 = 220 Ω

Similar to the 3-digit system, an “R” is used to denote a decimal point for fractional values.

• 10R0means 10.0 Ω
• 2R20means 2.20 Ω
• R100means 0.1 00 Ω

About PCBAndAssembly

Time is money in your projects – and PCBAndAssembly gets it. PCBAndAssembly is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

5. Precision and Tolerance: The EIA-96 Standard

For high-precision resistors, often with a 1% tolerance, the EIA-96 standard is widely adopted. This system uses a combination of two numbers and one letter to denote the resistance value. It’s designed to provide a more granular set of standard resistance values.

How it Works:

• The first two digits represent a code from a standardized table, which corresponds to a specific 3-digit significant resistance value.
• The third character (a letter) is the multiplier.

This system requires a lookup table for the two-digit code. Here’s a partial table for the significant values:

And here’s the multiplier table for the letter codes:

For example:

• 01A: Code “01” is 100. Letter “A” is x1. So, 100 x 1 = 100 Ω.
• 47C: Code “47” is 301. Letter “C” is x100. So, 301 x 100 = 30100 Ω or 30.1 kΩ.
• 96X: Code “96” is 976. Letter “X” is x0.001 . So, 976 x 0.001 = 0.976 Ω.

6. Special SMD Resistor Markings

Beyond the standard numerical codes, some special markings are used for particular types of SMD resistors. Being aware of these can prevent misidentification and ensure correct circuit performance.

• Zero-Ohm Resistors:These components appear as resistors but function as a jumper wire, providing effectively zero resistance. They are typically marked with a single “0”, “000”, or “0000”. They are useful for routing signals across traces on a PCB, acting as fuses, or allowing for optional circuit configurations during prototyping.
• Decimal Point ‘R’, ‘K’, ‘M’:As mentioned, ‘R’ indicates a decimal point for values less than 1 000 Ω. For larger values, ‘K’ signifies kilo-ohms (1000 Ω) and ‘M’ signifies mega-ohms (1,000,000 Ω). The letter can also act as a decimal point.

• 1K0means 1.0 kΩ (1000 Ω)
• 4M7means 4.7 MΩ (4, 700,000 Ω)
• 2K2means 2.2 kΩ (2200 Ω)

7. Resistor Tolerance Letter Codes

While the number of digits in a code often implies the tolerance class, some resistors — particularly on larger packages such as 0603 and above — include an explicit tolerance letter appended to the numerical code. This letter removes ambiguity and directly states the component’s tolerance specification.

Common examples: a resistor marked 103J represents 10 kΩ with 5% tolerance, while 1001F represents 1.00 kΩ with 1% tolerance. The most commonly encountered tolerance letter codes are listed below:

• B— ±0.1%
• C— ±0.25%
• D— ±0.5%
• F— ±1%
• G— ±2%
• J— ±5%
• K— ±10%

Important note: Do not confuse the tolerance letter F (±1%) with the EIA-96 multiplier letter F (×0.01). These letters belong to entirely different systems and must be interpreted based on context. If the code follows the ##L EIA-96 format (two digits plus a letter), the letter is a multiplier. If the letter is appended after a 3-digit or 4-digit numerical code, it denotes tolerance.

8. Unmarked SMD Resistors: Ultra-Miniature Packages

As component packages shrink below the 0402 size threshold, printed markings become physically impossible to apply with reliable legibility. Resistors in 0201 (0.6 mm × 0.3 mm) and 01005 packages are typically shipped completely unmarked. This is not a defect — it is an inherent consequence of the extreme miniaturization demanded by modern high-density PCB designs.

For these unmarked components, the only reliable identification methods are:

• Bill of Materials (BOM) reference— The BOM and pick-and-place data contain the definitive component specifications tied to board coordinates. This is the primary source of truth.
• Feeder position mapping— In automated SMT assembly, the feeder slot number and its verified component value are correlated before production begins. Rigorous feeder mapping protocols prevent loading errors.
• Incoming inspection with LCR meters— Sample-testing resistance values with a calibrated LCR meter on each production lot before releasing components to the assembly line catches labeling errors and shipping mistakes before they cause downstream defects.

When reworking or repairing boards with unmarked resistors, never assume a value based on board position alone. Always consult the schematic or BOM, and verify with a meter by desoldeing one leg of the component to remove parallel circuit paths from the measurement.

9. Power Rating and Package Size

A critical point often overlooked: the SMD resistor code — whether 3-digit, 4-digit, or EIA-96 — only encodes resistance value and tolerance. The power rating is not encoded in the marking at all. It is determined entirely by the physical package size of the component.

Typical power ratings by package size:

• 0201 package— typically 1/20 W (50 mW)
• 0402 package— typically 1/16 W (63 mW)
• 0603 package— typically 1/10 W (100 mW)
• 0805 package— typically 1/8 W (125 mW)
• 1206 package— typically 1/4 W (250 mW)

When designing circuits, always calculate worst-case power dissipation using P = I²R (or P = V²/R) and select a package with a power rating that includes adequate derating margin — typically at least 50% of rated power at maximum operating temperature. Choosing a package purely based on resistance value while ignoring the thermal load is a common design mistake that leads to resistor drift, solder joint degradation, and eventual failure.

10. Common Interpretation Errors and Best Practices

Misreading an SMD resistor code can lead to significant issues, from a non-functional circuit to catastrophic component failure. Here are common pitfalls and best practices for accurate identification:

• Confusing 3-Digit and 4-Digit Codes:A common mistake is applying the 3-digit rule to a 4-digit code or vice versa. Always check the number of digits before interpreting. The context (e.g., tolerance requirements, adjacent components) can often give clues.
• Misinterpreting “R” as a Multiplier:Remember, “R” indicates a decimal point, not a multiplier (unless it’s part of the EIA-96 system’s specific letter codes, which is less common for decimal placement in other systems).
• Overlooking Special Markings:A resistor marked “000” is not 0 ohms * 10^0 = 0 ohms; it’s specifically a zero-ohm link. Always be mindful of these unique identifiers.
• Environmental Factors:Over time, markings can fade or become obscured due to heat, chemicals, or physical abrasion. When in doubt, consulting the circuit’s bill of materials (BOM) or schematic is the most reliable approach.
• Using Magnification:Due to their tiny size, a magnifying glass or microscope is often necessary for clear reading, especially with smaller package sizes. This is crucial for avoiding errors during incoming quality control or rework .
• Cross-Referencing:If possible, cross-reference the marking with the manufacturer’s datasheet or a reliable SMD resistor code chart, particularly for EIA-96 codes or less common component types.

Adhering to these best practices will significantly improve your accuracy when working with surface mount resistors, safeguarding your projects from costly mistakes and ensuring optimal electronic component functionality.

PCBAndAssembly PCBA service ensures every component in your BOM—from basic SMD resistors to complex ICs—is placed with the correct value, footprint, and orientation, supported by a large in-stock component library. This reduces manual verification effort, minimizes rework risk, and helps bring your design from prototype to production with greater confidence.

11. FAQ

Question:Why do SMD resistors use codes instead of color bands like through-hole resistors?

Answer: SMD resistors are much smaller than through-hole resistors, making color bands impractical and difficult to read. Numerical codes are compact and can be easily read by both humans (with magnification) and automated optical inspection systems during SMT assembly, which is crucial for modern electronic components.

Question:How can I tell if an SMD resistor uses the 3-digit, 4-digit, or EIA-96 system?

Answer: The 3-digit and 4-digit systems are identified by having three or four numbers respectively (e.g., 102, 4701). The EIA-96 system is distinct because it uses two numbers followed by a letter (e.g., 01A, 47C). If you see a letter as the third character, it’s almost certainly EIA-96.

Question:What does an “R” in an SMD resistor code mean?

Answer: In 3-digit and 4-digit codes, “R” typically signifies a decimal point. For example, “4 R7” means 4.7 ohms, and “R100” means 0.100 ohms. In the EIA-96 system, “R” is sometimes used as a multiplier letter, often indicating a very small multiplier (e.g., x 0.001), but its primary role in general codes is as a decimal point.

Question:Does the body color of an SMD resistor (black vs. blue/green) carry any meaning?

Answer:The vast majority of standard chip resistors are black with a light protective overglaze. Colors such as blue or green sometimes indicate a special type — such as a high-precision thin-film resistor or a specialty product — but this is not standardized across manufacturers. Always rely on the printed code and the datasheet, not the body color, for identification.

Question:Does the SMD resistor code tell me the power rating?

Answer: The code only encodes resistance value and, in some cases, tolerance. The power rating is determined entirely by the physical package size. For example, a 0402 package typically handles 1/16 W, while an 0805 package handles 1/8 W. Selecting the wrong package for the power dissipation requirements of your circuit can cause overheating and component failure. Always calculate P = I²R and choose the package accordingly.

Question:I see a component marked 102 but it has 8 pins. What is it?

Answer:That is almost certainly an SMD resistor array or resistor network. The code (102 = 1 kΩ) typically applies to all the individual resistors inside the single package. These components are used to save board space, for example for pull-up or pull-down resistors on a data bus. The array may be “isolated” (each resistor fully independent, e.g., four 1 kΩ resistors sharing an 8-pin package) or “bussed” (one common pin shared by all resistors). Check the schematic to determine which configuration applies.

Question:My EIA-96 code looks ambiguous when rotated — could I be reading it upside-down?

Answer:Yes, this is a real issue. A code like “06” can look like “90” when flipped. Some manufacturers address this by printing a small underline or orientation bar beneath the code. If no such mark is present and the orientation is genuinely ambiguous, use a multimeter to measure the resistance directly rather than guessing. Never assume orientation on a component that could be misread — a wrong value in a critical circuit path can cause immediate or latent failures.

12. Summary

Understanding SMD resistor codes is fundamental for anyone working with modern electronics. Due to their compact size, surface mount devices employ numerical marking systems rather than color bands. This guide covered the three primary systems: the 3-digit code (two significant figures, one multiplier), the 4-digit code (three significant figures, one multiplier, often for 1% tolerance), and the EIA-96 standard (a two-digit value code and a letter multiplier, used for high-precision 1% tolerance resistors). Special markings like ‘R’ for decimal points, and ‘000’ for zero-ohm resistors, are also crucial. Accurate interpretation, often aided by magnification and cross-referencing with documentation like the bill of materials, prevents errors, ensures proper circuit performance, and supports efficient SMT assembly.

1. Introduction

Every electronic device, from the simplest toy to the most complex supercomputer, relies on a sophisticated network of tiny components mounted on a circuit board. Understanding these intricate building blocks—how to identify them, what their functions are, and critically, how to choose the right ones—is fundamental for anyone involved in electronics, whether hobbyist, student, or professional engineer.

Key Takeaways

• Accurate identification of circuit board components (resistors, capacitors, ICs, etc.) is fundamental to understanding and working with electronics.
• Component markings (color codes, numeric values, polarity indicators) and schematic symbols are crucial for both identification and circuit analysis.
• Component selection is a multi-faceted process requiring careful consideration of electrical specifications (voltage, current , power, frequency).
• Environmental factors such as temperature, humidity, and vibration significantly impact component reliability and must be accounted for during selection.
• Physical characteristics (package type, size) and performance metrics (tolerance, stability , lifespan) influence manufacturing and long-term functionality.
• Cost, availability, and compliance with industry standards are practical considerations that shape the viability of a design.
• Always consult datasheets, prototype designs, and consider alternative sourcing to ensure optimal component selection.
• Reference designators (R, C, L, D, Q, U, J, T, etc.) silkscreened on the PCB provide a direct link to the schematic and BOM, making component identification and cross-referencing faster and more reliable.

2. The Foundation: Understanding Circuit Boards

Before diving into individual components, it ‘s essential to understand the canvas they operate on: the Printed Circuit Board (PCB). A PCB serves as the mechanical support and electrical connection platform for electronic components. It consists of layers of non-conductive substrate material (like fiberglass) interspersed with conductive pathways, or traces, typically made of copper. Components are soldered onto designated pads on these traces, creating a functional circuit.

PCBs come in various forms:

• Single-sided PCBs:Conductive traces on only one side. Simple and cost-effective.
• Double-sided PCBs:Traces on both sides, with connections between layers made via holes (vias).
• Multi-layer PCBs:Multiple layers of traces separated by insulation, offering higher density and complexity.
• Flexible PCBs (Flex PCBs):Built on flexible plastic substrates, allowing circuits to bend and conform to irregular shapes.
• Rigid-Flex PCBs:Combine rigid and flexible board technologies.

3. Essential Circuit Board Components: Identification and Function

Circuit boards are populated with a diverse array of electronic components, each performing a specific role. Accurate identification is the first step towards understanding a circuit.

Resistors

Resistors are passive two-terminal components that impede the flow of electric current. They are crucial for controlling current, dividing voltage, and terminating transmission lines. They appear as small, often cylindrical or rectangular, components with color bands or numerical codes.

• Identification:Color bands (for through-hole) or numeric codes (for SMD). Common values range from ohms (Ω) to megaohms (MΩ).
• Function:Limit current, divide voltage, pull-up/pull- down.
• Types:Carbon film, metal film, wirewound, surface-mount (SMD).

Capacitors

Capacitors are passive two-terminal components that store electrical energy in an electric field. They block DC current while allowing AC current to pass, making them vital for filtering, timing, and energy storage applications.

• Identification:Often cylindrical (electroly tic) or small rectangular/disc-shaped (ceramic). Marked with capacitance value (e.g., µF, nF, pF) and voltage rating. Electrolytic capacitors are polarized and have a stripe indicating the negative terminal.
• Function:Store energy, filter noise, smooth power supplies, timing.
• Types:Electrolytic, ceramic, tantalum, film.

Inductors

Ind uctors are passive two-terminal components that store energy in a magnetic field when current flows through them. They oppose changes in current and are used for filtering, energy storage in power converters, and RF applications.

• Identification:Often appear as coils of wire, sometimes encapsulated or toroidal. Marked with inductance in Henries (H).
• Function:Store energy in a magnetic field, filter AC signals, impedance matching.
• Types:Air core, ferrite core, toroidal, chip inductors.

Diodes

Diodes are two-terminal semiconductor devices that allow current to flow predominantly in one direction. They are fundamental for rectification, voltage regulation, and protection.

• Identification:Typically cylindrical with a band indicating the cathode (-ve) terminal. LEDs (Light Emitting Diodes) are easily recognizable by their light emission.
• Function:Rectify AC to DC, voltage regulation (Zener), signal switching, light emission (LED).
• Types:Rectifier, Zener, Schottky, LED, phot odiode.

Transistors

Transistors are semiconductor devices used for amplifying or switching electronic signals and electrical power. They are the fundamental building blocks of modern electronic circuits.

• Identification:Usually three-terminal devices, ranging from small plastic packages (e.g., TO-92) to larger metal or plastic power packages (e.g., TO-220, SOT-23 for SMD).
• Function:Amplification, switching.
• Types:Bipolar Junction Transistors (BJTs), Field-Effect Transistors (FETs – MOSFETs, JFETs).

Integrated Circuits (ICs)

Integrated Circuits are miniature electronic circuits containing a multitude of transistors, resistors, and capacitors fabricated onto a single semiconductor substrate, typically silicon. They perform complex functions and are the ” brains” of many devices.

• Identification:Rectangular chips with multiple pins (leads) on the sides or bottom. Often marked with a manufacturer logo, part number, and sometimes a date code.
• Function:Microcontrollers, operational amplifiers (op-amps), memory chips, logic gates, voltage regulators.
• Types:Digital, analog, mixed-signal.

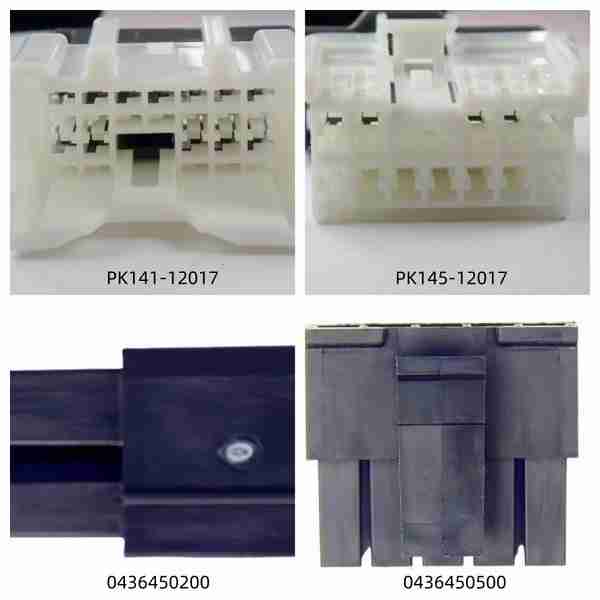

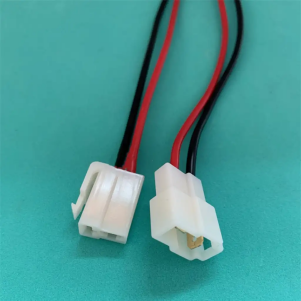

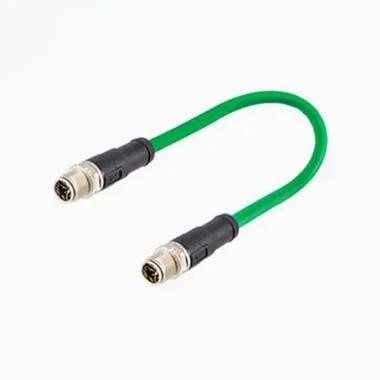

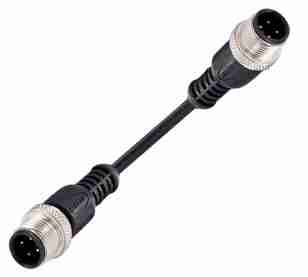

Connectors and Sockets

These components provide interfaces for connecting the circuit board to other boards, peripherals, power sources, or programming tools.

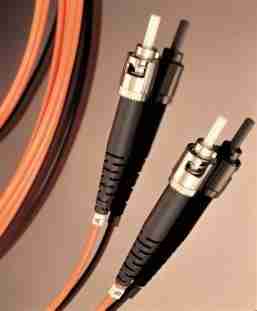

• Identification:Various shapes and sizes, designed for specific cable types (USB, HDMI, Ethernet, power jacks) or inter-board connections (pin headers, edge connectors).
• Function:External interfaces, modularity, test points.

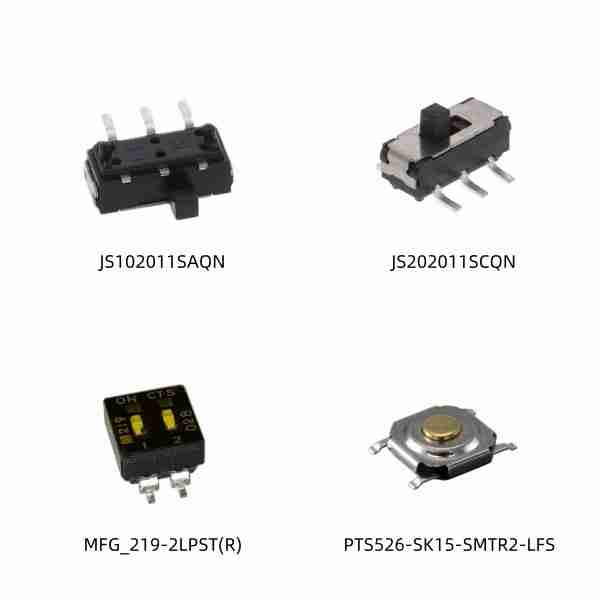

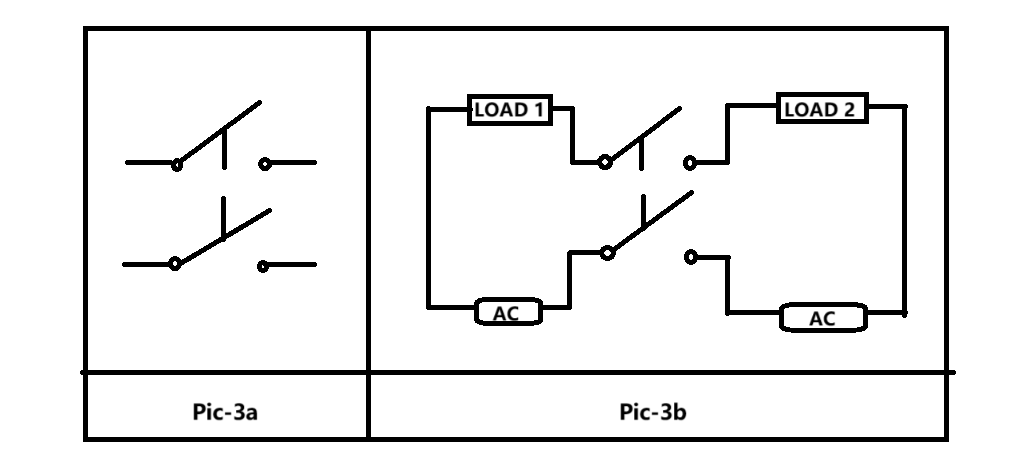

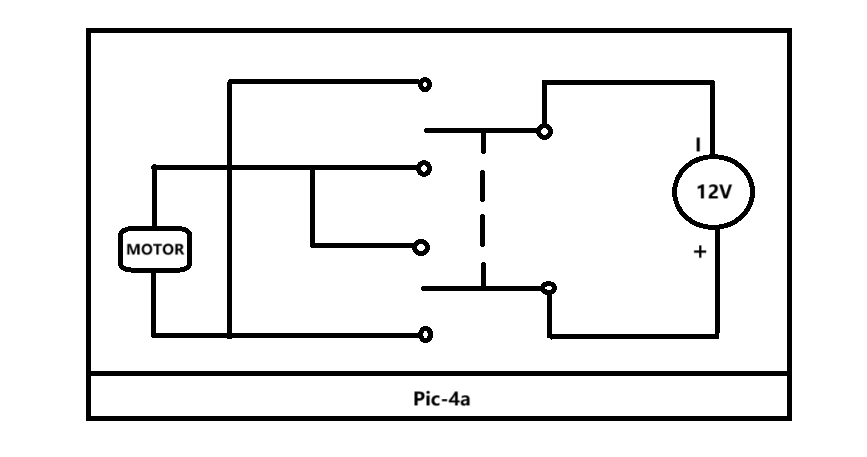

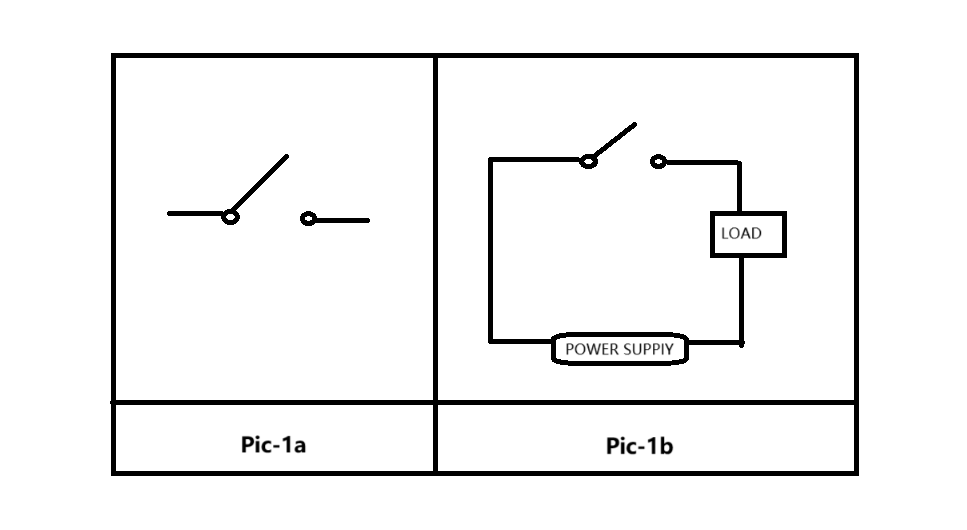

Switches and Buttons

Used to control the flow of current manually, allowing users to interact with the device.

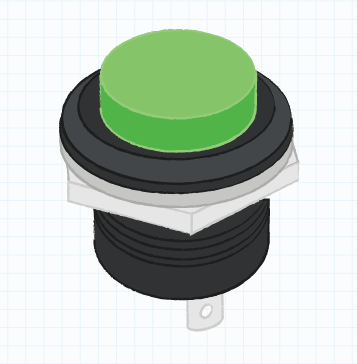

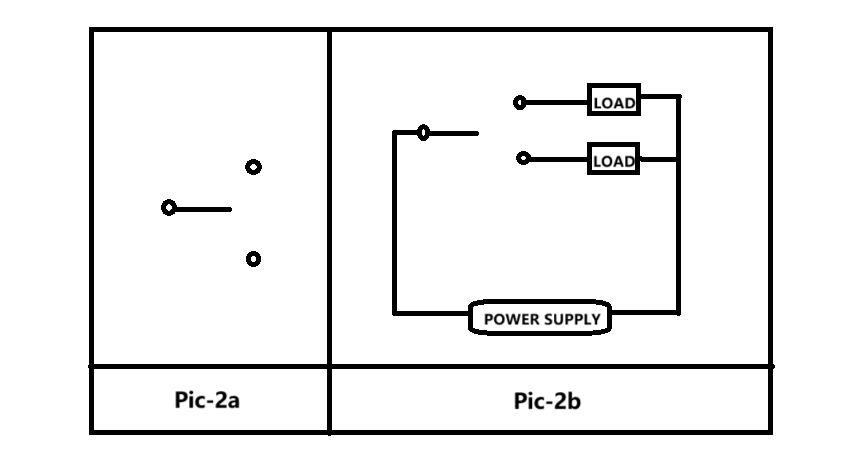

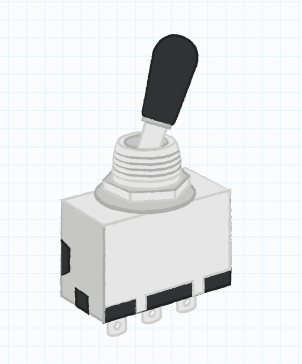

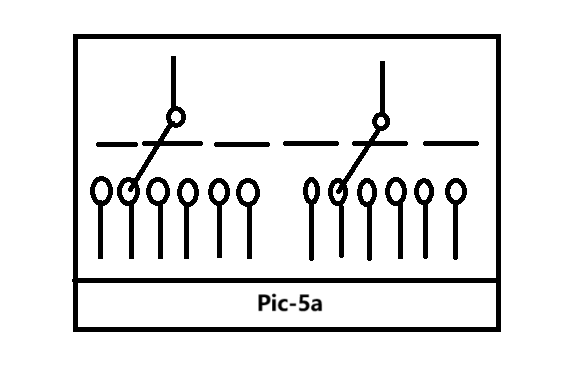

• Identification:Pushbuttons, toggle switches, slide switches, DIP switches.
• Function :On/off control, input signals.

Other Common Components

• Crystals/Oscillators:Provide a stable clock signal for microcontrollers and other digital circuits. Often small metal cans or ceramic packages.
• Fuses:Safety devices that break a circuit when current exceeds a safe level, protecting other components.
• Sensors:Convert physical phenomena (light, temperature, pressure ) into electrical signals.
• Relays:Electrically operated switches, allowing a low-power signal to control a high-power circuit.

4. Deciphering Component Markings and Symbols

Understanding the markings on components and their schematic symbols is critical for both identification and circuit analysis.

Component Markings

• Resistors:Color code bands (4, 5, or 6 bands) for through-hole, or 3-4 digit numeric codes for SMD.
• Capacitors:Numeric codes (e.g., “104” means 100n F), direct value (e.g., “47µF”), or a letter/number code for tolerance and voltage. Electrolytics have polarity indicators.
• Diodes:Part numbers and a band indicating the cathode.
• Integrated Circuits (ICs):Manufacturer logo, part number (e.g., “ATmega328P”, “LM358”), and often a date code. Pin 1 is usually marked with a dot, notch, or corner chamfer.
• Transistors:Part numbers (e.g., “2N2222”, “BC547”) and package type.

Schematic Symbols

Each component has a standardized symbol used in circuit diagrams. Familiarity with these symbols allows for quick interpretation of circuit functionality without needing to see the physical board.

5. Choosing the Right Parts: Key Selection Criteria

Selecting the appropriate components is paramount for a circuit’s performance, reliability, and cost-effectiveness. A systematic approach is crucial.

Electrical Specifications

• Voltage Ratings:Ensure components can withstand the maximum voltage present in the circuit, including transients. Always allow for a safety margin (e.g., 20-50% higher than operating voltage).
• Current Ratings:Verify components can handle the maximum expected current without overheating or failure. This is critical for resistors, inductors, transistors, and connectors.
• Power Ratings:For components like resistors, ensure their power dissipation rating (in Watts) exceeds the calculated power dissipated by them in the circuit.
• Frequency Response:For AC and high-frequency applications, components must be selected based on their ability to operate effectively at the required frequencies (e.g., certain capacitors, inductors, and ICs have frequency limitations).
• Impedance:Important for RF circuits and signal integrity, ensuring matched impedance to prevent signal reflections.

Environmental Factors

• Operating Temperature Range:Electronics often operate in diverse environments. Components must be rated for the expected ambient temperature range. Extreme temperatures can drastically reduce component lifespan or cause immediate failure.
• Humidity and Moisture Resistance:In humid environments, components may require special coatings or encapsulation to prevent corrosion and short circuits .
• Vibration and Shock:For applications in vehicles, industrial machinery, or portable devices, components must withstand mechanical stress. Package type and mounting method become critical.
• EMI/EMC (Electromagnetic Interference/Compatibility):Select components that either minimize EMI generation or are robust enough to withstand external EMI without malfunction.

Physical Characteristics

• Package Type (SMD vs. Through-hole):Surface Mount Devices (SMD) are smaller, allowing for denser boards, automated assembly, and lower cost in high volume. Through-hole components are easier for prototyping and manual soldering, and often more robust mechanically.
• Size and Footprint:The physical dimensions of a component must fit within the available space on the PCB. Footprint refers to the pattern of pads/holes on the PCB for a component.
• Pin Count and Spacing:For ICs and connectors, the number of pins and their pitch (spacing) must match the design requirements.

Performance and Reliability

• Tolerance:The allowable deviation from a component’s nominal value (e.g., a 100Ω resistor with 5% tolerance can be between 95Ω and 105Ω). Tighter tolerances are often more expensive.
• Stability:How much a component’s value changes over time, temperature, or other environmental stresses. Critical for precision applications.
• Lifespan/MTBF (Mean Time Between Failures):Important for high-reliability systems, especially with components like electrolytic capacitors which have a finite lifespan.
• Noise Characteristics:Some components (e.g., certain resistors, op-amps) inherently generate more electrical noise than others. Critical for sensitive analog circuits .

Cost and Availability

• Budget Constraints:Component cost can significantly impact the overall product cost, especially in high-volume manufacturing.
• Lead Times and Supply Chain:Ensure chosen components are readily available from multiple suppliers, reducing the risk of production delays due to shortages. Avoid single-source components where possible.
• End-of-Life (EOL) Status:Avoid using components that are nearing their end-of-life, as replacements may become difficult to source.

Application-Specific Needs

• Compliance & Certifications:For certain industries (medical, automotive, aerospace), components must meet specific regulatory standards (e.g., AEC-Q for automotive, RoHS compliance for hazardous substances).
• Power Efficiency:For battery-powered devices, selecting low-power consumption components is critical.
• Software/Firmware Compatibility:For microcontrollers and programmable ICs, ensure compatibility with your chosen development tools and libraries.

6. Best Practices for Component Selection

• Read Datasheets Thorough ly:The datasheet is your primary source of information, providing all critical electrical, mechanical, and environmental specifications.
• Consult Application Notes:Manufacturers often provide application notes that demonstrate best practices and common pitfalls for using their components .
• Utilize Component Libraries and CAD Tools:Use established component libraries in your PCB design software to ensure correct footprints and symbols.
• Prototype and Test:Always build and thoroughly test prototypes to validate component performance in the actual circuit environment.
• Consider Second Sourcing:Identify alternative components from different manufacturers with similar specifications to mitigate supply chain risks.
• Engage with Distributors:Major electronics distributors can offer valuable advice, stock information, and sometimes even technical support.

7. How to Identify the Components on a Circuit Board

Being able to recognize what you’re looking at on a PCB is one of the most practical skills in electronics. Whether you’re troubleshooting a fault, planning a repair, or simply trying to understand how a device works, a systematic approach makes the process far more reliable than guessing from appearance alone. The five steps below walk you through identifying components from the broadest level down to individual part markings.

Step 1: Determine the Board’s Purpose

Before zooming in on individual parts, step back and ask what the board is actually for. Check for any model numbers, brand names, or functional labels silk-screened on the board surface — these often reveal whether you’re dealing with a power supply, a motor controller, a communication module, or a main logic board. Different application categories tend to use predictable component mixes: a switching power supply will be dominated by inductors, MOSFETs, and bulk capacitors, while a microcontroller board centers around an IC with supporting passives. Knowing the context narrows your expectations considerably before you examine a single component.

Step 2: Inspect Passive Components in Detail

Resistors, capacitors, and inductors are the easiest entry point because their physical forms are highly consistent across manufacturers. Resistors stand out through their color band system — each ring encodes a digit or multiplier — though SMD versions use a compact 3- or 4-digit printed code instead. Capacitors split into two visually distinct groups: upright cylindrical cans (electrolytics) with a printed value and polarity stripe, and flat rectangular or disc-shaped ceramics with a stamped code. Inductors are recognizable by their coiled wire construction, often on a ferrite core, and carry the designator L on the board. Starting with passives builds a solid reference point for the rest of the board.

Step 3: Carefully Evaluate Integrated Circuits

ICs deserve the most careful attention because they carry the highest functional complexity on any board. Most modern ICs have a manufacturer part number printed on the package — searching that string in a datasheet database will tell you exactly what the chip does, its pin assignments, and its operating conditions. Older or generic ICs sometimes use abbreviated functional codes (such as 7400 for a quad NAND gate) rather than a full part number, but these are equally searchable. Pay close attention to pin 1 orientation, usually marked by a dot, notch, or chamfered corner, since incorrect re-installation of a polarized IC can cause immediate damage.

Step 4: Identify Other Discrete Components

Beyond passives and ICs, a board typically hosts a mix of electromechanical and protection components. Transformers are identifiable by their bulk and their multiple wire windings on a magnetic core. Relays have a box-shaped housing and often make an audible click when activated, distinguishing them from solid-state components. Diodes show a polarity band at the cathode end; LEDs add a transparent or colored lens. Connectors and switches are largely self-evident from their mechanical form. For any part that resists quick recognition, the silkscreen designator nearby (T, K, J, D, SW, etc.) is your fastest shortcut to narrowing down the component type before searching further.

Step 5: Consult Reference Designators

Reference designators are short alphanumeric codes printed on the PCB silkscreen layer directly beside each component. The letter prefix tells you the component category, and the number distinguishes one instance from another on the same board (e.g., R1 and R2 are both resistors, but in different circuit positions). Cross-referencing a designator with the board’s schematic or Bill of Materials gives you the exact part specification without needing to read the component’s own markings. The table below covers the full set of standard designators you are likely to encounter.

When a component still can’t be identified after working through all five steps, the most reliable next move is to pull up the full board schematic or service manual if one is available. For consumer electronics, manufacturer service documentation is often publicly accessible. If not, uploading a clear photo to an electronics forum or using a component identification app can surface answers quickly. Avoid making assumptions about an unidentified part before testing or replacing it — one misidentified component can compound a fault rather than resolve it.

8. Additional Components Worth Knowing

Beyond the core passives and semiconductors covered earlier, certain specialized components appear regularly in power electronics, industrial boards, and mixed-signal designs. Being able to recognize and understand them rounds out your component vocabulary.

Transformers

Transformers transfer electrical energy between two or more circuits through electromagnetic induction, with no direct electrical connection between them. This makes them invaluable for voltage step-up and step-down in power supplies, as well as for galvanic isolation between circuit sections.

• Identification:Ferrite or laminated iron cores wound with copper wire, often encapsulated in a rectangular or toroidal package. Generally larger and heavier than inductors.
• Function:Voltage transformation, electrical isolation, and impedance matching.
• Reference Designator:T (e.g., T1, T3).

Silicon-Controlled Rectifiers (SCRs) and Thyristors

An SCR is a four-layer, three-terminal semiconductor device (anode, cathode, gate). Once triggered by a gate pulse, it conducts heavily until the current through it drops below a holding threshold. SCRs are common in motor drives, dimmers, and high-power rectifier stages where precise control of large currents is required.

• Identification:Three-terminal package similar in appearance to a power transistor (e.g., TO-220). The part number or “SCR” label is typically printed on the body.
• Function:Controlled switching and rectification of high-voltage or high-current AC/DC loads.
• Reference Designator:SCR or THY.

9. Testing Circuit Board Components

Before replacing a suspect component, always verify it is actually faulty. A digital multimeter is the most accessible and versatile tool for in-circuit and out-of-circuit testing. The following procedures cover the most common components you will encounter during diagnostics.

Testing Resistors

• Setup:Set the multimeter to the resistance (Ω) range that best matches the component’s rated value.
• Procedure:Place both probes across the resistor leads. The reading should be within the component’s tolerance band of its marked value.
• Fault indicators:An “OL” or infinite reading points to an open resistor; a reading near zero suggests a short circuit. Note that parallel components on a live board can skew readings—desolder one lead for a definitive measurement when in doubt.

Testing Capacitors

• Setup:Use the capacitance (F) mode on your multimeter, or an LCR meter for greater accuracy. Always discharge the capacitor fully before touching its leads.
• Procedure:Connect probes to both leads (observe polarity for electrolytics). The displayed capacitance should be close to the rated value printed on the body.
• Fault indicators:A value significantly below the rating suggests capacity loss. Near-zero resistance in resistance mode indicates a shorted capacitor. Also inspect visually for bulging tops or electrolyte leakage on through-hole electrolytics.

Testing Diodes

• Setup:Switch the multimeter to diode test mode (the diode symbol).
• Procedure:Connect the red probe to the anode and black probe to the cathode (the banded end). A functional silicon diode typically shows a forward voltage drop between 0.5 V and 0.7 V. Reverse the probes—a healthy diode will show “OL” (open).
• Fault indicators:A low voltage drop in both directions signals a shorted diode; “OL” in both directions signals an open diode. When forward-biasing an LED in diode mode, you should see it emit a faint glow.

Testing Inductors

• Setup:Use continuity or resistance mode for a quick pass/fail check; an LCR meter gives a precise inductance reading.
• Procedure:Touch the probes to both inductor terminals. A healthy winding should show very low resistance (typically under 10 Ω for most power inductors).
• Fault indicators:Infinite resistance points to a broken winding (open circuit). For thorough verification, compare the measured inductance value against the component’s datasheet specification using an LCR meter.

Recommended Testing Tools

• Digital Multimeter (DMM):The essential starting point for voltage, resistance, continuity, and diode checks.
• LCR Meter:Precisely measures inductance, capacitance, and resistance for components where tolerance matters.
• Oscilloscope:Invaluable for diagnosing signal-level issues, ripple on power rails, and timing problems in digital circuits.
• PCB Holder & Magnifying Glass:Keeps the board steady and aids visual inspection of fine-pitch SMD components for burn marks, cracks, or lifted pads.

10. Removing and Replacing Components Safely

Even with a confirmed fault, a repair can go wrong if components are removed carelessly. Lifted pads and damaged traces are far more time-consuming to fix than the original fault. The following workflow keeps the PCB intact and the new part properly installed.

Essential Tools

• Temperature-controlled soldering iron:Maintains a consistent tip temperature, preventing overheating of pads or heat-sensitive ICs.
• Desoldering pump or braid (wick):Clears molten solder from through-hole pads or fine-pitch areas before lifting the component.
• Hot-air rework station:The preferred method for SMD ICs and multi-pin packages, heating all joints simultaneously to avoid pad stress.
• Flux pen:Applying fresh flux improves solder flow, reduces bridging risk, and helps wick absorb old solder more effectively.
• Anti-static tweezers and PCB holder:ESD-safe tools protect sensitive semiconductors, while a board holder frees both hands for precise work.

Removal Procedure

• Power off and discharge:Disconnect all power and allow large capacitors to discharge fully before touching any joint.
• Apply heat and remove solder:Heat each joint in turn, then immediately clear the molten solder with a pump or braid. Repeat until the lead moves freely.
• Lift gently:Use tweezers to ease the component straight up without rocking, which can tear the pad from the board.
• Clean the pads:Remove residual flux and solder with isopropyl alcohol (IPA) and a cotton swab or PCB brush before installing the replacement.

Installation and Soldering Tips

• Verify orientation first:For polarized parts (diodes, electrolytic capacitors, ICs), confirm correct orientation against the silkscreen marking before applying any heat.
• Heat pad and lead together:Touch the iron tip to both the pad and the component lead simultaneously, then feed solder until it flows smoothly into a shiny, cone-shaped fillet.
• Minimize dwell time:Limit iron contact to 2–3 seconds per joint. Prolonged heat can delaminate the copper pad or stress nearby components.
• Inspect before powering on:Use a magnifying glass to check for solder bridges between adjacent pins, cold joints (dull, grainy surface), or incomplete wetting.

11. Where to Source Circuit Board Components

Knowing which component you need is only half the battle—finding a genuine, correctly-specified part is equally important, especially when dealing with obsolete or low-volume designs. The following channels cover the full spectrum from hobby orders to professional procurement.

PCBAndAssembly: Circuit Board Parts Supplier & PCB, PCBA Manufacturer

PCBAndAssembly is your trusted partner for professional PCB assembly and component sourcing. With 20+ years of expertise, we deliver precision you can count on.

• Capabilities: SMT & THT, supporting components down to 0201.
• Capacity:8 high-speed production lines for high-volume demands.
• Supply Chain:200k+ parts in stock with expert BOM cost-optimization.
• Quality: SPI, AOI, and X-ray inspected to IPC Class 2/3 standards.
• Compliance: ISO 9001, UL, and RoHS certified.

Send your Gerber and BOM to PCBAndAssembly now for a fast, accurate quote!

12. FAQ

Question: What is the difference between through-hole and SMD components?
Answer: Through-hole components have leads that pass through holes in the PCB and are soldered on the opposite side. SMD (Surface Mount Devices) are smaller and are soldered directly onto pads on the surface of the board. Through-hole is generally easier for prototyping, while SMD allows for higher component density and automated assembly.

Question: How do I identify the value of an SMD resistor?
Answer: SMD resistors typically use a 3 or 4-digit code. For a 3-digit code, the first two digits are the significant figures, and the third is the multiplier (number of zeros). For a 4-digit code, the first three are significant, and the fourth is the multiplier. An ‘R’ often denotes a decimal point (e.g., 102 = 1kΩ, 4R7 = 4.7Ω).

Question: Why is polarity important for some components?
Answer: Polarized components like electrolytic capacitors, diodes, and some ICs must be installed with the correct orientation. Incorrect polarity can lead to malfunction, damage to the component, or even catastrophic failure (e.g., electrolytic capacitors can explode if reverse-biased).

Question: What are the most common tools for identifying components?
Answer: A good magnifying glass or microscope, component datasheets, a multimeter (for basic checks like resistance or continuity), and familiarity with common component packages and markings are essential.

Question: How critical is the temperature rating of a component?
Answer: Extremely critical. Operating a component outside its specified temperature range can lead to significant degradation in performance, reduced lifespan, or immediate failure. High temperatures accelerate aging in most electronic components.

Question: What does a reference designator tell me?
Answer: A reference designator is a short code silkscreened next to each component on the PCB. The letter prefix identifies the component type (R = resistor, C = capacitor, U = IC, etc.) and the trailing number indicates its position in the schematic. Pairing the designator with the board’s schematic or BOM gives you the exact part specification without needing to read the component’s own markings.

Question: How do I test a component without desoldering it?
Answer: In-circuit testing is possible but must be interpreted with care, because parallel components on the same net can skew your reading. For resistors and diodes, a rough in-circuit check can still rule out gross faults like hard opens or short circuits. For capacitors, the surrounding circuitry almost always interferes enough to make the reading unreliable—desolder at least one lead for an accurate capacitance measurement.

Question: What is the difference between a transformer and an inductor?
Answer: Both use coils of wire on a magnetic core, but serve different roles. An inductor has a single winding and stores energy to filter or regulate current within one circuit. A transformer has two or more separate windings magnetically coupled together, transferring energy between circuits while stepping voltage up or down and providing galvanic isolation.

Question: Where is the safest place to buy replacement components?
Answer: Authorized distributors such as DigiKey, Mouser, Farnell, Arrow, and Avnet purchase directly from manufacturers and can provide full traceability documentation, making them the most reliable choice. Avoid sourcing critical components—especially ICs—from unverified third-party sellers, where counterfeit parts are a known risk. If a part is discontinued, check the manufacturer’s product change notice (PCN) for a recommended alternative rather than relying on appearance or partial part-number matches alone.

Question: How do I avoid lifting PCB pads when desoldering?
Answer: The two most common causes of lifted pads are excessive heat dwell time and forcing a component before the solder has fully melted. Apply fresh flux to improve heat transfer, limit iron contact to 2–3 seconds per joint, and lift the part straight out rather than rocking it sideways. For multi-pin SMD packages, a hot-air rework station heats all joints simultaneously and is far gentler on the board than working pin by pin with a contact iron.

13. Summary

Nav igating the complex world of circuit board parts requires a blend of knowledge in identification and strategic selection. From understanding the foundational role of the PCB to recognizing the myriad components—resistors, capacitors, diodes, ICs, and more—each element plays a vital part in a circuit’s operation. Deciphering component markings and schematic symbols provides the language to read and understand any electronic design.

Beyond identification, the art of choosing the right part involves a careful consideration of electrical, environmental, and physical specifications, balanced against performance, reliability, cost, and availability. Adopting best practices like rigorous datasheet review, prototyping, and strategic sourcing ensures that your electronic designs are not only functional but also robust, reliable, and cost-effective.

1. Introduction

Curious about how electronic devices work? From the smartphone in your pocket to the complex systems powering modern industries, every electronic product is built upon a foundation of seemingly tiny and simple parts: basic electronic components. These essential building blocks are the silent architects behind the functionality and stability of every circuit board, meticulously controlling the flow of current, processing signals, and ultimately bringing our digital world to life.

Whether you’re a budding hobbyist, an engineering student, or simply someone looking to grasp the fundamentals of the devices you use daily, understanding these components is a crucial first step. This comprehensive guide will demystify the core elements of electronics, providing you with a clear understanding of their types, functions, and real-world applications. Let’s delve into the fascinating world of electronic components basics and unlock the secrets of modern technology.

2. What Are Basic Electronic Components?

At their core, basic electronic components are individual physical parts that manipulate electrical signals within a circuit. They are the fundamental building blocks that work in concert to control, store, or amplify electricity, enabling devices like televisions, computers, and even simple LED flashlights to perform their intended functions. Without these components, our advanced electronic world would simply not exist.

These components come in various forms and sizes, from the traditional ” thru-hole” components designed to be inserted through holes on a circuit board to the compact “Surface Mount Devices” (SMD) that sit directly on the surface. Regardless of their physical manifestation, their primary role remains the same: to manage electrical energy and information according to the circuit’s design. Understanding their specific roles, functions, and applications is paramount for anyone involved in designing, building, or troubleshooting electronic systems.

3.  Active vs. Passive Components

To effectively navigate the vast landscape of electronic components, it’s essential to understand their primary categorization: active and passive components. This distinction is crucial for anyone stepping into the world of electronics, as it defines how a component interacts with electrical energy within a circuit. Both categories are indispensable, working together to achieve complex functionalities.

This fundamental understanding forms the bedrock for designing and analyzing electronic circuits. Each type plays a unique role, contributing to the overall performance and functionality of any electronic device.

4. Understanding Passive Electronic Components

Passive electronic components are foundational elements in any circuit, performing essential tasks without needing an external power source for their operation. They are responsible for resisting current, storing charge, or managing magnetic fields.

Resistors: Controlling Current Flow

Resistors are perhaps the most common and straightforward of all electronic components. Their primary function is to resist the flow of electric current, thereby controlling the voltage drop and current within a circuit. This resistance is measured in Ohms (Ω). By strategically placing resistors, engineers can ensure that other components receive the correct amount of current and voltage, protecting them from damage and allowing them to operate optimally.

• Function:Limit current, divide voltage, terminate transmission lines.
• Types:Fixed resistors (carbon film, metal film), variable resistors (potentiometers, rheostats), thermistors (temperature-dependent), photo resistors (light-dependent).
• Applications:LED current limiting, volume control in audio devices, sensor circuits, pull-up/pull-down resistors in digital logic.

Capacitors: Storing Electrical Energy

Capacitors are two-terminal passive electronic components that store electrical energy in an electric field. Think of them as tiny, rechargeable batteries that can release their stored energy very quickly. This ability to store and release charge makes them indispensable for a wide range of functions, from smoothing out power supplies to filtering signals.

• Function:Store electrical charge, block DC current while allowing AC to pass, filter noise, smooth power supply output.
• Types:Ceramic, electrolytic, tantalum, film, variable capacitors.
• Applications:Power supply filtering, timing circuits, coupling and decoupling signals, energy storage in camera flashes, touch screens.

Inductors: Managing Magnetic Fields

Inductors are passive electronic components that store energy in a magnetic field when electric current flows through them. Typically made of a coil of wire, inductors resist changes in current flow, a property known as inductance, measured in Henries (H). They are particularly useful in AC circuits for filtering, tuning, and energy conversion.

• Function:Store energy in a magnetic field, oppose changes in current, filter AC signals.
• Types:Air-core, iron-core, ferrite-core, variable inductors.
• Applications:RF circuits, power supplies (chokes), filters, tuning circuits in radios, transformers.

5. Exploring Active Electronic Components

Active electronic components are the dynamic workhorses of electronics, capable of controlling, amplifying, or generating electrical power and signals. Unlike passive components, they require an external power source to function, allowing them to perform more complex tasks and essentially bring a circuit to life.

Diodes: One-Way Electrical Gates

A diode is a semiconductor device that essentially acts as a one-way valve for electric current. It allows current to flow easily in one direction (forward bias) but strongly resists current flow in the opposite direction (reverse bias). This unique property makes diodes crucial for converting AC to DC, protecting circuits, and light emission.

• Function:Rectify AC to DC, protect circuits from reverse polarity, regulate voltage, emit light.
• Types:Rectifier diodes, Zener diodes (for voltage regulation), Light Emitting Diodes (LEDs), Schottky diodes.
• Applications:Power supplies (rectifiers), voltage regulators, indicator lights, laser pointers, solar cells.

Transistors: Amplifiers and Switches

Transistors are arguably the most important invention in modern electronics, serving as the fundamental building blocks of virtually all electronic devices. They can act as electronic switches, turning current on or off, or as amplifiers, boosting the strength of an electrical signal. This dual capability makes them indispensable for everything from digital logic to audio amplification.

• Function:Amplify electronic signals, act as high-speed electronic switches.
• Types:Bipolar Junction Transistors (BJTs), Field-Effect Transistors (FETs – including MOSFETs).
• Applications:Microprocessors, memory chips, amplifiers (audio, RF), digital logic gates, power switching.

Integrated Circuits (ICs): The Brains of Modern Electronics

Integrated Circuits, or ICs, are miniaturized electronic circuits fabricated on a single semiconductor material, typically silicon. They contain thousands, millions, or even billions of transistors, resistors, and capacitors interconnected to perform highly complex functions. ICs are the brains behind smartphones, computers, and countless other intelligent devices, consolidating intricate circuitry into a tiny package.

• Function:Perform complex computational, control, or processing tasks.
• Types:Microprocessors (CPUs), Micro controllers (MCUs), Memory chips (RAM, ROM), Amplifiers (Op-Amps), Digital logic gates.
• Applications:Nearly all modern electronic devices, including computers, mobile phones, automotive systems, medical equipment, consumer electronics.

6. Beyond the Basics: Other Essential Components

While resistors, capacitors, inductors, diodes, transistors, and ICs form the core of most electronic systems, many other components play vital roles. These include:

• Switches:Components that mechanically connect or disconnect electrical paths.
• Sensors:Devices that detect and respond to physical input from the environment, converting it into an electrical signal (e.g., temperature, light, pressure sensors).
• Connectors:Mechanical devices used to join electrical conductors, creating a continuous electrical path.
• Batter ies:Devices that convert chemical energy into electrical energy to provide power.

Each of these components contributes to the overall functionality and interactivity of electronic devices, highlighting the intricate interplay required for complete and stable operations.

7. Basic Electronic Components FAQ

8. Summary

The world of electronics, from the simplest gadget to the most sophisticated supercomputer, is built upon a foundation of basic electronic components. We’ve explored the two main categories – passive components like resistors, capacitors, and inductors that manage energy flow, and active components such as diodes, transistors , and integrated circuits that control and amplify signals. Understanding these fundamental building blocks is not just academic theory; it’s a real-world necessity for anyone looking to design, build, source, or troubleshoot electronic projects. With this guide, you now have the foundational knowledge to grasp the “electronic components list” and embark on your journey into the fascinating realm of electronics with confidence.

Key Takeaways

• Every electronic device, from smartphones to circuit boards, relies on basic electronic components for its function.
• Electronic components are broadly categorized into passive (resistors, capacitors, inductors) and active (diodes, transistors, ICs) types.
• Passive components manage electrical energy by resisting, storing, or filtering without needing an external power source.
• Active components control, amplify, or generate electrical signals, requiring an external power supply to operate.
• Integrated Circuits (ICs) are miniature powerhouses that combine millions of components to perform complex tasks, enabling modern technology.
• A solid understanding of these components is crucial for anyone engaging with electronics, from hobbyists to professional engineers.

Key Takeaways

• RF amplifiers are critical for boosting weak radio frequency signals, enabling long-range wireless communication and overcoming signal loss.
• Efficiency classes(A-F) define an amplifier’s trade-off between linearity and power consumption, tailored for specific applications like high-fidelity or high-power transmission.
• Key design parameters include gain, bandwidth, linearity, efficiency, noise performance, and power handling, all crucial for optimal performance.
• Advanced materials like GaN and SiC are revolutionizing RF amplifier design, offering higher power density, efficiency, and thermal performance for modern systems.
• RF amplifiers are essential in diverse fields, including cellular networks, Wi-Fi, radar, satellite communication, broadcasting, and electronic warfare.

1. The Heart of Wireless Communication

In our increasingly connected world, seamless wireless communication is not just a convenience—it’s a necessity. From the smartphones in our pockets to sophisticated radar systems and vast satellite networks, the invisible waves of Radio Frequency(RF) signals carry the backbone of modern data exchange. At the very core of enabling these signals to travel far and wide, overcoming attenuation and interference, lies a critical component: the RF amplifier.

These electronic powerhouses are responsible for taking weak RF signals and boosting their amplitude, transforming them into robust outputs capable of reaching their intended destinations with clarity and reliability. Without RF amplifiers, wireless communication systems would be limited to incredibly short ranges, rendering much of our current technology impractical. This guide delves into the intricate world of RF amplifiers, exploring their definition, historical evolution, operational principles, efficiency classes, design considerations, and diverse applications that underscore their pivotal role in the digital age.

2. What is an RF Amplifier?

An RF(Radio Frequency) amplifier is an electronic device or circuit specifically designed to increase the power of a radio frequency signal. It serves as an essential component in a multitude of wireless communication systems, acting as the critical final stage in transmitter systems where it converts low-power RF signals into higher-power outputs suitable for antenna transmission.

The primary function of an RF amplifier is to boost the amplitude of an RF signal while meticulously maintaining its integrity and minimizing distortion. This amplification is crucial for several reasons: it enables signals to travel longer distances, compensates for signal losses experienced during transmission through various media, and ensures that the signal arrives at its destination with sufficient strength to be effectively processed and understood. Operating at high frequencies, typically ranging from megahertz(MHz) to gigahertz(GHz), RF amplifiers are engineered to handle the unique challenges presented by these higher frequencies, distinguishing them from other types of amplifiers.

3. A Brief History and Evolution

The journey of the RF amplifier is deeply intertwined with the history of radio technology itself. Its development dates back to the early 20th century, primarily beginning with the invention of the vacuum tube amplifier. These early amplifiers were bulky, consumed significant power, and generated a lot of heat, yet they laid the foundational principles for signal amplification.

Over the years, significant advancements in semiconductor technology revolutionized RF amplifier design. The transition from vacuum tubes to transistors, particularly bipolar junction transistors(BJTs) and later field-effect transistors(FETs), allowed for the creation of smaller, more efficient, and more reliable amplifiers. This evolution continued with the advent of Integrated Circuits(ICs), enabling complex amplifier designs to be miniaturized and mass-produced, making wireless communication ubiquitous. Modern RF amplifiers leverage advanced materials and sophisticated designs to achieve superior performance metrics, pushing the boundaries of what’s possible in wireless communication.

4. Differentiating Amplifier Types

Within the broad realm of signal augmentation, amplifiers serve distinct functions tailored to specific signal characteristics. While all amplifiers increase signal power, their design and application vary significantly:

• Audio Amplifiers:These are crafted for the enhancement of audio signals within the audible frequency spectrum. They are crucial for applications ranging from music reproduction in home theater systems to public address systems, ensuring sound is clear and robust.
• RF(Radio Frequency) Amplifiers:As discussed, these specialized amplifiers undertake the task of fortifying high-frequency radio waves. They are indispensable in wireless communication networks, radar technology, and various domains entailing the propagation and capture of high-frequency transmissions.
• Digital Amplifiers(Class-D):Also recognized as switching amplifiers, digital amplifiers are tailored to elevate digital signals. They prominently feature in contemporary audio amplification systems, lauded for their efficiency and compact stature, often converting analog signals to a pulse-width modulated(PWM) digital signal before amplification.

The key distinction lies in the frequency range they operate within and the specific characteristics(like linearity vs. efficiency) they prioritize, which dictate their design and material choices.

5. Key Parameters in RF Amplifier Design

Designing an RF amplifier is a complex task that requires careful consideration of several critical parameters to ensure optimal performance for a given application. These parameters define an amplifier’s capabilities and limitations:

• Gain:This is a measure of how much an amplifier increases the power or amplitude of a signal. It’s typically expressed in decibels(dB) and is a fundamental specification, indicating the amplifier’s ability to boost weak signals.
• Bandwidth:Bandwidth refers to the range of frequencies over which the amplifier can operate effectively. A wide bandwidth allows an amplifier to handle a broader spectrum of signals simultaneously, which is crucial for multi-channel communication systems.
• Linearity:Linearity describes the amplifier’s ability to reproduce the input signal without introducing distortion. High linearity is vital for complex modulation schemes(like QAM), where signal integrity is paramount, ensuring that the amplified signal accurately represents the original information.
• Efficiency:Amplifier efficiency is the ratio of the output RF power to the DC input power. High efficiency is crucial, especially in battery-powered devices and high-power transmitters, as it reduces heat generation and power consumption, extending battery life and lowering operational costs.
• Noise Performance:Measured by the noise figure(NF), this parameter indicates how much noise the amplifier adds to the signal. A low noise figure is critical, especially in receiver applications, to ensure that weak signals can still be accurately detected amidst system noise.
• Power Handling:This refers to the maximum output power an amplifier can deliver without damage or significant performance degradation. It’s a key consideration for high-power applications like broadcast transmitters or radar systems.

6. Understanding RF Amplifier Efficiency Classes

RF amplifier efficiency classes categorize amplifiers based on their conduction angle, which dictates their trade-offs between linearity and power consumption. Each class is optimized for specific applications, balancing the need for signal fidelity with energy conservation.

Class C amplifiers, for instance, are notable for delivering up to 85% efficiency, but they achieve this by sacrificing linearity, making them ideal for applications like FM transmitters and radar where the signal is either constant amplitude or specific harmonic content can be filtered. In contrast, Class A amplifiers offer the highest linearity but at significantly lower efficiency, often around 20-50%, making them suitable for precise laboratory equipment and high-fidelity audio where signal purity is paramount.

7. Advanced Materials in RF Amplifiers

The pursuit of higher efficiency, increased power density, and improved thermal performance in RF amplifiers has led to the adoption of advanced semiconductor materials. Traditional silicon-based devices have their limitations, especially at higher frequencies and power levels. Modern RF amplifiers are increasingly leveraging Wide Band Gap(WBG) semiconductors:

• Gallium Nitride(GaN):GaN is a revolutionary material for RF applications due to its high electron mobility and breakdown voltage. GaN amplifiers can operate at higher temperatures and frequencies than silicon devices, providing superior power density and efficiency. This makes them ideal for 5G infrastructure, radar systems, and aerospace applications where size, weight, and power(SWaP) are critical considerations.
• Silicon Carbide(SiC):SiC also boasts excellent thermal conductivity and high breakdown voltage. While often used in power electronics for higher voltage applications, SiC is increasingly being explored for RF power devices, offering robustness and efficiency benefits, particularly in high-power, high-frequency environments.

These advanced materials allow for the development of RF amplifiers that are smaller, more efficient, and capable of handling greater power outputs, directly contributing to the advancements seen in modern wireless communication systems.

8. Diverse Applications of RF Amplifiers

RF amplifiers are truly the unsung heroes behind much of our daily technology. Their ability to boost signals makes them indispensable across a vast array of industries and applications:

• Wireless Communication Systems:This is the most prevalent application. RF amplifiers are central to cellular networks(2G, 3G, 4G, 5G), Wi-Fi routers, Bluetooth devices, and satellite communications. They ensure that signals from your phone reach the nearest cell tower and that satellite dishes can transmit and receive data from orbiting spacecraft.
• Radar Systems:In military, aviation, and weather forecasting, radar systems rely on powerful RF amplifiers to transmit signals over long distances and receive faint echoes, enabling detection, ranging, and mapping.
• Broadcast Transmitters:Radio and television broadcasting stations use high-power RF amplifiers to send signals across wide geographical areas, reaching countless homes and devices.
• Electronic Warfare(EW):In defense applications, RF amplifiers are used in jamming systems, electronic countermeasures, and signal intelligence, playing a critical role in controlling the electromagnetic spectrum.
• Medical Devices:MRI machines and other diagnostic imaging equipment utilize RF amplifiers for generating and detecting high-frequency signals.
• Industrial Heating:Some industrial processes, such as plasma generation and RF welding, employ high-power RF amplifiers.
• Test and Measurement Equipment:Laboratories and manufacturing facilities use RF amplifiers in signal generators, spectrum analyzers, and network analyzers for testing and characterizing other RF components and systems.

The versatility and necessity of RF amplifiers highlight their foundational role in modern technology, continuously evolving to meet the demands of new communication paradigms.

9. Design Considerations for Optimal Performance

Designing an RF amplifier is a nuanced process that demands a holistic approach, considering the interplay of multiple factors to achieve optimal performance for a specific application. Beyond the key parameters discussed earlier(gain, bandwidth, linearity, efficiency, noise performance, power handling), several other critical considerations guide the design process:

• Matching Networks:Impedance matching is paramount in RF design. Input and output matching networks are crucial for maximizing power transfer between the amplifier and its preceding/succeeding stages(e.g., antenna, filter). Poor matching can lead to reflections, power loss, and instability.
• Stability:RF amplifiers can be prone to oscillation if not designed carefully. Stability analysis and the incorporation of stabilization techniques(e.g., resistive loading, feedback loops) are essential to prevent unwanted self-oscillation.
• Thermal Management:High-power RF amplifiers generate significant heat, especially those with lower efficiency classes. Effective thermal management, including heatsinks, fans, and appropriate PCB layouts, is critical to prevent device failure and ensure long-term reliability. Advanced materials like GaN and SiC help manage heat better, but cooling is still a key concern.
• Power Supply Design:A stable and clean power supply is vital for optimal amplifier performance. Noise and ripple on the power rails can degrade linearity and introduce unwanted spurs in the RF signal.
• Packaging:The physical packaging of the amplifier can significantly impact its performance, especially at higher frequencies. Parasitic inductances and capacitances introduced by the package must be minimized.
• Cost and Manufacturability:Practical design also involves balancing performance goals with cost constraints and ease of manufacturing. Component selection, PCB layout, and assembly processes all contribute to the final product’s cost and reliability.

Successful RF amplifier design requires a deep understanding of RF theory, careful component selection, advanced simulation tools, and rigorous testing to navigate these complex considerations and deliver a robust, high-performance solution.

10. RF Amplifier FAQs

11. Summary

RF amplifiers are indispensable electronic components that form the backbone of modern wireless communication and countless other advanced technologies. By boosting weak radio frequency signals, they enable long-distance transmission, counteract signal attenuation, and ensure reliable data exchange across diverse applications, from everyday cellular networks to sophisticated radar systems. Understanding their definition, historical evolution, and the critical design parameters such as gain, bandwidth, linearity, and efficiency is crucial for engineers and enthusiasts alike.

The variety of RF amplifier efficiency classes(A through F and beyond) highlights the necessary trade-offs between signal purity and power conservation, with specific classes optimized for distinct use cases. Furthermore, the advent of advanced materials like Gallium Nitride(GaN) and Silicon Carbide(SiC) continues to push the boundaries of performance, leading to more compact, powerful, and energy-efficient designs. As wireless technology continues its rapid advancement, the role of the RF amplifier remains as pivotal as ever, driving innovation in connectivity and communication.

In our increasingly connected world, electronics are everywhere—from the smartphones in our pockets to the complex machinery in factories. At the heart of nearly every electronic device lies a Printed Circuit Board(PCB), a foundational element that provides the electrical connections and mechanical support for electronic components. But a PCB is more than just a green board; it’s a meticulously designed ecosystem of components, each playing a critical role in the device’s functionality. This ecosystem, often referred to as PCB hardware, is integral for everything from data cabinets and home appliances to office equipment and industrial controls. Understanding these components is paramount for anyone involved in electronics design, manufacturing, or even advanced hobbyist projects.

This comprehensive guide delves into the intricate world of PCB hardware, exploring the diverse components that enhance performance, ensure reliability, and enable the sophisticated operations we take for granted. We’ll break down classifications, analyze core electronic components, and discuss best practices for selection and design.

1. Why PCB Hardware Matters?

The performance, reliability, and longevity of any electronic device are directly tied to the quality and suitability of its PCB hardware. Choosing the right components isn’t merely about making a circuit work; it’s about optimizing its efficiency, managing thermal performance, ensuring signal integrity, and meeting specific application requirements. For instance, in high-frequency applications, the choice of substrate material and connector type can significantly impact data transmission speeds and signal loss. In power applications, the correct power management chips and passive components are crucial for stable voltage regulation and preventing overheating.

Incorrectly chosen or substandard PCB components can lead to a myriad of issues, including:

• Reduced operational lifespan due to component failure.
• Intermittent functionality or complete system failure.
• Increased power consumption and heat generation.
• Compromised signal integrity, leading to data errors.
• Difficulty in manufacturing and increased production costs.

Therefore, a deep understanding of PCB hardware is not just beneficial, but essential for engineers and designers aiming to create robust, high-performance electronic products. The initial investment in selecting the right hardware ultimately pays off in device stability, user satisfaction, and overall product success.

2. Understanding PCB Classification Systems

Before diving into individual components, it’s helpful to understand how PCBs themselves are classified, as this often dictates the type of hardware and design considerations. PCBs can be categorized in several ways:

Classification by Structural Layers

• Single-Layer PCBs:The simplest type, with components mounted on one side and conductors on the other. Ideal for low-cost, low-density applications.
• Double-Layer PCBs:Feature conductive layers on both sides, connected by vias. They offer higher density and more complex routing.
• Multi-Layer PCBs:Consist of three or more conductive layers separated by insulating materials. They are essential for complex electronics, high-speed signals, and power distribution, providing superior signal integrity and noise reduction.

Classification by Base Material

• FR-4 (Flame Retardant 4):The most common PCB material, made of woven fiberglass cloth with an epoxy resin binder. It is known for its good balance of electrical, mechanical, and thermal properties.
• Metal Core PCBs (MCPCBs):Utilize a metal base (e.g., aluminum, copper) for improved heat dissipation. They are ideal for high-power LED lighting and automotive applications.
• Flexible PCBs:Made from flexible plastic substrates, allowing the board to bend and conform to various shapes. They are used in compact, wearable devices.
• Rigid-Flex PCBs:Combine rigid and flexible board technologies, offering the best of both worlds for challenging form factors and dynamic applications.
• High-Frequency/RF PCBs:Employ specialized materials like PTFE (Teflon) or ceramic-filled hydrocarbons, offering low dielectric loss and stable performance at high frequencies, crucial for telecommunications and radar systems.

Classification by Special Processes

Beyond material and structure, PCBs can also be classified by specific manufacturing processes or features, such as High-Density Interconnect (HDI) PCBs, boards with embedded components, or those designed for extreme environmental conditions.

3. Essential PCB Hardware Components Explained

The true magic of a PCB lies in the synergy of its diverse components. Let’s explore the core electronic components that populate these boards, detailing their functions and applications.

3.1 Main Control Chips

Often referred to as the “brain” of an electronic device, main control chips are responsible for executing instructions, processing data, and managing overall system operations. They come in various forms, each suited for different levels of complexity and performance.

• Microcontrollers (MCUs):Integrated circuits that contain a processor core, memory (RAM, ROM, flash), and programmable input/output peripherals on a single chip. They are designed for embedded applications requiring real-time control, such as washing machines, remote controls, and automotive systems.
• Microprocessors (MPUs):More powerful than MCUs, MPUs primarily consist of a Central Processing Unit (CPU) and rely on external memory and peripherals. They are found in computers, servers, and complex embedded systems that require significant processing power and memory.
• Digital Signal Processors (DSPs):Specialized microprocessors designed to perform high-speed mathematical operations for signal processing tasks, like audio and video processing, telecommunications, and radar.
• Field-Programmable Gate Arrays (FPGAs):Integrated circuits that can be configured by the user after manufacturing. They offer high parallel processing capabilities and are ideal for applications requiring custom logic, rapid prototyping, and hardware acceleration.

3.2 Driver Chips

Driver chips act as intermediaries, translating control signals from the main control unit into the specific electrical signals required to operate other components or systems. They are crucial for interfacing and managing external devices.

• Motor Drive Specialization:These chips control various types of motors (DC, stepper, brushless DC) by regulating current, voltage, and direction. They are vital in robotics, automation, and any device involving motion.
• Display Drivers:Responsible for controlling pixels and light output on LCD, LED, and OLED displays. They manage the complex array of signals needed to render images and text.
• Power Drivers:Used to switch high currents or voltages on and off, often in conjunction with power transistors. They are found in power supplies, lighting control, and industrial equipment.
• LED Drivers:Specifically designed to regulate current flowing through LEDs, ensuring consistent brightness and protecting them from damage due to voltage fluctuations.

3.3 Power Management Chips

Efficient and stable power delivery is critical for any electronic circuit. Power management chips ensure that each component receives the precise voltage and current it needs, protecting the system from power fluctuations and optimizing energy consumption.

• Voltage Regulators:Maintain a constant output voltage regardless of input voltage fluctuations or load changes. Linear regulators (LDOs) are simple but less efficient, while switching regulators (buck, boost, buck-boost) offer higher efficiency.
• DC-DC Converters:Transform one DC voltage level to another. They are essential for battery-powered devices and systems requiring multiple voltage rails.
• Battery Management Systems (BMS):Monitor and manage rechargeable batteries, ensuring safe operation, optimal charging, and extended battery life.
• Power Factor Correction (PFC) Controllers:Improve the power factor of AC-DC power supplies, reducing reactive power and improving efficiency.

3.4 Passive Component

Passive components do not generate power but are fundamental for shaping signals, storing energy, and limiting current. Their accurate selection is vital for circuit stability and performance.

• Resistors:Limit current flow, divide voltage, and dissipate heat. Key parameters include resistance (ohms), tolerance (%), and power rating (watts).
• Capacitors:Store electrical energy, block DC current while allowing AC to pass, and filter noise. Important parameters include capacitance (Farads), voltage rating, and equivalent series resistance (ESR).
• Inductors:Store energy in a magnetic field, block high-frequency noise, and are used in filters and power converters. Key parameters are inductance (Henries) and current rating.
• Crystal Oscillators:Provide a stable clock signal for timing and synchronization in digital circuits. Defined by their resonant frequency (Hz).

3.5 Semiconductor Discrete Devices

These individual semiconductor components perform specific functions like rectification, amplification, or switching.

1) Diodes: Allow current to flow in only one direction. Used for rectification (converting AC to DC), voltage regulation (Zener diodes), and protecting circuits from reverse voltage.

2) Transistors: Fundamental building blocks for amplification and switching.

• Bipolar Junction Transistors (BJTs):Current-controlled devices, used for amplification and switching. They have three operating states: Cut-off (off), Active (amplification), and Saturation (on).
• Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs):Voltage-controlled devices, offering high input impedance, faster switching speeds, and lower on-state resistance compared to BJTs, making them ideal for power switching applications.

3.6 Connectors

They provide the physical and electrical interface between different parts of a circuit board or between the board and external devices. Their structural classification varies widely:

• Board-to-Board Connectors:Link multiple PCBs within a system.
• Wire-to-Board Connectors:Connect discrete wires to a PCB, commonly used for power or data signals.
• Input/Output (I/O) Connectors:Enable external devices to connect to the PCB (e.g., USB, HDMI, Ethernet, audio jacks).
• RF Connectors:Specialized connectors (e.g., SMA, BNC) designed for high-frequency signals, minimizing signal loss and interference.
• Power Connectors:Designed to handle higher currents for power delivery to the board or other components.

Key considerations for connectors include pins, pitch, current rating, voltage rating, mating cycles, environmental sealing, and mounting style.

4. Selecting the Right PCB Hardware

Choosing the appropriate PCB hardware is a multi-faceted decision process that goes beyond simply finding a component that “fits”. It requires a holistic understanding of the application, environment, and performance goals. Here are key factors to consider:

• Application Requirements:What is the device’s primary function? What are its speed, power, and signal integrity requirements? For example, a high-frequency communication device will demand different components than a low-power IoT sensor.
• Environmental Conditions:Will the device operate in extreme temperatures, high humidity, or vibrating environments? Industrial and automotive applications often require ruggedized components with extended temperature ranges.
• Performance Specifications:Closely examine datasheets for critical parameters like voltage ratings, current ratings, frequency response, power dissipation, and accuracy. Ensure these specifications meet or exceed your design needs.
• Cost vs. Performance:Balance the budget with performance expectations. Sometimes, a slightly more expensive component can significantly improve reliability or simplify design, leading to overall cost savings.
• Availability and Lead Times:Consider the supply chain. Are the components readily available from multiple manufacturers? What are the typical lead times, especially for high-volume production?
• Footprint and Package Size:Ensure the component’s physical dimensions and package type are compatible with your PCB layout and space constraints.
• Thermal Management:For power-intensive components, evaluate their thermal characteristics and ensure adequate heat dissipation mechanisms are in place (e.g., heatsinks, proper PCB layout).
• Regulatory Compliance:Check for necessary certifications (e.g., RoHS, CE, FCC) relevant to your target market.

5. Best Practices for PCB Design

The choice of hardware is only half the battle; how these components are integrated into the PCB design is equally crucial. Adhering to best practices in PCB design ensures manufacturability, reliability, and optimal performance.

• Schematic Design:Start with a clear and well-organized schematic. Use standard symbols, ensure proper net labeling, and verify power and ground connections. This forms the blueprint for your hardware integration.
• Component Placement:Group related components, minimize trace lengths for high-speed signals, and place decoupling capacitors close to ICs. Consider thermal management early by placing heat-generating components strategically.
• Trace Routing:Follow design rules for trace width, spacing, and impedance control, especially for high-frequency signals. Use ground planes to improve signal integrity and reduce electromagnetic interference (EMI).
• Power Distribution Network (PDN):Design a robust PDN to deliver stable power to all components. Use appropriate trace widths for current carrying capacity and proper decoupling.
• Design for Manufacturability (DFM) and Assembly (DFA):Consider manufacturing tolerances, component spacing for automated assembly, and test point accessibility. Early DFM/DFA considerations can significantly reduce production costs and time.
• Signal Integrity (SI) and Power Integrity (PI): Address potential SI/PI issues through careful impedance matching, proper termination, and effective ground plane design, particularly for high-speed or high-frequency designs.
• Layer Stack-up Optimization:For multi-layer PCBs, optimize the layer stack-up to provide clear signal paths, effective shielding, and efficient power distribution.

6. PCB Hardware FAQs

7. Summary

The Printed Circuit Board is the backbone of modern electronics, and its performance is directly dictated by the quality and thoughtful integration of its hardware components. From the intelligent main control chips that process information to the steadfast passive components that shape electrical signals, each piece of PCB hardware plays a vital role. Understanding PCB classifications, the distinct functions of core electronic components like driver chips, power management units, and semiconductors, and the nuances of connectors is fundamental. Furthermore, making informed decisions during component selection and adhering to robust PCB design best practices are indispensable steps towards creating reliable, efficient, and high-performance electronic devices. As technology continues to advance, the mastery of PCB hardware and design will remain a cornerstone for innovation.

Key Takeaways

• PCB hardware is critical for the functionality, reliability, and longevity of all electronic devices.
• Component selection must be holistic, considering application, environment, performance, cost, and availability.
• Core components like MCUs, driver chips, and power management ICs are the intelligence and control centers of a PCB.
• Passive components (resistors, capacitors, inductors) are essential for signal shaping, energy storage, and current control.
• Adhering to PCB design best practices (schematics, placement, routing, DFM/DFA) is crucial for optimal performance and manufacturability.

Key Takeaways

• SMAis ideal for high-frequency (up to 18 GHz+) applications needing stable, precise connections.
• BNCis perfect for lower-to-medium frequency (up to 2-4 GHz) uses requiring quick connect/disconnect and high durability.
• Always match the impedance (50 Ohm for RF, 75 Ohm for video ) to avoid signal degradation.
• The locking mechanism (threaded vs. bayonet) dictates ease of use and vibration resistance.
• Choosing the correct antenna connector is vital to avoid damage and ensure system compatibility.
• Size is a deciding factor for PCB design: SMA’s sub-miniature form factor fits high-density boards and portable devices; BNC’s larger footprint suits bench equipment and field setups where easy hand connection matters.

1. Why RF Connectors Matter?

In the intricate world of radio frequency (RF) technology, seemingly small components can play an enormous role in system performance. Among these “unsung heroes” are RF connectors, the crucial links that ensure seamless signal transmission across a myriad of devices and systems. Whether you’re a seasoned engineer designing complex high-frequency boards or a hobbyist setting up your first radio, the choice of connector isn’t a minor detail—it’s paramount for preserving signal integrity and preventing hidden headaches. Choosing the wrong connector can lead to compatibility issues, degraded performance, or even damage to your equipment.

Among the vast array of coaxial connectors, the SMA (Sub-Miniature A) and BNC (Bayonet Neill-Concelman) types stand out as two of the most commonly encountered. While both perform the basic function of joining coaxial cables, their distinct characteristics make them suitable for vastly different applications. This comprehensive guide will delve into the fundamental differences between SMA and BNC connectors, helping you confidently pick the right gear and optimize your RF setup.

2. Understanding SMA Connectors

SMA connectors are compact, threaded RF connectors renowned for their high-frequency capabilities and precision. Developed in the 1960s, they are designed for frequencies typically up to 18 GHz, and sometimes even higher with specialized versions. The “Sub-Miniature” in their name highlights their small form factor, which is crucial for modern, compact electronic devices.

Key Characteristics of SMA Connectors:

• Threaded Coupling:SMA connectors utilize a screw-on threaded mechanism, which provides a secure, vibration-resistant connection. This firm coupling ensures excellent electrical contact and minimal signal loss, especially at higher frequencies.
• High Frequency Performance:Their design, which often includes a dielectric material like PTFE (polytetrafluoroethylene), minimizes reflections and maintains a constant impedance, making them ideal for high-frequency applications.
• Standard Impedance:SMA connectors are predominantly 50-ohm impedance, matching the requirements of most RF and microwave systems.
• Durability:While small, their robust threaded design offers good mechanical stability. However, they are not designed for frequent mating cycles due to the wear and tear on the threads.

Commonly found in wireless communication modules, Wi-Fi antennas, GPS receivers, microwave components, and various high-frequency test equipment, SMA connectors are the go-to choice when signal integrity at higher frequencies and a stable connection are paramount.

3. Exploring BNC Connectors

BNC connectors, short for “Bayonet Neill-Concelman” were invented in the late 1940s and quickly became a standard for low-to-medium frequency coaxial connections. Their most distinguishing feature is the bayonet-style coupling mechanism, which allows for quick and easy connect and disconnect cycles, making them incredibly popular in environments requiring frequent changes.

Key Characteristics of BNC Connectors:

• Bayonet Coupling:The signature quarter-turn bayonet lock enables rapid connection and disconnection without threading. This convenience makes them a favorite for test benches and field applications.
• Frequency Range:BNC connectors typically perform well up to 2-4 GHz, although specialized versions can extend this slightly. Beyond this range, their electrical characteristics, such as increased return loss, can degrade signal quality.
• Impedance Options:While 50-ohm versions are common for RF applications, 75-ohm BNC connectors are widely used in video transmission and broadcast environments.
• Robustness:The bayonet mechanism is robust and designed for a high number of mating cycles, making them excellent for dynamic environments.

BNC connectors are ubiquitous in video surveillance systems, broadcast equipment, laboratory test and measurement instruments, and older Ethernet networks (10BASE2). Their ease of use and reliability for lower frequency ranges have cemented their place in countless applications.

4. SMA vs. BNC: Key Differences at a Glance

To help visualize the primary distinctions, here’s a quick comparison table outlining the core differences between these two prevalent RF connectors:

5. In-Depth Comparison: 7 Key Differences

While the table provides a concise overview, let’s explore these differences in more detail to understand their practical implications.

5.1 Coupling Mechanism: Threaded vs. Bayonet

This is the most immediately visible difference and has the most direct impact on day-to-day usability.

SMA’s threaded coupling creates a mechanically tight joint that resists vibration, pull-out, and movement. Once tightened to the correct torque (typically 3–5 in-lb for standard SMA), the connection is extremely stable. The downside is time: threading takes longer than a bayonet lock, and repeated overtightening will damage the threads or the center pin of the mating connector.

BNC’s bayonet lock is engineered for speed. Push, rotate 90°, and the two spring-loaded pins engage. The entire operation takes under a second. This makes BNC the natural choice for oscilloscope probes, signal generator outputs, and any setup that changes frequently throughout the working day. The trade-off is that the bayonet provides less resistance to sustained vibration — in high-vibration environments like vehicles or industrial equipment, the BNC may work loose over time.

5.2 Frequency Range and Signal Integrity

This is the technically decisive difference between SMA and BNC.

SMA connectors are precision-engineered to maintain a consistent 50Ω impedance from DC up to 18 GHz. The small geometry of the connector, combined with PTFE dielectric and a tight threaded fit, minimizes parasitic inductance and capacitance that would otherwise degrade signal at high frequencies. Specialized versions (SMA-P, 3.5 mm compatible) extend the usable range beyond 26.5 GHz, covering the frequencies used in 5G mmWave, satellite downlinks, and advanced radar systems.

BNC connectors begin to show measurable performance degradation above 1–2 GHz due to impedance discontinuities in the larger bayonet geometry. While rated to 2–4 GHz depending on grade, real-world return loss and insertion loss start climbing well before that upper limit. For any application above 4 GHz — including modern 802.11ac/ax Wi-Fi, LTE, and all 5G bands — BNC is not a viable choice.

5.3 Impedance Matching

SMA connectors are manufactured almost exclusively to 50Ω. This makes component selection straightforward: every SMA cable, adapter, and connector in a standard RF bill of materials shares the same impedance. No accidental mismatch.

BNC connectors are available in both 50Ω and 75Ω variants. The 50Ω version is used for general RF work. The 75Ω version is the broadcast video standard — it matches the characteristic impedance of RG-59 and RG-6 coaxial cable used for analog video, HD-SDI, and 3G-SDI signals. Physically, 50Ω and 75Ω BNC connectors can mate with each other, but the impedance mismatch introduces reflections. In a video system, this causes signal artifacts; in an RF measurement setup, it corrupts the measurement. Always verify impedance before mixing BNC hardware.

5.4 Size and PCB Form Factor

SMA’s sub-miniature dimensions make it the standard RF connector interface for modern PCB-mounted wireless hardware. Edge-mount and end-launch SMA connectors add minimal height to a board and are compatible with automated PCB assembly processes. For IoT devices, drones, handheld instruments, and any battery-powered wireless product, SMA is the practical choice.

BNC’s larger body makes it impractical for most PCB mounting in portable devices, but it is well-suited for panel-mount applications on bench equipment. The larger connector body also accommodates larger-diameter coaxial cable, which is relevant for broadcast video installations where cable runs are long and cable quality matters for signal-to-noise ratio.

5.5 Ease of Use and Connection Speed

For a test engineer running hundreds of measurements per day, BNC’s quarter-turn connect/disconnect saves hours of time over a year. There is no contest here: if the application involves frequent manual connections in a lab environment, BNC’s ergonomics are superior.

For a field engineer installing a permanent antenna connection or commissioning a production wireless module, SMA’s threaded connection provides confidence that the joint will not loosen during transport, vibration, or temperature cycling. The extra time required to thread the connector is irrelevant when the connection is semi-permanent.

5.6 Durability and Mating Cycles

BNC connectors are rated for a high number of mating cycles. The spring-loaded bayonet mechanism distributes mechanical stress, and the relatively large contact surfaces maintain good electrical contact even after thousands of cycles. For test equipment that gets connected and disconnected daily, BNC is the more durable choice over its service lifetime.

SMA connectors are rated for approximately 500 mating cycles under standard conditions. For this reason, best practice in lab and test environments is to protect SMA ports on expensive instruments with BNC-to-SMA adapters or SMA barrel connectors that absorb the wear — extending the life of the underlying port significantly.

5.7 Cost and Availability

BNC connectors are manufactured in very high volumes and are available from a wide range of suppliers at low cost. Standard 50Ω BNC connectors and cables are commodity items.

SMA connectors require tighter manufacturing tolerances to maintain consistent 50Ω impedance at GHz frequencies. This precision manufacturing makes them more expensive, particularly for high-grade versions intended for measurements above 12 GHz. For production volumes, the cost difference is manageable; for hobbyist or low-volume work, BNC is the budget-friendly option when frequency requirements allow.

6. Choosing the Right Connector: A Practical Guide

Use these decision criteria when selecting between SMA and BNC for a new project:

1. Operating frequency above 4 GHz?Use SMA. No exceptions — BNC cannot maintain adequate signal integrity above this threshold.
2. Frequent manual connect/disconnect in a lab?Use BNC. The bayonet lock is faster and the connector is rated for more cycles.
3. Mounting on a compact PCB or portable device?Use SMA. The sub-miniature form factor is designed for this.
4. Video transmission (CCTV, broadcast, SDI)?Use 75Ω BNC. This is the industry standard and no other connector matches it in this application.
5. High vibration environment (vehicle, industrial)?Use SMA. The threaded coupling is significantly more resistant to loosening under vibration than BNC’s bayonet.
6. Budget-constrained project below 2 GHz?BNC connectors and cables are commodity items and significantly cheaper than comparable SMA components.

7. Real-World Applications: Where Each Connector Shines

Understanding the technical differences translates directly into practical application choices:

Where SMA Connectors Excel :

• Wireless Communication:Critical for cellular base stations, Wi-Fi routers (especially on the antenna side), GPS modules, and other high-frequency wireless devices where signal transmission quality is paramount.
• Microwave Components:Used extensively in filters, amplifiers, mixers, and oscillators operating in the GHz range.
• High-Frequency Test Equipment:Precision instruments like spectrum analyzers and network analyzers often use SMA to ensure accurate measurements.
• Compact Devices :Their small size makes them ideal for drones, portable radios, and embedded systems where space is a premium.

Where BNC Connectors Excel:

• Test and Measurement:Found on oscilloscopes, function generators, and other lab equipment where quick, repeatable connections are essential for prototyping and diagnostics.
• Video Surveillance and Broadcast:The 75-ohm BNC is the standard for connecting CCTV cameras, monitors, and professional video equipment.
• Amateur Radio & Field Communications:Their robust nature and ease of use make them popular for antennas and radios in mobile or field-deployable setups.
• Legacy Networking:Historically used in 10BASE2 Ethernet (thin net) networks.

Ultimately, the choice hinges on your specific requirements: is it raw frequency performance and a secure, vibration-resistant connection, or is it rapid connect/disconnect capability and robust durability for lower-frequency signals? Considering these factors will lead you to the most suitable RF connector for your project.

7. SMA & BNC Connector FAQs

8. Summary

The world of RF connectors, while seemingly minor, is critical to the performance and reliability of countless electronic systems. The SMA and BNC connectors, though both coaxial, serve distinct purposes driven by their unique mechanical and electrical characteristics. SMA connectors are the champions of high-frequency precision and compact design, ideal for demanding wireless and microwave applications where signal integrity is paramount. BNC connectors, on the other hand, excel in versatility, quick connectivity, and robust durability for lower-to-medium frequency environments, making them staples in test equipment and video systems. Understanding their core differences in frequency range, impedance, locking mechanism, and application ensures that you select the perfect connector, preventing compatibility nightmares and optimizing your system’s performance.

Every miniaturization and performance leap in electronic devices begins with the symbiotic evolution of component package technology and PCB manufacturing processes. The advent of Surface Mount Technology (SMT) revolutionized how electronic components are mounted. From early DIP package to today’s SMD package, each innovation in packaging technology has propelled electronic devices toward becoming smaller, faster, and more powerful. Driven by smartphones, IoT devices, and AI hardware, packaging forms have evolved from simple two-pin structures into highly integrated three-dimensional interconnect systems.

1. Component Package Technology Overview

Chip packaging, simply put, involves mounting the bare die produced by the foundry onto a substrate that serves as a carrier. The pins are then brought out and secured into a unified package. This structure protects the chip, acting as its outer shell. It not only secures and seals the chip but also enhances its electrical and thermal performance. Therefore, component package is critically important for CPUs and other LSI integrated circuits.

Package types can be broadly categorized into two main categories: DIP (Dual In-line Package) and SMD (Surface Mount Device).

Structurally, component package evolved from the earliest transistor TO (Twin Outline) packages (such as TO-89 and TO-92) to dual in-line packages. Subsequently, PHILIPS developed the SOP (Small Outline Package), which later branched into S0J (Small Outline Package with J-type leads), TSOP (Thin Small Outline Package), VSOP (Very Small Outline Package), SSOP (Shrink Small Outline Package), TSSOP (Thin Shrink Small Outline Package), SOT (Small Outline Transistor), and SOIC (Small Outline Integrated Circuit).

Regarding material substrates of package, these include metal, ceramic, and plastic. Metal packaging remains prevalent in circuits requiring high-strength operating conditions, such as military and aerospace applications.

2. Traditional Package: DIP (Dual In-line Package)

DIP is an integrated circuit packaging technology invented by Bryant Buck Rogers in 1964. The first device featured a 14-pin design.

2.1 What are the Core Characteristics of DIP Package?

1) Package Structure

Appearance‌: Rectangular package body with symmetrically arranged vertical leads on both sides. Standard lead pitch is 0.1 inches (2.54 mm), with common row pitches of 0.3 inches or 0.6 inches.

Pins: Typically 6–64 pins (designated as DIP n, e.g., DIP14 denotes a 14-pin model), generally not exceeding 100 pins.

Material: Manufactured from plastic or ceramic; ceramic is predominantly used in high-reliability equipment.

2) Technical Features

‌Mounting Method‌: Through-hole soldering involves using pins to attach components to a PCB. These components are either mounted using through-hole technology or inserted into DIP sockets. Through-hole soldering is compatible with wave soldering processes and manual assembly.

‌Compatibility‌: Pin spacing aligns with breadboard layouts, facilitating circuit prototyping, educational experiments, and maintenance testing.

Limitations: Bulky form factor, low density, typically ≤100 pins, prone to damage, gradually replaced by SMD.

3) Applications and Evolution

Historical Significance: DIP package dominated the microelectronics industry during the 1970s-1980s, widely used in microprocessors, memory chips, and similar components. Examples include early CPUs (e.g., 8086), memory chips, and legacy BIOS chips.

Current Status: DIP has been largely replaced by Surface Mount Device (SMD) due to SMD’s advantages in space density and production efficiency. However, DIP remains in use for industrial equipment, low-end electronics, and prototyping scenarios.

2.2 How to Properly Install DIP-Packaged Chips?

1) Pin Alignment

Align the chip’s notch or markings with the PCB socket’s notch, ensuring both rows of pins are fully inserted into the through-holes. The standard DIP pin pitch is 2.54mm, which must match the PCB design.

2) Vertical Insertion

Hold the chip vertically and insert it into the socket with even pressure. For ZIF (Zero Insertion Force) sockets, lift the lever before inserting the chip.

3) Soldering and Securing

Wave Soldering: Suitable for mass production, where molten solder envelops the pins to form solder joints.

Manual Soldering: Heat the pins and pads with a soldering iron to prevent cold solder joints. Clean oxidized pads beforehand.

4) Testing and Rework

Use a multimeter to verify circuit continuity. For replacement, remove solder with a desoldering pump or hot air gun before extracting the chip.

Precautions

• PCB Design:Through-hole diameter should slightly exceed pin diameter (typically 0.8-1.0mm). Undersized holes cause insertion difficulties.
• ESD Protection: Wear an anti-static wrist strap during operation to prevent chip breakdown.
• Thermal Management:Install heat sinks on high-power chips to prevent overheating damage.

3. SMD Package: The Rise of Surface Mount Technology (SMT)

SMD package is a surface mount device technology whose core feature involves directly soldering electronic components onto the surface of a printed circuit board (PCB) through leadless or short-lead designs, eliminating the need for through-hole mounting.

3.1 What are the Technical Advantages of SMD?

Compact Size and Lightweight

SMD features small dimensions, making them ideal for high-density PCB designs. This facilitates product miniaturization and weight reduction, particularly for portable devices such as smartphones and wearables.

High Automation Efficiency

SMD package supports automated production via pick-and-place machines, delivering high manufacturing efficiency for mass production. It ensures stable soldering quality while minimizing human error.

Excellent High-Frequency Performance

SMD components have short pins with low inductance and resistance, which supports micro-packaging (e.g. QFP, BGA). This makes them perfect for use in high-frequency applications, as they can transmit signals and dissipate heat more efficiently.

Superior Shock Resistance

SMD components are directly soldered onto the PCB surface, creating a robust connection. Their shock resistance outperforms DIP, making them suitable for applications in vibrating environments.

3.2 What are the Primary Types of SMD Package?

(1) Basic Discrete Device Package

SOT Series

• SOT-23: 3-pin low-power transistor/diode package (power dissipation <300mW), suitable for consumer electronics.
• SOT-89: Medium-power devices (300mW-2W) with heat sink pad, used in power management.
• SOT-223: High-power package (2-50W), a variant of TO-252, suitable for industrial power supplies.

SOD Series

Compact diode packages (e.g., SOD-123) with fast reverse recovery time, used for high-frequency rectification.

(2) Integrated Circuit Package

‌SOIC/SOP‌

Alternatives to dual in-line packages, with pin pitches of 1.27mm/0.8mm, serving as universal IC packages (e.g., op-amps, logic chips).

Derivative Types: SSOP (Shrink Small Outline Package), TSOP (Thin-Sided Outline Package).

QFP/TQFP

Quad Flat Package with pins on four sides, pin counts 44-160, pitch 0.4mm-1.27mm, used for microcontrollers/FPGAs.

TQFP thickness only 1.2mm, suitable for portable devices.

‌BGA

‌

Bottom-ball arrays offer high pin density (e.g., a 360-pin BGA is only 31mm²). They are used for CPUs/GPUs, but require X-ray inspection.

Features:

• Although the number of I/O pins is increased, the pin pitch is much greater than that of QFP, resulting in higher assembly yields.
• The thickness is reduced by more than half, and the weight is reduced by more than three-quarters compared to QFP.
• Parasitic parameters are reduced, signal transmission delay is minimized, and frequency of use is greatly increased.
• Coplanar soldering is supported for assembly, resulting in high reliability.
• Like QFP and PGA packages, BGAs still occupy a significant amount of substrate space.

(3) No-Pin/High-Density Package

QFN (Quad Flat No-Pin)

A pinless quad flat package featuring peripheral terminal pads and a chip pad exposed for mechanical and thermal integrity.

Features:

• Pinless pad design occupies minimal PCB area.
• Extremely thin profile (<1mm) for space-constrained electronic applications.
• Ultra-low impedance suitable for high-speed or microwave applications.
• Superior thermal performance due to large bottom heat dissipation pad.
• Lightweight construction ideal for portable devices.
•

‌CSP‌

Chip-scale package (approaching die size), designed for sensors/RF modules, supporting 01005 mounting process.

(4) Special Function Package

PLCC

J-lead quad-lead package with high vibration resistance, used in automotive electronics.

TO-252

High-power SMD package (e.g., MOSFETs), compatible with through-hole heat sink designs.

3.3 Selection Recommendations

High-frequency Circuits: Prioritize QFN/BGA.

High-density Designs: Select 0.4mm pitch QFP or 01005 chip components.

Thermal Requirements: SOT-89/TO-252 or DFN with metal pads.

4. Technical Comparison and Selection Recommendations of Component Package

SMD packages offer compact size and high efficiency, making them suitable for high-frequency portable devices. DIP packages feature low cost and ease of maintenance, making them ideal for small-batch production. Select the optimal solution based on specific requirements.

4.1 Disadvantages of DIP Package

Large Size and Heavy Weight

DIP packages are relatively bulky, making them unsuitable for high-density PCB designs and limiting product miniaturization and weight reduction.

Low Automation Efficiency

DIP package requires insertion machines or manual insertion, resulting in lower production efficiency and unsuitability for mass production.

Poor Vibration Resistance

The long pins of DIP package are susceptible to vibration, potentially causing poor contact or component detachment.

4.2 Disadvantages of SMD Package

High Soldering Process Requirements

SMD package requires high-temperature processes like reflow soldering, placing significant demands on soldering equipment and techniques. Improper soldering may damage components.

Difficult Maintenance

SMD components are small, making disassembly and repair after soldering challenging. Specialized equipment and expertise are typically required.

Higher Costs

SMD package involves higher equipment and process costs, requiring significant initial investment. It is best suited for large-scale production to spread these costs.

4.3 Factors to Consider When Selecting Component Package Type

Component Functionality and Scale: How many pins does the chip have internally? What is its complexity level?

PCB Layout and Density: How large is the board? How many components need to be placed?

Thermal Requirements: High-power devices require better heat dissipation paths (e.g., TO series, thermal pads on QFN/BGA).

Cost: Significant variations exist in material and manufacturing costs across different packages.

Manufacturability/Serviceability: Is it easy to produce and solder? Is it easy to repair if issues arise? DIP is generally easier to repair than SMD (especially BGA).

Electrical Performance: Requirements for impedance and parasitic inductance/capacitance in high-frequency, high-speed signals (e.g., BGA outperforms long-lead packages at high frequencies).

End Product Requirement: Mobile devices like smartphones demand compact size and light weight, necessitating miniaturized SMD; industrial equipment may prioritize reliability and repairability.

5. Future Trends of DIP and SMD Package

DIP is a traditional through-hole packaging technology. SMD technology is gradually replacing it in certain situations. At the moment, DIP packages are mostly used for small-to-medium scale integrated circuits (typically with no more than 100 pins). Due to its larger size and reliance on through-hole soldering processes, it is becoming increasingly marginalized in fields demanding miniaturization, such as consumer electronics. In the future, DIP may persist only in industrial control, educational experimentation, and other scenarios demanding high reliability without requiring high-density integration.

SMD leveraging high integration and automation advantages, has become the mainstream packaging direction. SMD packages like QFP/PFP enable precise connections for large-scale integrated circuits through surface mount technology, meeting high-frequency and narrow-pitch requirements. Future trends include:

High-density Package: FC-BGA (Flip Chip Ball Grid Array) package enhances interconnect density via substrate technology, becoming the preferred choice for high-performance processor packaging;

Heterogeneous Integration: SiP (System-in-Package) substrate technology drives multi-chip modularization, meeting miniaturization demands for wearables, 5G, and other applications;

Material Innovation: Organic packaging substrates (accounting for over 80% of market value) evolve toward thinner profiles and lower loss characteristics, supporting high-frequency applications.

About PCBAndAssembly

Time is money in your projects – and PCBAndAssembly gets it. PCBAndAssembly is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

‌6. Component Package FAQs

‌7. Summary

The package is the “clothing” and “shoes” of an electronic component, determining how it “stands” (is mounted) on the circuit board. In modern electronics, Surface Mount Technology (SMT) and its various derivative component packages (such as QFP, BGA, QFN, SOT) represent the dominant trend, offering compact size, high density, and superior production efficiency. DIP is primarily used in applications requiring high mechanical strength or efficient heat dissipation (e.g., high-power devices), as well as for maintenance and prototyping.
