Wave soldering presents many intended underside joints to a broader solder wave. A carrier or pallet usually controls which areas are exposed. Selective soldering applies a localized solder wave or nozzle to programmed through-hole joint areas. It can be understood as a wave-soldering variant built around local fluxing, preheating, and solder application.

Reflow belongs in the same assembly plan, but it answers a different question. It covers the SMT attachment stage. Wave, selective, hand, robotic, or hybrid routes may then be reviewed for the remaining through-hole joints. This boundary is also reflected in detailed process comparisons. For a closer look at the adjacent process choice, see this wave soldering vs reflow soldering guide.

If you are still choosing between package technologies, start with the SMT vs through-hole component guide.

Use this first screen:

Do not turn this screen into a final process instruction. Its job is to show which routes deserve engineering review.

Start With the Board Underside, Not the Machine Name

A BOM is not enough to choose between selective and wave soldering. It lists parts. It does not show whether solder can reach the intended joints without exposing, shadowing, or obstructing other features.

Open the fabrication data, placement file, and assembly drawings together. Mark the through-hole pin groups that must be soldered. Then mark nearby bottom-side SMT parts, exposed pads and test points, board edges, tall components, and areas with special handling notes. These are the features that turn a generic process comparison into a board-specific route decision.

The useful question is not which process is more precise. It is whether the proposed tooling or solder path can reach every intended joint while controlling exposure around it.

Contract-manufacturer guidance identifies two common scenarios for selective soldering review. Tight THT-to-SMT spacing can leave too little room for a protective wave fixture, while thick boards or heavy copper can make hand soldering more difficult. Treat these points as reasons to request DFM feedback rather than as universal clearance or temperature rules. More details are available in this selective vs wave soldering overview.

If a quote names the process but does not show the underside-access assumption, ask for the missing review. Two suppliers can quote different routes because they made different assumptions from the same incomplete package.

When Wave Soldering Still Wins

Wave soldering still belongs on the shortlist when two things hold: the board is designed for it, and the build repeats under stable assumptions. Selective soldering is not a universal upgrade.

The underside is wave-ready

Wave is strongest when intended through-hole joints can meet the solder wave consistently. It also needs other underside features protected without impractical pallet openings. Component placement, exposed features, board support, and panel design all belong in that review.

Ask for the proposed pallet or exposure logic before approving the route. A supplier should be able to explain which areas see solder and which do not. The site’s DIP and wave soldering guide provides more context on where that process still fits in modern PCBA.

The build supports its tooling and setup

Wave economics improve when the same design repeats. The tooling and setup can then carry over across the expected releases. The relevant inputs are not just annual quantity. Product variants, revision frequency, THT joint distribution, pallet maintenance, inspection, and changeovers also affect the comparison.

Do not ask, “At what volume does wave become cheaper?” without supplying the build pattern. Ask the supplier to price the chosen route under your quantity, repeat, and revision assumptions.

The inspection plan covers the actual risks

Wave is not approved because it is fast. It is approved when the process and verification plan meet the assembly’s documented requirements.

Request the inspection method for the difficult joints and the response to a nonconforming result. That answer is more useful than a general claim about yield or reliability.

When Selective Soldering Becomes the Practical Route

Selective soldering becomes practical when local access solves a board-specific problem. A broader wave/tooling plan cannot solve that problem cleanly. The reason should be visible in the assembly data.

Nearby underside features constrain the wave plan

Bottom-side SMT, exposed pads, test features, mechanical obstructions, or tight groupings can reduce the space available for wave-pallet openings and protection. That does not prove selective will work. It moves the board into a local-access review.

Ask the supplier to mark both the protected features and the proposed selective path. Local targeting only helps when the equipment can reach the intended joints. It must also support the board through the process.

The THT joints are isolated or distributed

Selective soldering can fit assemblies where the remaining through-hole joints appear in separate groups around an otherwise reflowed board. The process can target those programmed areas instead of presenting the same broader underside area to a wave.

The quote should still explain the nozzle/path strategy, setup, support, process development, and inspection. “Selective” is not a complete manufacturing plan.

Product mix weakens dedicated wave-tooling economics

Product variants and revisions can change the value of dedicated wave tooling. Selective programming may be easier to adapt in some programs. The effect still depends on access, validation work, changeover, and the supplier’s equipment.

Ask both suppliers to separate one-time tooling/programming from recurring processing. Without that split, a lower unit line can hide a larger route cost.

When Not to Force Wave or Selective Across the Whole Board

Do not force one process across every through-hole joint just to simplify the comparison. A mixed assembly can need a mixed soldering route. Sometimes a layout change is the better next action.

Very few accessible joints may justify another local route

Hand or robotic soldering can remain a review option. The option stays open when the unresolved joint set is limited and accessible. Do not choose it from the word “robotic.” Ask which heat source, solder-delivery method, controls, access limits, and inspection the supplier’s proposed process includes.

One PCB can use more than one soldering method

Reflow, wave, selective, hand, and robotic operations are not mutually exclusive across the complete assembly flow. A supplier may assign different joint groups to different stages when the design and requirements support that plan.

Ask for the sequence and the ownership of each joint group. A hybrid route becomes risky when nobody can show two things: which process solders which joint, and how the final assembly is verified.

Redesign can be cheaper than forcing a poor route

Stop the quote comparison when both proposed routes depend on awkward access or heavy protection. Moving a component, clearing a bottom-side area, changing panel support, or revisiting a connector can create a cleaner manufacturing route.

That does not guarantee a saving. It gives engineering a defined redesign question before production locks in recurring process difficulty.

Standards Define Requirements; They Do Not Pick the Machine

An IPC class is an acceptance requirement, not a machine selector. Do not approve selective or wave soldering because a supplier attaches an IPC name to it.

The IPC certifications and standards overview gives each document a defined scope.

J-STD-001 and IPC-A-610 answer different questions

Use the contract to state the required document, revision, class, and any customer-specific criteria. Then ask the assembler how the proposed process will meet and verify those requirements.

Do not write “IPC Class 3 selective soldering” as if the class certifies the machine or automatically excludes wave. The route still needs a design review, a controlled process, and an inspection/test plan.

Acceptance must be tied to verification

Ask four things: which joints receive additional attention, which inspection method applies, what records are supplied, and how nonconformities are handled. These answers connect the named requirement to the actual build.

A general statement that selective is more reliable or wave is proven is not enough. Reliability cannot be inferred from the process name alone.

What Actually Changes the Quote

The unit price cannot be compared until the route assumptions are aligned. One quote may include tooling, programming, inspection, and process development. Another may leave them behind a single assembly line.

Separate one-time and recurring route costs before comparing wave and selective soldering.

Use the full PCB assembly quote checklist to align the wider package: fabrication, sourcing, assembly, inspection, test, quantity, and delivery. This article only adds the route-specific questions.

Send a Route-Ready RFQ, Not a BOM Alone

A BOM alone cannot support the soldering-route decision. Send synchronized design files and commercial requirements. The supplier can then review the same board you intend to buy.

Ask the supplier to return a decision, not another label

Request a route recommendation by joint group. It should identify six things: the proposed process, access/tooling assumptions, risk joints or features, the inspection response, one-time and recurring quote lines, and the conditions that would reopen the decision.

This is a deliverable the buyer should request. It is not a promise that OrinewPCB or any other supplier currently provides a named report in this exact format.

FAQ

These four questions should be answered as conditional checks, not universal rules.

Ready to Request a Board-Specific Soldering Review?

You provide the Gerber/ODB++, BOM, placement data, assembly drawings, panel information, quantity pattern, process restrictions, and acceptance/test requirements. The response you request should identify the proposed route by joint group, its access and tooling assumptions, risk features, inspection response, and separated one-time and recurring quote lines. This is a requested review scope, not a promise of a named OrinewPCB report or an approved production route.

About This Guide

This guide was compiled from the public sources linked near the claims they support. Supplier and operator material is attributed and used only for qualitative process boundaries, review variables, or user-question framing. IPC material is used only to describe document scope.

The 3-Gate Mixed-Assembly Route Check is an editorial framework, not an industry standard. The two route screens are illustrations, not first-party production cases. The article contains no claimed OrinewPCB process limits, equipment list, cost threshold, test result, certification, or guaranteed outcome.

References & Sources

• IPC Certifications — IPC
• Selective Wave Soldering
• Selective Soldering vs Wave Soldering: Advantages and Disadvantages
• Selective vs Wave Soldering vs Reflow Soldering/li>
• Talk to Me About Selective Soldering Machines
• PCB Assembly Quote Checklist — OrinewPCB
• SMT vs Through-Hole Components — OrinewPCB

Related Articles

• DIP and Wave Soldering in Modern PCBA — See where wave processing still fits in a through-hole assembly plan.
• Wave Soldering vs Reflow Soldering — Separate the SMT attachment decision from the remaining THT route.
• SMT vs Through-Hole Components — Compare component technologies before deciding how the mixed assembly should be processed.
• PCB Assembly Quote Checklist — Build the full fabrication, sourcing, assembly, inspection, and test RFQ package.

The post Selective Soldering vs Wave Soldering: When Mixed-Technology PCB Assemblies Need It first appeared on Pcbandassembly.

This PCB assembly quote checklist separates the information needed for a useful budgetary quote from the details required before production. That distinction matters. Buyers often ask for a “quick quote,” then compare totals built on different assumptions about components, testing, stencils, bare boards, shipping, and acceptable substitutions.

PCB assembly quote checklist at a glance

The shortest usable RFQ identifies what to build, how many to build, who buys the parts, how acceptance will be judged, and where the finished assemblies must go.

The Global Electronics Association’s 2023 checklist for producing printed board assemblies maps the production chain from BOM and Gerber creation through component purchasing, pick-and-place data, assembly, soldering, testing, and final assembly. It supports the core file set above, but it is not a substitute for your drawing notes or purchase terms.

Key takeaways

• Completeness: A quote needs the BOM, design data, placement data, drawings, quantities, sourcing model, workmanship requirements, test scope, and delivery terms.
• Consistency: One revision and matching reference designators matter more than a large folder of conflicting files.
• Comparability: Itemized costs, assumptions, and exclusions reveal whether two suppliers priced the same scope.
• Testing: Workmanship class, inspection, and functional test are separate requirements; define each one.
• Release control: Treat quote-ready and production-ready as different gates.

Lock the RFQ identity before attaching files

Start the package with a one-page RFQ cover sheet. It should state:

• Internal project or assembly number
• PCB or PCBA part number
• Revision for every controlled deliverable
• Quote type: budgetary, prototype, pilot, or production
• Requested quantities and price breaks
• Expected recurring release size, if relevant
• Requested ship date and ship-to country or postal code
• Currency and Incoterm
• Contact for engineering questions
• Date by which the quotation is required

Use one revision string across the file names and cover sheet. If the BOM says Rev C while the assembly drawing says Rev B, the supplier must stop and ask which one controls. If they do not stop, you have a larger supplier-control problem.

For recurring production, distinguish the annual usage from the lot size. An annual forecast helps with sourcing. The release quantity determines setup amortization, line planning, moisture-sensitive component handling, and packaging. “10,000 per year” is not enough if releases could be 250, 1,000, or 5,000 units.

Prepare a BOM that can be priced without guessing

A useful BOM identifies orderable parts and the policy for alternates; a component description alone is not procurement data.

Include these columns where applicable:

Do not put “or equivalent” in the part-number column unless you also define who approves the equivalent and what evidence they must review. A resistor substitution may be simple. An alternate oscillator, connector, safety-rated capacitor, radio module, or programmed device can change fit, performance, certification, or firmware behavior.

The Association Connecting Electronics Industries documentation for IPC-2578 describes BOM, approved manufacturer list, approved supplier list, change history, and engineering change order data as supply-chain exchange content. The current IPC document revision table marks IPC-2578 as no longer maintained, so do not cite it as a current production requirement. Its data categories remain a useful way to see why “manufacturer part number only” is not always enough.

State the component sourcing model

Choose one of three models:

• Turnkey: The assembler purchases the specified parts.
• Consigned: You supply the parts, and the assembler prices receiving, inspection, storage, handling, and assembly.
• Mixed: Some parts are purchased by the assembler, while controlled or pre-programmed items are consigned.

For consigned material, ask the assembler to state attrition rules before you ship. Tiny passives, cut tape, fragile components, and parts used during setup may need extra quantity. The correct allowance depends on packaging, equipment, quantity, and process. A single universal percentage would be misleading.

For turnkey or mixed sourcing, define the approved sourcing channel and traceability deliverables. A line saying “authorized distribution required” is clearer than assuming every bidder applies the same rule. If date codes, certificates of conformance, lot traceability, or manufacturer packaging matter, name them in the RFQ.

If you want one partner to manage fabrication and component procurement, see the scope of full turnkey PCB assembly. Keep the same sourcing rules in the RFQ regardless of which supplier receives it.

Send fabrication and placement data from the same release

The conventional package includes Gerber fabrication layers, drill files, a board outline, and pick-and-place data. Some design systems can export an intelligent product model instead. IPC describes IPC-2581C as a digital exchange format for PCB design-through-manufacturing data, including bidirectional DFX information.

Whichever format you use, do not assume the file format resolves conflicting intent. Include a readable fabrication drawing and assembly drawing so the supplier can verify:

• Finished board dimensions and outline
• Layer stackup or stackup requirements
• Material and thickness requirements
• Copper weight
• Solder mask and legend requirements
• Surface finish
• Controlled impedance requirements, when applicable
• Panelization ownership and breakaway constraints
• Component polarity and orientation
• Top- and bottom-side population
• DNP locations
• Mechanical hardware and press-fit parts
• Special soldering, cleaning, coating, staking, or underfill notes

For designs with controlled impedance, do not place a target impedance in an email and leave it out of the controlled data. Provide the net or layer requirement, target, tolerance, stackup constraints, and the party authorized to adjust geometry. An impedance calculator can support early stackup work, but the fabrication drawing and approved stackup must control the order.

Define the pick-and-place coordinate convention

A centroid or pick-and-place file should identify each placed reference, X/Y coordinate, board side, and rotation. Also state:

• Units: millimeters or inches
• Coordinate origin
• Rotation direction and zero-angle convention
• Whether bottom-side coordinates are mirrored
• Whether DNP references are included or removed

Do not “fix” a suspect rotation table just to make the upload pass. Ask the assembler to cross-check polarized parts and orientation markers against the drawing. The quote should say whether data cleanup or library work is included.

Define workmanship, inspection, and test separately

Workmanship class, inspection method, and electrical function answer different questions. Specifying one does not automatically define the others.

• A workmanship requirement defines acceptance criteria.
• Automated Optical Inspection (AOI) checks visible assembly features that the programmed inspection can see.
• X-ray inspection can evaluate hidden solder joints and internal features, subject to equipment, image quality, and acceptance rules.
• In-Circuit Test (ICT) checks selected electrical nodes and components through a fixture and test program.
• Functional test verifies behavior against a customer-defined procedure, limits, fixtures, software, and pass criteria.

State the required standard and contract revision. The Global Electronics Association explains that IPC J-STD-001 addresses materials, processes, and requirements for soldered assemblies, while IPC-A-610 addresses assembly acceptability. A purchasing line that says only “build to IPC” leaves the applicable document, class, revision, and customer exceptions unresolved.

For each requested test, provide or request:

“100% functional test” is incomplete if no functional test procedure exists. Likewise, “X-ray all BGAs” does not define views, sampling, acceptance criteria, or report format. Review the available PCB assembly testing methods before asking bidders to price a test plan.

List every process that can create a separate charge

Quotes become difficult to compare when one supplier includes a process and another treats it as an option. Mark each item as required, optional, supplier-recommended, or not applicable:

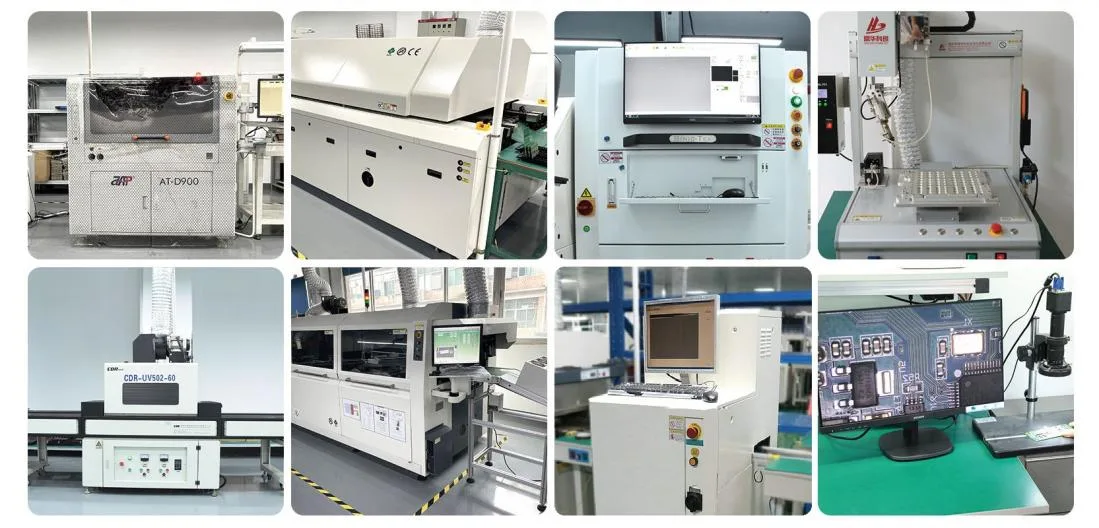

• SMT stencil and replacement policy
• Panelization and depanelization
• Through-hole insertion and hand soldering
• Selective or wave soldering
• Press-fit insertion
• Cleaning and ionic cleanliness requirement
• Conformal coating, masking, thickness, and cure
• Underfill, staking, or adhesive
• Thermal interface materials
• IC programming and serialization
• Label content and location
• Traceability records
• X-ray, AOI, ICT, flying probe, or functional test
• Rework limits and repair documentation
• Final mechanical assembly or box build
• Packaging, moisture barrier bag, desiccant, or custom trays
• Export packaging and shipment insurance

If a process has an engineering drawing, specification, work instruction, or approved material list, attach it and name its revision. Do not rely on a previous order or a message thread as the specification.

Ask for an itemized PCB assembly quotation

Compare scope before comparing totals. Ask each bidder to break out the same cost categories:

Request an assumption and exclusion section. This is often more valuable than another decimal place in the total. If the supplier priced a substitute, omitted an unavailable component, assumed no functional test, or excluded import charges, that should be visible before award.

For a combined fabrication and assembly RFQ, use PCB assembly and fabrication services as the commercial handoff. Upload the controlled package once, then ask the estimator to return questions and deviations in writing.

The 4-match RFQ gate

The 4-match RFQ gate is our own editorial framework, not an industry standard. It is a final cross-check before you send the package:

1. Revision match: The cover sheet, BOM, drawings, Gerber or intelligent data, drill, and placement files identify the same release.
2. Designator match: Populated and DNP references agree across the BOM, placement file, schematic, and assembly drawing.
3. Scope match: Quantity, sourcing, process, test, documentation, packaging, and delivery assumptions appear in both the request and returned quote.
4. Commercial match: Currency, Incoterm, ship-to point, validity period, payment terms, and price-break basis are comparable.

The gate does not prove manufacturability or supplier capability. It catches a narrower problem: comparing quotes that describe different builds.

Worked example: two totals that are not comparable

Suppose Bid A includes bare PCBs, turnkey components, AOI, an SMT stencil, and delivery. Bid B includes assembly labor and components but excludes bare PCBs, testing, tooling, and freight. Bid B may show a lower total, yet the difference says nothing useful about supplier efficiency.

Run the scope and commercial matches first. Normalize the exclusions or request revised quotations. Only then compare price, lead time, engineering response, quality controls, and risk.

When not to request a firm quote

Ask for a budgetary estimate, not a firm production quote, when:

• The BOM contains unselected or obsolete parts
• Board outline, stackup, or placement is still changing
• Test coverage and acceptance criteria are undecided
• Regulatory or workmanship requirements are unknown
• Annual volume is known, but release quantity is not
• Customer-supplied material has no quantity or packaging information
• The package contains mixed revisions

A budgetary estimate can still guide architecture or sourcing decisions. Label it correctly, list the assumptions, and avoid treating it as an award-ready comparison.

FAQ

Ready to send a quote-ready package?

Send your BOM, Gerber or product-data export, pick-and-place file, assembly drawings, quantity breaks, test needs, and delivery location. OrinewPCB can return an itemized fabrication-and-assembly quote with engineering questions and DFM feedback.

About this guide

This guide combines the Global Electronics Association’s published PCBA production checklist and IPC-2581 data-exchange documentation with OrinewPCB’s current service and file-input documentation. Company capabilities are supplier-provided information, not independent test results.

No private production dataset, customer case result, or unverified “we tested” claim was used. The 4-match RFQ gate is an editorial tool for package consistency, not an IPC requirement and not a guarantee of manufacturability, supplier performance, or quote accuracy.

References & sources

• IPC Checklist for Producing Printed Board Assemblies, 2023 Revision, Global Electronics Association (published under the IPC name)
• IPC-2581 Revision C release notice, December 2020, IPC, now Global Electronics Association
• IPC document revision table, Global Electronics Association
• IPC standards and manufacturing coverage, Global Electronics Association

Related articles

• Low-volume PCB assembly cost, See which cost drivers matter after the RFQ scope is consistent.
• PCB fabrication from prototype to production, Plan the bare-board handoff that precedes assembly.
• ICT vs FCT, Choose a test approach before asking suppliers to price coverage.

The post PCB assembly quote checklist: the complete RFQ package first appeared on Pcbandassembly.

Put simply: with a turnkey service, your supplier manages the full production chain under one contract and one point of accountability—DFM review, buying the parts, building the board, populating it, and testing it. You send a complete package; they carry the sourcing and kitting risk and deliver a tested assembly. Most of this guide comes down to the two decisions that determine how that plays out: which sourcing model you choose, and how carefully you prepare what you send.

Quick Specs: Turnkey PCB Assembly at a Glance

Key Takeaways

• Turnkey shifts sourcing and quality risk to a single accountable supplier; the value is in that transfer, not in a discount on assembly labor.
• Full, partial, and consignment models place sourcing risk differently. Choose from your own inventory position, and consignment only pays off if you can honestly satisfy both of its conditions.
• The BOM drives turnkey cost (40-70%), and a sourcing markup of 10-20% is typical, so trimming unique part numbers beats negotiating labor rates.
• Your data package sets your quote and your lead time; a missing centroid or an ambiguous BOM line is the most common reason a quick-turn stretches into a month.
• In 2026, turnkey’s value has shifted to sourcing-risk transfer: microcontroller lead times run 20-55 weeks, memory extends past a year, and PCB tariffs change the offshore-versus-onshore math.

Turnkey PCB assembly: one contract, one line of accountability

When a defect appears in a turnkey build, there is exactly one company to answer for it. A joint that fails could have been caused by the bare board, the component, the solder process, or the test, and in a multi-vendor arrangement each party has an incentive to blame the others. A single turnkey partner removes that argument entirely. You are buying a tested assembly, not a coordination project.

The “turnkey” label covers the standard PCBA production sequence run by one provider: DFM review of your files, validation of the bill of materials, component purchasing, bare-board fabrication, SMT and through-hole population, inspection, and final functional test. The same line that builds your prototype can scale to volume production, which is why teams moving from first article to a full run often stay with the same partner.

The term comes from construction, and it means the same thing here: you turn the key and it works. What it does not mean is that you hand over a sketch and disappear. You still own the data package, the design decisions, and the acceptance criteria. What turnkey removes is the coordination: the emails between your fabricator and your parts broker, the kitting errors at the boundary, and the question of who pays when a board fails because the solder and the copper disagreed.

There is a documented supply-chain argument for this arrangement as well. NIST’s SP 800-161 Rev 1 guidance on supply chain risk management points out that procuring through original manufacturers or their authorized distributors materially reduces information and communications supply chain risk, which is the same logic behind requiring authorized-channel sourcing in a turnkey procurement policy.

The first decision turnkey forces on you is how much of the sourcing you hand over. Full turnkey, partial turnkey, and consignment differ mainly in who carries shortage risk, and the right answer depends on your own inventory position, not on what the supplier’s marketing says. The next section walks through that choice.

Full, partial, or consignment: where should the sourcing risk sit?

None of the three models is inherently better. They simply place sourcing risk in different hands, and the sensible choice is whichever position costs you least to carry, given what you already hold. Vendors rarely lead with the honest version of this comparison: a full turnkey quote looks more expensive than consignment on paper, and sometimes it is. What a consignment quote never shows you is the purchasing time your own team spends, the extra inventory you buy to hit minimums, and the cost when a kit arrives short.

Run through this quick self-check before requesting any prices:

Buyer model self-diagnostic

• Do you already hold long-lead or allocated parts, such as a custom MCU or modules you pre-bought? Partial turnkey: you supply those, the assembler buys everything else.
• Do you have complete, verified inventory, staff to manage it, and tolerance for a re-spinif a kit is short or mislabeled? Consignment: the shop only assembles.
• Neither?Full turnkey: one accountable partner, the fastest route to a tested board, and no inventory burden for you.

The consignment branch requires both conditions, and that is deliberate. Consignment only beats turnkey on cost if the markup savings outweigh your own purchasing labor and the shortage risk you take back. If you cannot honestly satisfy both conditions, you are choosing a discount that will cost you later.

Quality expectations do not change with the sourcing model. An ISO 9001-certified supplier applies the same sourcing and supplier controls whether they purchased the components or received them from you. Consigning parts does not exempt you from providing a clean, traceable kit.

Reading a turnkey quote: where the money goes (and where it hides)

Components dominate a turnkey quote. Industry estimates typically put the BOM at 40-70% of total assembly cost, with bare-board fabrication and assembly labor each in the low double digits and testing in single digits. On top of the parts themselves, a turnkey supplier adds a procurement markup, commonly 10-20%, to cover purchasing effort, kitting, and the risk of managing your components. That markup is what you pay to transfer shortage risk, and it is the line buyers scrutinize first. The range deserves honesty: one contract manufacturer’s guide puts the sourcing markup at 10-20%, while engineering forums report 20-300% over distributor pricing on small orders, so the gap between an efficient buyer and an opportunistic shop is real. Ask for the markup rate on your BOM line, not a blended number.

At low quantities, one-time costs take over. Practitioners report that the largest share of a small-batch assembly cost is programming, stencil, and feeder setup, which is why five boards can cost dramatically more per unit than five hundred. Our low-volume PCB assembly cost guide covers this same effect in detail: NRE dominates until the run is large enough to amortize it.

Here is a concrete illustration. Take a mid-complexity 4-layer, 1.6 mm board quoted at a relative unit cost of 100. With the BOM at 60% of that, components account for roughly 60 and everything else for 40. Cutting the number of unique part numbers by about 20% at design time typically reduces assembly setup cost by 10-15%, because each unique part adds its own feeder setup, packaging, and minimum order. That board can land near 88 with no functional change. The most powerful lever in turnkey pricing is your BOM, not your assembler.

Most of the gap between two quotes comes from scope. Two suppliers quoting the same board can land two to three times apart, and the headline price says little about why. Every shop sources, marks up, and buffers parts differently, so honest comparison requires normalizing both quotes to the same scope, which is what the worksheet below does.

Six files, eight checks: getting your RFQ package right

A turnkey quote is only as reliable as the package you submit. Nothing costs a week faster than an incomplete or ambiguous file set: the supplier responds with questions, the build waits, and a quick-turn quietly stretches to a month. This is the part of the process entirely in your control, which makes it the best place to invest effort.

A complete RFQ package contains six items: Gerber files in RS-274X (or a single intelligent file in IPC-2581 or ODB++), a BOM with manufacturer part numbers, a CPL/centroid file with X-Y positions and rotations, assembly drawings, the layer stackup, and your class and test requirements. Each gates a different stage of the build, and each has a characteristic failure when it is missing or vague. The table below is the same checklist we run on every incoming turnkey package before quoting.

The 8-point buildability audit: what each file gates, and how it fails

Your design files tell the assembler what to build; your BOM and centroid tell them whether it can be built. Most stalled quotes trace to one of two problems: a BOM line that cannot be resolved to a real, in-stock part, or a centroid that does not match the footprints. Resolve those two before submitting and your quoted lead time becomes believable.

“The BOM and the placement file are where quotes actually stall. A board that is physically hard is rare; a BOM line nobody can resolve to a real part is a weekly occurrence.”

Reported across multiple contract-assembly practitioner sources; the specific numbers vary by shop

Tooling is beginning to automate this review. A 2023 USPTO filing describes an AI-based system that autonomously extracts and analyzes design data to flag manufacturability problems before a board is built (US20230153512A1), but the responsibility for a complete package still rests with the buyer.

Component sourcing in 2026: the risk you’re handing over

With full turnkey, the risk you actually transfer is component sourcing risk, and in 2026 that risk matters more than the convenience. Sourcing, not assembly, sets the schedule. Your job as buyer is to write the sourcing rules so that allocation, end-of-life parts, and counterfeits cannot quietly derail the build.

Lead times have stretched again. Through 2026, distributor and broker reporting puts many logic and microcontroller parts at roughly 20-55 weeks, some power and memory devices beyond a year, and memory prices have climbed steeply, with automotive DRAM up sharply year over year. A turnkey partner that buys early and pools demand across builds cushions that exposure; a single unsourced manufacturer part number can halt an otherwise complete kit.

Sourcing risk by part category (2026)

Lead-time bands reflect 2026 distributor and broker reporting; confirm against a live quote for your specific parts.

A version of this story recurs on our floor: a small instrumentation team submitted a clean board and a tidy BOM, but every line specified a single manufacturer part number with no approved alternate. One 0.1 µF MLCC went into allocation the week the build was scheduled. With no pre-approved second source, the line stopped while the team qualified a replacement, and a 10-day quick-turn became six weeks, not because the board was difficult, but because the BOM allowed no flexibility.

What to write into your RFQ so this does not happen to you:

• Pre-approve alternatesfor every commodity passive and any at-risk active part, so the assembler can substitute without a re-spin.
• Flag lifecycle:mark parts near end-of-life and ask the supplier to confirm availability before the build starts, not at first article.
• Require authorized or franchised distributors only,never gray-market brokers, the approach NIST identifies as a primary way to reduce supply chain risk in SP 800-161 Rev 1.
• Ask for incoming screening and lot/date-code traceabilityon high-value or suspect parts. Certificates of conformance can be forged, so paper is not the control; the U.S. Government Accountability Office has documented counterfeit parts reaching even defense supply chains.

Treat your BOM as a sourcing contract rather than a parts list. The columns that matter most to a turnkey build, manufacturer part number, approved alternate, lifecycle status, are exactly the ones hobby BOMs leave blank.

Two quotes for one board: how to compare them fairly

Two suppliers can quote the same board and land two to three times apart, and the headline number tells you almost nothing about why. The gap is structural: the bill of materials is the dominant line item, and every shop sources, marks up, and buffers parts differently. To compare quotes honestly you have to normalize them to the same scope, otherwise you are comparing a thorough quote against an optimistic one.

Apples-to-apples quote worksheet: normalize every quote on these lines

The single most useful question a buyer can ask is whether setup is itemized or folded into the unit price. A quote that buries NRE in the per-board number will look cheap at low volume and can double when you scale, because you pay the setup twice. Ask for it on its own line and compare the two numbers separately.

It is also worth asking what the comparison does not show: test coverage. Two quotes at the same price can differ by an order of magnitude in what they check. One includes AOI on every board plus functional test; the other quotes AOI only and lists functional test as an extra. The second looks cheaper until you add the line back.

Vetting a turnkey partner: evidence, not brochures

Vetting a turnkey partner has little to do with the polish of a capability page. It comes down to what you can verify and what you require in writing. For a first order with an offshore supplier, this section decides the outcome. Score candidates on evidence, not promises.

Turnkey partner red-flag scorecard

• Certifications you can verify:ISO 9001 at minimum; IATF 16949, ISO 13485, or AS9100 for regulated products. Ask for the certificate registration number, not a screenshot of the logo.
• Named acceptance standards:a credible shop quotes both IPC J-STD-001J (the soldering process) and IPC-A-610J (visual acceptance); the two documents reference each other.
• An in-house test stack:AOI for placement, X-ray inspection for joints hidden under 0.5 mm-pitch BGA and QFN packages, ICT or flying probe for nets, functional test for behavior. Each method covers a different class of defect.
• Lot- and date-code traceabilitythat contains a suspect part to one build rather than a recall.
• Registered-entity transparency:will they give business-license and registered-name details for a supplier registry check? Hesitation on this one tells you more than any capability claim.

Set the IPC class up front, at the bare-board stage. A Class 2 board cannot be upgraded to Class 3 just because the assembly came out clean; class is a build decision, not an inspection outcome. Class 3 is also not aerospace-only. It is application-based, covering medical devices and industrial controls that cannot tolerate downtime as much as avionics. If your product fails badly in the field, ask for Class 3 acceptance and a cross-section to prove it.

Counterfeit control is the other non-negotiable. Paper does not prove a part is genuine, even authentic-looking certificates of conformance get forged. Require authorized-distributor sourcing plus physical incoming screening, with X-ray verification on suspect or high-value parts. Remember that an IPC class alone is not sufficient: it does not cover component authenticity, obsolescence management, or test coverage, so treat those as separate line items in your requirements.

The six buyer-side gaps that cause turnkey re-spins

Most turnkey re-spins are not caused by difficult engineering problems. They trace to a small set of buyer-controlled gaps in the handoff. Here is the catalog, drawn from what practitioners actually report going wrong, with the prevention for each.

Six turnkey re-spin triggers: the buyer-side gaps that cause most do-overs

All six share a single root: a turnkey supplier can only build what your package specifies without ambiguity. Unclear DNP markings and a mismatch between the BOM and the pick-and-place file are the substitution traps that bite hardest, and a missing centroid is a top cause of early SMT delays. None of these is an assembly problem; all of them, down to a 0.1 mm footprint slip, are package problems you can close before you submit.

Tariffs and landed cost: why the offshore choice changed in 2026

The calculation behind “where should I assemble” has changed in 2026. Tariffs and reshoring turned it from a pure cost question into a landed-cost-and-risk question, and component pricing has moved from a predictable, volume-driven model to one that is segmented and structurally constrained. For a buyer, turnkey’s value is shifting from convenience toward sourcing-risk transfer and tariff navigation: you are paying for a partner who can absorb volatility you cannot.

The concrete signal: U.S. Section 301 actions explicitly cover printed circuit boards among tariffed goods, and 2026 reviews have maintained tariffs on covered China-origin products. As of late 2026, 2- and 4-layer FR-4 rigid boards face roughly 30% combined duty, with other PCB technologies at higher rates, and the exclusion window has been extended to November 2026. That means the offshore-versus-onshore turnkey choice now has to be priced as total landed cost, not unit cost, and the tariff treatment varies by board technology and HTS classification. Confirm the current rate against the USTR Section 301 notice and your own customs broker before you commit, because this is changing faster than most blog posts keep up with.

The practical implication for a turnkey decision: a supplier that already holds inventory, sources across geographies, and handles customs on your behalf absorbs tariff exposure that a do-it-yourself split would dump on you. That is part of the markup you are paying for, and it is worth more in 2026 than it was two years ago.

FAQ

How much does turnkey PCB assembly cost?

Turnkey PCB assembly cost is dominated by components, which typically run 40-70% of the total, plus a sourcing markup of roughly 10-20%. At low volume, one-time setup (stencil, programming, first article) dominates the per-board price, so a quantity of five is far more expensive per board than five hundred.

What is the difference between turnkey and consignment?

In turnkey assembly, the supplier sources all components, builds, assembles, and tests the boards. In consignment, you buy and kit all the components yourself and the shop only assembles them. Turnkey transfers sourcing risk and cost to the supplier; consignment keeps control and component cost with you but leaves you carrying inventory and shortage risk.

What files do I need to provide for a turnkey PCB assembly quote?

You need six items: Gerber files (RS-274X or IPC-2581/ODB++), a BOM with manufacturer part numbers, a CPL/centroid file, assembly drawings, the layer stackup, and your IPC class and test requirements. A complete package with approved alternates is the difference between a real quote and a week of email.

Is turnkey worth it for small batches?

Yes, for most teams, because setup dominates low-volume cost either way, and turnkey removes the coordination overhead of managing a parts broker and an assembler separately. The exception is if you already hold a complete, verified, kitted inventory and can accept the risk of a short kit, in which case consignment may be cheaper.

How long does turnkey PCB assembly take?

Lead time is driven by component sourcing, not assembly. With in-stock parts, quick-turn turnkey assembly typically runs 5-15 days; with parts on 20-55 week lead times, the sourcing step sets the schedule. Pre-approved alternates and early sourcing are the levers that keep your lead time honest.

Conclusion

Turnkey PCB assembly is not a convenience feature. It is a structural fix for the coordination problem that comes with splitting fabrication, sourcing, and assembly across vendors, and in 2026 its value has shifted toward the thing you cannot easily do yourself: absorbing sourcing risk and tariff volatility.

The decision comes down to three steps. First, run the self-diagnostic and pick the model that carries sourcing risk where it is cheapest for you, and be honest about whether consignment’s two conditions really hold. Second, send a data package that passes all eight buildability checks, because that is what makes your quote and your lead time honest. Third, compare quotes on the same scope and score candidates on evidence, not brochures, with the IPC class set in writing at the bare-board stage.

When you have a clean package and a clear model, a turnkey partner like OrinewPCB can quote and build it on a single line of accountability, from component sourcing through fabrication, assembly, and test. Send your files and get a real quote before you commit to a volume decision.

References

• NIST SP 800-161 Rev 1, Cybersecurity Supply Chain Risk Management Practices for Systems and Organizations
• IPC J-STD-001J, Requirements for Soldered Electrical and Electronic Assemblies(2024)
• IPC-A-610J, Acceptability of Electronic Assemblies(2024)
• US20230153512A1, Electrical Circuit Design Inspection System and Method, USPTO
• EMSTech, What is Turnkey PCB Assembly?(sourcing markup and cost structure)
• EEVblog forum, Turnkey assembly costs – price check(markup range 20-300% over distributor pricing, forum-reported)

The post Turnkey PCB Assembly: A Buyer’s Guide to Cost, Risk, and Choosing the Right Model first appeared on Pcbandassembly.

The 10 electronics contract manufacturers European OEMs shortlist in 2026 are Zollner Elektronik, GPV Group, Scanfil, Kontron (with KATEK), OrinewPCB, Kitron, Neways, Lacroix, NOTE, and Videoton. Nine are European-headquartered EMS leaders.

Key Takeaways

• Europe’s contract-manufacturing landscape is fragmented, with no single dominant player. Buyers match partners to program stage instead of accepting a one-size-fits-all leader.
• Zollner Elektronik leads the list for high-complexity, European-scale programs; OrinewPCB is the offshore option for prototypes and low-volume builds, with no minimum order quantity.
• Certifications gate your industry, but they must be verified at the specific production site that will build your product—not assumed at group level.
• The decision grid in this guide maps each program type to a partner class, so you can shortlist in minutes rather than weeks.
• Send the same RFQ package to every candidate. Comparable questions are what make the quotes comparable.

How we ranked these electronics contract manufacturers

Rankings reflect fit for a European OEM’s full product cycle, weighted in this order:

1. Program-stage fit (25%)—does the manufacturer serve the volume and product stage you are in today: prototype, NPI (new product introduction), ramp, or steady high volume?
2. Capability breadth (20%)—can it cover the full scope you need (assembly, box build, mechanics, cables, testing), or only PCB assembly?
3. Certifications (20%)—current, industry-appropriate certifications at the site that would build your product, with named registrars.
4. Volume flexibility (20%)—what is the real minimum order quantity (MOQ), and how does a small order rank in scheduling priority?
5. Landed cost and risk (15%)—total cost at your volume including freight, duty, and risk exposure, not the unit price a large supplier quotes for a different order size.

Company size is reported in context but is not a ranking criterion. A high-volume EMS that deprioritizes 50-unit pilot builds is the wrong partner for a prototype-stage OEM no matter how many factories it runs—and the same is true in reverse for a quick-turn shop trying to absorb a million-unit automotive program. Sources are listed in the references, and every company’s official site is linked from its profile so you can verify claims independently. Where a figure is company-reported or directional rather than independently audited, the profile says so.

The top 10 electronics contract manufacturers at a glance

One structural fact explains most of this list: Europe has no single EMS champion. The market is a fragmented landscape of regional specialists with different centers of gravity in automotive, medical, defense, industrial, or system engineering, and global giants like Foxconn, Flex, and Jabil operate plants on European soil alongside them, per in4ma’s and EMSNOW’s analyses of the European EMS landscape. Fragmentation is a feature here: it means the market supports specialized players a single dominant firm would have absorbed elsewhere, and it gives buyers a genuine choice between European production and offshore partners for the same program.

European EMS leader or global offshore partner: how to decide

Decide the partner class before you read the company profiles. The table below compares European EMS leaders with an offshore option like OrinewPCB across the dimensions that actually change your program outcome—not just price.

Walk it as if/then rules, but treat them as starting points, not verdicts:

• If a customer contract requires “made in EU” labeling, or the program is defense or medical with production-site restrictions→ the decision is made for you. A European EMS leader is required, and no offshore quote can compete regardless of price.
• If you need 10,000+ units with multi-plant supply assurance→ prioritize European leaders (Zollner, GPV, Scanfil) for capacity and redundancy. Confirm each plant’s certifications before assigning volume.
• If you need 1-5,000 units this quarter→ compare suppliers individually rather than assuming one region wins. Ask each candidate for a landed quote, component-risk report, prototype and production schedule, test coverage, and change-control process. EU-local production may justify a higher unit price through faster engineering access, lower logistics risk, IP requirements, or easier second-source control—compliance alone is not the only reason.
• If you are a startup between prototype and first ramp→ starting with a no-MOQ partner and shifting volume later is a common path, but it is not free. Confirm ownership of design files, tooling, and validation data before you transfer production, and budget for re-qualification at the new site.

We see this pattern weekly in our incoming RFQs: a European hardware startup arrives with a quote from a European EMS requiring a 500-1,000-unit minimum and a 6-8 week lead time for what is a 20-board validation build. That mismatch between the OEM’s actual program stage and the manufacturer’s volume model—not quality—is the most common reason we win European business. The boards we quote for those customers ship with the same IPC Class 2/3 acceptance and component traceability they would get from a European shop. If you are at that stage, our low-volume PCB assembly service walks through the exact transition.

The 10 electronics contract manufacturers

Each profile answers five questions in 30 seconds: who it is best for, why it is shortlisted, which sites and certifications matter, its main limitation, and what to verify before you send an RFQ. Common capabilities—SMT (surface-mount technology) and THT (through-hole technology) assembly, box build, ISO 9001 quality systems—are covered once in the table above and only repeated below when they differentiate the supplier.

1. Zollner Elektronik: best for high-complexity, European-scale programs

Best for: High-complexity, high-mix production at European scale—automotive, industrial, medical, aerospace, and telecommunications programs that need a single partner for the full product lifecycle.

Why shortlisted: Zollner is Europe’s largest EMS provider, with about 12,500 employees and 26 locations worldwide, including 9 production sites in Germany plus facilities in Romania, Tunisia, China, and the USA. It covers design support, SMT/THT assembly, mechatronic integration, cable harnesses, box build, test-system development, and logistics under one roof—the natural first call for complex European programs.

Relevant sites & certifications: Nadcap (special processes) and ISO 27001 (information security) are the differentiators here; common quality certifications are in the overview table. Confirm the certificate covers the specific German or Romanian site assigned to your program.

Main limitation: A company this size schedules around volume accounts. Prototype-stage OEMs should ask directly how their order size ranks in scheduling priority.

Verify before RFQ: Ask which plant builds your product type, confirm that plant’s certifications, and get a written answer on where your order ranks in priority.

2. GPV Group: best for hybrid European and global production network

Best for: Programs that want European production plus cost-competitive Asian capacity under a single contract—industrial, medical, transportation, and electronics customers.

Why shortlisted: GPV, headquartered in Vejle, Denmark, operates 14 production sites across 11 countries including Denmark, Sweden, Germany, Switzerland, Slovakia, Sri Lanka, Thailand, Mexico, and the USA (with a US partner via East West Manufacturing). Its “One GPV” model gives European customers access to both local and Asian plants through one supplier. Its FastProto service offers 24/7 online PCB/PCBA prototyping for R&D projects.

Relevant sites & certifications: The differentiator is IATF 16949 at selected sites only—confirm the site that will build your automotive product holds it. Common quality certifications are in the overview table.

Main limitation: The hybrid network’s value depends on which plant actually builds your product; confirm the production site before comparing quotes.

Verify before RFQ: Name your target plant in the RFQ and ask for that site’s certificate list and recent audit results.

3. Scanfil: best for vertically integrated industrial and medtech programs

Best for: Industrial, energy and cleantech, medtech and life-science, and connectivity OEMs that want design-to-logistics integration from one accountable partner.

Why shortlisted: Scanfil, headquartered in Sievi, Finland, runs 16 production units across 10 countries on four continents. Its 2024-2025 acquisitions—SRXGlobal (Malaysia, Australia) and MB Elettronica (Italy)—extended its footprint into Southeast Asia, Australia, and Southern Europe. Roughly 4,700 employees support a vertically integrated model from product design and supply-chain management through assembly, testing, and logistics.

Relevant sites & certifications: Nadcap (special processes) is the differentiator here, and newly acquired plants (Malaysia, Australia, Italy) may not yet carry every group certification—verify at the site assigned to your program. Common quality certifications are in the overview table.

Main limitation: The “One Scanfil” consistency claim is only as strong as the site that builds your product; verify the specific plant’s certifications and process records.

Verify before RFQ: Ask which unit will assemble your program and request that unit’s certificate register, especially for medtech (ISO 13485) and aerospace (AS9100D) work.

4. Kontron (with KATEK): best for embedded/IoT design plus series manufacturing

Best for: OEMs that need custom embedded computing or IoT hardware designed and then produced in series—moving from schematic to volume without changing suppliers.

Why shortlisted: Kontron AG, headquartered in Linz, Austria, is a leading supplier of embedded computing and industrial IoT. Its EMS subsidiary KATEK, acquired in 2024 and fully integrated by late 2025, runs high-volume production in Grassau (Germany), Horní Suchá (Czech Republic), and Győr (Hungary). Together they bridge custom embedded-system design and series production inside one organization—an unusual combination on this list.

Relevant sites & certifications: Plant-level detail matters more than the certification list here: Horní Suchá operates 7 SMT lines plus a prototype line in an ISO Class 2 cleanroom; Győr runs 12 SMT lines with selective and wave soldering for mid-to-six-digit annual volumes; Grassau adds an ISO Class 8 cleanroom and automated series production. Common quality certifications are in the overview table.

Main limitation: Capability and certification scope vary by plant. Confirm the site that will build your product holds the certifications your industry requires.

Verify before RFQ: Ask which plant is proposed for your program and request that plant’s certification scope and line capacity in writing.

5. OrinewPCB: best offshore option for European prototypes and low-volume builds

Best for: European OEMs and hardware startups with prototype-to-mid-volume programs that do not require EU-local production—where speed, zero MOQ, and one-stop scope outweigh the offshore trade-off.

Why shortlisted: OrinewPCB is a Shenzhen-based contract manufacturer with 14+ years of experience serving customers in 30+ countries. It operates three production facilities with 400+ employees and 7 SMT lines plus 2 through-hole lines, and it covers the full one-stop scope: PCB fabrication up to 64 layers, component sourcing, SMT/THT assembly, IC programming, cable assembly, box build, and functional testing. Orders start at a single unit with no minimum order quantity, at the same quality standards as production runs. It is shortlisted as the offshore option—ranked fifth because it is not European-headquartered, not because its capability is judged lower.

Relevant sites & certifications: ISO 9001:2015, ISO 13485:2016, IATF 16949:2016, AS9100D, IPC-A-610 Class 2 and Class 3, UL, RoHS, and REACH. Production is ISO-certified with design-for-manufacturability and design-for-test (DFM/DFT) review on every order; BGA assembly is supported down to 0.2 mm ball pitch.

Main limitation: Production happens in Shenzhen. Programs that require EU-local manufacturing—defense, some medical registrations, contractual “made in EU” clauses—should look to the European leaders on this list. Its published 24-72 hour turnaround applies to PCB fabrication and to prototype volumes when components are in stock and design files are production-ready; fully assembled PCBA is typically 3-7 days after components are ready. Its published pricing is typically 30-50% below equivalent European EMS quotes—a directional comparison from the company’s own material, not an audited average.

Verify before RFQ: Confirm component availability for your BOM, the split between fabrication and assembly lead time, landed cost to your European address, and certification copies with registrar names.

6. Kitron: best for defense and high-reliability electronics

Best for: Defense, medical, and industrial programs with high-reliability requirements, especially where military and medical quality standards must coexist.

Why shortlisted: Kitron, headquartered in Asker, Norway, operates across 11 countries including Norway, Sweden, Lithuania, Germany, and Poland, with roughly 3,000 employees. It combines AQAP 2110 (NATO defense) with medical-grade ISO 13485 and EN/AS 9100D aerospace certification—a combination few European EMS providers hold.

Relevant sites & certifications: The differentiators are AQAP 2110 (NATO defense), NIST SP 800-171 (cybersecurity), and ISO 13485 at FDA-registered sites. Defense certifications are site-scoped; match them to the plant that will build your product. Common quality certifications are in the overview table.

Main limitation: The defense-plus-medical combination only helps you if your target site holds both certifications. Verify the scope per site rather than assuming group-wide coverage.

Verify before RFQ: Ask which site holds AQAP 2110 and ISO 13485 for your product type, and request the certificate numbers and registrars.

7. Neways: best for semiconductor equipment and complex mechatronics

Best for: OEMs building semiconductor equipment, mission-critical systems, and complex mechatronics that need system-level engineering, not just board assembly.

Why shortlisted: Neways, headquartered in Son, the Netherlands, operates across the Netherlands, Germany, the Czech Republic, Slovakia, China, and Malaysia. It sits at the system-engineering end of contract manufacturing: in-house microelectronics development and packaging, box build for high-level assemblies, mission-critical cable systems, mechatronic assembly, and full-cycle obsolescence management for semiconductor equipment customers.

Relevant sites & certifications: The differentiators are AQAP 2110/2120 (NATO defense) at Leeuwarden in the Netherlands and in Slovakia, plus TISAX (automotive cybersecurity) and ISO 50001 (energy). ISO 13485 and IATF 16949 apply to specific units only. Common quality certifications are in the overview table.

Main limitation: The depth suits technically dense programs, not simple board turns. Confirm the proposed site’s AQAP and TISAX scope before quoting defense or automotive work.

Verify before RFQ: Ask which engineering center and production site will handle your program, and request site-level certificates for the disciplines your product needs.

8. Lacroix: best for connected industrial and IoT products

Best for: Companies building connected industrial devices, IoT hardware, and control panels that want manufacturing plus IoT technology expertise.

Why shortlisted: Lacroix Electronics, the manufacturing arm of the French Lacroix Group (headquartered in Saint-Herblain), produces in France, Germany, Poland, Tunisia, and North America. Beyond classic EMS services—PCB assembly, box build, cable harnesses, aftermarket—it brings proprietary IoT expertise under the SOFREL brand for environmental and industrial telemetry, plus an in-house design center.

Relevant sites & certifications: The differentiators are Part 21G (aerospace production approval) and C-TPAT (supply-chain security); IATF 16949 applies at selected sites only. Confirm which entity and site holds the certifications your program requires. Common quality certifications are in the overview table.

Main limitation: The IoT platform scope is spread across group divisions; confirm your program is served by the electronics manufacturing arm with the right certification set.

Verify before RFQ: Ask which division and plant will manufacture your product, and request that entity’s certificate register including Part 21G scope if relevant.

9. NOTE: best for Nordic NPI and regional production support

Best for: Northern European OEMs that need responsive new product introduction (NPI) and regional production support close to their engineering teams.

Why shortlisted: NOTE AB, headquartered in Stockholm, Sweden, operates production in Sweden, Finland, Estonia, the UK, and Bulgaria, with roughly 1,500 employees. It focuses on PCB assembly, box build, and order fulfillment for Northern European OEMs, with a structured NPI process from prototype through volume.

Relevant sites & certifications: The differentiators are ISO 45001 (occupational health and safety) and ATEX compliance for certain products; ISO 13485 covers medtech. Common quality certifications are in the overview table.

Main limitation: NOTE is smaller than the top four European EMS providers. For very high volumes or multi-country supply assurance, confirm capacity before committing.

Verify before RFQ: Ask for a documented NPI timeline with milestones and named engineering contacts, and confirm which plant runs your program.

10. Videoton: best for electronics with deep in-house mechanics

Best for: Programs that need the enclosure and the electronics from one supplier—automotive, household appliances, industrial electronics, telecom, and healthcare.

Why shortlisted: Videoton Holding, headquartered in Székesfehérvár, Hungary, employs about 8,000 people and is one of the few European contract manufacturers with deep in-house mechanical capability alongside full EMS: plastic injection molding, metal stamping, tool making, powder coating, and KTL electro-coating.

Relevant sites & certifications: Mechanical capabilities live in specific group companies (such as Videoton Elektro-PLAST for medical), so site-level verification matters—ISO 13485 applies at group units and IATF 16949 across automotive-facing businesses. Common quality certifications are in the overview table.

Main limitation: “Under one roof” claims should be checked: some capabilities sit in different group units. Confirm which factory builds the electronics and which builds the mechanics.

Verify before RFQ: Ask which group companies produce your enclosure and your electronics, and request each site’s certification scope.

What to ask an electronics contract manufacturer before your RFQ

Send the same question set to every shortlisted candidate—European and offshore—so the quotes are comparable:

1. Current certificates with registrar names and expiry dates.Verify them with the registrar (TÜV, BSI, SGS); “pending” or “expired” is a no.
2. What testing is standard in the quoted price?AOI (automated optical inspection)-only is not the same as AOI plus X-ray plus ICT (in-circuit test) plus functional test, and the difference shows up in the field.
3. What is your first-pass yield on assemblies like mine?A manufacturer that tracks it can answer; one that cannot is guessing.
4. What is your MOQ, in writing—and where does my order size rank in scheduling priority?The second half is the question most buyers forget.
5. Separate prototype and production lead times, with component risk flags on long-lead parts before you freeze the BOM (bill of materials).
6. Sourcing policy in writing: authorized or franchised distributors only, with traceability? Broker-bought components are a common counterfeit risk in turnkey programs.
7. Substitution sign-off process: does any component swap require written approval, or can they substitute silently?
8. Who owns the NRE (non-recurring engineering) costs—stencils, tooling, re-qualification—and when do they recur?Ask for an itemized quote rather than assuming “every design revision” is charged the same way.
9. Who is my point of contact—an engineer or an account manager?Ask about the escalation path and service-level agreement, not just response speed.
10. Incoterms and EU delivery: who handles customs and duties, and what is the realistic door-to-door time, not the factory-gate time?

Frequently asked questions

Q: What is the difference between an electronics contract manufacturer and an EMS company?

In practice, the terms describe the same supplier. EMS (electronics manufacturing services) is the industry’s own name for the service package; “contract manufacturer” is the more general term. The practical differentiator is scope: a full-service partner covers PCB assembly plus box build, mechanics, cables, sourcing, testing, and often logistics—not just board assembly.

Q: Who is the largest electronics contract manufacturer in Europe?

Zollner Elektronik is Europe’s largest EMS provider: about 12,500 employees and 26 locations, including 9 production sites in Germany. However, global giants operating plants in Europe—Foxconn, Flex, and Jabil—produce more on European soil than any European-owned firm, per in4ma and EMSNOW industry analysis. “Largest” also is not “best for your order”: see the decision grid above.

Q: When should a European OEM use an offshore electronics contract manufacturer instead of a European EMS?

When nothing in your program requires EU-local production, and your order is prototype-to-mid volume. An offshore partner typically wins on cost, speed, and MOQ flexibility; a European EMS wins when a customer contract mandates “made in EU” production, when defense or medical site restrictions apply, or when you need very high volumes with multi-plant supply assurance. The right answer for your program depends on a landed-cost comparison with the candidate suppliers—not on a one-size-fits-all rule.

Q: What certifications should an electronics contract manufacturer hold?

ISO 9001 is the baseline every serious manufacturer holds. Match the rest to your industry: ISO 13485 for medical, IATF 16949 for automotive, AS9100D for aerospace, and AQAP 2110 for NATO defense work. Verify each certificate is current, issued by an accredited registrar, and held by the specific production site that will build your product—then ask which IPC standard family governs acceptance (IPC-A-610 for assembly, IPC-6012 for bare boards, J-STD-001 for soldering process).

Q: What is the typical minimum order quantity for electronics contract manufacturing?

It ranges from zero to thousands of units—there is no single “typical” value across European EMS providers. Large European leaders often schedule production in the hundreds to thousands range and may deprioritize small builds behind volume accounts; quick-turn offshore partners like OrinewPCB quote from a single unit. Ask each supplier for the MOQ in writing and for how your order size ranks in scheduling priority, then compare.

Conclusion

The European electronics contract manufacturing market is fragmented by design: regional specialists with different centers of gravity in automotive, medical, defense, industrial, and system engineering, plus global giants operating plants on European soil. That fragmentation is good news for buyers, because a partner exists for every program stage.

If your project is a prototype or low-volume build without an EU-production requirement, include OrinewPCB in that RFQ round and compare its documented scope and landed quote against the European candidates—then let the data, not the geography, make the call.

References & Sources

1. EMSNOW: MMI Top 50 EMS— global EMS industry context. Industry ranking.
2. 2. Evertiq: Europe’s Top 20 EMS Companies— in4ma/EMSNOW analysis of European EMS fragmentation and global giants’ European operations. Industry analysis, directional.

The post Top 10 Electronics Contract Manufacturers for European OEMs first appeared on Pcbandassembly.

Outsourcing PCBA manufacturing costs roughly $50–$500 in setup and tooling plus a per-unit price that ranges from about $30–$150 per board at prototype volumes down to $5–$20 per board at production volumes — but the single largest line item is almost never manufacturing at all. Components typically account for 50–70% of total landed cost, so the real driver of what you pay is your BOM, not the solder joints. This guide breaks down every cost bucket in an outsourced PCBA quote — bare board, assembly, components, tooling, testing, and freight — with published price points where they exist, so you can read a quote and know whether you’re overpaying.

The short version up front: there is no single “cost to outsource PCBA” because the same board can vary 5–10× in per-unit price between a 5-piece prototype run and a 10,000-piece production run, and the biggest variable is component pricing that most quote-to-quote comparisons never touch. If you walk into the process knowing that components are the elephant, that setup and NRE hit you once no matter the volume, and that per-joint rates are a rounding error next to BOM cost, you’ll evaluate quotes on the numbers that actually matter.

Key Takeaways

• Components are 50–70% of total PCBA cost — optimizing your BOM (sourcing, substitutes, authorized parts) saves more than any assembly-line discount ever will.
• Setup fees, stencils, and test programming are fixed costs: a $300 setup on a 5-board run adds $60/board; on a 1,000-board run it’s $0.30/board.  That’s the whole prototype-to-production price delta in one sentence.
• A “cheap per-joint” assembly quote is misleading if the shop adds line-item charges for stencil, programming, extended parts, and test that the headline number doesn’t include.
• Flying-probe testing is the right default below ~1,000 units (no fixture cost); ICT’s $5,000–$20,000fixture only pays off at production volume.
• China/East-Asia placement rates run roughly 10–50× lower than US/EU rates, but freight, duties, and lead-time risk can erase the gap on small, time-sensitive orders.

What’s actually in an outsourced PCBA quote

Every outsourced PCBA quote is built from the same four cost buckets, and knowing their typical proportions tells you where to focus negotiation energy:

Typical cost split of an outsourced PCBA program — components dominate at every volume tier.

These proportions are directional — a board with $0.80 of passives and one $40 connector shifts the split dramatically. But the ordering is stable: components first, everything else second. That ordering is why the most cost-effective thing you can do is fix your BOM before you shop assembly, not after.

How much does bare-board fabrication cost?

Bare-board fabrication is usually the second most expensive line item, and it’s the one buyers most often over-spec. Layer count is the dominant driver — each pair of layers adds material, lamination cycles, and drilling steps — followed by board size, panel utilization, copper weight, and surface finish.

Published and industry-typical bare-board pricing by layer count — cost per board drops steeply as quantity rises.

Figures are directional ranges compiled from published prototype-shop pricing. The exact number depends on panelization: if your board fits multiple-up on a standard panel, per-unit price falls proportionally.

The panelization lever. A standard production panel in East Asia is roughly 500×400mm (or 250×300mm for rapid-prototype shops). A 100×100mm board fits five-up on a 250×300mm panel — so a $7–$13 five-piece quote isn’t five boards each costing $1.40–$2.60; it’s one panel’s worth of material split five ways. Designing your board to a standard panel grid (e.g., multiples of 50mm) can cut fabrication cost 20–40% before you ever send files.

What adds cost to the bare board

• Surface finish: HASL is the baseline and cheapest. OSP adds a small premium but is handling-sensitive. Immersion silver/tin sits mid-range. ENIG typically adds 15–25% to surface-finish cost and is required for fine-pitch BGAs and edge connectors — if your design doesn’t need it, don’t pay for it. ENEPIG costs more still and is only justified for wire bonding or harsh-environment reliability.
• Copper weight: 2 oz and 3 oz copper for high-current designs adds roughly 30–50% to material cost — and forces wider trace/space rules that can lower panel yield. Design for the thinnest copper that meets your current requirement.
• Special laminates: high-frequency (Rogers-class, PTFE) or high-Tg materials run 2–3× the cost of FR-4. See our Rogers RO4835T materials guideif you’re weighing whether you actually need them.
• Tolerance and impedance control: controlled impedance (±10% typical) and tight registration add test and process cost. Required for high-speed designs, wasted otherwise.

📐 Engineering Note

Take a 4-layer, 100×100mm board, 5 pieces, at a rapid-prototype shop. Published baseline is roughly $7 for the first run; adding a lead-free finish, ENIG (because your design has a fine-pitch BGA), and a color adds up to roughly $17–$24 total for five boards — about $3.40–$4.80 per board. Re-quote the same board at 500 pieces and per-board price typically falls to $3–$8 because the setup is amortized and the board now panels efficiently. That’s the fabrication half of the 5–10× prototype-to-production delta.

What does PCB assembly cost?

Assembly pricing has three components: a fixed setup/tooling charge, a per-joint (or per-component) placement charge, and add-on line items for stencils, extended parts, and testing. At low volume, the fixed charges dominate; at volume, the per-joint rate dominates.

Setup fees and stencils

Published rapid-prototype pricing from JLCPCB’s assembly price breakdown shows the low end of the market:

• SMT setup: $8 per order (economic line), $25 single-side / $50 double-side (standard line)
• Stencil: $1.50 (economic, production-use only) to $7.86 single-side / $15.72 double-side (standard)
• Extended-parts fee: $1.50–$3.00 per additional component type beyond the standard feeder set — this is where boards with 100+ unique part numbers quietly add up
• Hand-soldering labor: ~$3.50 per order plus higher per-joint rates for through-hole

Full-service contract manufacturers quote higher setup — commonly $150–$500 — because they include engineering review, DFM analysis, programming, and first-article inspection in that charge. The rapid-prototype number and the full-service number buy different things; comparing them apples-to-apples requires reading what’s included, not just the number.

Per-joint placement rates

Automated SMT placement is billed per solder joint or per component placement. Published rates:

• Rapid-prototype shops (East Asia): ~$0.001–$0.002per joint, tiered down with volume
• US/EU contract manufacturers: ~$0.015–$0.05per placement — roughly an order of magnitude or more higher, reflecting labor, overhead, and typically more complete documentation and traceability

📐 Engineering Note

A 200-component board with a realistic mix of passives, QFNs, and a couple of BGAs typically lands at 400–600 solder joints per board, so a 100-board run is roughly 50,000 joints. At $0.0015/joint that’s $75 of placement; at $0.03/placement it’s $1,500. The spread is real — roughly 10–50× depending on the shop — but it’s still smaller than the component-cost spread on the same board, which is why buyers who fixate on per-joint rates are optimizing the wrong line item.

⚠️ Important

A $8 setup fee sounds unbeatable until you add stencil, extended parts, programming, and test as separate line items — charges that a bundled quote from a full-service CM already includes. Always ask for the complete cost per board, including setup, stencil, extended parts, and test, rather than comparing headline setup numbers. The two models converge once every line item is on the table.

Components: the 50–70% of your budget most quotes bury

Here’s the number that decides whether outsourcing is cheap or expensive: components are typically 50–70% of total PCBA cost (up to ~80% on boards with expensive active components). That’s a directional industry range — multiple EMS and cost-analysis sources converge on it, but every program differs — yet it has a practical consequence most cost guides miss: your BOM is your cost, and the assembly shop is only managing it, not creating it.

Turnkey vs. consignment

• Turnkey— the CM sources all components per your BOM. You pay the BOM cost plus a procurement markup, typically 10–20% (vendor-reported; many shops quote 8–15%) to cover purchasing overhead, supply-chain management, and risk. Turnkey is where the CM’s distributor relationships and bulk buying actually help you.
• Consignment— you buy and deliver all components. You save the markup but take on the full risk: you must buy 15–25% extra components for attrition and scrap, track lead times yourself, and absorb the cost of a line stop when a part is late or wrong.

📐 Engineering Note — consignment isn’t automatically cheaper

On a 100-board run where components total $8,000, a 12% turnkey markup costs you ~$960. Buying consigned, you save that — but you’re now carrying inventory, purchasing buffer stock (15–25% extra on the BOM), and owning the schedule risk. The break-even depends on your procurement team’s bandwidth and your component lead times, not on the markup alone. For most low-volume and mid-volume buyers, turnkey nets out ahead; consignment only wins at scale or when you have genuine sourcing leverage.

The silent cost: component substitution risk

The largest hidden cost in outsourced PCBA isn’t a fee — it’s a substitution. When a BOM component is obsolete, long-lead, or on allocation, a CM that swaps in an equivalent but different part without your sign-off can change electrical behavior, thermal performance, or compliance status. The cost isn’t the swap itself; it’s the field failure or the regulatory surprise six months later.

The fix is contractual, not technical: your quote should state that any component substitution requires written approval with datasheet comparison. On a recent low-volume program, our team at OrinewPCB caught a proposed substitution for a customer’s precision voltage reference that would have shifted its tolerance spec — we flagged it in DFM review before the BOM was purchased, and the customer’s decision to keep the original part avoided a test failure that would have scrapped the first production batch.

NRE, testing, and other one-time costs

Non-recurring engineering (NRE) and tooling hit you once per design, and their per-board impact collapses as volume rises. Budget for them explicitly — they’re the difference between “the quote was cheap” and “the total bill was fine.”

Testing: the decision that shapes your per-board cost

• Flying probe— no fixture required; a machine probes each net programmatically. Programming costs $500–$2,000, and testing runs $5–$20 per board with 5–15 minutes per board. This is the right default for prototypes and low volume (under ~1,000 units), because there’s no fixture to pay for.
• ICT (In-Circuit Test)— a custom bed-of-nails fixture per design costs $5,000–$20,000 plus $1,000–$3,000 for the test program, but per-board testing drops to $1–$5 with fast cycle times. The fixture pays for itself only at production volumes; at 100 boards it adds $50–$200 per board, which no one budgets for when they quote ICT “because it’s more thorough.”
• AOI and X-ray— AOI is standard practice on SMT lines and usually included in assembly; X-ray is required for hidden-lead packages (BGAs, QFNs) and is often billed per board on a tiered scale.

📐 Engineering Note — when ICT actually makes sense

Take a $12,000 ICT fixture on a board built in quantities of 500. That’s $24 per board just for the fixture — four to eight times the cost of flying-probe testing at the same volume. Double the quantity to 10,000 and the fixture drops to $1.20/board, below flying probe. The crossover is roughly in the low thousands of boards per design, depending on board size and test coverage. A good CM will tell you which test method fits your quantity instead of defaulting to the more expensive one.

Why per-unit price drops 5–10× from prototype to production

The single biggest source of confusion in PCBA cost is the gap between prototype and production pricing. A board that costs $80/unit at 5 pieces can cost $15/unit at 1,000 and $8/unit at 10,000. That’s not a discount — it’s the amortization of fixed costs plus volume component pricing:

1. Setup and NRE amortize: a $300 setup spread over 5 boards is $60/board; over 1,000 boards it’s $0.30.
2. Panelization efficiency: production runs fill panels, cutting fabrication waste.
3. Component pricing: distributors and manufacturers tier pricing by quantity; the same connector that costs $1.20 at qty 1 might be $0.55 at qty 10,000. With components at 50–70% of cost, this is the largest single driver of the delta.
4. Line efficiency: pick-and-place runs continuously instead of stopping for changeovers.

📐 Engineering Note — worked example: the same board at two volumes

Consider a 4-layer board, 100×100mm, ~150 components, ENIG finish, flying-probe tested. At 20 pieces, a realistic landed quote is $1,800–$2,500 total — roughly $90–$125 per board — because setup, stencil, programming, and a 20-piece component buy dominate. At 2,000 pieces, that same design typically quotes $14,000–$20,000 — $7–$10 per board, with components still about 60% of the total and setup amortized to cents. These are directional ranges, not quotes for any specific design, but the shape — a 10× per-unit drop driven mostly by component volume and fixed-cost amortization — is consistent across published prototype pricing and industry-typical production quotes.

Why quotes vary so much — and how to compare them fairly

Two quotes for the same Gerber and BOM can differ by 3–5×. Usually that’s not one shop “cheating” — it’s different inclusions. When comparing quotes, normalize for these five variables:

1. Component cost basis: Is the quote including the BOM at your cost, or at the shop’s sourced cost plus markup? Ask for the component cost breakdown line by line — this is 50–70% of the total, so a $0.05 difference on a 100-component BOM is a $5–$10 difference on your board cost before you even count assembly.
2. Setup and NRE inclusions: Does the quote include DFM review, programming, and stencil, or are they line items?
3. Test coverage: AOI only, or AOI + flying probe/ICT? Is X-ray included for BGAs?
4. Quantity basis: Per-board price at what quantity? Never compare a per-board prototype price to a per-board production price without adjusting for volume.
5. Landing cost: Freight, duties, and customs brokerage on East-Asia orders can add 5–20% depending on order size and destination. A $0.0015/joint assembly quote doesn’t help if your express freight is $200 on a small order.

The landing-cost rule. For orders under ~$3,000–$5,000 of goods, freight and duties are a significant fraction of the total — often 5–20% — which is why a domestic or regional CM can be competitive on small batches despite higher per-joint rates, and why offshore wins decisively as order value grows. Express freight on a small parcel runs roughly $10–$45 depending on carrier and destination (Freightos shipping rate data). Compare landed cost per board, not per-joint rates.

How to reduce PCBA outsourcing costs without cutting quality

Ordered by impact, because most cost-reduction advice starts at the wrong end:

1. Fix the BOM first.Consolidate part numbers, standardize on common values, and prefer parts with multiple suppliers. A board with 60 unique parts is meaningfully cheaper to assemble than one with 120 unique parts — extended-parts fees, feeder changes, and sourcing effort all scale with unique part count.
2. Avoid over-specifying.ENIG where HASL works, 4 layers where 2 layers route, ±5% impedance where ±10% passes — each over-spec adds cost you can’t see on the schematic. Our guide to PCB manufacturing costs in 2026walks through the fabrication-side decisions line by line.
3. Panelize to standard sizes.Multi-up on a standard panel grid cuts fabrication cost 20–40%.
4. Let the CM source components (turnkey).The 10–20% markup usually nets out against the buffer stock, expedite fees, and line-stop risk of doing it yourself — and it transfers allocation risk to someone who lives in the market.
5. Choose the right test method.Flying probe below ~1,000 units; ICT only when the fixture amortizes. AOI is standard — make sure it’s included, not a line item.
6. Ask for DFM feedback before you commit to the first quote.Most layout-level cost drivers — over-tight spacing, exotic finishes, inefficient panelization — are fixable before production but expensive after.

From our floor. On a recent 6-layer HDI prototype order, our DFM review caught that the customer’s design used blind vias on an inner layer pair where a through-via stackup would have passed every signal-integrity requirement at roughly 30% lower fabrication cost. We flagged it before the quote was locked; the customer revised the stackup, and the fabrication line item dropped by about a third. That’s the difference between a CM that quotes your files and one that engineers your costs — the same engineering-first approach we take to every order at OrinewPCB.

Frequently Asked Questions

Q: What is the average cost to outsource PCBA manufacturing?

There’s no single average — components dominate at 50–70% of total cost, so per-board price tracks your BOM first. Directionally, expect roughly $30–$150 per board at prototype volumes and $5–$20 per board at production volumes for a typical 4-layer design, before tooling and freight. A more useful number: total program cost for a 100-board prototype run with a mid-complexity BOM typically lands in the $3,000–$8,000 range including setup, stencil, testing, and freight.

Q: Why is my PCBA quote so much higher than a competitor’s published price?

Published prices are usually prototype-optimized headline numbers (small boards, basic finish, economic line, no test coverage, self-sourced components). Your quote includes your BOM cost, finish, test requirements, and the shop’s inclusions. Compare normalized total cost per board — BOM included — not headline setup fees.

Q: Is it cheaper to outsource PCB assembly overseas?

For order values above a few thousand dollars, East-Asia contract manufacturers typically offer materially lower per-joint and fabrication rates, and the ~10–50× placement-rate gap is real. Below that, freight (45 express on small parcels) and lead-time risk can erase the savings — so small, urgent orders are often cheaper closer to home. Compare landed cost per board, not rates.

Q: What percentage of PCBA cost is components?

Directionally, 50–70%, and up to ~80% on boards with expensive active components. This is the single most important number in PCBA cost management: it means BOM optimization and sourcing discipline matter more than assembly pricing.

Q: What is a fair markup for turnkey component sourcing?

Most contract manufacturers quote 10–20% over BOM cost for turnkey sourcing (many in the 8–15% range) — vendor-reported, not an audited industry figure. Fairness depends on what’s included: an authorized-distributor supply chain and documented traceability justify the top of the range; a shop sourcing from gray-market brokers should not be charging the same premium.

Q: Do I have to pay NRE every time I change the design?

No — NRE (fixture, programming, test program) is per design, and minor revisions usually reuse most of it. Major revisions that change layer count, board shape, or component placement may trigger new setup and stencil charges. Clarify in the quote what counts as a revision vs. a new program before you sign.

Why we write this

Cost guides that list “factors affecting PCBA price” without a single number teach readers nothing they couldn’t guess. We wrote this guide to put actual published price points and directional ranges on the table — so buyers can check whether their quote sits in a sane range and, more importantly, know that the component line, not the assembly line, is where their money actually goes. We’re a contract manufacturer ourselves, and we’ve watched buyers overpay on consignment setups, over-spec finishes they didn’t need, and pick test methods that added $20/board of fixture cost to a 200-board run. The recommendations here come from that floor experience. Reviewed by the OrinewPCB technical team.

References & Sources

1. What does your PCB assembly price include?— published setup, stencil, and line-item pricing (vendor-published)
2. Flying Probe vs. Fixture Testing Cost Analysis— ICT fixture and flying-probe cost ranges (vendor-published)
3. What Affects PCB Assembly Cost?— stencil and tooling cost ranges (vendor-published)
4. EEVblog forum: USA vs. China assembly pricing— practitioner-reported placement rate ranges (directional)
5. IPC releases J-revisions of J-STD-001 and IPC-A-610— assembly workmanship standards context (standards body)
6. IPC-6012: qualification standard for bare boards— bare-board qualification reference (standards body)

The post How Much Does It Cost to Outsource PCBA Manufacturing? A Cost Guide (2026) first appeared on Pcbandassembly.

Box build assembly is the process of integrating a finished PCBA with an enclosure, cable harnesses, power supplies, displays, connectors, and other components to create a fully functional, ready-to-ship product. It bridges the gap between board-level electronics — where the sole output is a populated circuit board — and a finished device that an end user can unbox, install, and operate.

If you’ve ever shipped tested PCBA boards to an enclosure vendor only to discover that the mounting holes don’t align, the cable harnesses are 3 cm too short, and the power supply doesn’t fit inside the enclosure your mechanical team designed — you already know why box build matters. That coordination gap between board-level electronics and the finished product is exactly what box build assembly is designed to eliminate.

Key Takeaways

• Box build assembly goes far beyond PCB assembly: it integrates PCBAs with enclosures, cables, power supplies, displays, and all other components into finished products governed by multiple distinct IPC standards, not just IPC-A-610
• Cable harnesses and interconnects — not PCBA failures — are consistently identified as the primary failure point in electromechanical products, particularly in high-vibration or wide-temperature-range environments
• Early DFM review for box build catches integration issues before any components are ordered, typically saving 4-8 weeks of rework compared to catching them during production
• OEMs shifting from multi-vendor sourcing to a consolidated box build partner typically realize an estimated 30-40% reduction in procurement overhead — a directional figure based on industry case studies, not an audited average
• Box build testing extends beyond PCBA-level inspection to include functional, burn-in, hipot, environmental, IP rating, and vibration testing — each governed by its own standard

What is box build assembly?

Box build assembly, also called system integration or electromechanical assembly, takes a tested PCBA and integrates it with an enclosure, cable harnesses, power supplies, connectors, displays, and all other mechanical and electrical components required to create a finished product.

The distinction from PCB assembly is straightforward:

A PCBA is the brain of the device. Box build gives it a body.

What’s commonly misunderstood about box build

Many engineers assume box build is simply assembling boards into enclosures — a straightforward step any contract manufacturer can handle. This assumption overlooks the fact that the physical constraints of an enclosure create interdependencies that don’t exist at the board level: a cable that fits on the bench may rub against a sharp enclosure edge under vibration, a power supply chosen for its electrical spec may block airflow to the component it powers, and a connector positioned for ideal signal integrity may be unreachable by any assembly tool after the next module is installed.

Industry reliability data supports this concern. Multiple studies published in IEEE Transactions on Components, Packaging and Manufacturing Technology identify interconnects — connectors, cabling, and solder joints — as having higher field failure rates than the PCBAs themselves, particularly in applications subject to vibration or wide thermal cycling. Cable harness failures alone are frequently cited as a primary root cause in automotive recall data, far outpacing static PCB failures. This means that the integration step — often treated as the simplest part of the build — is where field reliability is actually determined.

To give a concrete example: on a recent medical device program assembled at OrinewPCB, the DFM review caught a ribbon cable routed directly across a fan intake. The cable had been placed there during prototype builds because it was the shortest path between two connectors, and the prototype had passed functional testing with no issues. But once the product reached the production DFM review, our engineers identified that continuous airflow across the ribbon cable would cause mechanical fretting at the connector interface, producing intermittent signal failures within approximately 90 days of field operation — a failure mode no bench test would have caught. The fix — rerouting the cable along the enclosure wall with a tie-down anchor — added zero cost and zero lead time because it was applied at the DFM stage, not during production.

This pattern repeats across box build programs more often than most design teams expect. The DFM review for box build typically catches 5-15 issues per program depending on product complexity. The earlier in the process that review happens, the less expensive each fix is.

Core standards governing box build

Box build assembly is governed by multiple distinct standard families — not a single overarching standard — and each applies to a different phase of the process.

Specifying “IPC certified” without the standard number and revision is a common and expensive ambiguity. IPC-A-610 Rev H governs assembly acceptance. IPC/WHMA-A-620 Rev D governs cable harness acceptance. These are separate documents with separate certification requirements, and a supplier certified under one standard is not automatically qualified under the other.

The box build assembly process

A professional box build follows six structured phases. The most important — DFM review — happens before any component is ordered.

Phase 1: Design for manufacturability (DFM)

DFM for box build examines the entire product, not just the PCB. IPC-2221 Rev C provides the design framework for PCB layout, but box build DFM extends to enclosure fit, cable routing, thermal management, and assembly access — areas not covered by board-level design standards.

📐 Engineering Note — CTE mismatch between PCBA and enclosure

A design consideration that often escapes first-pass review: the coefficient of thermal expansion (CTE) mismatch between the PCBA substrate and the enclosure material.

For a product specified to operate from -20°C to 70°C (a 90°C delta), a 100 mm FR4 board expands roughly 0.13-0.15 mm. The same board inside an ABS enclosure expands 0.54-0.90 mm. This differential translates to mechanical stress on mounting standoffs and connector interfaces that accumulates over every thermal cycle. The engineering solution: use compliant mounting (shouldered standoffs with soft grommets) rather than rigid fasteners, particularly for PCBA spans exceeding 150 mm in either dimension.

Phase 2: Component sourcing and supply chain management

This is where box build diverges most sharply from PCBA. Unlike PCBA sourcing — where an EMS procures electronic components from a handful of authorized distributors — box build sourcing spans multiple industries: plastics molding, sheet metal fabrication, cable harness shops, custom packaging. Each category has different lead times, minimum order quantities, and quality standards.

The single most common sourcing mistake: treating all lead times as equal. A custom injection-molded enclosure requires 4-12 weeks for tooling alone. A standard DC/DC converter ships in 4-6 weeks. If the enclosure order goes out six weeks after the PCBA BOM is finalized, the entire program waits.

Rule: Identify and place the purchase order for the single longest-lead item before anything else. Then fill in shorter-lead items around it.

OEMs typically choose between two sourcing models:

• Full turnkey: The EMS manages all procurement. Single PO, single point of accountability. Industry estimates suggest OEMs shifting from multi-vendor to consolidated box build sourcing reduce procurement overhead by roughly 30-40% — fewer POs, fewer incoming inspection nodes, fewer supplier audits. (This is a directional figure based on EMS provider case studies, not an independently audited average.)
• Customer-supplied materials: The OEM procures long-lead items and ships them to the EMS. More control over supplier selection, more logistics overhead.

For most programs of 500+ units, full turnkey reduces overall program risk because the EMS has established supplier relationships and can manage incoming quality inspection across all material categories.

Phase 3: Sub-assembly and system integration

Sub-assemblies are built before final integration to streamline the line:

• Cable harnesses: cut to length, terminated, labeled, tested per IPC/WHMA-A-620 Rev D
• Enclosures: standoffs installed, brackets attached, ventilation verified
• Power supplies: leads terminated, mounting hardware attached

Sub-assembly typically reduces final integration time by 30-60% because specialized operators focus on specific module types rather than switching between tasks.

Phase 4: Testing and quality control

Box build testing extends beyond PCBA-level inspection. System-level tests verify that all components work together as a complete product.

Phase 5: Labeling, packaging, and shipment

Serial number and regulatory labels applied per specifications. Product packaged with accessories, cables, and documentation. Outer carton labeled and palletized for freight.

When does box build make sense for your program?

When separate vendors may be better

• Prototype volumes under 50 units: the integration complexity may not justify the management overhead
• Standard off-the-shelf enclosure with no custom tooling
• Your team has dedicated mechanical assembly and test capability in-house

Cost structure of box build

Box build pricing is more complex than PCBA pricing because of the range of material types and labor steps.

These cost ranges are directional estimates based on typical customer programs observed across multiple EMS providers, not audited averages from a single source. Actual pricing depends on design complexity, volume, and material requirements. Always request an itemized quote for your specific program.

Design guidelines for box build

Engineers designing products for box build should incorporate these guidelines early — ideally before the enclosure model is finalized:

• Design for top-down assembly: All components should install from the top. Avoid designs requiring the operator to flip the assembly mid-process — each flip adds 15-30 seconds to cycle time.
• Provide cable tie-down anchors: Include molded or machined points for cable retention. Per IPC/WHMA-A-620 Rev D, cables should be secured within 50 mm of any connector and at intervals not exceeding 150 mm for unsupported runs.
• Maintain connector clearance: Ensure a technician can reach every connector latch with a standard tool. Connectors buried against enclosure walls are the most common field-service complaint.
• Include alignment features: Use alignment pins, stepped standoffs, or tooling holes to ensure the PCBA and enclosure mate correctly every time.
• Plan for thermal expansion: Use compliant mounting for PCBA spans over 150 mm. The CTE mismatch between FR4 (14-17 ppm/°C) and ABS enclosures (60-100+ ppm/°C) causes accumulated stress over every thermal cycle.
• Mark polarity on all connectors: Unmarked connectors are the most common cause of test failures at functional test stations.
• Specify torque values for every fastener: Undertorqued fasteners loosen; overtorqued fasteners strip threads or crack plastic enclosures.

How to choose a box build partner

Industry regulations and quality systems

The regulatory requirements for box build depend on the product’s end use:

Medical devices — ISO 13485:2016 / FDA 21 CFR Part 820 (QMSR)

As of February 2, 2026, the FDA’s Quality Management System Regulation (QMSR) incorporates ISO 13485:2016 by reference. Box build programs for medical devices must demonstrate design controls, risk management (per ISO 14971), full component traceability, and documented process validation for all assembly and test steps. The EMS provider should be able to produce a device history record (DHR) linking every component lot to the finished product serial number.

Aerospace and defense — AS9100D

AS9100D focuses on configuration management, traceability of all materials (including mechanical components), and risk-based decision-making. Every fastener, cable, and connector in a box build for aerospace must be traceable to its lot and supplier.

Automotive — IATF 16949:2016

IATF 16949 requires a zero-defect approach to assembly, statistical process control on critical parameters, and failure mode and effects analysis (FMEA) for all assembly processes.

Frequently asked questions

What is the difference between PCB assembly and box build assembly?

PCB assembly (PCBA) solders electronic components onto a circuit board and is governed primarily by IPC-A-610 Rev H and J-STD-001 Rev H. Box build assembly takes that PCBA and integrates it into a complete product — adding the enclosure, cable harnesses (governed by IPC/WHMA-A-620 Rev D), power supply, and connectors — and tests the final assembly as a complete system. PCBA makes the board work; box build makes the product work.

What types of testing does box build include?

Functional testing (full system operation — 100% of units), burn-in (continuous load for 24-168 hours to catch early failures), hipot/dielectric testing (electrical safety isolation), environmental testing (temperature and humidity extremes per IEC 60068), IP rating testing (dust and water ingress per IEC 60529), and vibration testing (mechanical integrity). The specific test set depends on the product’s industry and regulatory requirements.

What certifications should a box build manufacturer have?

ISO 9001:2015 as a minimum. For medical devices, ISO 13485:2016 (now incorporated by reference into FDA 21 CFR Part 820 as of February 2026). For aerospace, AS9100D. For automotive, IATF 16949:2016. Cable harness work should demonstrate IPC/WHMA-A-620 Rev D compliance. Assembly workmanship should meet IPC-A-610 Rev H at Class 2 or Class 3.

What is DFM for box build?

DFM for box build examines the entire product design for manufacturing efficiency and reliability — not just the PCB. It checks enclosure fit (standoff alignment, clearance), cable routing (bend radius per IPC/WHMA-A-620, strain relief), thermal management (airflow path, vent placement), tool access for all fasteners, field-serviceability, and test point accessibility after final assembly. A DFM review for box build typically catches 5-15 issues per program.

How does cable harness quality affect box build reliability?

Cable harness failures are consistently cited as the primary field failure mode in electromechanical products, particularly in automotive, industrial, and aerospace applications. Poor crimping, incorrect strip length, inadequate strain relief, and improper connector seating are the most common defects. The governing standard is IPC/WHMA-A-620 Rev D, which defines acceptance criteria for all cable and wire harness operations.

Can a prototype-only manufacturer handle production box build?

Not reliably. Prototype box build and production box build require different process controls. Prototype work uses manual assembly and generic test setups. Production box build requires SPC on critical assembly parameters, documented PFMEA, production-grade test fixtures, and lot-level traceability. A manufacturer like OrinewPCB, with ISO 9001:2015, ISO 13485:2016, and IATF 16949:2016 certifications, supports both prototype and production box build under the same quality system — with free DFM feedback included on every order.

Conclusion

Regulatory requirements across medical (FDA QMSR / ISO 13485), aerospace (AS9100D), and automotive (IATF 16949) are converging on a single requirement: full traceability across every component in the assembly. The box build partner you choose must be able to produce that traceability on demand — not just for the electronic content, but for every mechanical part that goes into your product.

Whether you’re launching a new medical device, scaling an industrial controller, or bringing a smart IoT product to market, understanding the box build process — and the standards that govern it — is the first step toward reliable, repeatable product delivery.

The post Box build assembly: A complete guide to system integration for OEMs first appeared on Pcbandassembly.

Solder paste is the material that makes modern PCB assembly possible. Without it, those 0402 resistors, fine-pitch BGAs, and QFN packages wouldn’t stay in place long enough to reach the reflow oven.

What Is Solder Paste?

Solder paste is a thixotropic mixture of metal solder powder suspended in a flux vehicle. It’s the adhesive that holds surface-mount components in place during placement and the material that forms permanent electrical and mechanical solder joints during reflow.

Think of it as the glue that becomes the weld — a temporary binder during assembly that transforms into a reliable metallic connection after heating.

Composition Breakdown

Solder paste has two main components, each with a specific job:

The powder-to-flux ratio determines how the paste behaves during printing and reflow. Too much powder and the paste becomes stiff and doesn’t release from the stencil. Too much flux and the paste slumps, causing bridging between adjacent pads.

Solder Paste Types by Alloy

The solder powder itself comes in different alloy compositions, each with distinct melting points, mechanical properties, and regulatory compliance.

Leaded vs. Lead-Free Solder Paste

Sn63Pb37 has been the industry standard for over 40 years. Its eutectic composition means it transitions directly from solid to liquid without a plastic phase, which simplifies the reflow process. The lead content improves ductility, making joints more resistant to thermal cycling fatigue.

SAC305 is the most common lead-free alternative, driven by the RoHS (Restriction of Hazardous Substances) directive. It requires a higher reflow temperature, which means more thermal stress on components and boards. However, it’s RoHS-compliant and widely accepted across consumer, industrial, and automotive electronics.

SAC387 offers slightly higher silver content for improved mechanical strength, but the difference is marginal for most applications. SAC305 remains the dominant choice.

Other Notable Alloys

• Sn42/Bi58(Tin-Bismuth, Lead-Free): Melts at 138°C — useful for temperature-sensitive components. More brittle than SAC305 but can be a good choice for step-soldering applications.
• 5/Ag3.5(Tin-Silver, Lead-Free): Melts at 221°C. Higher cost than SAC305 with similar performance.
• In48/Sn52(Indium-Tin): Melts at 118°C — used for specialized cryogenic or temperature-sensitive assemblies.

Solder Powder Particle Sizes

Particle size is classified by the IPC J-STD-005 standard. Smaller particles enable finer-pitch printing but have higher surface area, making them more prone to oxidation.

Type 3 is the workhorse for standard assembly. If you’re assembling boards with 0805, 0603, or larger components and standard-pitch QFPs, this is what you need.

Type 4 handles most fine-pitch work — anything down to 0.4 mm pitch. It’s the second most common choice in production.

Type 5 and Type 6 are for advanced miniaturization. The smaller particles print cleaner on tiny apertures but cost more and have shorter stencil life due to faster flux drying.

Flux Categories

The flux vehicle is just as important as the powder. It determines how well the paste prints, how it behaves during reflow, and whether you need to clean the board afterward.

No-Clean flux is the dominant choice in modern SMT assembly. It leaves a transparent, non-conductive, non-corrosive residue that doesn’t need to be removed. This saves a cleaning step and reduces cost.

Water-Soluble flux offers the best wetting performance but requires thorough cleaning with deionized water. Residual activators left on the board can cause corrosion and field failures.

RMA strikes a good balance for prototype and mid-volume work. It offers reliable soldering with residues that are generally safe to leave on the board.

Storage and Handling

Solder paste is a perishable material. Mishandling it is one of the most common causes of SMT defects.

Storage Requirements

The SMT Printing Process

Solder paste application is the first and most critical step in the SMT assembly process. Get this wrong, and nothing downstream can fully fix it.

Step 1: Stencil Printing

The stainless steel stencil sits aligned over the bare PCB. A squeegee blade pushes solder paste across the stencil, forcing it into the apertures. When the stencil lifts, the paste deposits remain on the pads.

Key parameters:

Step 2: Pick-and-Place

Components are placed into the wet solder paste. The paste’s tackiness holds them in place. This is where paste rheology matters — the paste must be tacky enough to hold components during board movement but not so sticky that it pulls off during placement.

Step 3: Reflow Soldering

The board passes through a controlled heating profile that activates the flux, melts the powder, and forms the solder joint.

Typical Reflow Profile Zones

For SAC305, the peak temperature should reach 245–260°C, with time above liquidus (217°C) kept between 30 and 90 seconds. Too short and the joint doesn’t form properly. Too long and you risk intermetallic growth that weakens the joint.

Common Solder Paste Defects

Even with good paste, defects happen. Here are the most common ones and their root causes.

For a deeper look at assembly defects and how to solve them, check out our guide on common PCB assembly defects.

How to Choose the Right Solder Paste

Selecting the right paste depends on your assembly requirements. Here’s a practical decision framework.

Step 1: Decide Leaded vs. Lead-Free

• Consumer/commercial products: Use SAC305 (RoHS-compliant, widely available)
• Medical/mil/aero (exempt from RoHS): Sn63Pb37 for proven reliability and easier processing
• Temperature-sensitive assemblies: Consider Sn42/Bi58 (low melt) for step-soldering

Step 2: Choose Particle Size

• Standard components (0603+, QFP ≥ 0.65mm pitch): Type 3
• Fine-pitch (QFP 0.4–0.5mm pitch): Type 4
• Micro-BGA, 0.3mm pitch: Type 5
• Advanced packaging, CSP: Type 6

Step 3: Select Flux Type

• Mass production: No-Clean (fastest, lowest cost)
• High-reliability / medical / aero: Water-Soluble (best wetting, must clean)
• Prototype / short runs: RMA (forgiving, versatile)

Step 4: Verify Stencil Compatibility

Your stencil design must match the paste type. The key metric is area ratio:

Area Ratio = Aperture Opening Area ÷ Aperture Wall Area

• Target: > 0.66 for standard Type 3/4 pastes
• Target: > 0.50 for Type 5/6 pastes (with optimized printing parameters)

If your area ratio drops below these thresholds, the paste won’t release cleanly from the stencil, causing insufficient solder defects.

For detailed stencil design guidelines, check our article on SMT stencils, types, and design guidelines.

Useful Resources

Industry Standards: – IPC J-STD-005: Requirements for Solder Paste — the primary paste specification – IPC J-STD-001: Requirements for Soldered Electrical and Electronic Assemblies – IPC-7525: Stencil Design Guidelines — essential for proper aperture design

Design Tools: – Solder paste calculator (aperture area ratio, aspect ratio) – Reflow profile optimization software (KIC, SolderStar)

Related Articles: – PCB Assembly Process: Complete Step-by-Step Guide — how solder paste fits into the full assembly flow – SMT vs. Through-Hole Components: Engineering Guide — when SMT (and solder paste) applies vs. through-hole – Wave Soldering vs Reflow Soldering: Processes, Differences & When to Use Each — reflow vs wave soldering explained

Frequently Asked Questions

What is solder paste made of?

Solder paste is a mixture of 88–92% metal solder powder (by weight) and 8–12% flux vehicle. The solder powder is typically a tin-lead or tin-silver-copper alloy, and the flux contains activators, solvents, and rheology modifiers that enable printing and promote wetting during reflow.

Can solder paste be used for hand soldering?

Solder paste is designed for stencil printing and reflow soldering, not hand soldering. For hand assembly, use traditional wire solder with separate liquid flux. You can use solder paste for rework on individual components using a hot air station, but it’s not practical for manual through-hole soldering.

How long does solder paste last after opening?

Once opened, solder paste has a limited working life. At typical factory conditions (22–25°C, 40–60% RH), opened paste lasts 8–24 hours on the stencil. Type 5 and Type 6 pastes have shorter stencil lives than Type 3 due to faster solvent evaporation. Always follow the manufacturer’s specification for open-jar life.

What is the difference between Type 3 and Type 4 solder paste?

Type 3 paste has larger particles (25–45 µm) and is suitable for standard SMT assembly with component pitches of 0.65 mm or larger. Type 4 has finer particles (20–38 µm) and is designed for fine-pitch components down to 0.4 mm. Type 4 paste prints better on small stencil apertures but has a shorter stencil life because the finer particles expose more surface area to oxidation and solvent evaporation.

Why does solder paste need to be refrigerated?

Refrigeration slows the chemical reaction between the flux activators and the solder powder. Without refrigeration, the flux degrades, the paste’s rheology changes, and soldering performance deteriorates. Refrigerated paste typically lasts 6–12 months. Paste stored at room temperature may degrade in weeks.

What causes solder balls after reflow?

Solder balls are typically caused by moisture in the paste condensing into steam during reflow, which ejects small droplets of molten solder. Other causes include oxidized powder, excessive flux spattering, incorrect reflow profile (too rapid heating), or paste that wasn’t properly thawed before use.

What is SPI in PCB assembly?

SPI (Solder Paste Inspection) is an automated 3D inspection step performed immediately after solder paste printing and before component placement. SPI systems use laser or structured light to measure the volume, height, area, and alignment of paste deposits on every pad. It catches insufficient paste, excess paste, bridging, and misalignment — before components are placed and reflowed, when defects are still fixable.

What is the difference between No-Clean and Water-Soluble solder paste?

No-Clean paste leaves a transparent, non-conductive residue that can remain on the board without causing reliability issues — no cleaning step is needed. Water-Soluble paste offers better wetting and leaves residues that must be thoroughly cleaned with deionized water. If the cleaning step is missed, water-soluble residues can absorb moisture and cause corrosion, leading to field failures.

Conclusion

Solder paste is the foundation of SMT assembly — the material that bridges bare PCBs and functional electronic products. Getting it right means understanding four variables: alloy composition, particle size, flux type, and handling procedure.

For standard production, SAC305 Type 4 with No-Clean flux covers the majority of applications. For high-reliability work, consider Sn63Pb37 (if RoHS-exempt) or Water-Soluble flux with a thorough cleaning process. Always verify your stencil design provides adequate area ratio for the paste you’re using, and never compromise on storage and thawing procedures.

The best assembly results come from controlling the printing process — SPI verification, proper stencil maintenance, and consistent reflow profiling. When you treat solder paste with the same engineering rigor you apply to your PCB design, the defects that plague most assembly runs simply don’t appear.

The post What is Solder Paste? Complete Guide to Composition, Types, and SMT Printing first appeared on Pcbandassembly.

Low-volume PCB assembly serves as the critical bridge between a prototype and full-scale production. For hardware startups, R&D teams, and engineers developing new products, small-batch assembly makes it possible to validate designs, test manufacturability, and seed early market traction — all without committing to mass-production inventory or tooling costs.

What is Low-Volume PCB Assembly?

Low-volume PCB assembly refers to the production of populated circuit boards in quantities typically ranging from 5 to about 5,000 units. It sits between prototype assembly (1–50 boards, often hand-assembled or partially automated) and high-volume mass production (10,000+ units with fully optimized automated lines).

Parameter	Prototype Assembly	Low-Volume Assembly	High-Volume Assembly
Quantity	1–50 units	50–5,000 units	5,000–100,000+ units
Primary goal	Design validation	Market testing, pilot runs	Cost-efficient mass production
Automation	Manual or semi-automated	Full SMT automation	Full SMT + line optimization
Lead time priority	Speed (24–72 hours)	Balanced (5–15 days)	Consistency (15–30 days)
Per-unit cost	Highest	Moderate	Lowest
Engineering support	Hands-on DFM feedback	Standard DFM + NPI support	Process control focused

Low-volume assembly is the stage where your design meets real manufacturing conditions. It reveals issues that don’t surface during hand-assembled prototyping — pick-and-place clearance problems, solder paste volume inconsistencies, and panelization inefficiencies — while the cost of fixing them is still manageable.

What are the Advantages of Low-Volume PCB Assembly?

Low-volume PCB assembly offers significant advantages in flexibility, cost control, process adaptability, and rapid iteration, making it an efficient choice for transitioning electronic products from R&D to mass production.

1) Flexibility and Rapid Response

Low-volume assembly swiftly adapts to market shifts, supporting new product development and trial production. Customers can flexibly adjust designs based on feedback. This flexibility shortens the time-to-market cycle, helping capture market opportunities. Standard turnaround times range from 3 to 7 days (expedited options available in 24-72 hours), meeting rapid iteration demands.

2) Reducing Capital Pressure

Compared to mass production, low-volume assembly requires a lower initial investment, which reduces inventory pressure and the amount of capital tied up. This makes it ideal for SMEs and start-ups. For example, minimum PCB orders start as low as 5–500 pieces, avoiding excessive stockpiling. This makes it perfect for R&D prototyping, initial production runs, or small-to-medium batch orders.

3) Supporting for Complex Processes & Customization

Low-volume assembly handles components challenging for automated placement (e.g., large, irregularly shaped, or heat-sensitive parts) and enhances soldering quality through post-soldering processes. It also supports hybrid techniques (e.g., combining SMT and THT) and personalized customization.

4) Low-Cost Trial and Iteration

Low-volume production facilitates design validation and modifications, reducing trial-and-error costs and development risks. For instance, low-volume assembly enables rapid identification and correction of design flaws, preventing rework losses after mass production.

5) Adaptability to Diverse Design Requirements

Low-volume assembly accommodates high-density designs (e.g., via/blind via technology), enhancing signal transmission performance while reducing electromagnetic interference. Furthermore, it meets the stringent reliability demands of sectors like medical devices and prototyping.



Cost Structure: What You Actually Pay For

Understanding the cost breakdown of a low-volume assembly order helps startups budget accurately and identify where savings are possible.

NRE Costs (Non-Recurring Engineering)

Every assembly order — regardless of volume — carries fixed engineering costs that set up the production process.

Cost Item	Typical Range	What It Covers	How Often It Repeats
Stencil	$30–$80	Laser-cut stainless steel stencil for solder paste printing	Every board revision (new stencil required)
SMT programming	$50–$150	Pick-and-place machine file generation from centroid data	Every board revision, minor changes often waived
First Article Inspection (FAI)	$50–$200	Full inspection of first assembled board against BOM + schematic	Every order (sometimes first order only)
ICT fixture (optional)	$200–$1,500	Custom bed-of-nails fixture for in-circuit testing	One-time, but only cost-effective above 500 units
Panel tooling (if panelized)	$50–$200	V-score or routing tooling per panel design	Every new panel layout

For a 100-unit run, these fixed costs add $1.80–$6.30 per board. For a 1,000-unit run, they drop to $0.18–$0.63 per board. This is why per-unit pricing decreases significantly as volume increases.

Per-Unit Pricing Breakdown

The variable cost per board depends on board size, component count, component complexity, and testing requirements.

Component Count	2-Layer Board (100 pcs)	4-Layer Board (100 pcs)	2-Layer Board (500 pcs)	4-Layer Board (500 pcs)
25 components	$15–$25	$22–$35	$8–$14	$12–$22
50 components	$25–$40	$35–$55	$14–$22	$20–$35
100 components	$40–$65	$55–$85	$22–$38	$32–$55
200+ components	$65–$120	$85–$150	$38–$70	$55–$95

These ranges include PCB fabrication, component costs (assuming standard passives and common ICs), and SMT assembly. Specialized components — FPGAs, RF modules, high-precision analog ICs — can dominate the total cost regardless of volume.



Why Low-Volume PCB Assembly Matters for Startups

1. Design Validation Under Real Manufacturing Conditions

A hand-assembled prototype can work perfectly in the lab but fail when run through an automated SMT line. The reflow profile, solder paste application, and component placement tolerances of a real production line expose design issues that hand assembly masks. Running 50–200 boards through a proper SMT line is the most cost-effective way to validate that your design is truly manufacturable.

2. Cost-Effective Market Testing

For hardware startups, producing 200–1,000 units for beta testers, early customers, or trade shows is far more capital-efficient than committing to a 10,000-unit production run. Low-volume assembly lets you test market demand, gather user feedback, and iterate before scaling.

3. Capital Efficiency

Mass production requires tying up capital in component inventory, tooling, and minimum order commitments. Low-volume assembly typically requires only the cost of the boards themselves plus moderate NRE fees. This makes it ideal for startups managing cash flow, companies launching new product lines, or projects with uncertain demand forecasts.



Low-Volume-Specific Design Guidelines

Optimizing a design for low-volume assembly follows a different set of priorities than optimizing for high-volume production. The goals shift from thousandths-of-a-cent savings to minimizing NRE exposure and maximizing flexibility.

1. Use Manufacturer-Standard Specifications

Standard specifications are processed faster and at lower cost because the manufacturer’s equipment and processes are already tuned for them.

Specification	Recommended (Standard)	Why
Board thickness	1.6mm (0.063″)	Standard pallets, carriers, and reflow profiles
Copper weight	1 oz (35 µm)	Balances cost and current capacity
Surface finish	ENIG or Lead-Free HASL	ENIG for fine-pitch, HASL for cost savings
Solder mask color	Green	Highest yield in AOI systems
Minimum trace/space	6/6 mil or larger	No premium for standard tolerances

2. Optimize Your BOM for Availability

The single biggest cause of low-volume assembly delays is component availability. A BOM that uses only standard, widely stocked parts can ship in 5–7 days. A BOM with one obscure part can wait 8–12 weeks.

Best practices for BOM optimization:

Use standard resistor values (E24 series), capacitor values (0.1 µF, 1 µF, 10 µF, 22 µF), and common package sizes (0402, 0603). Reduce unique part numbers by consolidating multiple capacitor values into one where possible. Add approved alternate manufacturer part numbers for every IC and active component so the assembler has sourcing flexibility. Check component lifecycle status before finalizing the BOM — end-of-life parts are a common trap for low-volume designs.

3. Panelize Smarter, Not Harder

Panelizing multiple boards into a single panel improves SMT line throughput and reduces per-board cost, even at low volumes. A well-designed panel can reduce assembly cost by 15–30% compared to single-board processing.

Panel design rules for low-volume assembly:

Include at least two global fiducial marks (1mm copper dots on solder mask, with a 2mm clear border). Add three local fiducials per board for precise placement. Use V-scoring for rectangular boards and mouse bites with break-away tabs for irregular shapes. Leave 2–5mm tooling borders around the panel edge. Avoid slots or cutouts that reduce panel stiffness during soldering.

4. Plan Your Testing Strategy Early

The testing strategy for low-volume production differs from high-volume because the cost of dedicated test fixtures can’t be spread across millions of boards.

Test Method	Setup Cost	Per-Board Cost	Best For
AOI (Automated Optical Inspection)	$0	Minimal (included in assembly)	Solder joint quality, component presence
X-ray inspection	$0	Minimal (per board or sample)	BGA/QFN hidden solder joints
Flying probe	$50–$150	$1–$5 per board	Opens, shorts, component values
ICT (In-Circuit Test)	$200–$1,500	<$0.50 per board	Volume production (500+ units)
Functional test	$200–$2,000	$2–$10 per board	Full system verification

For runs under 500 units, AOI + X-ray (for BGA/QFN packages) + flying probe provides comprehensive coverage without the fixture investment of ICT.



Common Challenges in Low-Volume PCB Assembly

Component Availability and MOQ Mismatch

Many components are only sold in reels of 1,000–5,000 units. For a 100-board run needing 200 capacitors, the manufacturer must purchase a full reel of 5,000 and use only 200.

Mitigation: Work with manufacturers that maintain in-stock component libraries. These libraries aggregate demand across multiple customers, allowing per-component pricing without passing on full-reel costs.

High Per-Unit NRE Impact

As shown in the cost table above, fixed costs hit small batches hardest. A $150 stencil on a 50-unit order adds $3.00 per board.

Mitigation: Consolidate orders where possible, use standard panel sizes (no custom panel tooling), and select components from the manufacturer’s stock library. Some manufacturers waive the stencil cost for first orders.

Testing Fixture Cost Amortization

An ICT fixture costing $800 adds $8.00 per board to a 100-unit run but only $1.60 per board at 500 units.

Mitigation: For low volumes, specify flying probe testing instead of ICT. Flying probe requires no fixture and covers the same fault coverage for most designs — opens, shorts, and component value verification.

Communication Overhead

Managing separate PCB fabrication, component sourcing, and assembly vendors multiplies coordination effort. A single DFM issue can trigger back-and-forth discussions with three different suppliers.

Mitigation: Use a one-stop manufacturer that handles fabrication, assembly, and sourcing under one roof. This eliminates the communication gaps that cause delays in multi-vendor workflows.



How to Choose a Low-Volume PCB Assembly Partner

Not every manufacturer is well-suited to low-volume work. The capabilities that make a factory excellent for volume production — extreme process optimization, dedicated equipment, specialized operator training — can make them inflexible and expensive for small batches.

Evaluation Criteria

Criteria	What to Look For	Red Flags
No MOQ or low MOQ	Minimum order of 1–5 assembled boards	MOQ of 50+ units for assembly
Turnkey service	Handles PCB fab + component sourcing + assembly	Requires you to source components separately
Component library	Established in-stock parts library	Every component must be supplied or sourced at extra cost
DFM feedback	Free DFM review before production with actionable feedback	Auto-generated DFM report with no human review
Testing	AOI on every board + X-ray for BGAs + flying probe/ICT	“Testing available at extra cost” or “testing by request”
Lead time	5–15 business days for standard orders	20+ days for low-volume runs
Certifications	ISO 9001:2015 minimum; ISO 13485/IATF 16949 for regulated industries	No quality certifications listed
Engineering support	English-fluent engineering contacts for design questions	Only sales or customer service contacts available

A manufacturer like OrinewPCB — with its ISO 9001:2015 certified lines, in-stock component library covering thousands of common parts, and free DFM review on every order — is designed for this exact use case.

About OrinewPCB

Time is money in your projects – and OrinewPCB gets it. OrinewPCB is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

Design Tips for Cost-Effective Low-Volume PCBA

1. Optimize Your BOM

• Use common components: Standard resistors (0402/0603, 1%, 0.1uF capacitors) that every manufacturer stocks. Avoid obscure or end-of-life parts.
• Reduce unique part numbers: Consolidate multiple capacitor values into one where possible. Each unique part requires a separate feeder slot and component reel, increasing setup cost.
• Add approved alternates: List acceptable substitute components in your BOM. If the primary part is out of stock, the manufacturer can switch to the alternate without requesting approval.

2. Panelize for Assembly

• Panelizing multiple copies of your board into a single panel improves SMT line throughput and reduces per-board assembly cost — even for low volumes.
• Include fiducial marks (global and local) for accurate pick-and-place alignment.
• Use mouse bites or V-scoring with break-away tabs for depaneling. Avoid routing slots that waste panel space.

3. Plan Your Surface Finish

• ENIG (Electroless Nickel Immersion Gold)is the safest choice for low-volume mixed-technology assemblies. It provides a flat surface for fine-pitch BGA/QFN and has excellent shelf life.
• HASLis cheaper but has non-uniform surfaces that can cause issues with fine-pitch components and planar BGAs.
• OSPis the lowest cost but has limited shelf life and requires careful handling through multiple reflow cycles.

4. Design for Testing

• Add test points (40-mil square or larger) on accessible layers for flying probe testing.
• Avoid placing test points under components or on the bottom side if possible.
• Include a test point legend in your fabrication drawing so test engineers can program the flying probe quickly.



Frequently Asked Questions

What is considered low-volume PCB assembly?

Low-volume PCB assembly typically refers to orders between 5 and 5,000 assembled boards. Some manufacturers define low volume as under 1,000 units. The defining characteristic is that NRE and setup costs significantly impact the per-unit price.

How much does low-volume PCB assembly cost?

For a typical 100-unit run of a 2-layer board with standard components, expect 35 per board including PCB fabrication, component costs, and assembly. For 1,000 units, the per-board cost drops to 15. The biggest variable is component cost — specialized ICs can dominate the total.

What documents do I need for a low-volume PCBA quote?

You need: Gerber files (all layers), a Bill of Materials (BOM) with manufacturer part numbers, and a pick-and-place (centroid) file with X/Y coordinates and rotation for each component. A fabrication drawing with stackup, impedance, and finish specifications is recommended.

How long does low-volume PCB assembly take?

Standard lead times for low-volume PCBA range from 5–15 business days. Expedited options (5–7 days) are available from most manufacturers. The longest single step is typically component sourcing — which is why manufacturers with in-stock component libraries can deliver faster.

SMT vs. through-hole for low volumes: which is better?

SMT is almost always more cost-effective for low-volume assembly because it’s fully automated. Through-hole components that require wave soldering or hand soldering add labor cost. Design for SMT when possible, and limit through-hole to connectors or components that require mechanical strength.

Can I get the same quality testing on low-volume assemblies?

Yes. AOI should be performed on every board regardless of volume, and X-ray should be available for BGA/QFN packages. The main difference: at low volumes, flying probe testing is more cost-effective than building a dedicated ICT fixture.

How can I reduce the cost of low-volume PCB assembly?

The most effective strategies are: (1) choose components from your manufacturer’s in-stock library, (2) panelize your board design to improve SMT line efficiency, (3) use standard PCB specifications (2-layer FR-4, standard thickness, ENIG finish), and (4) consolidate multiple variants into a single assembly order.

When should I switch from low-volume to high-volume production?

The transition typically makes sense when your monthly demand exceeds 1,000–5,000 units and your design is stable (no revisions expected for 6+ months). At that point, the investment in custom test fixtures, volume pricing agreements, and optimized panelization becomes economically justified.



Summary

Low-volume PCB assembly serves as a critical link between R&D and mass production in electronics manufacturing, particularly suited for personalized needs requiring rapid validation and flexible adjustments. As electronic products evolve toward greater intelligence, digitization, and connectivity, the entire manufacturing supply chain faces overwhelming demand for diverse emerging electronic components. From the perspective of PCB order volumes and customer requirements, low-volume boards hold significant importance within the PCB industry.

The post Low-Volume PCB Assembly: For Startups and Prototyping first appeared on Pcbandassembly.

This guide covers how stencil thickness works, the engineering rules that govern it, and how to select the right thickness for your specific component mix.

Key Takeaways

• Stencil thickness controls solder paste volume — the single most important variable in SMT yield
• IPC-7525 defines two critical ratios: Aspect Ratio (min 1.5) and Area Ratio (min 0.66) for reliable paste release
• 5 mil (0.125 mm) is the industry standard for mixed-component boards; adjust thinner for fine-pitch and thicker for power components
• Step stencils solve mixed-thickness requirements on a single board but add cost and lead time
• The quality of a manufacturer’s stencil-related DFM feedback reveals their process engineering maturity

What Is PCB Stencil Thickness and Why Does It Matter?

A PCB stencil is a precision laser-cut metal sheet (typically stainless steel) used to deposit solder paste onto PCB pads during the SMT printing process. The stencil sits on top of the PCB, solder paste is applied across its surface, and a squeegee forces paste through the apertures (holes) onto the pads below.

Stencil thickness defines the z-axis of the deposited paste volume. Combined with aperture dimensions, it determines exactly how much solder ends up on each pad.

The consequences of incorrect thickness are significant:

The correct thickness delivers the right paste volume for every component on the board — enough to form a reliable joint without risking shorts.

Standard Stencil Thicknesses and When to Use Each

Most PCB assemblies fall into one of five standard thickness ranges. The choice depends primarily on your component mix, with the finest-pitch components dictating the upper bound.

5 mil Is the Default — Here’s Why

5 mil (0.125 mm) is the industry standard for a reason. It provides sufficient paste volume for common 0.5 mm pitch components while remaining thin enough to avoid bridging on 0402 and 0603 passives. For a typical board with a mix of standard passives, QFPs, and 0.5 mm pitch BGAs, 5 mil is the right starting point.

When to deviate from 5 mil:

• Your board uses 0201 or smaller passives → consider 4 mil
• Your board uses 0.4 mm or finer pitch BGAs → consider 4 mil or step stencil
• Your board has large thermal pads or power components requiring high solder volume → consider 6–8 mil
• Your board has both ultra-fine-pitch AND high-volume components → consider a step stencil (see below)

The Two Engineering Rules That Govern Stencil Design (IPC-7525)

IPC-7525 is the industry standard for stencil design. It defines two critical ratios that determine whether solder paste will reliably release from the stencil aperture onto the PCB pad.

Aspect Ratio (AR)

Aspect Ratio = Aperture Width / Stencil Thickness

Minimum acceptable value: 1.5

The aspect ratio ensures the paste physically fits through the aperture. If the aperture is too narrow relative to the stencil thickness, the paste gets trapped by wall friction and won’t fully deposit on the pad.

Example — 5 mil stencil with a 12 mil square aperture:

AR = 12 / 5 = 2.4 ✅ (well above 1.5 minimum)
Example — 5 mil stencil with a 7 mil square aperture:

AR = 7 / 5 = 1.4 ❌ (below 1.5 — paste release issues expected)

Area Ratio (Area Ratio)

Area Ratio = Aperture Area / (Aperture Perimeter × Stencil Thickness)
Minimum acceptable value: 0.66

The area ratio accounts for the three-dimensional geometry of paste release. It compares the area of the aperture opening (which promotes release) to the sidewall area (which traps paste by friction).

For a square aperture:

Area Ratio = (W × W) / (4W × T) = W / 4T
Example — 5 mil stencil, 12 mil square aperture:

Area Ratio = 12 / (4 × 5) = 0.6 ❌ (below 0.66 minimum)
Wait — this is interesting. A 12 mil square aperture on a 5 mil stencil gives an AR of 2.4 (pass) but an Area Ratio of 0.6 (fail). This is why IPC-7525 recommends using both ratios, not just aspect ratio alone. The area ratio is the more stringent requirement for most designs.

For a round aperture:

Area Ratio = (π × D² / 4) / (π × D × T) = D / 4T
Practical implication: For a 5 mil stencil, the minimum aperture size that satisfies Area Ratio ≥ 0.66 is:

D/4T ≥ 0.66 → D ≥ 4 × 5 × 0.66 → D ≥ 13.2 mil
This means on a 5 mil stencil, apertures smaller than ~13 mil (0.33 mm) risk poor paste release. If your design has smaller apertures, you need a thinner stencil or aperture modifications (see below).

How to Handle Area Ratio Violations

When a component’s apertures fail the Area Ratio check, you have four options:

1. Use a thinner stencil— reduces the denominator, increasing the ratio
2. Enlarge the aperture— if pad size allows, widen the aperture opening
3. Use a step stencil— thin only the area with fine-pitch components
4. Apply nano-coating— hydrophobic/oleophobic coatings improve paste release without changing geometry, effectively relaxing the minimum ratio to ~0.55

Step Stencils: When One Thickness Isn’t Enough

Some boards contain both ultra-fine-pitch components (requiring a thin stencil) and large thermal pads or connectors (requiring a thick stencil). In these cases, a single uniform thickness can’t satisfy both requirements.

A step stencil solves this by varying the thickness across the stencil surface.

Step-Down Stencils

The stencil is milled thinner in specific regions to reduce paste volume for fine-pitch components. For example, a 6 mil stencil stepped down to 4 mil in the area covering a 0.4 mm pitch BGA, while the rest of the board stays at 6 mil.

Limitations: Maximum step-down depth is 2 mil. The transition zone (5-10 mm wide) must be kept clear of components, and the thinned area needs to be large enough for the squeegee blade to maintain consistent contact.

Step-Up Stencils

Less common — the stencil is made thicker in localized regions where extra paste volume is needed, such as high-current connectors.

Limitations: Step-up stencils are more expensive than step-down. The raised edge creates a shadowing effect during printing, and step heights above 2 mil are difficult to manufacture reliably.

When to Use a Step Stencil vs. Compromise on Thickness

Stencil Manufacturing Methods: Laser-Cut vs. Electroformed vs. Chemically Etched

The manufacturing method affects aperture quality, cost, and minimum feature size.

Stencil Materials

Common Stencil Thickness Mistakes

1. Using the same thickness for every design.A 5 mil stencil works for most boards, but it’s not universal. Boards with 0201 components or 0.4 mm BGAs need thinner stencils. Power boards with heavy copper need thicker stencils (or step stencils). Defaulting without checking component requirements is the most common cause of SMT yield issues.
2. Ignoring the Area Ratio.Many engineers check the Aspect Ratio and assume it’s sufficient. The Area Ratio is the more demanding constraint for fine-pitch components. Always check both.
3. Single large aperture for QFN thermal pads.A single large opening in the stencil for a QFN thermal pad will trap flux volatiles during reflow, creating large solder voids. Use a windowpane pattern instead.
4. Step stencil for prototype quantities.Step stencils add significant cost ($100-200+) and lead time (2-3 extra days). For prototypes and small batches, compromise on thickness or adjust aperture sizes instead.
5. Not accounting for solder mask-defined pads.Solder mask-defined pads have smaller opening areas than copper-defined pads. If you don’t account for the mask opening in your stencil aperture design, the actual paste volume will be higher than expected.

Frequently Asked Questions

What is the standard PCB stencil thickness?

5 mil (0.125 mm) is the industry standard for most mixed-component SMT assemblies. It balances paste volume for 0.5 mm pitch components with sufficient opening for standard passives.

How do I calculate the right stencil thickness for my design?

Start with the finest-pitch component on your board. Use the IPC-7525 Area Ratio formula: for a 0.5 mm pitch BGA with 0.3 mm (12 mil) ball pads, a 5 mil stencil gives Area Ratio = 12/(4×5) = 0.6, which is below the 0.66 minimum. This tells you to go thinner (4 mil) or use a step stencil.

What’s the difference between a step stencil and a standard stencil?

A standard stencil has uniform thickness across the entire surface. A step stencil has varying thickness — thinned areas for fine-pitch components and thicker areas for power components or connectors — allowing a single stencil to serve mixed requirements on the same board.

Can I use the same stencil thickness for prototype and production?

It depends on the component mix. If both prototype and production use similar components, the same thickness works. However, if prototyping uses standard components and production adds fine-pitch BGAs, you may need a thinner stencil for production.

When should I use a nano-coated stencil?

Nano-coatings improve paste release by reducing friction between solder paste and aperture walls. They’re most beneficial for fine-pitch components with borderline Area Ratios (0.55-0.66), high-volume production where consistent release matters, and when you want to avoid the cost of an electroformed stencil.

Does PCB surface finish affect stencil thickness choice?

Indirectly. ENIG and OSP provide flatter surfaces than HASL, so paste volume requirements are more predictable. HASL can create surface unevenness that absorbs some paste volume, occasionally requiring slightly thicker paste deposits. In practice, this is usually handled by aperture design adjustments rather than changing stencil thickness.

What causes tombstoning and can stencil thickness help?

Tombstoning occurs when one end of a passive component (0402, 0603) solders before the other, lifting the component. It’s often caused by imbalanced paste volume between the two pads. A thinner stencil reduces total paste volume and can help, but the root cause is usually pad design, not stencil thickness.

How many PCBs can a single stencil produce?

A well-maintained laser-cut stainless steel stencil can produce 10,000-50,000 boards before aperture wear affects paste deposit quality. Electroformed nickel stencils last 50,000-100,000+ cycles. Nano-coatings need reapplication every 5,000-10,000 cycles depending on cleaning frequency.

Conclusion

Stencil thickness selection is a precision engineering decision that directly affects SMT yield. The industry default of 5 mil works for a wide range of designs, but the right choice depends on your specific component mix, especially the finest-pitch components on your board.

The IPC-7525 Area Ratio is the most important rule to follow — keep it above 0.66 for reliable paste release. When your design requires multiple thicknesses for different component types, a step stencil provides a well-established solution, though it adds cost and lead time.

The post How to Choose PCB Stencil Thickness for PCB Assembly first appeared on Pcbandassembly.

Key Takeaways

• Per-piece PCB pricing drops 70-90% from prototype to high volumes as NRE and tooling costs are amortized
• Panel utilization is the single most impactful cost lever—a 10% utilization improvement can cut per-unit cost by 8-12%
• Layer count is the dominant cost multiplier: 4-layer boards cost ~2x 2-layer, 6-layer boards cost ~3-4x at volume
• Standard materials (FR-4, green solder mask, HASL finish) minimize cost; any deviation adds premium
• Testing at volume shifts from flying probe (slow, no fixture cost) to ICT/bed-of-nails (fast, high fixture cost amortized over volume)

What is High-Volume PCB Manufacturing?

High-volume PCB manufacturing refers to production runs typically exceeding 1,000 units, where the fabrication process shifts from general-purpose equipment to dedicated, automated production lines optimized for throughput and repeatability. At these volumes, the cost structure fundamentally changes:

• Setup costs (NRE)are spread across thousands of boards, approaching zero per unit
• Material purchasing powerincreases with bulk orders, reducing per-unit material cost by 15-30%
• Process optimizationbecomes economical—dedicated tooling, automated optical inspection (AOI), and in-circuit test (ICT) fixtures that would be uneconomical for prototypes become cost-effective
• Panelizationis optimized for maximum board count per production panel

High-Volume vs Prototype: Key Differences

High-Volume PCB Pricing Models

Manufacturers use several pricing models for mass production. Understanding which one applies to your quote helps you compare apples to apples.

Per-Piece Pricing

The most common model for high-volume PCB orders. The manufacturer calculates total production cost (materials + labor + NRE amortization + margin) and divides by quantity. Per-piece pricing includes all setup, tooling, and testing costs.

Panel Pricing

The manufacturer quotes based on the number of production panels required rather than individual boards. A standard production panel is typically 18″ x 24″ (457mm x 610mm) or 21″ x 24″ (533mm x 610mm). The more boards you fit per panel, the lower your per-unit cost.

Example: Panel Pricing Calculation

Turnkey vs Consignment Pricing

For PCB assembly (PCBA) included in your order:

Cost Breakdown: Where Your Money Goes

Understanding the cost structure of a high-volume PCB order helps you identify where savings are possible.

Typical Cost Breakdown for High-Volume PCB Orders

NRE (Non-Recurring Engineering) Costs

These are one-time charges that should be amortized over the total order quantity.

Key Insight: At 10,000 units, a $3,000 ICT fixture adds only $0.30 per board. At 100 units, the same fixture adds $30 per board—prohibitively expensive.

Key Cost Drivers in High-Volume PCB Manufacturing

1. Layer Count

Layer count is the single largest cost multiplier in PCB fabrication. Each additional layer requires more material, additional lamination cycles, and tighter alignment tolerances.

Cost multiples are for high-volume pricing. Prototype multiples are typically higher.

2. Board Size and Panel Utilization

Board size directly impacts how many boards fit on a standard production panel. Maximizing panel utilization is the most effective cost reduction strategy.

Standard Panel Sizes:

• 18″ x 24″ (457mm x 610mm)
• 21″ x 24″ (533mm x 610mm)
• 24″ x 30″ (610mm x 762mm) — less common

Rule of Thumb: Optimize board dimensions to fit within 18″ x 24″ panels with minimal waste. A board that measures 100mm x 80mm (48 panels) costs significantly less per unit than a 105mm x 85mm board (36 panels).

3. Material Selection

 4. Copper Weight

 5. Surface Finish Cost Comparison

6. Solder Mask and Legend

Testing Costs at High Volume

Testing strategy shifts significantly between prototype and mass production volumes.

Recommendation: For high-volume production (>5,000 units), invest in ICT fixture testing. The initial $2,000-5,000 fixture cost is quickly recovered through faster test times and higher fault coverage.

Cost Reduction Strategies for High-Volume PCB Production

Design for Manufacturing (DFM)

DFM optimization during the design phase yields the largest cost savings at volume.

• Standardize component packages: Use 0603 or 0805 resistors throughout instead of mixing 0402, 0603, and 0805. Each unique package size requires a separate feeder on the SMT line, increasing setup time and cost.
• Single-side component placement: Design all SMD components on one side of the board to eliminate the second reflow pass. This can reduce assembly cost by 30-40%.
• Optimize board dimensions: Design to fit efficiently on standard 18″ x 24″ panels. Even 1-2mm adjustments can improve panel utilization by 10-20%.
• Minimize layer count: Using 4 layers instead of 6 reduces fabricated cost by approximately 40-50%.
• Avoid blind/buried vias: Through-hole vias are significantly cheaper than HDI microvias. Only use HDI when routing density absolutely requires it.

Panelization Optimization

Material Standardization

• Stick with FR-4 unless performance requirements demand otherwise
• Use green solder mask (the most cost-effective for manufacturers)
• Select HASL (lead-free) as default surface finish; only upgrade when required
• Use 1 oz copper unless high-current requirements dictate heavier copper

OrinewPCB: Your High-Volume PCB Manufacturing Partner

At OrinewPCB, we specialize in high-volume PCB fabrication and assembly for customers who need production-grade quality at competitive pricing. With 14 years of experience serving North American and European OEMs, our manufacturing processes are optimized for runs from 1,000 to 100,000+ units.

Our High-Volume Capabilities

 Why Customers Choose Us for Mass Production

• Competitive volume pricing: Panel-optimized production with 85%+ utilization targets
• Dedicated project management: Single point of contact from quote to delivery
• Quality systems: <15 PPM defect rate verified by AOI and electrical test on every panel
• Flexible volume scaling: One price lock for quantities 1,000-100,000+ with no MOQ surprise.

Get a quote: Email sales@pcbandassembly.com or request a quote online for your high-volume PCB project.

Frequently Asked Questions

How much does high-volume PCB manufacturing cost per board?

For a standard 4-layer FR-4 board measuring 100mm x 80mm with green solder mask and HASL finish, typical high-volume pricing (10,000+ units) ranges from 4.00 per board, depending on complexity, testing requirements, and the manufacturer’s location. A comparable 2-layer board of the same size can cost 1.50 per unit at volume. These prices include fabrication only; assembly adds additional cost based on component count and complexity.

What is the cost difference between 2-layer and 4-layer PCBs at high volume?

At high volume, 4-layer PCBs typically cost 1.8-2.5x more than equivalent 2-layer boards. For example, if a 2-layer board costs $1.00 at 10,000 units, a 4-layer version of the same board would cost approximately $1.80-$2.50. The difference comes from additional core material, prepreg, lamination cycles, and drilling time. The cost gap narrows slightly at higher volumes as setup costs become negligible.

Does ENIG cost significantly more than HASL at volume?

Yes, ENIG typically adds 15-30% to the fabrication cost compared to lead-free HASL at high volume. For a typical board, ENIG may add 0.80 per unit at volume pricing. The premium is justified for boards with fine-pitch BGA components, exposed contact pads, or applications where flat surface finish and long shelf life are critical. For general-purpose boards without these requirements, HASL remains the most cost-effective choice.

How much can panel optimization reduce per-unit cost?

Improving panel utilization from 65% to 85% can reduce per-unit cost by 15-25%. This is because the manufacturer charges for the entire panel area, including waste. A board that efficiently fills the panel effectively “spreads” the panel cost across more units. For a specific example, optimizing board dimensions to fit 48 units per panel instead of 36 reduces per-unit cost by 25% before any other cost factors change.

What is the minimum order quantity for high-volume PCB pricing?

Most manufacturers consider “high-volume” pricing starting at 1,000-5,000 units, with the best per-unit pricing typically achieved at 10,000+ units. Some manufacturers have tiered pricing at 5,000, 10,000, 25,000, and 50,000+ units. The MOQ for specific materials (like high-Tg FR-4 or Rogers) may be higher due to material minimums from suppliers.

How does assembly cost compare to fabrication cost at high volume?

At high volume, assembly cost often exceeds fabrication cost for boards with high component counts. For a simple board with few components, fabrication might represent 60% of total cost. For a complex board with hundreds of components, assembly (including component cost) can represent 70-80% of total cost. Component sourcing at volume offers significant savings through bulk purchasing and tape-and-reel packaging.

Is it cheaper to manufacture high-volume PCBs in China or locally?

For most standard PCB types, manufacturing in China or Southeast Asia offers 30-50% lower per-unit pricing compared to US or European manufacturers at high volume, even after accounting for shipping and customs. However, the total cost of ownership includes factors beyond unit price: longer lead times, inventory carrying cost, communication overhead, and shipping logistics. For time-sensitive or IP-sensitive products, domestic manufacturing may be cost-competitive despite higher unit pricing.

What percentage of PCB orders include a test fixture charge?

For high-volume production, approximately 60-70% of orders include ICT fixture charges as a separate NRE line item. The fixture cost (5,000) is typically quoted separately from the per-unit price and is amortized across the production run. Some manufacturers include basic fixture costs in their per-unit pricing for very large volumes (>50,000 units). For prototype and low-volume orders, ICT fixtures are rarely used—flying probe testing is the standard.

Conclusion

High-volume PCB manufacturing pricing is determined by a combination of design decisions, material choices, and production volume more than any single factor. The most cost-effective mass-production strategy starts at the design stage: optimizing layer count, board dimensions, and component selection for manufacturability. Panel utilization, standard material selection, and appropriate testing strategy then drive the final per-unit cost down toward the theoretical minimum.

The transition from prototype to volume production is where the smart money is made or lost. Design for manufacturing from day one, choose a partner with experience in your volume range, and always evaluate quotes on total cost of ownership rather than unit price alone.

The post High-Volume PCB Manufacturing: Mass Production Cost Guide first appeared on Pcbandassembly.
