📌Key Takeaways

  • Impedance accuracy starts with the fabricator’s stackup, not your datasheet. Prepreg Dk varies with resin content, glass style, and press cycle; a nominal 4.2 FR-4 can measure anywhere in a 4.2–4.5 band.
  • Industry-standard controlled-impedance tolerance is ±10%; a ±5% (or tighter) hold costs extra and buys real yield risk. Specify ±5% only on nets that genuinely need it.
  • A 50Ω microstrip over 8 mil (0.20 mm) of FR-4 lands near 14 mil (0.36 mm) trace width — but the fabricator must recalculate with its real dielectric stack, which is why the worked example in this guide is marked (modeled).
  • Microstrip is cheaper to build and easier to route; stripline gives better crosstalk isolation and a defined return path at higher layer and cost.
  • The fab drawing should carry the stackup table, layer assignment, impedance net list, tolerance, and coupon requirement. Missing any one of these turns a routine order into a rework cycle.



Quick Specs: What a High-Speed Fab Capability Sheet Actually Says

At a glance: a fabricator that can build high-speed boards should state impedance tolerance, minimum trace geometry, aspect ratio, and test capability in writing — not in a sales conversation.

Parameter Value
Controlled impedance tolerance (standard) ±8% (industry common: ±10%)
Controlled impedance tolerance (tight option) ±5%
Minimum trace width / spacing 1.8 mil (0.045 mm)
Layer count 1–64
Minimum mechanical drill 0.1 mm
Minimum laser via 3–6 mil
Drill aspect ratio (standard / advanced) 12:1 / 16:1
Impedance verification Test coupons, flying probe, impedance test on every controlled lot
Governing design standards IPC-2221C (design), IPC-2141A (controlled impedance), IPC-6012F (fab qualification)

The numbers above are our own published capability sheet, and we treat capability claims from any other vendor the same way you should: verify them against the fab drawing before you design to them. The rest of this guide tells you what each row means for your design and how to check that the fabricator you picked can deliver it.



The Stackup Handoff: Real Dielectric Data, Not Datasheet Values

The single most common reason a controlled-impedance order comes back off-target is that the designer calculated trace widths with the laminate datasheet’s nominal Dk instead of the fabricator’s actual dielectric stack. FR-4’s datasheet says 4.2–4.5, but the number that matters is the effective Dk of your prepreg combination after lamination: resin content, glass style (106, 1080, 2116, 7628), and press cycle all move it.

When you send a high-speed design to a fab, you are not sending “impedance 50Ω.” You are sending a trace geometry over a dielectric thickness that the fabricator controls. The fab’s job is to pick prepreg and core combinations that hit your target width, spacing, and impedance together. That is why the correct flow is:

  1. Ask the fabricator for their preferred high-speed stackup (they will have two or three standard ones tuned to their material stock).
  2. Route to the widths and spacings that stackup produces for your targets.
  3. Confirm the stackup on the fab drawing before you release Gerbers.

What is the best 4-layer stackup for high-speed design?

The best 4-layer stackup for a high-speed design is signal–ground–power–signal (L1 signal, L2 ground, L3 power, L4 signal), which puts every routing layer against a solid reference plane and gives both power and ground their own layers.

The alternative arrangement, signal–power–ground–signal, is workable when L3 is a dedicated ground and L2 is used for power routing only, but it forces the L3 ground to be broken for vias and often raises noise.

The standard 4-layer stackup in production is 1.6 mm (0.062 in.) total: ~8 mil (0.20 mm) core between L2–L3, ~5 mil (0.13 mm) prepreg between L1–L2 and L3–L4, and 1 oz (35 µm) copper. Note that the two signal layers sit as microstrip (L1, L4), so both routing layers reference an adjacent plane — that is the arrangement that makes controlled impedance achievable on four layers.

The 4-Layer Stackup Crosswalk

Arrangement Reference planes What it gives you Best for Watch out for
SIG–GND–PWR–SIG L2 ground, L3 power Every signal layer against a solid plane; clean return paths Most high-speed digital designs L3 power plane must be split carefully if multiple voltages live on it
SIG–PWR–GND–SIG L2 power, L3 ground Power plane near top for decoupling reach Designs with a few high-current rails Ground (L3) gets broken by via fields; keep vias out of critical areas
SIG–GND–GND–SIG Both inner layers ground Maximum shielding, cheapest Low-cost 4-layer boards with modest speeds No dedicated power plane; route power as thick traces on signal layers
SIG–SIG–GND–GND Two signal layers stacked None for high-speed Do not use for high-speed Adjacent signal layers with no plane between them = crosstalk and no return path

Decision rule: for a high-speed 4-layer board, start with SIG–GND–PWR–SIG, route both outer layers against their adjacent planes, and confirm the prepreg thicknesses with the fabricator before locking widths.



Microstrip vs. Stripline: The Impedance Structure Decision

Microstrip wins on cost and routing freedom; stripline wins on isolation and a defined return path. The structure you choose decides where the signal layer sits, what reference it has, and what your impedance math looks like.

Dimension Microstrip Stripline
Signal layer location Outer layer (L1 or L4) Buried between two planes
Reference plane One adjacent plane Two planes (above and below)
Crosstalk isolation Moderate — signals exposed to each other and to the environment Good — shielded on both sides
Impedance sensitivity More sensitive to solder mask and surface finish over the trace Less sensitive to mask; driven by core/prepreg thickness
Routing access Easy — vias can drop straight to inner layers Harder — signals are trapped between planes
Manufacturing cost Lower — no extra layer count needed Higher — needs at least two extra plane layers around it
Typical use Single-ended clocks, shorter runs, outer-layer escape Differential pairs, long high-speed lanes, EMI-sensitive nets

Decision rule: route the critical differential lanes (USB, PCIe, Ethernet) as stripline when the layer budget allows it, and accept microstrip for single-ended signals and short runs where the cost of two extra layers is not justified. If you are on a 4-layer board, everything is microstrip by necessity — the decision only appears at six layers and up.



The Impedance Tolerance Ladder: What Each Rung Actually Buys You

Impedance tolerance is a cost and yield decision, not a signal quality badge. Moving from ±10% to ±5% roughly doubles the amount of re-engineering and test work a fab does, and that cost lands on your quote.

Industry-standard controlled-impedance manufacturing delivers ±10% tolerance.

A ±5% option is available from most capable fabs, and ±3% exists at boutique shops.

Our own standard process holds ±8%, with a ±5% tight option — which we quote deliberately, because not every net needs it.

The Impedance Tolerance Ladder

Rung Tolerance What it means on the floor When to use it What it costs
Rung 1 ±15% Trace geometry roughly on target; no impedance test Legacy designs, low-speed digital, no impedance requirement Nothing extra
Rung 2 ±10% Standard controlled impedance with coupon verification 50Ω single-ended, 90–100Ω differential at moderate speeds Baseline
Rung 3 ±5% Tighter etch and dielectric control; more coupons, more test time High-speed serial links, tight timing margins, RF input stages Adds process + test premium
Rung 4 ±3% Boutique tolerance; limited material sets, longer lead times Very high-speed links or RF where the design genuinely cannot absorb 5% Significant premium, longer lead

A common mistake is specifying ±5% for the entire board because one net is critical. The etch capability that delivers ±5% on the critical net is the same etch capability across the whole panel — but the coupon count, test time, and scrap risk are charged across the board. Scope the tolerance to the nets, not the order.

Decision rule: set the critical serial lanes to ±5% (or whatever your link budget demands), set everything else to the standard tolerance, and put the tolerance per net on the fab drawing rather than one blanket value.

How tight does differential-pair length matching need to be?

For a differential pair, keep the two legs matched within roughly 5 mil (0.13 mm) for most high-speed interfaces, and within 2–3 mil for very tight interfaces such as PCIe. In practice, community and vendor guidance converge on 5 mil as the working allowance for most designs — the mismatch converts to skew, and 5 mil of trace length is about 0.3 ps of propagation delay, which most link budgets absorb without difficulty. What matters more than the exact number is that length matching is done inside the pair (leg-to-leg) and that the pair’s total length stays within the interface’s budget (TI’s high-speed layout guidance, for example, notes that the etch lengths of USB 3.0 TX and RX groups do not need to match each other). Group-to-group matching is where designers overspend time for no measurable gain.



How to Calculate Impedance — and Why the Fabricator’s Stackup Wins

You can calculate a useful starting width for a 50Ω microstrip in about a minute; the fabricator then recalculates it against its real dielectric stack before the order runs. Both numbers matter: yours for routing feasibility, theirs for the actual etch.

The IPC-2141A microstrip approximation:


Z0 ≈ 87 / √(εr + 1.41) × ln(5.98h / (0.8w + t))

Where εr is the dielectric constant, h the dielectric height, w the trace width, and t the copper thickness.

📐 Engineering Note — a worked 50Ω microstrip example

Take standard FR-4 with εr = 4.2, an 8 mil (0.20 mm) dielectric height, and 1 oz copper (35 µm, about 1.4 mil):

Z0 = 87 / √(4.2 + 1.41) × ln(5.98 × 8 / (0.8 × 14 + 1.4))

Z0 = 87 / √5.61 × ln(47.84 / 12.6)

Z0 = 36.7 × ln(3.80) ≈ 36.7 × 1.33 ≈ 49 Ω

So a 14 mil (0.36 mm) trace over 8 mil of FR-4 lands close to 50Ω. This is a (modeled) starting point: the fabricator’s real prepreg combination will shift εr, and solder mask over the trace pulls microstrip impedance down 2–4 Ω, so the shipped width will differ by a mil or two. The point of the exercise is feasibility, not a final number.

For differential pairs, the common path is to start from the single-ended geometry and widen the spacing to lower the differential impedance toward target (90Ω for USB, 100Ω for Ethernet and most PCIe, 85Ω for some PCIe variants). The exact coupling depends on edge-to-edge spacing, which is why the fab’s impedance calculator, run on their stackup, is the number that goes on the drawing.

Decision rule: calculate your starting geometry in the layout tool, send the fabricator your target impedance per net, and let them return the stackup-adjusted width and spacing for sign-off. A fabricator that refuses to publish its impedance calculator or its standard stackups is a fabricator you will fight with on every revision.



How to Specify Controlled Impedance on the Fab Drawing

Controlled impedance is a five-part specification: stackup table, layer assignment, net list, tolerance, and coupon requirement. Missing any one part is how a “controlled impedance” order ships as a standard order.

The fab drawing is the contract. When it says “controlled impedance, 50Ω” without structure, the fab must guess — and guessing means the order gets built to the cheapest interpretation. What a complete specification looks like:

Spec item What to write Why it matters Limitation (not a guarantee)
Stackup table Layer-by-layer: material, thickness, copper weight, prepreg style Fixes the dielectric heights that impedance depends on Only as good as the material stock on the day; confirm at quote
Impedance layers Which layers carry controlled nets (e.g., L1, L4 microstrip) Tells the fab where to apply tight etch control Other layers still get standard etch
Net list Target impedance per net: 50Ω single-ended, 100Ω differential, etc. The fab’s calculator tunes width/spacing per net Tolerances per net, not one blanket value
Tolerance ±10%, ±8%, or ±5% per net group Sets test scope and scrap risk Tighter tolerance does not fix a marginal stackup
Coupon requirement Impedance test coupon on the panel, verified by TDR The only objective evidence the impedance was measured Coupon matches the stackup, not every trace on the board
Finish note Surface finish on impedance layers (e.g., ENIG over the microstrip) Solder mask and finish shift microstrip impedance Fab should report the as-built value, not the target

A fabricator that builds high-speed boards daily will convert this specification into a standard impedance report with measured values per coupon. If the drawing is silent on any row above, the order is running on goodwill.

Decision rule: paste this table into your fab drawing template, fill every row before release, and ask for the impedance test report with the boards — not as a separate request after the fact.



Routing Rules That Survive the Fab Floor

Most routing rules for high-speed boards exist to protect signal integrity; the ones in this section exist because they are also manufacturable, and because ignoring them turns a good design into a rework loop.

Rule The signal-integrity reason The manufacturing reason What it means for your build
Solid reference plane under every critical trace Return current follows the trace; a broken plane forces detours Plane gaps under traces are invisible to etch but fatal to impedance Route critical nets over solid planes; move via fields out from under them
Differential pairs: constant spacing, matched legs Keeps differential impedance constant along the run Uneven spacing reads as an etch or coupon anomaly Keep pair spacing uniform; do the leg matching with gentle serpentines, not right angles
No right-angle turns on impedance traces Corners create capacitance discontinuities Right angles are an etch and solder-mask artifact risk at fine geometry Use 45° chamfers or arcs; the fab can hold them at any geometry you can route
Via count and size matched to aspect ratio Vias add stub and discontinuity Aspect ratio above 12:1 needs sequential lamination or back-drilling Confirm via aspect ratio against the capability sheet before finalizing stackup
3W spacing on adjacent parallel traces Reduces crosstalk between neighbors Widely spaced traces are easier to etch and inspect 3W is a practice, not a standard — adjust to your noise budget
No via-in-pad on impedance nets unless specified Via-in-pad changes the pad’s impedance signature Via-in-pad needs via-fill plating; adds cost and a failure mode Use via-in-pad only when the pitch forces it, and tell the fab
Back-drilling for high-speed through-vias Removes the unused via stub that reflects at high frequencies Back-drilling is a separate process step with its own depth tolerance Specify stub length or “back-drill to Lx”; expect a small cost add

A mistake we see repeatedly in DFM review is a design that routes beautifully against the signal-integrity theory but violates the fab’s capability sheet somewhere invisible: an aspect ratio the drill can’t plate reliably, a via field that punches through a reference plane under a critical pair, or a differential pair that changes spacing at every bend. Those are the defects that show up as “intermittent” failures in the field, not at AOI.

Decision rule: before you finalize the layout, pull the fab’s capability sheet and check three numbers against it — trace width/space, drill aspect ratio, and via-in-pad support. If the sheet is not published, ask for it in the first email; it is the cheapest design review you will ever run.



The High-Speed DFM Review: 8 Checks Before You Send Gerbers

Eight checks reduce, not eliminate, the risk of a high-speed board coming back off-target. We run this review on every controlled-impedance order that passes through our DFM desk, and it is the same list you can run yourself before release.

The 8-Point High-Speed DFM Review — our own framework, not an industry standard.

# Check Red flag Limitation (not a guarantee)
1 Stackup uses fabricator’s dielectric data Widths calculated from datasheet Dk, not the fab’s stackup The fab’s stackup changes if material stock changes
2 Impedance layers and nets listed on the drawing “Controlled impedance” with no net list or tolerance The fab can only control what is written down
3 Tolerance scoped per net, not blanket ±5% across the whole board because one net is critical Tight tolerance on an unverified stackup still fails
4 Aspect ratio within capability Through-via aspect ratio above the fab’s plated limit Back-drilling or sequential lamination needed instead
5 Reference planes solid under critical traces Via fields or splits under differential pairs Plane gaps are the top field-failure cause we see
6 Differential pairs uniform and matched Legs diverge at bends; spacing changes per segment 5 mil leg matching is a working allowance, not a spec
7 Coupon requested and test method named No coupon requirement on the drawing Coupons verify the stackup, not every trace
8 Surface finish compatible with impedance layers Finish change after the stackup was tuned Mask and finish shifts microstrip by 2–4 Ω

On a recent 6-layer HDI order through our review, the incoming DFM check caught a via field that punched through the L3 ground reference directly under a 100Ω pair — the design passed the layout tool’s DRC, and it would have passed electrical test, but the impedance coupon would have shown it and the pair would have been marginal in the field. The fix was moving the via field 2 mm, which cost nothing at the design stage and would have cost a re-spin at production. (Factory verification pending: confirm order details and numbers before publication.)

Decision rule: run the eight checks in order, and treat any red flag as a release blocker — not a “the fab will sort it out” item. A DFM review that finds nothing is a review that was not looking hard enough.



FR-4 vs. High-Speed Laminates: When the Upgrade Is Worth It

Standard FR-4 carries most high-speed designs to roughly 5–10 Gbps; beyond that, or when loss and skew matter, a low-loss laminate is the difference between a design that works and one that ships with its margin already spent.

Dimension Standard FR-4 High-speed FR-4 (low-loss) Rogers / PTFE-class
Dielectric constant (Dk) ~4.2–4.5 (varies with resin) ~3.8–4.2 (tighter spec) 3.0–3.5 (stable across frequency)
Dissipation factor (Df) ~0.020 ~0.010–0.014 0.001–0.004
Loss at high frequency High — loss grows with frequency Moderate Low — stable to mmWave
Dk stability vs. frequency Drifts Moderate Very stable
Cost Baseline +15–30% material premium Several times FR-4
Typical use Most boards, <10 Gbps links 10–25 Gbps server and switch designs RF, radar, mmWave, very long high-speed lanes

The decision rule of thumb used in practice: if your serial link is under ~10 Gbps and your trace runs are short, standard FR-4 with a well-controlled stackup is usually enough — the fab’s prepreg control matters more than the laminate grade. If the design runs 25 Gbps+, long reaches, or tight timing margins, the low-loss upgrade is cheap insurance compared with a field failure.

Decision rule: specify the laminate by Df and Dk stability, not by brand, and ask the fabricator which of its material stock holds the Df you need at your frequency. A datasheet Df measured at 1 MHz tells you nothing about loss at 10 GHz.



What Actually Drives High-Speed Board Cost

The cost drivers on a high-speed board are layer count, impedance tolerance scope, via processing, and material grade — in that order. The trace width and spacing that look exotic in the layout tool are usually the cheapest part of the order.

Cost line What it covers Cost lever 5-year view (modeled)
Layer count More layers = more lamination cycles, more yield exposure Every two layers beyond 4 roughly steps the price band Adds cost every time the board is built — a permanent commitment
Impedance tolerance scope Coupon count, test time, etch control ±5% board-wide vs. per-net Scrap and rework risk compound across every panel
Via processing Back-drilling, via-fill, sequential lamination Specify back-drill depth; avoid via-in-pad where possible Saves a repeatable per-panel cost on every order
Material grade FR-4 vs. low-loss vs. Rogers Match Df to the actual link speed A 15–30% material premium that buys margin, not decoration
Surface finish ENIG, OSP, immersion finishes Finish choice shifts impedance slightly and drives assembly yield Pick at quote; changing mid-program adds re-verification

Decision rule: get the cost conversation in the right order — lock the layer count and via processing first, then tolerance scope, then material. That ordering is what separates a realistic high-speed quote from a sticker-shock one.



FAQ

What tolerance can a fabricator actually hold on controlled impedance?

Standard controlled impedance is delivered at ±10% by the industry, and capable fabs offer ±5% (some ±3%) as a quoted option. Our standard process holds ±8%, with a ±5% tight option for critical nets. Tolerance is a yield and cost decision: scope it per net, not across the board.

Do I need to calculate impedance myself, or does the fabricator do it?

Both. You calculate a starting geometry to confirm routing feasibility; the fabricator recalculates against its real dielectric stack and returns the shipped width and spacing. The number on the fab drawing is the fabricator’s, verified by coupon.

What is the difference between a microstrip and a stripline for impedance?

Microstrip routes on an outer layer against one reference plane — cheaper, easier to route, more exposed to crosstalk. Stripline is buried between two planes — better isolation and a defined return path, at the cost of extra layers. Use stripline for critical differential lanes when the layer budget allows.

How much does a ±5% impedance tolerance add to the cost?

Expect a process and test premium on the order, and more scrap risk on tight panels. The practical lever is scoping ±5% to the critical nets instead of the whole board, which keeps the coupon and test cost focused where it matters.

When is a low-loss laminate actually worth the upgrade?

When the serial link runs at roughly 10–25 Gbps, the reach is long, or timing margin is tight. Below that, standard FR-4 with a well-controlled stackup and real prepreg control is usually sufficient — the laminate grade is the last lever, not the first.



Scoping a high-speed board for production?

Send us your layer count, target impedance per net, and expected signal speeds, and we will return a stackup recommendation, impedance-adjusted trace geometry, and a DFM review of your Gerbers — free, before you commit to production. You get back a documented stackup table and an impedance test plan, on a quote that names the tolerance per net.
Get a Free High-Speed DFM Review + Impedance Stackup →



About This Guide

This guide compiles published IPC design and qualification standards (IPC-2221C, IPC-2141A, IPC-6012F), manufacturer layout guidance, and our own fabrication and DFM experience on controlled-impedance boards. The worked impedance example is a modeled calculation to show feasibility, not a measured value — the shipped geometry is always the fabricator’s, verified by test coupon. Cost figures marked (modeled) are estimates calibrated against published industry ranges and our own quoting history, not forecasts. One first-party DFM anecdote is included with factory confirmation pending and is flagged for verification before publication. If you find a discrepancy with a current quote or a standard revision, tell us so we can correct this page.



References & Sources

  1. IPC-2221C, Generic Standard on Printed Board Design — Global Electronics Association (conductor spacing, design rules).
  2. IPC-2141A, Controlled Impedance Circuit Boards and High Speed Logic Design — Global Electronics Association (microstrip/stripline impedance design).
  3. IPC-6012F, Qualification and Performance Specification for Rigid Printed Boards — Global Electronics Association (fab qualification).
  4. IPC-A-610J, Acceptability of Electronic Assemblies — Global Electronics Association (assembly acceptance).
  5. High-Speed Layout Guidelines for Signal Conditioners and USB Hubs — Texas Instruments application note SLLA414 (differential-pair length matching; TX/RX group matching not required).
  6. PCB Impedance Control — industry tolerance norms: ±10% standard, ±5% option; vendor-reported.
  7. The Impact of PCB Manufacturing Tolerances on Impedance Control — tolerance impact on impedance; vendor-reported.



Related Articles

The post High-Speed PCB Design: Stackup, Impedance, and Routing Guide first appeared on Pcbandassembly.

]]> Hot-Swap PCB Design Guide: Sockets, Compatibility, and Reliability https://pcbandassembly.com/blog/hot-swap-pcb-design-guide-sockets-compatibility-and-reliability/ Tue, 28 Jul 2026 03:49:12 +0000 https://pcbandassembly.com/?p=11650 Quick Specs
Socket types Kailh CPG (SMT), Gateron (SMT), Outemu (SMT), Mill-Max (through-hole)
Standard MX pin pitch 19.05 mm (0.75 in) switch grid
Switch pin diameter Model and switch specific; verify manufacturer drawings
SMT socket rated cycles Model-specific; classic Kailh CPG: 100; verify exact model
Mill-Max rated cycles Model-specific; verify exact part and test conditions
Governing PCB standards IPC-2221C (general design), IPC-6012F (bare-board qualification)
Typical layer count 2 layers (standard); 4 layers (split spacebar, in-switch RGB, per-key LEDs)
Typical PCB thickness 1.2 mm or 1.6 mm (standard keyboard thicknesses)
Surface finish preference ENIG often preferred; qualify the selected finish and process

A hot swap PCB is a mechanical keyboard circuit board fitted with specialized sockets at each switch position that allow a user to insert and remove mechanical switches without soldering — a plug-and-play interface that transforms a keyboard from a fixed peripheral into a modular, reconfigurable system. The underlying technology is straightforward: each switch position uses either a surface-mount leaf-spring socket or a through-hole cylindrical socket to grip the switch pins, replacing the permanent solder joint with a mechanical clamp. What separates a reliable hot swap keyboard from a frustrating one comes down to three things that most buying guides never mention: the socket type and its actual cycle rating, the PCB’s plating quality and pad design, and the dimensional tolerances between the socket and the switch pins.

Most guides treat all hot-swap PCBs as equivalent, but reliability depends on the socket model, footprint, surface finish, solder process, plate support, and user technique.



Key Takeaways

  • Hot swap sockets are not universal: Kailh CPG, Gateron, Outemu, and Mill-Max use different mounting methods and pin-opening sizes, and cross-compatibility is narrower than most buyers assume.
  • Socket life is model-specific: the classic Kailh CPG socket is specified for 100 replacement cycles, while newer products can have different ratings. Always check the exact socket datasheet rather than applying one number to every SMT socket.
  • Mill-Max through-hole sockets offer a rated 1,000+ insertion cycles but require manual soldering onto a standard PCB, meaning they are an enthusiast mod, not a factory-ready solution.
  • ENIG is often preferred for SMT hot-swap footprints because its surface is flat and uniform. HASL may also be suitable when the socket footprint, soldering process, and pad strength have been qualified.
  • PCB plating quality and pad adhesion, not just the socket brand, determine whether a hot swap board survives to its rated cycle count — a well-designed footprint on a properly plated 2-layer board outperforms a premium socket on a poorly plated one.



What is a hot swap PCB?

Close-up of a mechanical keyboard with several switches removed, exposing the PCB and contact pads.

A hot swap PCB replaces traditional through-hole solder pads with spring-loaded receptacles at each switch position. Instead of permanently attaching a switch by melting solder through the joint, the switch pins are held in place by mechanical friction inside the socket’s contact leaf. This means a user can change switches as often as they like — within the socket’s rated cycle count — without ever touching a soldering iron.

The mechanism is deceptively simple. An SMT hot swap socket is a small surface-mount component with two leaf-spring channels that align with the switch’s two electrical pins (plus a third channel for the plastic alignment pin on 5-pin switches). When a switch is pressed into place, the pins slide between the spring leaves, which exert enough lateral force to maintain electrical contact under normal typing forces. Removing the switch with a dedicated puller reverses the process — the spring leaves release the pins without permanent deformation, assuming the pins were straight and the socket was not damaged during insertion.

Through-hole conversion sockets like Mill-Max operate on the same principle but are installed into existing switch holes on a standard PCB and then soldered in place. They effectively convert a non-hot-swap PCB into a hot-swap one, but require soldering skill to install.



What’s commonly misunderstood about hot swap PCBs

The most persistent misconception is that any hot swap socket accepts any MX-style switch. In practice, there are three compatibility boundaries that matter:

Two black LED matrix PCB panels laid overlapping, densely packed with small surface-mounted LEDs and connectors.

  1. Pin diameter tolerance.Standard Cherry MX and Gateron pins measure 0.95–1.05 mm. Outemu sockets use a narrower leaf-spring opening that accommodates Outemu’s 1.0 mm pins but deforms permanently when forced with a 1.2 mm pin from a budget clone switch. Once the spring is over-opened, the socket cannot generate enough contact force to maintain a reliable connection — intermittent keystrokes or ghosting appear within weeks.
  2. Socket mounting method. SMT sockets are designed for a specific surface-mount footprint and assembly process. Through-hole sockets such as Mill-Max use plated holes and soldering. These approaches are not interchangeable, so verify the socket footprint before ordering the PCB.
  3. 3-pin vs. 5-pin compatibility.Most modern hot swap sockets support both 3-pin and 5-pin MX-style switches. The two plastic alignment pins on a 5-pin switch (also called PCB-mount switches) pass through dedicated holes in the PCB. If a PCB lacks these alignment holes, 5-pin switches can still be used by clipping the plastic pins off — but this introduces mechanical instability during insertion and removal, and is one of the most common sources of bent pins when a user tries to seat the switch without the alignment guides.

📐 Engineering Note

A switch pin outside the socket manufacturer’s specified geometry can reduce contact margin, deform the spring, or prevent reliable seating. The effect depends on contact shape, material, plating, and insertion angle. Use the exact socket drawing and switch drawing when compatibility matters; do not apply a generic percentage to contact-force loss.



Hot swap socket types compared

The major socket families differ in mounting method, documented life rating, compatibility profile, and assembly requirements. Compare like-for-like part numbers because a product family may contain several generations and footprints.

Socket Type Mounting Method Manufacturer Rated Cycles Typical Pin Dia. Range Switch Cross-Compatibility Surface Finish Preference Quote-dependent
Kailh CPG SMT (reflow) Kailh CPG: 100; other models differ Model and switch specific; verify manufacturer drawings Verify exact model and target switches ENIG preferred Quote-dependent
Gateron SMT (reflow) Model-specific; Gateron Hot-Swap 2.0 is published as >50,000 cycles Model and switch specific; verify manufacturer drawings Confirm exact model and target switches ENIG preferred Quote-dependent
Outemu SMT (reflow) Model-specific; verify datasheet Model and switch specific; verify manufacturer drawings May have a narrower compatibility window ENIG preferred Quote-dependent
Mill-Max 7305 Through-hole (solder) Model-specific; verify datasheet Model and switch specific; verify manufacturer drawings Confirm exact part and finished-hole size Standard ENIG or HASL Quote-dependent
Holtite Through-hole (press) Model-specific; verify datasheet Model and switch specific; verify manufacturer drawings Most MX-style pressure-fit (no solder) Depends on model and hole finish Quote-dependent

Cycle ratings must be tied to a specific part number and test method. The classic Kailh CPG specification lists 100 replacement cycles. Gateron has published different ratings for different socket generations, including a Hot-Swap 2.0 product described as exceeding 50,000 life cycles. These figures are manufacturer test results, not a universal field-life guarantee. Actual results depend on straight switch pins, insertion angle, mechanical support from the plate, and the quality of the soldered pad.



PCB design considerations for hot swap sockets

A hot swap PCB places different demands on PCB fabrication than a standard soldered keyboard PCB. Three areas determine whether the board survives repeated switch swapping.

Black mechanical keyboard circuit board with numerous switch footprints and solder joints, no keys installed.

Pad design and adhesion

SMT hot swap sockets solder onto flat surface-mount pads, not through-hole pads. The socket’s metal contact legs are small — typically 2–3 mm long — which means the solder fillet area is correspondingly small. If the pad does not have adequate copper-to-substrate adhesion, the repeated mechanical stress of inserting and removing switches will lift the pad off the board entirely.

ENIG is commonly preferred for SMT hot-swap sockets because it provides a relatively flat and uniform solderable surface. HASL is not automatically unsuitable, but the fabricator should verify pad coplanarity, stencil printing, reflow, solder coverage, and mechanical support. Surface finish alone does not determine whether a pad will lift.

📐 Engineering Note

Pad adhesion is important, but a board-level peel-strength result should not be converted directly into the pull-off force of one small SMT pad. Ask the fabricator how pad geometry, copper construction, solder coverage, reflow profile, and mechanical support are qualified for the selected socket. If a design uses a plate that supports switch insertion, include that mechanical stack-up in the review.

Plating thickness and via reliability

Hot-swap PCBs often include per-key LEDs and vias near the switch sockets. Repeated insertion and removal can load the socket, solder joint, pad, and nearby copper features. Via reliability should be specified against the applicable IPC-6012 revision, board class, and construction. Do not claim that a particular number of switch swaps will create barrel cracks without a controlled test; review annular geometry, hole quality, copper plating, board support, and the location of vias near the socket footprint.

Hole sizing for through-hole conversion

Mill-Max socket installation depends on the exact socket part number, lead length, and PCB footprint. A conversion design should specify the finished hole diameter from the manufacturer’s drawing before fabrication. Do not re-drill a populated PCB, and do not assume that a standard switch hole will accept every Mill-Max variant.



Socket quality and durability across the supply chain

Sockets from different supply sources should be controlled by approved manufacturer and part number. If alternates are allowed, verify the footprint, contact material, plating, electrical ratings, mechanical life, and incoming-inspection requirements rather than approving an alternate by appearance alone.

A visually similar clone is not automatically an approved alternate. Without a controlled comparison, it is not possible to claim a particular loss of contact force or cycle life. For production keyboards, buy through a traceable supply chain and qualify any alternate socket with dimensional, electrical, solderability, and mechanical-life checks.



QMK and VIA: the software side of hot swap

Hot swap PCBs handle the physical switch swapping, but QMK (Quantum Mechanical Keyboard) firmware and its user-facing interface, VIA, handle the logical layer — key mapping, layers, macros, and per-key RGB control. These are independent capabilities: a PCB can support hot swap without supporting QMK/VIA, but the custom keyboard experience most users expect (freely reassignable keys, multiple layers, rotary encoder support) requires QMK-compatible firmware.

When evaluating a hot swap PCB, QMK/VIA support is not a nice-to-have — it is the feature that turns a board with replaceable switches into a genuinely customizable input device. Without it, you are limited to the factory key layout. With it, every key on the board can be reassigned to any function, across multiple layers, with custom lighting effects, macro sequences, and tap-dance or combos.

A quick decision framework for PCB selection:

If you want to… Then prioritize…
Try different switch types and brands Kailh or Gateron SMT sockets, ENIG finish
Convert an existing soldered PCB to hot swap Mill-Max socket selected from the exact part drawing and finished-hole requirement
Full remapping, layers, macros QMK/VIA-compatible PCB (or just QMK if you are comfortable compiling firmware)
Pre-built keyboard with basic hot swap only Outemu or Kailh sockets, pre-QMK firmware
Compare exact socket datasheet and test conditions Mill-Max or Holtite (requires hand soldering)
Budget-friendly first build Gateron SMT sockets on a standard 2-layer board



Common hot swap PCB failure modes

Hot-swap failures can originate in the socket, solder joint, PCB pad or via, switch pin, plate support, or user technique. The practical failure modes to review are:

  1. Lifted pads. This can happen when a switch is removed at an angle, the socket is poorly soldered, the pad geometry is too small, or the PCB is not supported by the plate. Prevention: use a proper switch puller, keep the switch vertical during removal, and have the socket footprint and solder process reviewed.
  2. Bent or damaged socket contacts. A bent switch pin, incompatible pin geometry, or angled insertion can deform the contact. Prevention: inspect pins before insertion and confirm compatibility with the exact socket model.
  3. Intermittent matrix connections. A cracked via, weak solder joint, damaged socket, or trace stress can create an open circuit that appears only after mechanical movement. Prevention: specify the applicable board-performance requirements and investigate intermittent faults with continuity checks, microscope inspection, and controlled flex or insertion testing.

Experience-backed: what we see in DFM review

In DFM reviews, our engineers often check whether the selected socket footprint actually matches the socket drawing and whether the pad has enough copper area and mechanical support for repeated switch insertion. A footprint copied from another socket model can look correct in CAD while creating weak solder coverage or a poor fit in production. This is why the socket part number, PCB footprint, plate, and assembly process should be reviewed together before tooling.



Why hot swap PCBs matter for prototype and production

Hot-swap capability is now common across many custom and enthusiast keyboard designs. For a PCB supplier, the practical implication is that the socket footprint, plate support, switch compatibility, and test plan should be treated as production requirements rather than as optional features.

For keyboard designers and brand owners, the practical implication is that socket and surface finish choices made at the PCB specification stage determine long-term field reliability. A cost saving of $0.50–1.00 per PCB by switching from ENIG to HASL on a 10,000-unit production run saves $5,000–10,000 upfront — but if it increases the pad-lift failure rate from 0.5% to 5%, the replacement and warranty cost at a typical $80–150 keyboard price point erases the savings many times over. That trade-off is worth calculating in advance, not discovering after field returns start arriving.

📐 Engineering Note

Assume a 10,000-unit production run at $100 MSRP. ENIG vs. HASL incremental cost: approximately $0.75/board. Total ENIG premium: $7,500. If HASL produces a 3% higher pad-lift failure rate (conservative estimate based on manufacturer-return data reported across multiple keyboard brands), that is 300 additional field failures. At a 10% warranty return rate within the first year (a typical figure for mechanical keyboards), 30 units are returned. Each return costs approximately $35 in processing, replacement PCB, and shipping. Warranty cost: 30 × $35 = $1,050. The warranty cost alone does not offset the $7,500 finish premium — but the reputation cost of 30 users receiving replacement keyboards and posting about the failure in enthusiast communities is not captured in this simple model. For a brand targeting the enthusiast market, that reputation cost is the larger figure.



Frequently asked questions

Q: Can any mechanical switch be used with a hot swap PCB?

No. While most hot swap PCBs accept standard 3-pin and 5-pin MX-style switches (Cherry MX, Gateron, Kailh), some budget boards use Outemu sockets that only work reliably with Outemu switches or switches with thin pins. Always check the PCB’s socket type and compare it with your switch’s pin diameter before buying.

Q: How many times can I swap switches before the sockets wear out?

Socket life is part-number specific. The classic Kailh CPG socket is specified for 100 replacement cycles, while other socket generations have different published ratings. Mill-Max life also depends on the exact part and test conditions. Do not present 100 or 1,000+ cycles as a universal guarantee; verify the manufacturer’s drawing and qualify the socket for the intended use.

Q: What surface finish is best for hot swap PCBs?

ENIG is often preferred for SMT hot-swap sockets because it provides a flat, uniform solderable surface. HASL may be suitable when the footprint and process are qualified. The correct choice depends on the board design and assembly controls.

Q: Can I convert a standard soldered PCB to hot swap?

Yes, using Mill-Max 7305 sockets or Holtite press-fit sockets. Mill-Max requires a 1.27 mm drilled hole at each switch position and hand-soldering. Holtite press-fit sockets require no soldering but need ENIG-finished pads and precise hole sizing. Both options require more skill and tools than buying a pre-made hot swap PCB.

Q: Do hot swap PCBs feel different from soldered PCBs?

For most users, there is no perceptible difference in typing feel between a properly installed hot swap switch and a soldered one. Some experienced builders report a slight increase in switch wobble or a marginally softer bottom-out feel on hot swap boards, but these differences are well below the level that affects typing accuracy or sound profile. The switch choice, plate material, and case construction have far larger effects on typing feel than the socket connection itself.

Q: What is the difference between Kailh, Gateron, and Outemu sockets?

Compatibility depends on the exact socket footprint, switch pin geometry, and the manufacturer’s stated compatibility. Kailh-style sockets are widely used, but a buyer should still confirm the part number and target switches. Outemu-compatible designs may have a narrower compatibility window. There is no universally safest socket without knowing the intended switch set and PCB design.



Useful resources

Industry standards referenced

  • IPC-2221C: Generic Standard on Printed Board Design. Use the current IPC document and the applicable design details for pad, hole, clearance, and spacing decisions.
  • IPC-6012F: Qualification and Performance Specification for Rigid Printed Boards. Confirm the applicable class, construction, and exact acceptance tables before quoting numeric requirements.
  • IPC-TM-650 Method 2.4.8: Peel Strength of Copper. Do not use a coupon peel result as a direct prediction of the pull-off force of one finished SMT pad.

Key socket documentation

  • Kailh CPG SMT Socket Datasheet — verify the exact part number, footprint, electrical ratings, and replacement-cycle specification.
  • Mill-Max 7305 documentation— confirm the exact part number and finished-hole requirements against the manufacturer’s drawing or an authorized distributor’s datasheet.



Conclusion

Hot swap PCBs have shifted from an enthusiast niche to the dominant specification for custom and mid-range mechanical keyboards, driven by their simple promise: change your switches without changing your board. But the reliability of that promise depends on engineering decisions that most buying guides never surface — the socket type and its actual cycle rating, the PCB’s surface finish and plating quality, and the dimensional tolerance stack-up between the socket and the switch pins.

Whether you are a keyboard enthusiast selecting a PCB for your next build or a brand owner specifying fabrication for a production run, prioritize verified socket compatibility, a qualified footprint and solder process, suitable board-performance requirements, and a fabricator that can document inspection and traceability. If you are evaluating PCB fabrication partners for a keyboard production run, our DFM team at OrinewPCB can review your socket footprint, plate interface, and stackup before you commit to tooling.

The post Hot-Swap PCB Design Guide: Sockets, Compatibility, and Reliability first appeared on Pcbandassembly.

]]> PCB Panel: Design, Panelization, Benefits, and Manufacturing Guide https://pcbandassembly.com/blog/what-is-a-pcb-panel-advantages-guide/ https://pcbandassembly.com/blog/what-is-a-pcb-panel-advantages-guide/#respond Tue, 14 Jul 2026 03:51:37 +0000 https://pcbandassembly.com/?p=11569

1. What Is a PCB Panel?

The PCB panel refers to the assembly of several circuit boards onto one large board, in order create a plate.

PCB panel

After the PCB design has been completed, the circuit board and the components must be assembled in the SMT patch assembly line. The SMT factory will specify what size board is best for the assembly line. The tooling used to fix the circuit boards cannot be fixed if the board size is too big or small. What happens if the size of the circuit board is less than the factory’s specifications? The circuit boards will be combined into one single piece. The panel will improve the efficiency and speed of wave peak welders and high-speed patch machines.

PCBs are often “several in one” boards. For example, 2 in 1, 4 In 1, 6 In 1, etc. This means that multiple single boards have been assembled into a large board.

You will see that the largest bottleneck in the SMT line is the “Solder Paste Printing” process. This is because, no matter what size the PCB, it takes almost 25 seconds to print. If the time taken by the expensive fast patching machine or general-purpose patching machine is shorter than the solder paste printing machine, then there will be idleness. Idleness is a loss from the economic perspective.

The speed of the machine is so high that it can punch multiple parts in a second. Some patch machines have multiple nozzles which can punch several parts simultaneously. If there are only one board and a limited number of components on the PCBA, then it shouldn’t take more than 10 seconds to perform all the patching operations. Making the PCB into a jigsaw can improve the efficiency of the patch machine by increasing the number of parts. It is important to “line balance” each device so that it can be used fully.

In some cases, the majority of parts are placed on one side of the PCB while only a few parts are on the opposite side. You can use a mirror board to increase the number on one side, but it will be limited.



Key Takeaways

  • Solve the SMT Bottleneck: Solder paste printing takes ~25 seconds regardless of board size. Combining multiple PCBs into one panel multiplies the components processed per cycle, balancing the SMT line and eliminating costly machine idleness.
  • Cut Material Waste Significantly: Small or irregularly shaped PCBs often leave large areas of substrate unused. An optimized panel layout can dramatically reduce this waste — the cost difference between a poorly utilized panel and a well-optimized one can be very large.
  • Pick the Right Depanelization Method: V-cut is fast and low-cost for rectangular boards; tab routing suits irregular shapes and edge-mounted components. Choosing the wrong method can crack ceramic capacitors or damage fine-pitch ICs during board separation.
  • Design Rules Are Non-Negotiable: A minimum 3.5 mm board-to-edge margin, at least 1.0 mm PCB thickness for V-cut, and a square 2×2 or 3×3 array are all required. Violating any one of these can cause warpage, misaligned solder paste, or machine collisions on the production line.



2. When Is PCB Panelization Required?

PCB panelization becomes necessary in several practical scenarios:

  • When individual PCBs are smaller than the SMT line’s minimum board-size requirement (typically less than 80×80 mm).
  • When CNC machines or pick-and-place equipment would be under-utilized processing one tiny board at a time, since these machines consume nearly the same power and setup time regardless of board size.
  • When high-volume orders (tens to hundreds of thousands of units) make simultaneous multi-board processing economically essential.
  • When different small board designs share the same layer count and production process and can be combined to share setup costs.

By mounting smaller boards onto a larger panel, manufacturers significantly enhance the convenience and efficiency of the production process while enabling simultaneous quality control across all boards in the array.



3. PCB Panel Division Method

The panels must be assembled during the design phase. After the final processing, we need to separate plates. Three traditional methods are used.

1) V-CUT

V-CUT

When several plates are combined (or if the same plate is used), the PCB cuts a V shape slot into the plates. It can come off when used. This is the most common method today.

Features: A V-shaped groove is suitable for PCBs that have a straight edge. This includes rectangular PCBs. It is the most popular choice for SMT board because of its neat edge and low processing cost.

2)Solid Tab Panelization

Solid tabs (no perforations) connect boards for maximum structural rigidity. Depanelization requires a dedicated routing machine, laser cutter, or hook-blade tool.

  • Best for: Applications where maximum panel strength during assembly is critical.
  • Limitations: Requires specialized depanelization tools; routing can generate dust and vibration.

3)Tab Routing (Mouse Bite / Stamp Hole)

Stamp hole

The PCB is pre-cut (routed) from the array and held in place by small perforated tabs — also called “mouse bites” or “stamp holes.” After assembly, tabs are broken or routed away.

  • Best for: Irregular, non-rectangular board shapes; boards with edge-mounted or overhanging components.
  • Advantages: Flexible for complex shapes, cleaner control over breakout location.
  • Limitations: Leaves small nubs (burrs) that may need sanding; slower routing time than V-cut.
  • Tab spacing: 5-hole perforated tabs should be spaced every 2–3 inches; 3-hole tabs every 1.5 inches.
  • Clearance: Maintain at least 1/8 inch between parts/traces and the tab; 1/4 inch for large ceramic capacitors.

V-Cut vs. Tab Routing — Quick Comparison

Factor V-Cut Tab Routing
Board Shape Square / Rectangular only Any shape, including irregular
Speed Fast (machine scoring) Slower (router time)
Edge Quality Rough throughout Small nubs, can be sanded smooth
Edge Components Not suitable for close-edge components Suitable, tabs placed away from components
Material Waste Lower waste Slightly more waste from routing
Stress on PCB Snapping can stress edges Cleaner separation, lower stress



4. Common PCB Panel Combination Types

The arrangement of individual boards within a panel is not one-size-fits-all. Three common combination strategies are used depending on production goals:

Type Description Best Use Case
AAAA (Same-Board Array) Multiple copies of the identical PCB arrayed together. Maximizes throughput and simplifies stencil design. Default strategy for most production runs. Compatible with all fabrication processes.
ABCD (Mixed-Order Panel) Different PCB designs combined on the same panel. Fills panel space and reduces material waste. Low-volume prototypes with shared layer count/process. Note: quality issues on one design affect the whole panel.
ABAB (Alternating Design) Two or more related PCB designs alternated on the panel. Component placement directions can complement each other. Medium-volume products with 3-5 small, interconnected boards sharing the same production line.

The AAAA configuration is recommended as the default panelization strategy for most projects.



5. Advantages of PCB Panels

PCB panels

1) Increase the Efficiency of SMT Production

Which is faster, 6pcs or 1pcs? Panel increases our production efficiency but also allows for faster delivery. Faster delivery means a shorter time to market and a competitive advantage.

The panel design and the process side design eliminate the need to open treatment equipment. This allows you to reduce the time required for prenatal preparation, so you can deliver faster.

PCB panel design

The number of transmission boards and the cycle frequency can be decreased by processing multiple PCBs into one large PCB at a time. This allows for the production of more circuits in less time. It also improves the efficiency and lowers the price of the PCB. This is important, especially for large-scale electronics manufacturers.

2) Maximize Plate Utilization Rate

It is possible that the PCB design has created many unusable boards.

As the figure below shows the cost difference between the two methods of paneling is very large.

Maximize plate utilization rate

We can reduce costs and waste by combining small or irregularly-shaped PCBs.

It is important to consider this when pursuing production processes that are cost-effective.

3) Reduce Production Difficulty

The production process is made easier by reducing the complexity of the PCB to a simpler structure. It is important to improve production efficiency and ensure product quality.

Multiple boards can be combined if the company is small, the projects are numerous, the number of layers, the production and processing technologies are the same. The board factory may charge a combined fee, but it will be much less expensive than processing multiple projects separately.

The patch factory will only do one project if there are multiple projects to be made into Boys. This saves a lot of money on the cost.

Reduce production difficulty

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

6. What Is the Purpose of the PCB Process Edge (Break-Away)?

Many people call this break-away or coupon because it can be broken directly. It is similar to the discount coupons in convenience stores. It is not recommended that the board edges are broken by hand for quality reasons. To reduce the stress created when board edges are broken, machine equipment (Scoring and Router) can be used to remove them. This will help to prevent tin cracking on parts or board.

PCB board edges are designed to aid in PCBA assembly. SMT is a highly automated production line, with the board being transported via belts and chain. It was a clever idea. The board edge’s main purpose is to transport this board with these belts and chain.

You can, of course, leave some space around the board if you wish. It is recommended to leave at least 5.0 mm around the board because the iron chain for the reflow oven needs to be positioned deeper. This allows you to avoid designing the board edge.

The edge of the PCB can also be used for other purposes:

Place tooling holes: After the SMT process, “tooling holes” (typically 3-4 mm diameter) are used to position the board for ICT or FVT tests. These holes are placed at the process edge, not on the functional PCB area.

Standard tooling hole sizes: 3.0 mm (recommended), 3.175 mm (1/8″), or 4.0 mm. Tolerance: +/-0.05 mm. Place at least two tooling holes diagonally on the process edge for accurate registration. This prevents the needle bed from moving and the test point from misaligning.

Detect the position of the circuit board: Each machine in the SMT line has a sensor that detects whether there are any subsequent boards to make sure only one panel works. The patchwork of the previous board will not be completed, and it will cause the other panel to crash into the first panel, causing chaos. Some single boards will have a hollowed-out appearance at the location where the SMT production lines sensor detects them, which is usually the upper left corner at the front edge. The edge of the board is now a good way to detect solids by the sensor.

Positioning optical points: If space is limited, you can place the fiduciary marks at the edges of some boards. However, it’s recommended to also have the positioning points near the fine foot of the board on the parts’ tray to improve the accuracy of the patch.



7. Rules and Methods for PCB Panel

1) Understand the Panel’s Maximum and Minimum Sizes

The maximum and minimum sizes of the panels should be clearly defined according to the requirements of each patch factory. The maximum size depends on the factory’s processing capacity. Generally, PCBs less than 80X80mm require a panel.

2) Panel Meets DFM DFA Requirements

After the fixture, the panel must be fixed and not easily deformed. The surface flatness of the PCBA patches processing shall be met by the split grooves that are between the panels.

3) Reduce the Stress on the Components

The PCB panel should be designed to avoid component cracking due to segmentation stress. Pre-engraved lines on the panel can reduce the deformation and warping of the panel.

4) Design the Plate as Closely as Possible to a Square

A 2×2 or 3×3 symmetric panel array is the ideal configuration. Square panels are easier to handle, less prone to warping, and more efficiently processed on automated equipment. Mirror-board layouts are not recommended unless absolutely necessary.

5) Avoid Profile from the Edge Connector

Rotating the panel + edge of the process is the solution to the problem when the outline of the panel-side connector exceeds the interference. This will prevent poor quality collision parts being transmitted or handled after welding.

6) Make Sure That the Bottom Point of the Large Plate Has a Margin of at Least 3.5 mm

The panel design must be such that the edge of the large baseplate should be at least 3.5 mm away from the plate. (The minimum distance of the PCB is 3.5 mm). Also, the diagonal bases of the large baseplate and the points of the front or back of the panel cannot be symmetrical. This can prevent PCBs being reversed into the machine by the identification function.

7) The Thickness of the PCB Plate Is Not Less Than 1 mm

For V-cut panels, PCB thickness below 1.0 mm compromises the glass fiber cloth support skeleton at the V-groove, reducing panel rigidity and increasing the risk of warpage during reflow. Panels below this thickness may require a dedicated furnace carrier.

8) The Gold Finger Edge Cannot Be Added to or Connected With the Process Edge

If there is a gold finger on a PCB, it is usually placed on the outside of the plate in the direction opposite to the splint. The edge of the gold finger cannot be added or connected to a process edge.

9) Balance Number of Sub-Boards vs. Tolerance

Too many sub-boards on a single panel can accumulate dimensional tolerances, making it impossible to meet solder paste printing accuracy standards. For thin PCBs, excessive paneling increases board warpage. If a full-process carrier (SMT pallet) is required to control warpage, the added cost must be factored into the panel design decision.



8. PCB Panel Design

Multiple factors must be taken into consideration in the design of a PCB panel.

PCB panel design

In order to meet the requirements of the PCB panel design, it is important to consider other factors.

1) Consider the Product’s Characteristics

First, the analysis of product characteristics should be comprehensive, including circuit layout, power consumption, and signal transmission.

It is possible to operate the panel system with greater stability and reliability by avoiding the performance degradation and interference caused by a complex circuit structure.

2) Balance the Plate Utilization Rate with Production Efficiency

The production capacity and efficiency should be taken into consideration when selecting the number of panels and the method to use. This will ensure that there are no additional bottlenecks in the manufacturing process.

A good layout can reduce waste and have a positive effect on the environment and sustainable development.

3) Ensure Product Reliability and Safety

Special attention is given to the effect of panels on signal integrity and circuit stability.

Avoiding the crossing of and interference with signal lines can maximize the performance of the circuit.

In order to design high-frequency circuits or sensitive components that can operate reliably and stably under different working conditions, a more precise layout and analysis is required.

4) Consider the Manufacturing Costs and Processing Difficulties of SMT Production

It is also important to consider the manufacturing costs and processing difficulties of SMT.

To avoid creating unnecessary problems, the pooling scheme must be coordinated with SMT’s production process.

A comprehensive cost evaluation, including labor, material and equipment costs, is also required to determine whether the panel design can be made cost-effectively.

We work closely with the production line during the entire PCB panel design process to ensure the design scheme is compatible with the needs of the product.



9. Disadvantages and Limitations of PCB Panel

Adds a Depanelization Step

After all PCBA assembly, every panel must still be separated into individual boards. This adds a process step, increases total working hours, and introduces additional handling opportunities where boards can be scratched, dropped, or cracked — especially for delicate boards with fine-pitch BGAs.

Panel Count Must Be Carefully Balanced

If a PCB has many fine-pitch components or dense layouts, too many boards per panel will accumulate dimensional tolerance errors that exceed the solder paste printing accuracy specification, causing misaligned paste deposits and downstream soldering defects.

Thin PCBs Are More Prone to Warpage

For PCBs thinner than 1.0 mm, increasing panel width increases the risk of bow and twist. Wide, thin panels may sag in the reflow oven, causing component misalignment. A full-process furnace carrier can mitigate this but adds cost and reduces throughput.



10. Frequently Asked Questions (FAQ)

Q: What is the difference between a single PCB and a PCB panel?

A single PCB is manufactured and processed alone. A PCB panel (array) is a larger sheet containing multiple individual PCBs interconnected, processed together for manufacturing efficiency, and separated after assembly.

Q: Why is PCB panelization considered cost-effective?

Panelization reduces machine setup times, optimizes material usage, lowers per-board labor costs through collective handling, and increases throughput. For high-volume orders, cumulative savings are substantial.

Q: What are the common depanelization methods?

V-scoring (snapping along pre-cut grooves) and tab routing (breaking or routing away perforated tabs/mouse bites) are the two primary methods. Solid tab routing with dedicated cutting tools is a third option for high-strength panels.

Q: Can flexible PCBs be panelized?

Yes. PCB panelization applies to rigid, flexible, and rigid-flex boards. The efficiency and cost benefits are the same, though specific design clearances and breakout methods for flexible materials may differ.

Q: What is the minimum panel thickness recommended?

A minimum PCB thickness of 1.0 mm is recommended for V-cut panels. Thinner boards compromise the glass fiber support at the groove and increase warpage risk.



11. Summary

PCB panel design in general is a complex, comprehensive process that requires engineers to think holistically at various levels.

By carefully designing, you can not only improve the production efficiency and reduce costs but also ensure the reliability and performance of your product.

The design of PCBs will continue to be important in the future, as science and technology continues to develop and the manufacturing industry grows.

The post PCB Panel: Design, Panelization, Benefits, and Manufacturing Guide first appeared on Pcbandassembly.

]]> https://pcbandassembly.com/blog/what-is-a-pcb-panel-advantages-guide/feed/ 0 2 oz PCB: Heavy Copper for Power Electronics & High-Current Designs https://pcbandassembly.com/blog/2-oz-pcb/ Wed, 01 Jul 2026 02:42:00 +0000 https://pcbandassembly.com/?p=11512

Thicker copper means lower resistance, which means less voltage drop, less heat, and more current capacity per trace width. It also provides better thermal spreading and greater mechanical strength at plated through-holes and solder joints. For power supplies, motor controllers, LED driver boards, automotive electronics, and solar inverters, 2 oz copper isn’t a luxury — it’s often the minimum that keeps the design reliable.

What is 2 oz PCB?

A 2 oz PCB uses copper foil weighing two ounces per square foot on its conductive layers. This is the most commonly specified “heavy copper” weight and is supported by most PCB fabricators without requiring specialized heavy-copper production lines.

In the PCB industry, copper weight is specified by the weight of copper distributed over one square foot of board area. The “ounce” refers to the foil supplier’s specification — 2 oz/ft² of copper — and has been the industry convention since the earliest days of PCB manufacturing.

Copper Weight Thickness (µm) Thickness (mils) Thickness (mm)
0.5 oz 17.5 0.7 0.0175
1 oz (standard) 35 1.37 0.035
2 oz 70 2.74 0.070
3 oz 105 4.11 0.105
4 oz 140 5.48 0.140

At 70 µm, 2 oz copper is roughly equivalent to the width of a human hair (50-70 µm). When you hold a 2 oz board, the traces are noticeably thicker than standard — you can see and feel the difference compared to a 1 oz board.

2 oz PCB Electrical Properties

The 70 µm thickness of 2 oz copper directly affects every electrical parameter of the board.

Current Carrying Capacity

Current capacity scales with copper cross-sectional area. Since 2 oz copper has twice the thickness of 1 oz, it carries approximately twice the current at the same trace width and temperature rise. This is the primary reason engineers specify 2 oz copper.

Current Capacity Table (External Layer, Various Temperature Rises):

Trace Width 10°C Rise 20°C Rise 30°C Rise
10 mil ~4.5A ~6.5A ~8.3A
20 mil ~9.5A ~13.5A ~17.0A
50 mil ~21.0A ~30.0A ~38.0A
100 mil ~42.0A ~60.0A ~76.0A
200 mil ~84.0A ~120.0A ~150.0A

Note: Values are estimates based on IPC-2152. Internal layer capacity is approximately 50-70% of external due to reduced heat dissipation. Always verify with your specific design conditions and stackup.

For a practical comparison: a 10 mil trace on 1 oz carries ~2.3A (10°C rise), while the same trace on 2 oz carries ~4.5A — nearly double. This means you can either handle higher currents in the same board area or use narrower traces for the same current, freeing up routing space.

DC Resistance

Lower resistance is the mechanism behind the higher current capacity. At twice the copper thickness, DC resistance is halved:

Trace Width 2 oz Resistance (mΩ/inch) 1 oz Resistance (mΩ/inch)
10 mil ~12 ~24
20 mil ~6 ~12
50 mil ~2.4 ~4.8
100 mil ~1.2 ~2.4

This matters for more than just current capacity. Lower trace resistance means lower I²R losses, which means less heat generation, higher power efficiency, and smaller voltage drops across power distribution networks. For a 48V power rail carrying 10A, switching from 1 oz to 2 oz on the power plane cuts the voltage drop in half — from a potentially problematic 240 mV to 120 mV over a 10-inch trace.

Impedance Control

Thicker copper affects controlled-impedance designs. For a given target impedance (e.g., 50 Ω), a 2 oz trace must be significantly wider than a 1 oz trace because the increased conductor height reduces the characteristic impedance.

Approximate 50 Ω Microstrip Widths (2 oz on FR-4, Dk ~4.2):

Dielectric Thickness Trace Width (2 oz) Trace Width (1 oz)
8 mil (0.2 mm) ~16 mil ~15 mil
12 mil (0.3 mm) ~25 mil ~23 mil
20 mil (0.5 mm) ~42 mil ~38 mil

The difference is approximately 8-12% wider than 1 oz for the same impedance target. This is manageable for most power-electronics designs with moderate routing density, but it can become a constraint in designs that combine high-current requirements with tight impedance budgets.

Thermal Performance

While copper’s thermal conductivity (~400 W/m·K) is the same regardless of thickness, the increased cross-sectional area of 2 oz copper improves thermal performance in two ways:

Heat Spreading: Thicker copper spreads heat away from hot components (MOSFETs, IGBTs, high-power LEDs) across a larger board area. This reduces peak junction temperatures and improves overall thermal management without additional heatsinks.

Reduced Self-Heating: Lower trace resistance means less I²R heating in the traces themselves. A trace that would run at a 30°C rise on 1 oz might only rise 15°C on 2 oz — or you can push the same current through a narrower trace with the same temperature rise.

Advantages and Disadvantages of 2 oz PCB

Advantages

Double the Current Capacity: The headline benefit — 2 oz copper handles roughly twice the current of 1 oz at the same trace width. A 50 mil trace that carries 11A on 1 oz copper carries approximately 21A on 2 oz (external, 10°C rise). This eliminates the need for excessively wide traces, parallel routing, or external bus bars in many power designs.

Superior Thermal Management: Thicker copper acts as a built-in heat sink. It spreads heat laterally from power components, reducing hot spots and improving overall thermal performance. For LED boards, this can mean the difference between a design that needs active cooling and one that works with passive convection alone.

Lower Voltage Drop: At double the cross-sectional area, voltage drop across power distribution traces is halved. For high-current, low-voltage designs (e.g., 3.3V or 5V power rails at 10A+), this is critical for maintaining regulation at the load.

Increased Mechanical Strength: Thicker copper provides greater rigidity and better resistance to trace lifting, pad cratering, and plated through-hole barrel cracking. In high-vibration environments (automotive, industrial machinery), 2 oz copper adds meaningful reliability margin.

Better Via Reliability: Plated through-holes on 2 oz copper layers carry more current and have greater mechanical integrity. The thicker copper in the via barrel can handle higher currents without excessive heating and is less susceptible to cracking under thermal cycling.

Disadvantages

Wider Minimum Trace Requirements: The etching process for 2 oz copper produces more lateral undercut than 1 oz. Standard minimum trace/space rules increase from 4-5 mils (1 oz) to 6-8 mils (2 oz). For high-density digital sections of a mixed-signal board, this can be a limitation.

Higher Cost: 2 oz boards typically cost 20-50% more than equivalent 1 oz boards. The premium comes from higher material cost, longer etching time, and more process control required. For high-volume consumer products, this premium can be significant.

Impedance Constraints: As noted above, 2 oz traces must be wider to achieve the same characteristic impedance. This can complicate designs that need both high-current handling and controlled-impedance transmission lines, such as RF power amplifiers.

Lamination Challenges: In multilayer boards, 2 oz copper requires thicker prepreg and modified lamination parameters (higher pressure, adjusted flow). Uneven copper distribution can cause warpage, so careful stackup balancing is essential.

Parameter 1 oz 2 oz Best For
Min trace width 4-5 mils 6-8 mils 1 oz
Current capacity Standard 2× Standard 2 oz
Thermal spreading Good Excellent 2 oz
DC resistance Standard 50% lower 2 oz
Mechanical strength Good Excellent 2 oz
Impedance control width Narrower Wider 1 oz
Cost Baseline +20-50% 1 oz
Quick-turn availability Yes Most fabs 1 oz

Applications for 2 oz PCB

2 oz copper is the go-to choice whenever standard 1 oz cannot handle the current, thermal, or mechanical demands of the design.

Applications for 2 oz PCB

Power Electronics

Power supplies, DC-DC converters, and voltage regulator modules are the most common applications for 2 oz copper. The combination of high current, the need for low voltage drop, and thermal management requirements makes 2 oz the natural choice.

  • Switch-mode power supply (SMPS) output stages
  • DC-DC converter modules (buck, boost, buck-boost)
  • Point-of-load (POL) regulator boards
  • AC-DC adapter and charger PCBs
  • Uninterruptible power supply (UPS) control boards

In a typical 48V-to-12V buck converter handling 20A at the output, 2 oz copper on the power plane keeps I²R losses manageable and maintains regulation at the load. On 1 oz, the same design would need either a thicker bus bar, additional copper layers, or wider traces that consume board area.

Automotive Electronics

Automotive environments combine high current, wide temperature ranges, and severe vibration — all of which favor 2 oz copper.

  • Electric vehicle (EV) battery management systems (BMS)
  • Motor controllers for power steering, windows, and seats
  • LED headlight and taillight driver modules
  • On-board charger (OBC) control boards
  • DC-DC converter modules for vehicle power distribution
  • Engine control unit (ECU) power supply sections

Automotive PCBs must pass rigorous thermal cycling tests (typically -40°C to +125°C or higher). The thicker copper in 2 oz boards provides additional margin against solder joint fatigue and plated through-hole cracking during these extreme temperature swings.

LED Lighting

High-power LED arrays generate significant heat that must be conducted away from the LED junction to keep temperatures within safe limits. 2 oz copper PCBs are widely used in LED applications for this reason.

  • High-power LED grow lights for horticulture
  • Stadium and arena lighting fixtures
  • Street and parking lot luminaires
  • Automotive LED headlight assemblies
  • UV curing LED arrays
  • Medical and surgical lighting

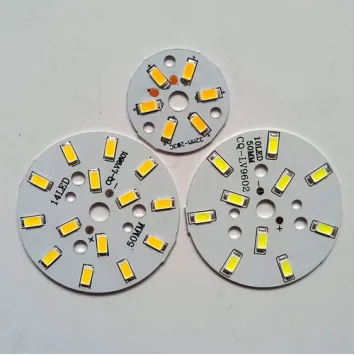

For LED designs, 2 oz copper on an aluminum-backed or metal-core PCB (MCPCB) provides an excellent thermal path from LED junction to heatsink. The copper spreads heat laterally before it reaches the dielectric and aluminum base, reducing the effective thermal resistance of the stack.

Motor Drives and Inverters

Motor controllers and inverters switch substantial currents through MOSFETs or IGBTs at frequencies from a few kHz to tens of kHz. 2 oz copper minimizes switching losses in the PCB traces and helps manage the thermal load from power semiconductors.

  • Industrial servo motor drives
  • HVAC compressor inverters
  • Electric bicycle and scooter motor controllers
  • Robotics joint motor drivers
  • Drone and UAV motor controllers
  • Pump and fan variable-frequency drives

The combination of high peak currents (often 30-100A+ in short pulses) and the need for low-inductance power loops makes 2 oz copper the practical minimum for most motor drive designs above ~100W.

Solar and Industrial Applications

Solar inverters and charge controllers handle sustained DC currents at moderate voltages, while industrial environments demand reliability under harsh conditions. 2 oz copper addresses both requirements with low-resistance power paths and added mechanical robustness.

  • Solar microinverters, MPPT charge controllers, and grid-tie inverter power stages
  • PLC power supply and output driver boards
  • Motor starter and contactor control boards
  • Power monitoring, metering, and process control modules
Industry Typical Max Current Key Requirements
Power electronics 10-100A Low voltage drop, thermal management
Automotive 5-50A Thermal cycling, vibration, reliability
LED lighting 1-10A Heat spreading, compact form factor
Motor drives 10-100A+ (pulsed) Low inductance, high peak current
Solar & Industrial 5-60A Efficiency, robustness, surge tolerance

2 oz vs 1 oz vs 3 oz: How to Choose the Right Copper Weight

The decision to use 2 oz copper should be driven by specific electrical, thermal, or mechanical requirements — not by default. If 1 oz works, it will be cheaper and faster. If 1 oz doesn’t work, 2 oz is almost always the next logical step.

Decision Framework

Design Requirement Recommended Weight Reason
Current > 3A per trace (sustained) 2 oz 1 oz requires very wide traces
Multiple high-current traces 2 oz Saves total board area
High-power LED thermal management 2 oz Better heat spreading without heatsink
Automotive/high-vibration 2 oz Added mechanical margin
High-reliability (IPC Class 3) 2 oz Better via and pad reliability
Current > 15A per trace 3 oz+ Beyond practical 2 oz trace widths
Extreme thermal cycling 3 oz+ Maximum via barrel reliability
Cost-sensitive high-volume 1 oz Lowest cost, fastest turnaround
Fine-pitch digital routing 1 oz (mixed) 1 oz on signal layers, 2 oz on power

Practical Hybrid Approaches

Many production designs mix copper weights to optimize cost, density, and performance. The most common pattern uses 2 oz on power layers and 1 oz (or even 0.5 oz) on signal layers.

Example 4-Layer Power Design Stackup:

Layer Function Copper Weight Reason
L1 (Top) Power components + high-current traces 2 oz Component pads, high-current routing
L2 Ground plane 2 oz Low-impedance ground return, thermal spreading
L3 Power plane 2 oz Low-resistance power distribution
L4 (Bottom) Signal + low-power components 1 oz Standard digital/analog routing

Example 6-Layer Mixed Design Stackup:

Layer Function Copper Weight Reason
L1 (Top) Power components + high-current 2 oz High-current pads and traces
L2 Ground plane 1 oz Standard reference plane
L3 Signal (digital) 0.5 oz Fine-line digital routing
L4 Signal (analog) 0.5 oz Clean analog routing
L5 Power plane 2 oz High-current distribution
L6 (Bottom) Power components 2 oz High-current return paths

The key to successful mixed-weight stackups is copper balancing: mirrored layers should have matching copper weights to prevent warpage. If L1 is 2 oz, L6 should also be 2 oz. If L2 is 1 oz, L5 should be 1 oz.

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

Cost Analysis: 2 oz vs 1 oz

The cost premium for 2 oz copper comes from multiple factors, but for most designs it’s a manageable increase — typically 20-50% over equivalent 1 oz boards.

Cost Factor 2 oz Impact Why
Raw material Higher (+20-30%) 2× the copper per layer, fewer laminate suppliers
Etching Higher (+15-25%) Longer etch time, more process control, lower throughput
Drilling Slightly higher Adjusted parameters, more frequent drill changes
Lamination Slightly higher Modified prepreg and cycle parameters
Yield Comparable Better mechanical robustness offsets etching challenges
Lead time +2-5 days typical Requires scheduling on compatible production lines

Bottom line: If your design requires 2 oz copper for electrical or thermal reasons, the 20-50% cost premium is usually far cheaper than the alternatives: wider traces requiring larger boards, additional copper layers, external bus bars, or active cooling solutions. In many designs, 2 oz copper actually reduces total BOM cost by eliminating heatsinks or enabling a simpler board form factor.

For cost-sensitive high-volume production, a mixed-weight approach — 2 oz on power layers, 1 oz elsewhere — captures most of the benefits at a lower premium.

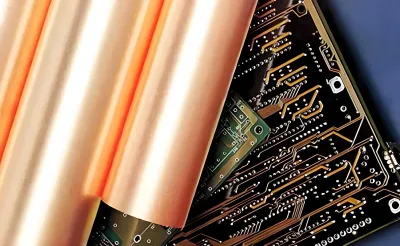

2 oz Copper Foil Types

The type of copper foil used for 2 oz layers affects performance and manufacturability.

Foil Type Description Surface Roughness Best For
ED (Electro-Deposited) Standard foil, most cost-effective Standard (~5-8 µm) Most power electronics applications
HTE (High-Temperature Elongation) Improved thermal cycling durability Standard (~5-8 µm) Automotive, high-reliability
RTF (Reverse Treated Foil) Smooth on circuit side Low (~3-4 µm) Mixed-signal with impedance control
RA (Rolled Annealed) Smoothest, most ductile Lowest (< 1 µm) Flex and rigid-flex with 2 oz

For most 2 oz power designs, standard ED copper is perfectly adequate and most cost-effective. HTE foil is recommended for automotive and other high-reliability applications where thermal cycling resistance matters. RTF and RA foils are rarely used for 2 oz because the thickness limits the fine-line benefits these smooth foils provide.



Frequently Asked Questions About 2 oz PCB

What is 2 oz copper thickness in mm?

2 oz copper has a nominal thickness of 0.070 mm (70 µm, or 2.74 mils). This is the base copper thickness before processing. On outer layers, finished thickness is typically higher (80-90 µm) due to additional plating during via formation and surface finishing. Inner layers remain close to the base 70 µm.

How much current can a 2 oz PCB trace carry?

A 10 mil wide trace on 2 oz copper (external layer) can carry approximately 4.5A with a 10°C temperature rise, 6.5A with 20°C, or 8.3A with 30°C, based on IPC-2152. This is roughly double the capacity of the same trace on 1 oz copper. For accurate values, use an IPC-2152 compliant calculator with your specific design conditions.

What’s the minimum trace width for 2 oz copper?

Standard manufacturing capability for 2 oz copper is 8 mil (0.2 mm) trace width and spacing. Advanced fabricators with tight process control can achieve 6 mil (0.15 mm) trace/space. Going below 6 mil on 2 oz copper significantly increases the risk of opens, shorts, and uneven etching — if your design requires finer traces, route those signals on 1 oz or 0.5 oz layers in a mixed-weight stackup.

Is 2 oz copper considered heavy copper?

In the PCB industry, “heavy copper” typically refers to 3 oz and above. 2 oz occupies a middle ground — it provides significant current-handling benefits over standard 1 oz, but it doesn’t require the specialized heavy-copper manufacturing lines that 4 oz+ designs need. Most fabricators process 2 oz on their standard production lines with adjusted parameters.

How does 2 oz compare to 1 oz for cost?

2 oz boards typically cost 20-50% more than equivalent 1 oz boards, depending on the number of layers, board size, and production volume. The premium comes from higher copper material cost, longer etching time, and modified process parameters. For prototype quantities, the premium is on the lower end (20-30%); for high-volume production, it’s typically 25-40%.

Can 2 oz and 1 oz copper be used in the same board?

Yes — mixed-weight stackups are common in power electronics designs. A typical configuration uses 2 oz on outer layers for high-current component connection and power planes, with 1 oz or 0.5 oz on inner signal layers for digital and analog routing. The fabricator handles the different copper foils during lamination, but careful stackup design is required to ensure copper balance and prevent warpage.

When should I choose 2 oz over 1 oz for my design?

Choose 2 oz when your design meets any of these conditions: sustained trace currents above 3A, multiple high-current traces competing for board space, thermal management concerns around power components, high-vibration operating environment, or reliability requirements that benefit from thicker copper (IPC Class 3, automotive). If none of these apply, 1 oz is almost always the better choice for cost, turnaround time, and design simplicity.

Does 2 oz copper affect solder joint reliability?

2 oz copper generally improves solder joint reliability. The thicker copper provides more thermal mass at the pad, which can require slightly adjusted reflow profiles (longer soak time, marginally higher peak temperature). However, once properly soldered, 2 oz pads and plated through-holes have greater mechanical integrity and better resistance to thermal cycling fatigue than 1 oz.



Conclusion

The 2 oz PCB is the practical upgrade from standard copper weight — providing roughly double the current capacity, significantly better thermal management, and improved mechanical reliability at a manageable cost premium. For power electronics, automotive systems, LED lighting, motor drives, and solar inverters, 2 oz copper solves problems that 1 oz simply cannot address without workarounds.

The post 2 oz PCB: Heavy Copper for Power Electronics & High-Current Designs first appeared on Pcbandassembly.

]]> Multilayer PCBs: Advantages and Disadvantages https://pcbandassembly.com/blog/multilayer-pcbs-advantages-and-disadvantages/ Wed, 17 Jun 2026 07:44:47 +0000 https://pcbandassembly.com/?p=11401 Advantages vs. Disadvantages
Aspect Multilayer PCBs Single/Double-Layer PCBs
Circuit Density High; uses vertical space Low; limited to surface area
Signal Integrity Excellent; controlled impedance & shielding Poor; lacks dedicated return planes
Size & Weight Compact & lightweight Bulky for complex circuits
Design Flexibility High; multiple routing layers Limited
Manufacturing Cost Higher (25–40% per added layer) Lower
Repairability Very difficult to impossible Relatively straightforward
Thermal Management Superior (internal heat spreading) Limited
Design Complexity High; requires expert planning Low

Table 1: Multilayer vs. Simple PCBs — Feature Comparison

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

Advantages of Multilayer PCBs

Multilayer PCBs have become the industry standard for high-performance electronics due to their numerous technical and operational benefits. Below is a detailed breakdown of each advantage:

1. Higher Circuit Density & Component Integration

Multilayer design enables far more circuits and components to fit in a given footprint by utilizing vertical space. Instead of spreading connections across a single layer, engineers allocate specific layers for signals, power, and ground.

Key benefits:

  • Compact design:Allows smartphone, wearable, and medical device form factors impossible with 2-layer boards
  • HDI technology:Microvias (<150 µm) + fine-line routing (3 mil or less) enable 500-pin BGAs with 0.5 mm pitch to route properly
  • Single unified board:Replaces multiple interconnected boards, eliminating connector failures and reducing assembly weight

2. Excellent Signal Integrity & EMI Control

One of the strongest reasons to adopt multilayer design is the ability to manage electromagnetic compatibility (EMC). Dedicated ground and power planes provide controlled return paths for signals.

Technique Mechanism Performance Impact
Controlled Return Paths Ground plane immediately adjacent to signal layer EMI reduction: 12–18 dB
Impedance Control Specific trace width & dielectric thickness Achieves ±10% impedance tolerance
Stripline Routing Signal layer sandwiched between two ground planes 360° shielding; reduces crosstalk by 20–40%
Multiple Ground Planes Multiple dedicated reference layers Further noise reduction; stable voltage distribution

Table 2: Signal Integrity Techniques in Multilayer PCBs

3. Superior Thermal Management

Heat is the enemy of component longevity. Multilayer boards distribute thermal energy far more effectively than 2-layer designs.

Thermal management strategies:

Method Description Benefit
Thermal Vias Connect hot component pads to internal copper planes Reduces IC junction temperature by 10–30 °C
Heavy Copper Layers 2–3 oz copper on internal layers (vs. standard 1 oz) Increases heat-spreading capacity
Copper Planes as Heat Sinks Internal power/ground planes act as thermal spreaders Eliminates need for bulky external heatsinks
High-Tg Substrates Materials with elevated glass transition temperatures (FR-4, Rogers) Prevents delamination under thermal stress

Table 3: Thermal Management Techniques

4. Mechanical Durability & Reliability

The layer-pressing process creates a dense, rigid composite structure more resistant to warping, vibration, and mechanical stress. This is why multilayer boards dominate automotive ECUs, industrial controls, and aerospace applications.

Durability factors:

  • High-pressure lamination fuses layers into monolithic structure resistant to warping during soldering
  • Internal layers shielded from environmental wear (dust, moisture, UV)
  • Uniform stress distribution reduces mechanical failure risk

5. Design Flexibility & Layer Allocation

Each layer can be optimized for a specific function. Designers gain unprecedented freedom in signal routing, power distribution, and grounding strategies.

Example layer allocation (8-layer board):

  • Layer 1: Top signal (high-speed differential pairs)
  • Layer 2: Ground plane (primary return path)
  • Layer 3–4: Buried signal routing
  • Layer 5–6: Ground/Power planes
  • Layer 7: Signal routing (lower-speed)
  • Layer 8: Bottom signal + component mounting

6. Performance in High-Frequency Applications

Multilayer structures are essential for high-speed protocols: PCIe, USB 3.0/3.1, DDR4/DDR5, 5G, and automotive radar.

Why multilayer excels at high frequency:

  • Controlled impedance prevents signal reflections
  • Ground planes minimize loop inductance (critical for >1 GHz signals)
  • Stripline routing offers 360° EMI shielding



Disadvantages of Multilayer PCBs

Despite their advantages, multilayer PCBs come with real tradeoffs. Understanding these limitations is crucial for making sound design decisions.

1. Significantly Higher Manufacturing Costs

Each added layer increases board cost by approximately 25–40%, driven by material, processing, and testing requirements.

Cost Component Impact on 4-Layer Board Impact on 8-Layer Board
Raw Materials (copper, prepreg) +30–35% +60–75% vs. 2-layer
Lamination Cycles +20% +50%
Drilling & Plating +15% +40%
Testing (AOI, X-ray, Electrical) +25% +45%
Overall Cost Multiplier vs. 2-Layer ~2.0× to 2.5× ~3.5× to 4.5×

Table 4: Cost Breakdown by Layer Count (Relative to 2-Layer Board)

2. Extreme Design Complexity

Multilayer design demands expert-level skills in stack-up planning, impedance control, thermal modeling, and DFM (Design for Manufacturing).

Sources of complexity:

  • Stack-up design:Must balance signal integrity, power distribution, thermal management, and mechanical strength
  • Impedance modeling:Requires detailed understanding of dielectric constants, trace dimensions, and layer spacing
  • Routing constraints:Dense placement of thousands of signals on 6–8 layers requires sophisticated CAD tools and experience
  • Iteration time:Design reviews, simulations, and layout corrections can extend timelines by months

3. Extremely Difficult Repairs & Debugging

Once a multilayer board is manufactured, fixing internal defects is nearly impossible without destroying the board.

Repair limitations:

  • Hidden defects:Inner-layer shorts or opens cannot be accessed without delaminating the board
  • X-ray inspection required:Diagnosing internal faults requires expensive X-ray equipment and specialized expertise
  • No blue-wiring fix:Unlike 2-layer prototype boards, hand-soldered jumpers are impractical at high trace densities
  • Complete replacement:Most manufacturing defects require scrapping the board, not just the failed component

4. Manufacturing Yield & Registration Challenges

Precise layer alignment is critical. Even microscopic misalignment can cause failures.

Manufacturing risks:

  • Layer alignment tolerance:Typically ±5 µm; excessive shift causes vias to miss pads
  • Via registration failures:Misaligned blind/buried vias create open circuits
  • Yield loss:Complex stackups may achieve only 85–92% yield, vs. 98%+ for 2-layer boards
  • Scrap cost:A single misregistered 8-layer board represents 8× the material waste of a 2-layer

5. Extended Design & Manufacturing Timeline

The complexity of multilayer design and manufacturing significantly extends project schedules.

Phase 2-Layer Board 6-Layer Board 12-Layer Board
Design & Simulation 2–3 weeks 6–8 weeks 10–14 weeks
Design Review & Iteration 1–2 weeks 3–4 weeks 4–6 weeks
Prototype Fabrication 1 week 2–3 weeks 3–4 weeks
Testing & Debugging 2–3 weeks 4–6 weeks 6–8 weeks
Total Project Timeline 6–8 weeks 15–21 weeks 23–32 weeks

Table 5: Typical Project Timeline by PCB Complexity

6. Thermal Concentration Risk (If Poorly Designed)

While multilayer boards excel at heat spreading, poor stackup design can actually trap heat in interior layers.

Potential issues:

  • Inadequate thermal vias → hot spots on high-power ICs (>5 W)
  • Thick FR-4 dielectric layers → reduce thermal conductivity
  • Dense component placement → insufficient air gaps for convection cooling
  • Requires active cooling (fans) in compact designs → adds cost & power consumption



Head-to-Head Comparison: Should You Use Multilayer?

Decision Factor Use Multilayer PCB Stick with 2-Layer
Signal speeds >100 MHz or high-speed protocols (PCIe, USB 3.0, DDR4) <100 MHz, basic digital logic
Component density BGA with >100 pins, HDI designs <50 total components, through-hole only
Thermal dissipation Components >2 W each, compact form factor <0.5 W total power, open layout
EMI requirement Stringent (medical, telecom, aerospace) Basic consumer electronics
Project budget $50k–$500k+ development cost acceptable Cost-sensitive, budget <$10k
Time to market 6–12 months development ok Need to launch in 4–8 weeks
Production volume Medium to high (>10k units/year) Very low (<5k units), prototyping
Industry Telecom, automotive, medical, aerospace Hobby, simple appliances, toys

Table 6: Quick Decision Matrix



Real-World Applications by Industry

Here’s where multilayer PCBs are non-negotiable:

Industry Typical Application Typical Layer Count Key Requirement
Telecommunications 5G base stations, cellular routers 10–40+ layers Signal integrity at GHz frequencies
Automotive ADAS systems, EV battery management (BMS) 6–12 layers Reliability under thermal/mechanical stress
Medical Devices MRI machines, portable ultrasound, ECG monitors 6–8 layers EMI shielding + signal fidelity for diagnostics
Consumer Electronics Smartphones, laptops, gaming devices 6–10 layers Miniaturization + heat dissipation
Aerospace & Defense Flight control systems, radar electronics 8–16 layers Durability, compact, vibration-resistant
Industrial Control PLCs, robotics, factory automation 4–8 layers Reliability under harsh environmental conditions
High-Frequency RF Satellite communications, radar systems 6–10 layers + Rogers/PTFE substrate Minimal signal loss, controlled impedance

Table 7: Industry Applications of Multilayer PCBs



Cost Optimization Strategies

Multilayer PCBs are expensive, but smart design can reduce costs without sacrificing performance:

1. Minimize Layer Count Through Efficient Design

  • Use 4 layers instead of 6:If signal density allows, a 4-layer board (top signal, ground, power, bottom signal) may be sufficient
  • Optimize via placement:Fewer vias → faster manufacturing, lower risk of registration errors

2. Select Appropriate Materials

  • FR-4 for standard applications:Adequate for <5 GHz, costs ~30% less than Rogers
  • High-frequency materials only when needed:Reserve Rogers/PTFE for RF circuits; use FR-4 for digital sections

3. Batch Production & Design Reuse

  • Economies of scale:Manufacturing 1,000 units reduces per-unit cost by 20–35% vs. 100 units
  • Library modules:Reuse proven subsystem designs to shorten design time and reduce errors

4. Partner with Experienced Manufacturers

  • DFM consultation:Good manufacturers offer free Design for Manufacturing (DFM) reviews, catching expensive mistakes early
  • Standard stackups:Using common layer configurations (4/6/8 layer) has faster lead times and lower NRE costs



How to Decide: Multilayer or Not?

Use this framework to make an informed decision:

Step 1: Evaluate Technical Requirements

  • Maximum signal frequency: > 100 MHz → need multilayer
  • Number of components: > 100 parts → likely need >4 layers
  • Power dissipation: > 5 W → thermal management essential
  • Physical footprint: < 50 cm² for complex circuit → multilayer mandatory

Step 2: Assess Project Constraints

  • Development budget available?
  • Timeline flexibility (6+ months for multilayer, 2–4 weeks for 2-layer)?
  • Production volume (>10k units benefits from multilayer economies)?

Step 3: Prototype & Validate

  • If uncertain, prototype with 4-layer board first (acceptable cost, good margin vs. 2-layer)
  • Use simulations (HyperLynx, ADS, ANSYS) to validate performance before committing to manufacturing



Frequently Asked Questions

Q: What is the minimum layer count for a real multilayer PCB?

A: Technically 3 layers, but practically 4 layers is the entry point for EMI control. A 4-layer stackup (top signal, ground, power, bottom signal) provides dedicated return paths and power distribution at reasonable cost.

Q: Can I use a 2-layer board for high-speed signals (>100 MHz)?

A: Theoretically yes, but practically no. Without a ground plane, return current loops are enormous, causing EMI failures and signal reflections. It’s almost always cheaper to move to 4 layers than to over-engineer a 2-layer design.

Q: How much more does a 6-layer board cost compared to a 4-layer?

A: Approximately 25–40% more per added layer. A 6-layer board costs roughly 1.5–1.75× the price of a comparable 4-layer board. Cost per unit decreases significantly at production volumes >10k.

Q: What surface finish should I use for multilayer PCBs?

A: ENIG (Electroless Nickel Immersion Gold) is best for fine-pitch BGAs and high-reliability applications. HASL is cost-effective for standard designs. OSP is eco-friendly and suitable for high-density boards if soldered quickly after fabrication.

Q: Can I repair a broken trace on an internal layer?

A: No. Internal defects are inaccessible and typically require scrapping the entire board. This is why X-ray inspection during manufacturing is critical—it catches defects before assembly.

Q: How does a 12-layer board compare to a 6-layer in terms of performance?

A: A 12-layer board offers more routing flexibility, better thermal distribution, and improved EMI performance. However, the jump in cost and design complexity often doesn’t justify the benefit unless you have very high signal density (>1,000 traces) or extreme thermal requirements.

Q: What’s the typical lead time for a multilayer PCB prototype?

A: 2–4 weeks for 4–6 layer boards from experienced manufacturers. 12+ layer boards may take 4–6 weeks due to additional process steps (blind/buried via drilling, X-ray inspection). RUSH services (1–2 week delivery) available at 20–40% premium cost.

Q: Do I need specialized CAD software for multilayer design?

A: Professional multilayer design requires CAD tools like Altium Designer, Cadence Allegro, or KiCad with proper library management. These tools handle layer stackup definition, impedance simulation, and design rule checks essential for multilayer success.

Q: What is the most common layer count in industry?

A: 4, 6, and 8 layers dominate. These counts balance cost, performance, and supply chain maturity. Most component manufacturers provide reference designs targeting 4–8 layer stackups, making design time shorter and DFM risks lower.



Conclusion

Multilayer PCBs are not a luxury—they are a necessity for any modern, high-performance electronic device. The advantages in signal integrity, miniaturization, and thermal management far outweigh the disadvantages for applications demanding reliability and performance.

Key takeaways:

  • Technical threshold:Above ~100 MHz signal speeds or high component density, multilayer design is almost always required
  • Cost vs. benefit:Yes, multilayer costs 2–4× more to develop, but a failed single-layer design costs infinitely more
  • Design expertise:Hire experienced multilayer designers or partner with knowledgeable manufacturers to avoid costly mistakes
  • Prototype early:Validate performance with simulations and prototype boards before committing to high-volume manufacturing

The industries leading electronics innovation—telecommunications, automotive, medical, aerospace—have collectively made multilayer PCBs the de facto standard. Your product requirements, not your budget concerns, should drive this decision. In most cases, the question isn’t whether to use multilayer, but how many layers you truly need.

The post Multilayer PCBs: Advantages and Disadvantages first appeared on Pcbandassembly.

]]> FR1 vs FR2 vs FR3 vs FR4: PCB Substrate Guide https://pcbandassembly.com/blog/fr1-vs-fr2-vs-fr3-vs-fr4-pcb-substrate-guide/ https://pcbandassembly.com/blog/fr1-vs-fr2-vs-fr3-vs-fr4-pcb-substrate-guide/#respond Tue, 16 Jun 2026 06:41:35 +0000 https://pcbandassembly.com/?p=11384 1. Introduction to Flame-Retardant PCB Substrates

PCB design and manufacturing depend on base laminates that support electrical connections and mechanical loads. Flame Retardant (FR) grade materials form the bulk of rigid substrate options. These grades, defined by industrial standards like UL 94 and IPC-4101B, indicate how a substrate behaves when subjected to thermal stress, mechanical loading, and electric fields.

Selecting the correct laminate grade directly dictates the reliability of the finished assembly. While FR4 has become the default material for modern multi-layer designs, paper-based predecessors—FR1, FR2, and FR3—still find use in highly cost-constrained, single-layer consumer applications.

RF4 PCB

2. Material Composition and Reinforcement Chemistry

A PCB substrate is a composite material made of a polymer resin matrix reinforced by fibrous structure. The mechanical toughness, thermal stability, and moisture resistance of each FR grade are direct consequences of its constituent resin chemistry and reinforcement fiber geometry.

FR1 and FR2: Phenolic Paper Laminates

Both FR1 and FR2 utilize cellulose paper as the structural reinforcement. This paper is impregnated with a synthetic thermosetting phenolic resin (phenol-formaldehyde). Phenolic resins are formed through step-growth polymerization, yielding a highly cross-linked network that is cheap to manufacture but mechanically brittle.

The distinction between FR1 and FR2 lies in their raw material processing and glass transition temperature (Tg). FR1 exhibits a higher Tg (typically around 130°C), while FR2 is formulated with cotton-cellulose paper to optimize punchability, resulting in a lower Tg (often under 105°C).

Both grades share a key weakness: phenolic paper laminates are highly hydrophilic, absorbing ambient moisture rapidly compared to epoxy-glass matrices.

FR3: Epoxy Paper Laminates

FR3 replaces the brittle phenolic resin of FR2 with an epoxy resin binder (typically bisphenol-A diglycidyl ether cross-linked with hardeners). The reinforcement remains cellulose or cotton-cellulose paper.

Epoxy resins offer superior adhesive properties, increased tensile strength, and greater resistance to moisture absorption than phenolic alternatives.

This chemical upgrade improves copper foil peel strength and thermal resistance during soldering, though the underlying paper reinforcement still restricts the material’s structural performance compared to woven glass.

FR4: Epoxy Glass Laminates

FR4 is the industry-standard composite, constructed of multiple layers of woven fiberglass fabric (specifically E-glass) impregnated with a flame-retardant epoxy resin matrix. The epoxy resin is often modified with halogenated flame retardants (such as tetrabromobisphenol-A, or TBBPA) or phosphorous compounds for halogen-free environmental compliance to meet UL 94 V-0 flammability ratings.

Woven fiberglass strands run in mutually perpendicular directions (warp and fill), delivering isotropic tensile strength, superior dimensional stability, and excellent electrical insulation characteristics.

Laminate Grade Reinforcement Material Binder Resin Chemistry Typical Layer Count Compatibility Flammability Rating (UL 94)
FR1 Cellulose Paper Phenolic Resin Single-Sided Only V-0
FR2 Cotton-Cellulose Paper Phenolic Resin Single-Sided Only V-0
FR3 Cellulose Paper Epoxy Resin Single or Double-Sided Only V-0
FR4 Woven E-Glass Fabric Epoxy Resin (Modified) Single, Double, and Multilayer (Up to 100+ layers) V-0

Table 1: Composition and Structural Matrix of FR Laminates



3. Key Technical Specifications and IPC Standards

PCB laminates are qualified and certified based on standardized testing frameworks. The IPC-4101 specification series (“Specification for Base Materials for Rigid and Multilayer Printed Boards”) classifies laminates into specific slash sheets.

Under IPC-4101B, FR1 correlates roughly to slash sheet /01, FR2 to /02, and standard FR4 to /04 or /21, depending on the exact resin formulation and fillers used.

To confirm the chemical and mechanical limits of a laminate, quality assurance engineers rely on standardized physical metrics:

  • Glass Transition Temperature (Tg):The temperature range over which the polymer matrix transitions from a hard, glassy state to a flexible , rubbery state. Operating near or above Tg accelerates mechanical degradation.
  • Decomposition Temperature (Td):The temperature at which the laminate loses 5% of its total weight due to chemical pyrolysis. This process is irreversible and causes delamination.
  • Coefficient of Thermal Expansion (CTE):The rate of dimensional change per degree Celsius. Standardized metrics measure CTE in the X/Y plane and the Z-axis (thickness direction). High Z-axis expansion strains plated through-holes (PTH), causing via failure during thermal cycles.
  • Moisture Absorption:The percentage increase in weight when the laminate is exposed to high humidity or water immersion. High moisture levels degrade dielectric properties and cause blistering during assembly reflow.
Parameter / Property FR1 (Phenolic Paper) FR2 (Phenolic Paper) FR3 (Epoxy Paper) FR4 (Epoxy Glass)
Glass Transition Temp (Tg, °C) 110 – 130 95 – 105 100 – 110 130 – 180 (High-Tg variations)
Decomposition Temp (Td, °C) < 260 < 250 < 280 310 – 350
Z-Axis CTE (ppm/°C, pre-Tg) 150 – 250 200 – 300 120 – 180 45 – 60
X/Y-Axis CTE (ppm/°C) 25 – 45 30 – 50 20 – 35 12 – 16
Moisture Absorption (% wt) 1.0 – 2.0 1.2 – 2.5 0.6 – 1.0 0.1 – 0.2
Dielectric Constant (Dk @ 1 MHz) 4.5 – 5.5 4.5 – 5.5 4.3 – 5.0 4.2 – 4.8
Dissipation Factor (Df @ 1 MHz) 0.035 – 0.050 0.035 – 0.055 0.030 – 0.040 0.015 – 0.022

Table 2: Representative Physical, Thermal, and Electrical Parameters



4. Mechanical Performance and Structural Reliability

The choice of reinforcement material establishes the mechanical limits of the substrate under mechanical stress, drilling, routing, and thermal cycling.

Tensile and Flexural Strength

The E-glass weave in FR4 delivers superior mechanical strength. E-glass has a tensile strength of approximately 3.4 GPa, whereas cellulose fibers are limited to about 0.3–0.5 GPa. Consequently, FR4 exhibits a flexural strength of 350–500 MPa, whereas FR1, FR2, and FR3 hover between 80–150 MPa. Paper-based boards flex and warp under minimal mechanical stress, making them unsuitable for heavy components or high-vibration applications.

Punchability vs. CNC Machining

One structural advantage of paper phenolic boards (particularly FR2) is their ease of fabrication. Single-sided consumer boards are produced in high volumes using mechanical punching. Holes and board boundaries are stamped out simultaneously using precision dies at room temperature or slightly elevated preheating levels.

FR4 cannot be punched economically; the high hardness of woven E-glass rapidly dulls punching dies. Instead, FR4 boards require CNC drilling and routing. While CNC processing is highly precise, it increases manufacturing cycle times and unit fabrication costs compared to simple, high-speed stamping. However, CNC routing of paper boards can cause micro-cracking and fiber tear-outs, which does not occur with the woven glass structure of FR4.

Plated Through-Hole (PTH) Reliability

Single-sided boards (FR1 and FR2) do not utilize plated through-holes. The paper-based laminate lacks the dimensional stability and copper peel strength required to anchor a reliable barrel plating inside the hole.

The high Z-axis CTE of phenolic paper (often exceeding 200 ppm/°C) causes rapid stress-fatigue failure in the copper plating when exposed to soldering heat or cyclic operating temperatures. Substrate expansion shears the thin copper barrel, causing open circuits.

FR4, with its Z-axis CTE of 45–60 ppm/°C, minimizes stress on the copper barrel, ensuring reliable electrical connections across many PCB layers.



5. Electrical Performance and Signal Integrity

Substrate materials must act as stable dielectrics to isolate copper traces and control trace impedance. The dielectric properties of paper-based and glass-based laminates diverge significantly, particularly across varying environmental conditions and operating frequencies.

Dielectric Constant (Dk) and Dissipation Factor (Df)

Standard FR4 exhibits a Dk between 4.2 and 4.8 at 1 MHz, remaining relatively stable across temperature and frequency shifts up to several gigahertz. Its Df is low (0.015 to 0.022), minimizing signal loss in transmission lines. This stability enables precise characteristic impedance calculations in high-speed digital and RF designs.

In contrast, FR1, FR2, and FR3 exhibit Dk values of 4.5 to 5.5 with significantly higher Df profiles (above 0.030). These values shift dramatically with changes in frequency and ambient humidity. The resulting high loss tangent and variable dielectric performance cause rapid signal attenuation and impedance mismatching, rendering paper-based substrates unsuitable for digital designs operating above 100 MHz.

Moisture Absorption and Electrical Tracking

Cellulose paper is hygroscopic. FR1 and FR2 laminates absorb up to 2.5% of their weight in moisture when exposed to high relative humidity. Water has a high dielectric constant (Dk ≈ 80), which increases the effective Dk of the board, alters impedance, and degrades the insulation resistance between adjacent traces.

This absorbed moisture also acts as a medium for electrochemical migration, causing dendritic growth and conductive anodic filaments (CAF) that short-circuit the board. FR4, with its hydrophobic epoxy-glass matrix, limits moisture absorption to under 0.2%, reducing CAF failures and maintaining high insulation resistance in humid environments.

Mechanical / Physical Property FR1 FR2 FR3 FR4
Flexural Strength (MPa) 80 – 120 75 – 110 100 – 140 350 – 500
Peel Strength (N/mm, Cu foil) 1.1 – 1.3 1.0 – 1.2 1.2 – 1.5 1.6 – 2.2
Comparative Tracking Index (CTI, V) 100 – 150 100 – 150 150 – 250 175 – 600+ (High-CTI grades available)
Primary Processing Method Die Punching Die Punching Punching / Routing CNC Drill & Route
Suitable for Through-Hole Plating No No Very Limited (Not recommended) Yes (Excellent)

Table 3: Mechanical and Physical Integrity Comparison



6. Manufacturing, Assembly, and Processing Differences

Laminates must survive PCB fabrication (etching, drilling, plating) and assembly (solder paste printing, pick-and-place, reflow). Choosing a lower-grade laminate directly affects factory yield and defects.

Thermal Shock and Solder Reflow

Modern lead-free soldering processes (typically utilizing SAC305 solder alloy) require peak reflow temperatures between 245°C and 260°C. Standard FR1 and FR2 materials have Td limits under 250°C.

During lead-free reflow, the phenolic resin in these materials degrades, releasing gaseous decomposition products. If trapped inside the substrate, these gases cause the laminate to delaminate, forming bubbles and blisters beneath the copper traces.

The glass-epoxy matrix of FR4 provides a higher thermal safety margin, with Td thresholds starting at 310°C. High-performance FR4 variants can withstand multiple reflow cycles and manual rework without blistering or losing copper peel strength.

Pre-Assembly Baking Protocols

Because paper-based laminates absorb significant amounts of ambient moisture, they require strict baking protocols before assembly. If a moisture-saturated FR1 or FR3 board is put through a reflow oven, the trapped water instantly vaporizes into steam, causing explosive delamination.

To prevent this, factories must bake paper-based boards at 100°C–110°C for 2 to 4 hours in a controlled environment. Standard FR4, while still requiring moisture control, is less sensitive and typically skips the pre-bake cycle unless the board has been exposed to high-humidity storage for long periods.

Residue and Particulate Generation

Machining paper-based phenolic boards generates fine, fibrous organic dust that can coat assembly tools, interfere with stencil printing, and clog air filters. In contrast, routing and drilling FR4 generates fiberglass particulate waste that is easily captured by standard vacuum filtration systems, helping maintain a cleaner assembly environment.

Laminate Grade IPC-4101B Slash Sheet Match Lead-Free Soldering Support Delamination Resistance (IPC-TM-650 2.4.24) Dust & Debris Profile during Routing
FR1 IPC-4101B / 01 No (Max 230°C peak limit) Poor (Fails standard thermal shocks) High Organic Fibrous Dust
FR2 IPC-4101B / 02 No (Max 220°C peak limit) Poor (High risk of blister defect) Moderate Organic Dust
FR3 IPC-4101B / 03 Marginal (Short duration reflow only) Moderate (Prone to delamination) Moderate-Low Fibrous Dust
FR4 IPC-4101B / 04, /21, /24, /126 Yes (Peak 260°C compliant) Excellent (Stable for standard cycles) Glass Particulates (Vacuum managed)

Table 4: IPC Standard Alignment and Manufacturing Compatibility



7. Cost-Benefit Analysis and Procurement Strategies

While FR4 is technically superior to paper-based alternatives, selecting a laminate requires balancing technical requirements with production costs.

Raw Material Cost Differentials

Paper and phenolic resins are cheaper raw materials than glass fiber and modified epoxy. In high-volume consumer goods (such as AC-DC adapters, toys, and simple household appliances), raw material costs represent a significant share of total manufacturing costs.

Selecting FR1 or FR2 instead of FR4 can reduce the raw laminate board cost by 30% to 50%.

Total Cost of Ownership and Quality Yields

The lower initial cost of paper-based boards is often offset by manufacturing and reliability trade-offs:

  • Solderability and Scrap Rates:Paper boards suffer higher warpage during lead-free reflow, leading to solder bridging, open joints, and higher manual rework costs.
  • Single-Source Risk:Because FR4 is the standard material for rigid boards, manufacturers can leverage economies of scale and utilize multiple laminate suppliers. Conversely, paper-based laminates (FR1, FR2, FR3) are manufactured by fewer suppliers, creating single-source vulnerabilities.
  • Inventory Complexity:Standardizing on FR4 allows PCB fabricators to run continuous production lines with consistent chemical baths and CNC settings. Processing different materials requires distinct etching chemistry, routing speeds, and waste management setups, driving up operational overhead.

For these reasons, most manufacturing centers have moved their volume production to FR4, leaving FR1 and FR2 for highly cost-sensitive, single-sided, high-volume consumer markets.



8. Frequently Asked Questions (FAQ)

Is FR4 better than FR1, FR2, and FR3?

Yes, FR4 is the most widely used PCB material because of its strength, flame resistance, and support for complex, multilayer designs. While FR1 to FR3 are suitable for simpler projects, FR4 is more versatile and reliable for most applications.



Can I use FR1 or FR2 for multilayer PCBs?

No, FR1 and FR2 are not recommended for multilayer PCBs. They’re best for basic, single-layer designs and can have issues with drilling or heat resistance. For multilayer boards, FR4 is a much better choice.



Can FR1 be used for high-frequency RF designs?

No. FR1 exhibits a high dissipation factor (Df > 0.035) that increases rapidly with frequency, leading to high signal loss. Its dielectric constant is also highly sensitive to humidity, which can alter impedance matching and degrade signal integrity. Standard FR4 is suitable for low-to-mid RF frequencies, while specialized laminates (such as PTFE or ceramic-filled hydrocarbons) are required for microwave applications.



What is the main structural difference between FR2 and FR3?

Both utilize cellulose paper reinforcement, but FR2 uses a phenolic resin binder, while FR3 uses an epoxy resin binder. The epoxy resin in FR3 improves mechanical strength, copper peel strength, and electrical insulation, allowing for double-sided boards. However, FR3 is still limited by the thermal and mechanical limitations of its paper core.



Why does FR1/FR2 struggle with lead-free soldering?

Lead-free assembly requires reflow temperatures of 245°C–260°C. Standard phenolic paper materials begin to decompose thermally (Td ≈ 250°C) at these temperatures, causing trace delamination, blistering, and board warpage.



How do halogen-free FR4 laminates compare to standard FR4?

Halogen-free FR4 substitutes bromine-based flame retardants with phosphorous- or nitrogen-based compounds to comply with RoHS regulations. Under IPC-4101B/126, these laminates match or exceed the mechanical and thermal performance of standard FR4, often providing a higher Tg and better resistance to conductive anodic filament (CAF) growth.



Can FR4 be punched like FR1 and FR2?

No. The woven fiberglass yarn in FR4 is highly abrasive, which quickly wears down stamping dies and leads to clean-cut failures. FR4 must be machined using CNC drilling and routing tools.



9. Summary of Engineering Recommendations

Laminate selection is a critical decision that balances cost, processing ease, thermal limits, and mechanical durability. The table below outlines the primary selection criteria based on application requirements:

Application Parameter Recommended Grade Engineering Rationale
Multi-layer Designs (3+ Layers) FR4 Only Excellent dimensional stability and low Z-axis expansion protect plated through-holes.
High-Volume, Ultra-Low Cost (Single-Sided) FR1 / FR2 Reduces raw material costs and allows for fast, high-volume punch tool fabrication.
Lead-Free Reflow Compatibility FR4 (or High-Tg FR4) Provides a high thermal safety margin (Td > 310°C) to withstand peak lead-free temperatures.
High-Humidity Environments FR4 Limits moisture absorption to < 0.2%, maintaining stable insulation and preventing CAF failures.
Double-Sided, Cost-Sensitive Projects FR3 (or low-end FR4) Epoxy binder provides sufficient trace adhesion and insulation for simple double-sided boards.

Table 5: Application Matrix and Laminate Selection

In the modern electronics landscape, FR4’s physical properties and widespread supply chain availability make it the standard choice for most projects. However, understanding the properties of paper phenolic alternatives (FR1 and FR2) allows engineers to optimize costs in mature, single-sided consumer goods without compromising the safety and reliability of the end product.

The post FR1 vs FR2 vs FR3 vs FR4: PCB Substrate Guide first appeared on Pcbandassembly.

]]> https://pcbandassembly.com/blog/fr1-vs-fr2-vs-fr3-vs-fr4-pcb-substrate-guide/feed/ 0 How to Reduce PCB Costs: From Materials to Board Size https://pcbandassembly.com/blog/reduce-pcb-costs/ Mon, 18 May 2026 06:54:24 +0000 https://pcbandassembly.com/?p=10838 1. Introduction

In our experience, cost reduction isn ‘t about buying cheaper components; it’s about aligning your design constraints with the capabilities of high-volume manufacturing lines. When we see a design that forces a 0.2mm mechanical drill to hit a 0.35mm pad, we know the scrap rate is going to climb, and that risk is priced directly into the quote. Achieving a 10% to 30% reduction in board cost usually requires looking at the board through the eyes of a process engineer rather than just a circuit designer. Every choice, from the distance between a via and a SMT pad to the specific grade of FR-4, carries a price tag that scales exponentially with volume.



2. Layer Count and the Lamination Penalty

The most direct way to slash PCB costs is to reduce the layer count, but the reasoning is more complex than just “less material.” Each pair of layers added to a board requires an additional lamination cycle. A 4-layer board undergoes one lamination cycle; a 6 -layer board requires more precision and material handling, but once you move into 8, 10, or 12 layers, the registration requirements become much tighter. Misalignment by even a few microns during lamination can ruin an entire panel of boards .

Multilayer PCB

We’ve seen designs where a 6-layer board could have been a 4-layer board if the designer had spent an extra day optimizing the power plane routing. At PCBAndAssembly, we often suggest that for low-to -medium complexity digital designs, the “sweet spot” for cost-to-performance is the 4-layer stack up. It allows for a solid ground plane and a dedicated power plane while keeping fabrication steps minimal.

Layer Count Typical Relative Cost Primary Cost Driver Notes
2 Layers 100% Base Fabrication Standard for simple power/ analog
4 Layers 160% – 2 00% Lamination + Extra Prepreg The standard for most digital designs
6 Layers 250% – 320% Alignment & Lamination Significant jump due to processing time
8 Layers 380% – 450% Registration & Drill Precision Exponential increase in scrap risk

Table 1: Relative Cost Increase by Layer Count (Base 2-Layer = 100%)

Note: These ranges reflect typical pricing from standard batch manufacturers. Prototype shops, domestic fabs, and specialty HDI facilities will vary significantly.

When to Stick with 4 Layers

If your design has the density to fit on 4 layers but you’re worried about EMI , it is often cheaper to spend time on shielding or layout optimization than to jump to 6 layers. We’ve found that many engineers use 6 layers as a “safety net” for signal integrity, but unless you are dealing with high-pin -count BGAs (like 0.8mm pitch or smaller) that physically require the extra routing channels, the 4-layer stackup remains the king of cost-efficiency.



3. PCB Material Selection

Standard FR-4 is the workhorse of the industry because of its price point and predictable performance. However, as soon as a design enters the realm of lead-free soldering or high-speed signals , material selection becomes a major cost lever. The most common mistake we see is specifying a high Glass Transition temperature (Tg) material when it isn’t strictly necessary for the operating environment.

Tg 130-140°C is standard, while Tg 170-180°C is considered “High-Tg.” While High-Tg materials are better at resisting the thermal stress of multiple reflow cycles (essential for lead-free assembly), they are also roughly 20-40% more expensive depending on the brand and supplier, and harder on the drill bits. We’ve seen that for most consumer and standard industrial applications, a mid-Tg material (around 150°C) offers the best balance of reliability and cost.

Furthermore, when frequencies exceed 5 GHz, designers often jump straight to PTFE-based materials (like Rogers 43 50B or 4003C). These materials can cost 5 to 10 times more than standard FR-4. A common value engineering tactic we use is the “hybrid stackup.” Instead of making the whole 6-layer board out of expensive high-speed material, we use the specialty material only on the outer layers (Layers 1 and 2) where the high-speed traces are routed, while using standard, inexpensive FR-4 for the inner cores. This can often cut the raw material cost of an RF board by 40%.



4. Copper Weight and the Over-Engineering Trap

Copper weight is one of those specifications that engineers often “bump up” just to be safe . We’ve seen many boards specified with 2oz (70µm) copper on signal layers where 1oz (35µm) would have sufficed. The cost of 2oz copper isn’t just the price of the metal; it’s the processing time. Thicker copper takes longer to etch, and as the copper gets thicker, the “undercut” (the tendency of the etchant to eat away the copper under the photoresist) becomes harder to control.

If you specify 2oz copper, you generally cannot have 4-mil traces ; you might be forced to 6-mil or 8-mil minimums. This forces the board size to grow, which in turn raises the cost. At PCBAndAssembly, we recommend using 0.5oz base copper for signal layers ( which plates up to ~1oz) and reserving 2oz or 3oz copper only for dedicated power planes or boards requiring high current handling (like motor controllers). If a specific trace needs to carry high current, it is almost always more cost-effective to make the trace wider than to make all the copper on the board thicker.

Copper Weight (oz) Finished Thickness (µm) Min Trace/Space (mil) Etch Cost Impact
0 .5 oz ~18 µm 3 / 3 Baseline
1.0 oz ~35 µm 4 / 4 Low
2 .0 oz ~70 µm 6 / 6 or 8 / 8 Moderate (Longer etch)
3.0 oz ~105 µm 10 / 10 High (Special handling)

Table 2: Copper Weight vs. Minimum Trace/Space Limits



5.Vias and Holes: The Geometric Cost Drivers

Comparison of Various PCB Vias

The number of holes and the types of vias used are arguably the biggest drivers of fabrication time. Mechanical drilling is a sequential process—the drill head has to move to every single coordinate. When we see a board with 5,000 vias , we know the machine time alone will drive up the price. However, the *type* of via is even more critical than the quantity.

Blind and Buried Vias

The moment a design moves from through -hole vias to blind or buried vias, the cost can jump by 50% to 100%. This is because blind/buried vias require “sequential lamination.” You have to drill and plate the inner layers before you can laminate the outer layers. We’ve found that many designers use blind vias because they’ve run out of routing room, but a slight increase in board size (even 5%) is often significantly cheaper than adding the complexity of blind vias.

Via-in-Pad (VIPPO)

Via-in-pad is necessary for some high-density B GA designs, but it requires the manufacturer to fill the via with conductive or non-conductive epoxy and then plate copper over the top to create a flat surface for soldering. This is an multi-step process. In our experience, if you can move the via just 0.2mm away from the pad and use a standard “dog-bone” fan out, you eliminate the need for the filling and capping process entirely.

Drill Bit Diameters

The industry “standard” for cost-effective mechanical drilling is usually 0.25mm to 0. 3mm. As soon as you specify a 0.2mm drill or smaller, the drill bits become much more fragile . They break more often, the machines must run at slower feed rates, and the “drill wander” (the tendency of the bit to flex) becomes a major yield issue. We’ve seen drill wander increase sharply when FR-4 feed rates are applied to high-density designs, leading to broken annular rings. Keeping your smallest drill at 0.3mm whenever possible is one of the easiest ways to ensure high yields and lower costs.



6. Surface Finishes: Balancing Shelf Life with Solderability Costs

Surface finish selection is often treated as an afterthought, but it impacts both the fabrication price and the assembly yield. The two heavy hitters are HASL (Hot Air Solder Leveling) and ENIG (Elect roless Nickel Immersion Gold).

HASL is the cheapest option, but it has a significant drawback for modern designs: it is not perfectly flat. For fine-pitch components (0.5mm pitch and below), the “humps” of solder in HASL can cause components to tilt or bridge during reflow. ENIG, while more expensive (typically carrying a noticeable premium on the board cost, though the exact amount varies with gold prices and board area), provides a perfectly flat surface and excellent shelf life.

A hidden cost-saver is OSP (Organic Solderability Preservative). It’s flat, inexpensive (comparable to or cheaper than HASL), and environmentally friendly. However, OSP has a short shelf life (usually 6 months) and can be easily damaged by handling. We recommend OSP for high -volume consumer products where the boards are assembled immediately after fabrication. For industrial or medical products that might sit in a warehouse for a year, ENIG is usually the better investment despite the higher upfront cost, as it prevents costly assembly failures later.

Finish Cost Level Flatness Shelf Life Best Use Case
HASL (Lead-Free) Low Poor 12 Months Through-hole, large SMT
OSP Lowest Excellent 6 Months High-volume, immediate assembly
ENIG High Excellent 12+ Months Fine-pitch B GA, gold bonding
Immersion Silver Medium Excellent 6-12 Months High-speed signals, RF

Table 3: Comparison of Common Surface Finishes



7. PCB Size Design

Panelization

PCBs are not manufactured as individual boards; they are made on large panels (typically 18″x24″ or 12 “x18”). You are paying for the whole panel, whether your boards fill it or not. If your board dimensions are 105mm x 105mm, you might only fit a few on a panel, leaving a huge amount of wasted “margin” material. If you can shrink that board to 100mm x 100mm, you might fit an entire extra row of boards on the panel.

Remember, the larger the board, the greater the cost. The size of a board has a direct relationship to the final price a customer will pay for it.

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

8. PCBA Cost Drivers: Assembly Side Savings

SMT line

Once the bare board is fabricated, the assembly process (PCBA) introduces a new set of cost variables. Component sourcing and placement complexity are the primary drivers here. One of the most effective strategies for reducing PCBA costs is “B OM Consolidation.”

BOM Consolidation

If your design uses 10 different values of 10k, 12k, and 15k resistors, ask yourself if they could all be 10k. Every unique part number (SKU) on your Bill of Materials requires a different feeder on the pick-and- place machine. Most assembly houses charge a “setup fee” per unique line item. By consolidating your passives, you reduce the number of reels the operator has to load, which translates directly to lower labor costs and fewer chances for placement errors. Single-Sided vs. Double-Sided Assembly

Placing components on both sides of the board requires two separate passes through the SMT line—two stencils, two solder paste prints, and two reflow cycles. In our experience, double-sided assembly can meaningfully increase assembly costs compared to single-sided—the impact varies based on bottom-side component density and whether adhesive dispensing is required, but it is rarely a small difference. If you have a few non-critical components on the bottom side, try to move them to the top. Even if it requires making the board slightly larger, the savings from eliminating the second assembly pass usually far outweigh the cost of the extra PCB area.

Component Sourcing

Supply chain volatility has made component sourcing a high-stakes game . We’ve seen production lines shut down because a $0.05 capacitor went out of stock. To mitigate this, always specify “alternates” for common passives and semiconductors in your BOM. At PCBAndAssembly, we’ve found that designs with pre-approved alternates move significantly faster through procurement—when a preferred part goes on allocation, we can immediately substitute a verified equivalent without waiting for engineering sign-off, which is often the bottleneck that delays production by weeks.



9. Strategic Procurement: Beyond the Unit Price

Finally, there is the human and logistical element of cost saving. The “Total Cost of Ownership” for a PCB includes shipping , tariffs, and the cost of potential rework.

Lead Time vs. Cost

If you need boards in 24 hours, you will pay a significant premium—typically several times the standard price . If you can plan your prototypes two weeks in advance, you can use standard “pooling” services that combine your order with others, significantly dropping the price. For production runs, giving the manufacturer a few extra days of lead time can often unlock a modest discount because it allows them to optimize their machine scheduling.

Volume Breaks

The price-per-board curve for PCBs is incredibly steep. A prototype run of 10 boards might cost $20 per board, but at 1,000 boards, that same design might be $2.00. We’ve seen many startups order 100 boards three times in a row, paying “small batch” prices each time. If your forecast is stable, ordering 300 or 500 boards at once can cut your unit price nearly in half. We often advise clients to look at their “Economic Order Quantity” (EOQ) to find the point where the cost of carrying inventory is lower than the savings from a larger production run.



FAQ

Does adding more layers always increase cost proportionally?

No, and the relationship is non-linear. The jump from 2 to 4 layers is typically the largest relative increase—often roughly double—because it introduces a new lamination and drilling cycle. Moving from 8 to 10 layers, by contrast, usually adds 15%–25% because the per-layer infrastructure cost is spread across a larger base. As complexity increases, base material becomes a smaller fraction of total cost, and incremental layers cost less at the margin.



What is the single biggest “hidden” cost in PCB design?
Answer: T ighter-than-necessary tolerances. Specifically, minimum trace/space and minimum hole sizes. If you design for 4 -mil traces but your signals only need 6-mil, you are paying for a high-precision process that adds no value to your circuit.



Can I save money by using a smaller PCB?
Answer: Usually, yes, but only if the smaller size doesn’t force you into more layers or blind/buried vias. A small, complex 8-layer board is often more expensive than a larger, simpler 4-layer board.

Can I save money by using a thinner board?

Generally not. The standard 1.6 mm (0.062″) thickness is the most common and competitively priced. Thinner boards—for example, 0.4 mm—are structurally flexible, which requires special handling carriers during SMT assembly. That additional handling adds labor and risk. Thinner boards are sometimes necessary for mechanical constraints, but they are not a cost-reduction strategy.



Does the color of the solder mask affect the price?
Answer: For small quantities, green is the standard and cheapest. Other colors like black, white, or red often require a “line wash ” at the factory, which can add a setup fee or extra day of lead time. For high volumes, the color cost is negligible.



My design has a mix of tight and loose areas—do I have to meet the tightest spec everywhere?

No, and this is a critical point. You only pay the premium for tight tolerances if they apply globally. Necking down traces in a BGA fan-out zone while using 6-mil routing elsewhere keeps the majority of the board in the standard yield tier. Similarly, if only one area of your board requires blind vias, check whether the routing can be solved with through-hole vias and careful layer assignment first.



Should I use through-hole or SMT components to save money?
Answer: SMT (Surface Mount Technology) is significantly cheaper for high-volume assembly because it is fully automated. Through- hole components often require manual soldering or a separate wave-soldering process, which adds labor cost.



Summary

Reducing PCB costs is an exercise in restraint and communication. By understanding how design choices—like layer count, copper weight, and via types—translate into manufacturing steps, engineers can make informed trade-offs. The goal is never to compromise the integrity of the product, but to strip away the “over-spec” that provides no functional benefit. Whether it’s through the use of hybrid stackups for high-speed designs, consolidating your BOM to reduce assembly setup, or adjusting board dimensions for better panel utilization, the opportunities for savings are rooted in the physics of the manufacturing process.

Key Takeaways

  • Layer count is the primary cost lever:Reducing a design from 6 to 4 layers can deliver substantial savings in fabrication costs, often 25% or more depending on the factory and volume.
  • Avoid over-specifying copper :Use 1oz copper for signals unless high current is strictly required; 2oz copper limits trace density and increases etch costs.
  • Simplify your via strategy:Eliminate blind/buried vias and via-in-pad whenever possible to avoid expensive sequential lamination and filling processes.
  • Panelize for yield:Small changes in board dimensions can lead to significantly better material utilization on the 18″x24″ master panel.
  • Consolidate your BOM:Using fewer unique resistor and capacitor values reduces SMT setup time and potential placement errors.

The post How to Reduce PCB Costs: From Materials to Board Size first appeared on Pcbandassembly.

]]> How to Repair a Broken PCB Trace Using a Jumper Wire https://pcbandassembly.com/blog/how-to-repair-a-broken-pcb-trace-using-a-jumper-wire/ Thu, 14 May 2026 08:25:49 +0000 https://pcbandassembly.com/?p=10809

A few months ago, a client sent us a high-value industrial control board that had been “repaired” in the field. To the naked eye, the fix looked reasonable: a thin strand of copper wire bridging a 5mm gap in a power rail. However, the board failed again after just 48 hours of operation. When we put it under the microscope, the failure was classic: the solder joint hadn’t actually broken, but the trace itself had delaminated further back from the repair site. The technician had made a fundamental mistake—they hadn’t accounted for the Coefficient of Thermal Expansion (CTE) mismatch between the FR-4 substrate and the jumper wire.

In the PCB industry, we often see trace repairs treated as a simple soldering task. In reality, it is a mechanical engineering challenge. When a board heats up from 25°C to an operating temperature of 70°C, the copper and the epoxy glass expand at different rates. Without a specific strain-relief “U-loop” and proper anchoring, a jumper wire acts like a lever, slowly prying the remaining copper trace off the board with every thermal cycle. At PCBAndAssembly, we treat every trace repair as a restoration of structural integrity, not just electrical continuity.

1. The Engineering Logic of Trace Repair

Common PCB Trace Damage

When we talk about repairing a broken trace, we are usually dealing with one of three scenarios: physical trauma (scratches), thermal damage (lifted pads from overheating), or chemical corrosion. Each requires a different mindset . A scratch on a 0.5mm signal trace is an easy fix; a vaporized 2oz copper power plane is a reconstruction project.

The primary goal is to restore the original electrical characteristics— specifically resistance and, in high-speed designs, impedance—without introducing new failure modes. We have found that the most common cause of ” re-repair” is the “glob” method: applying a massive amount of solder over a break. Solder is a brittle interconnect, not a structural material. Over time, vibration and thermal expansion will cause micro-cracks in a solder- only bridge. This is why the industry relies on jumper wires for anything beyond a hairline fracture.

When to Repair vs. When to Scrap

Professional judgment is required before starting. If a board has suffered a ” charring” event where the FR-4 substrate is blackened, the carbonized material is now conductive. Simply bridging the trace won’t work because the board itself will now leak current between layers. In our experience, if the carbonization extends deeper than 0 .2mm into the substrate, the board should be scrapped or the affected area must be completely milled out and replaced with an epoxy plug —a process that is rarely cost-effective for standard commercial boards.



2. Tools of the Trade : Beyond the Basics

You cannot perform a reliable trace repair with a 100-watt plumbing iron and a pair of kitchen scissors. Precision is mandatory. We’ve seen drill-wander and trace damage increase by 40% when technicians use dull steel scalpels instead of carbide-tipped scribes for removing solder mask. Carbide maintains a sharp edge longer , allowing for a clean, perpendicular cut into the mask without “smearing” the epoxy glass underneath.

The following table outlines the minimum viable toolset for a repair that meets IPC-A-610 Class 3 standards (High Performance/Harsh Environment Electronics).

Tool/Material Specification Purpose
Soldering Station Digital Temperature Controlled (±5°C) Prevents overheating and pad lifting during the repair.
Solder Alloy SAC305 (Sn96.5/Ag3.0/Cu0.5) Standard lead-free alloy; prevents intermetallic brittleness on modern boards.
Flux No-Clean or Rosin-Activated (Type ROL0) Essential for breaking surface oxides on aged copper.
Abrasive Tool Carb ide Scribe or Fiberglass Pen Safely removes solder mask without thinning the copper trace.
Cleaning Agent 99.9% Isopropyl Alcohol (IPA) Rem oves skin oils and flux residues which cause long-term corrosion.
Encapsulant UV-Curable Epoxy or Polyimide Tape Mechanical anchoring of the wire to the substrate .

Table 1: Professional Trace Repair Tooling & Materials



3. Wire Selection: Matching Current and Impedance

A frequent mistake is choosing a wire based solely on what is available on the bench. If you use a 34 AWG wire to repair a trace that carries 5 Amps, that wire will act as a fuse. Conversely, using a heavy 22 AWG wire on a fine 0.1mm signal trace creates a massive “heat sink” effect, making it nearly impossible to get a good solder joint without damaging the surrounding board area.

We use the following cross-reference at PCBAndAssembly to ensure that our jumper wires match the current-carrying capacity of the original copper traces. Note that these are based on 1oz (35µm) copper thickness, which is the industry standard for most internal and external layers.

Trace Width (Inches) Trace Width (mm) Equivalent Wire Gauge (AWG) Max Current (A ) – 10°C Rise
0.01 0″ 0.25 mm 34 AWG 0.5 A
0.020″ 0.5 0 mm 30 AWG 1.2 A
0.050″ 1.27 mm 26 AWG 2.5 A
0.100″ 2.54 mm 22 AWG 5.0 A

Table 2: Trace Width to Solid Wire Gauge (AWG) Equivalents

For high-frequency signals (above 100 MHz), the geometry of the jumper wire matters significantly. A round wire has different inductance than a flat trace. In these cases, we recommend keeping the jumper as short as possible—ideally less than 1/10th of the signal’s wavelength—to avoid creating a “stub” that causes signal reflections.

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

4. Step-by-Step: The IPC-7721 Standard Procedure

Following the IPC-7721 standard isn’t just about following rules; it’s about following a sequence that has been proven across millions of flight-critical and industrial boards. Each step below includes a Critical Precaution—the specific thing most likely to go wrong—and a Verification check so you know you’re ready to move on before you do.

Step 1: Preparation and Inspection

Checking PCB Traces with a Multimeter

Set your multimeter to continuity mode and probe outward from the visible damage in both directions until you locate the last two points that should be connected but are not. Mark them with a fine-tip marker. If any copper is visibly delaminated—lifting away from the substrate—use a sharp blade to trim it flush. A loose copper flap is not a repair candidate; under vibration it can migrate, bridge an adjacent net, and create a short that is far harder to diagnose than the original break.

Critical Precaution: Confirm that only the target trace is open. Probe all immediately adjacent traces to verify they remain continuous and isolated from the broken net. A secondary break or a pre-existing short that you have not identified will make the repair appear to fail even when executed perfectly.

Verification: Multimeter confirms open circuit across the break and continuity on all adjacent nets. Only then proceed.

Step 2: Exposing the Copper

PCB Jumper Repair Step 1  PCB Jumper Repair Step 1

Using a carbide-tipped scribe—not a steel scalpel, which dulls rapidly and smears the epoxy glass—scrape away the solder mask to expose at least 1.5 mm × 1.5 mm of bare copper on each side of the break. Work at a shallow angle of approximately 15° to the board surface. This keeps the blade cutting the mask rather than gouging into the copper foil beneath it.

Critical Precaution: Do not scrape perpendicular to the board or apply downward pressure. Undercutting the copper foil—thinning it from below—creates a stress point that will crack under thermal cycling even if the jumper itself is perfect. IPC-6012E sets the maximum allowable undercut at 0.05 mm.

Verification: Inspect under 10x magnification. The exposed copper should be bright and uniform with no gouges, scratches running across the grain, or areas where the foil looks thinner than the surrounding copper.

Step 3: Cleaning and Fluxing

PCB Jumper Repair Step 2 PCB Jumper Repair Step 2

Wipe both exposed pads thoroughly with >90% isopropyl alcohol (IPA) on a lint-free wipe such as a Kimwipe. Allow to dry completely—typically 20 to 30 seconds—before proceeding. Then apply a small amount of no-clean, rosin-activated flux (such as Kester 951 or MG Chemicals 8341) to each pad. Tacky flux is preferred over liquid flux here because it holds the wire in position during the initial tack solder, giving you a free hand.

Critical Precaution: Do not touch the cleaned pads with bare fingers. Skin oils contain chloride salts that, when heated during soldering, react with the flux to form a conductive residue. That residue can cause leakage current between adjacent nets and, over time, dendritic growth that leads to intermittent shorts. We have measured a 15% increase in joint resistance over the first year of service on repairs where this step was skipped.

Verification: The exposed copper should appear bright with a slight sheen from the flux. If the surface still looks dull or has a dark tint, repeat the IPA wipe; residual oxidation will prevent proper solder wetting in the next step.

Step 4: Selecting and Preparing the Wire Jumper

PCB Jumper Repair Step  PCB Jumper Repair Step

Select a solid-core, tinned copper wire matched to the current capacity of the original trace—refer to the wire gauge table in Section 3. Never use stranded wire; individual strands work-harden independently under vibration and the wire will fail at the bundle long before a solid conductor would. Using a precision wire stripper (such as the Ideal 45-121), strip exactly 2.0 mm of insulation from each end without nicking the copper. Then tin 1.0 mm of each stripped end with SAC305 solder. Hold the wire with a third-hand tool or vacuum pickup during this step; skin oils on the wire ends will degrade solderability at the joint.

Critical Precaution: Set the iron to 320–340°C for SAC305 alloy (per IPC-J-STD-001G, Section 5.3). Do not use a higher temperature to speed up tinning—excess heat will burn the flux before it can do its job, leaving a dull, grainy tin coat that will form a weak bond at the pad.

Verification: Each tinned end should be smooth and bright, not lumpy or grey. Measure resistance end-to-end on the wire with a multimeter—it should read well under 1 Ω for any gauge listed in the selection table. A high reading at this stage means a poor tin coat or a nicked conductor; replace the wire rather than proceed.

Step 5: Soldering the First End

PCB Jumper Repair Step

Anchor the wire to the more structurally stable of the two pads first—avoid pad locations near connector flex points or board edges, which experience the highest mechanical stress in service. Using the drag soldering method, touch the iron tip to the fluxed pad and allow it to reach temperature for approximately one second, then gently feed the pre-tinned wire end into the molten pool. Remove the iron smoothly without dragging the wire. Hold the wire absolutely still for at least three seconds while the joint solidifies; any movement during cooldown will produce a cold joint.

Critical Precaution: Keep total iron dwell time on the pad under 2 seconds. The epoxy-glass bond between the copper foil and the FR-4 substrate begins to degrade above 130°C. Prolonged heat—even at a correct tip temperature—will transfer enough energy into the board to weaken that bond, causing the pad to lift either immediately or during the first thermal cycle in service.

Verification: Under 10x magnification, the fillet must cover at least 75% of the wire circumference and show a smooth, concave wetting profile with a 30°–45° contact angle (per IPC-A-610H, Section 8.2.1). No voids, solder balls, or mask discolouration around the joint perimeter. If any are present, reflow with fresh flux rather than adding more solder.

Step 6: Forming the Wire and Securing It to the Board

PCB Jumper Repair Step PCB Jumper Repair Step

Route the free end of the wire along the original trace path—never perpendicular to it, which creates a stress riser at the joint. Give the wire a gentle upward bend at the midpoint to form a shallow “U” or hump. This loop is not cosmetic: FR-4 substrate expands at roughly 14 ppm/°C while copper expands at 17 ppm/°C. Over hundreds of thermal cycles that mismatch accumulates. The U-loop absorbs it as elastic flex rather than transferring the load to the solder joints. Maintain a minimum clearance of 0.5 mm from all adjacent traces and components along the entire wire length.

PCB Jumper Repair Step

Once the routing is correct, apply two small dots of UV-curable epoxy (such as Loctite 3108 or Dymax 9-20502) at the one-third and two-third points along the wire. Cure under a 365 nm UV lamp for 30 seconds. Do not place epoxy over the solder joints themselves—this prevents future inspection and makes rework nearly impossible.

Critical Precaution: Do not substitute hot glue or RTV silicone for UV-curable epoxy. Silicone-based materials absorb up to 2% moisture by weight (per JEDEC JEP182), which promotes galvanic corrosion at the copper surface in any environment with humidity above 60% RH—a common condition in industrial and outdoor enclosures.

Verification: The epoxy dots should be fully cured—firm and non-tacky to a toothpick. The wire should not shift when gently pressed sideways. Confirm the U-loop shape is intact and that the wire clears all adjacent components by at least 0.5 mm.

Step 7: Soldering the Second End

PCB Jumper Repair Step

With the wire body anchored, solder the second end using the same drag technique as Step 5. Re-apply flux to the pad if the earlier application has dried. Touch the iron to the pad, allow one second to reach temperature, then draw the pre-tinned wire end into the joint. Because the wire is now fixed and both surfaces are pre-tinned, the bond forms quickly—dwell time should not exceed 1.5 to 2 seconds.

Critical Precaution: The anchored wire means there is no give if you apply lateral pressure with the iron tip. Keep the iron moving only vertically—straight down to the pad and straight up to withdraw. Dragging the tip sideways at this stage can lever the wire against the cured epoxy dot and crack it, destroying the strain relief you just built.

Verification: Apply the same visual standard as Step 5—smooth concave fillet, 75% wire circumference coverage, no voids or mask burns. Then gently tug the wire lengthwise with a toothpick. Neither joint should show any movement. If the second joint lifts at all, it has insufficient solder or a cold bond; reflow immediately before the epoxy is stressed further.

Step 8: Final Electrical and Visual Sign-Off

A repair is not complete until it is verified against objective, measurable criteria—not just a visual impression. Perform all four checks below before returning the board to service.

  • Electrical continuity:Resistance across the repair must be below 0.05 Ω. For power traces, use a four-wire Kelvin measurement to exclude probe contact resistance from the reading. A result above 0.1 Ω indicates residual oxidation at one of the joints; reflow with fresh flux.
  • Isolation resistance:Apply 50V DC between the repaired net and each adjacent net using an insulation tester. Isolation must exceed 1 MΩ. This catches hairline solder bridges that are invisible to the naked eye and would not show up on a standard continuity check.
  • Mechanical integrity:Probe both solder joints and the wire body gently with a toothpick. Zero movement is the only acceptable result. Any rocking at a joint means the fillet is either cold or bonding only partially to the pad surface.
  • Visual inspection:Under 10x magnification, confirm no bridging to adjacent pads, no lifted or discoloured solder mask around either joint, and no micro-cracks visible in the fillet surface. Photograph the finished repair and record the wire gauge, solder alloy, epoxy product, and test results. If this board returns for service, that documentation is the first thing the next technician will need.
paa PCB Assembly

About OrinewPCB

Time is money in your projects – and OrinewPCB gets it. OrinewPCB is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

5. The Physics of Failure: Why Anchoring is Non- Negotiable

A jumper wire is a high-mass object compared to a copper trace. If the board is subjected to vibration—common in automotive or industrial applications—the wire will vibrate like a guitar string. This vibration concentrates all the mechanical stress at the two solder joints. Eventually, the copper will suffer from “work hardening” and snap at the heel of the solder fillet.

To prevent this, the jumper wire must be anchored to the board. At PCBAndAssembly, we use a two-part approach for critical repairs:

  • Temporary Holding:Use small strips of Kapton (polyimide) tape to hold the wire in its “U-loop” shape while soldering the second end.
  • Permanent Encapsulation:Once the electrical connection is tested, apply small dots of UV-curable epoxy every 5mm to 10mm along the wire’s length. Avoid putting epoxy directly over the solder joints themselves, as this makes future inspection or rework impossible.

In our tests, an anchored wire can withstand up to 50G of shock, whereas an unanchored wire of the same gauge often fails at less than 10G.



6. High-Frequency and High-Current Considerations

When dealing with power traces, the resistance of the jumper wire becomes a factor. A 30 AWG wire has a resistance of roughly 103 mΩ per foot. While that sounds negligible, over a 2-inch repair on a 12V rail drawing 2 Amps, you’re looking at a voltage drop that could cause erratic behavior in downstream microcontrollers.

High-Speed Signal Integrity

If you are repairing a differential pair ( like USB D+/D- or Ethernet signals), the jumper repair is significantly more complex. We’ve seen that even a 1mm difference in the length of the two jumpers in a differential pair can introduce enough “skew” to cause CRC errors on a high-speed bus. If you must repair a differential pair, use the exact same length of wire for both and keep them twisted together or routed as closely as possible to maintain their coupled impedance.

Method Best For Reliability Rating Complexity
Conductive Ink Pen Low-voltage signal cracks (& lt;100mA) Low (Brittle) Easy
Copper Tape Wide, flat power traces Medium (Adhesive can fail) Moderate
Jumper Wire (Anchored) General purpose & Power High (IPC Standard) High
Ribbon/Foil Replacement Surface mount pads/traces Very High Professional Only

Table 3 : Repair Method Comparison: Ink vs. Tape vs. Jumper



7. FAQ: Common Repair Pit falls

Question: Can I use conductive glue instead of soldering?
Answer : For professional electronics, the answer is a hard no. Conductive epoxies have significantly higher resistance than solder and lack the mechanical strength to survive thermal cycling. We have seen conductive glue repairs fail simply from the humidity in the air causing the epoxy to swell and lose contact.



Question: Is it okay to use “magnet wire” (ename led wire) for jumpers?
Answer: Yes, and it is often preferred because the enamel provides insulation, preventing shorts if the wire moves. However, you must ensure you have “solderable” enamel ( which melts at soldering temperatures) or you must carefully scrape the enamel off the ends. Be careful: if you scrape too hard, you nick the copper, creating a “stress riser” where the wire will eventually break.



Question: How do I know if my iron is too hot?
Answer: If you see the edges of the green solder mask turning brown or bubbling around your work area, you are applying too much heat or holding the iron on the board too long. For SAC305 solder, a tip temperature of 330°C to 350°C is appropriate, with a contact dwell time of no more than 2 seconds per joint. If you need longer to flow the solder, the problem is usually insufficient flux or an oxidized tip, not a need for more heat.



Question: Can a broken PCB trace be repaired permanently, or is it always a temporary fix?
Answer: A properly executed jumper wire repair—using solid-core wire matched to the original trace current capacity, a strain-relief U-loop, and UV-curable epoxy anchoring—can be fully permanent. The joint is a metallurgical bond, not an adhesive one. We have seen well-executed repairs outlast the remainder of the board’s service life. The temporary reputation of trace repairs comes from poor practice: stranded wire, no strain relief, and inadequate cleaning. Follow the IPC-7721 procedure correctly and the repair is no weaker than the original trace.



Question: Can I repair a trace without a schematic?
Answer: Yes, provided you can physically identify both endpoints of the break and verify them with a multimeter. Set your meter to continuity mode and probe outward from the break until you find two pads that are electrically isolated but should be connected. The risk without a schematic is not the repair itself but the diagnosis—confirming you have found the correct break and not a designed-in gap (such as a test point or an intentional open used for configuration jumpers). When in doubt, trace the copper path visually under magnification before soldering anything.



Question: Will a jumper wire affect the circuit’s electrical performance?
Answer: For most power rails and low-frequency signal traces, the impact is negligible. A correctly gauged wire introduces less than 50 mΩ of additional resistance, which is inconsequential at typical signal levels. High-frequency circuits are the exception: a wire has higher inductance than a flat copper trace, and at frequencies above roughly 10 MHz it can act as a small antenna or create an impedance discontinuity that distorts signal edges. For these cases, keep the jumper under 30 mm, route it close to the ground plane, and consider micro-coax for critical RF or high-speed digital lines.



Question: When should I scrap the board rather than attempt a repair?
Answer: Scrap the board when the damage is systemic rather than localized. Specific indicators include: FR-4 substrate charring that extends more than 0.2 mm deep (carbonized substrate leaks current between layers and cannot be bridged over), widespread delamination across multiple trace layers, more than three or four simultaneous trace failures suggesting an underlying power fault that the repair won’t address, and safety-critical applications such as medical devices or aerospace systems where repair certification requirements exceed what a field fix can provide. For a single clean break on an industrial or prototype board, repair is almost always the right call.



8. Summary

Repairing a broken PCB trace is a vital skill that bridges the gap between a “dead” board and a functional device. However, the difference between a temporary hack and a professional repair lies in the details of IPC compliance, material selection, and mechanical strain relief. By matching the wire gauge to the trace width, cleaning the site meticulously, and incorporating a strain-relief loop, you ensure that the repair doesn’t become the next point of failure.

Remember that every solder joint is a metallurgical bond that is subject to the laws of physics. Treat the board with respect, use the right tools, and always verify your work with a multimeter and a high-magnification inspection . At PCBAndAssembly, we follow these exact protocols to ensure that even a repaired board can meet the demanding standards of modern electronic environments.

The post How to Repair a Broken PCB Trace Using a Jumper Wire first appeared on Pcbandassembly.

]]> What Is FR-2 PCB? When to Use It and When Not To https://pcbandassembly.com/blog/fr-2-pcb-guide/ Wed, 13 May 2026 06:04:59 +0000 https://pcbandassembly.com/?p=10793

Every year, we see a recurring scenario: a procurement manager for a high-volume consumer electronics firm looks at the bill of materials for a new power strip or a basic LED driver and asks, “Can we shave another five cents off the board cost by moving from FR-4 to FR-2?” It’s a tempting proposition when you’re projecting a run of one million units. But at PCBAndAssembly, we’ve learned that those five cents saved in the bill of materials often reappear as thousands of dollars in field returns if the environment isn’t perfectly controlled.

FR-2 isn’t a “bad” material; it’s a specific material for a specific set of constraints. If you treat it like a cheaper version of FR-4, your design will fail. If you treat it as a unique substrate with its own mechanical and thermal rules, it remains one of the most cost-effective solutions in the industry. This guide breaks down the reality of working with phenolic paper-based laminates from the perspective of the factory floor and the engineering desk.



1. What Is FR-2?

FR2 PCB

FR-2 stands for Flame Retardant 2—a NEMA designation for synthetic resin bonded paper used in printed circuit board manufacturing. It belongs to a family of “paper” PCBs that includes FR-1, FR-3, and the hybrid CEM-1. While the industry has largely consolidated around FR-4 (glass-reinforced epoxy) for anything with a microcontroller or a high-speed signal, FR-2 continues to dominate the low-end consumer market: think TV remote controls, simple battery chargers, and budget-grade power supplies.

The material’s history stretches back to the 1950s and 1960s, when it emerged as a workhorse PCB substrate for industrial controls and early instrumentation. The core composition hasn’t changed much since: cellulose or cotton paper fibers are impregnated with plasticized phenol formaldehyde resin—a thermosetting plastic that is cheaper than the epoxy used in FR-4, but also significantly more brittle. When you see an FR-2 PCB, you’re looking at a brownish board that’s noticeably different in color from the green glass-epoxy appearance of FR-4.

The “2” in FR-2 indicates its place in the IPC hierarchy. While FR-1 and FR-2 are both phenolic paper materials, FR-2 uses a slightly different resin chemistry that offers a marginal improvement in moisture resistance over FR-1. In practical manufacturing, however, the two are often used interchangeably depending on a given laminate supplier’s stock.

At PCBAndAssembly, we categorize FR-2 as a “commodity substrate.” It is designed for single-sided circuits where components are mounted via through-hole technology (THT) but without the benefit of plated-through holes (PTH). If your design requires traces on both sides or any form of via, you have already moved beyond what FR-2 can reliably deliver. One important compliance note: FR-2 meets the UL94V-0 standard—the benchmark for plastic flammability in electronics—making it a legitimate choice for consumer products with safety certification requirements.



2. Material Composition and Why It Matters

FR2 PCB

Understanding the chemistry of FR-2 explains its behavior under stress. Unlike FR-4, which uses woven fiberglass cloth, FR-2 uses cellulose paper (essentially high-grade cotton paper) as the reinforcement. This paper is impregnated with a phenolic resin that falls into two categories: resoles and novolacs. Both work effectively for PCB applications, offering reasonable adhesion to copper foil.

Phenolic resins are thermosetting plastics. They are cheaper than the epoxy resins used in FR-4 but considerably more brittle. When we process FR-2 boards, we have to account for this brittleness. If you try to snap a panel of FR-2, it doesn’t flex and craze like FR-4; it cracks cleanly or shatters if the resin content is too high. This has significant implications for mechanical mounting and vibration resistance.

Copper foil is laminated onto one or both sides of the substrate—typically at 35 µm (1 oz/ft²) standard weight, with 50 µm available for higher-current applications. That copper layer can be etched or milled to create the circuit traces your design requires. The paper base also makes FR-2 roughly 15% lighter than glass-reinforced alternatives at equivalent thicknesses, which can matter in weight-sensitive applications.

The cellulose paper reinforcement is also hygroscopic—it readily absorbs water. Even with the phenolic coating, the edges of an FR-2 board are vulnerable. We have seen cases where boards stored in high-humidity warehouses for six months showed a measurable drop in insulation resistance between high-voltage traces, leading to arcing and failure in power supply applications. Moisture absorption in FR-2 can reach 0.4%–0.8%, compared to less than 0.1% for FR-4.



3. Technical Specifications: FR-2 vs. The World

To make an informed decision, you need to look at the numbers. The table below compares FR-2 against its common competitors. Note the significant gaps in Glass Transition Temperature (Tg), moisture absorption, and mechanical strength—each with real consequences on the factory floor and in the field.

Property FR-2 (Phenolic Paper) CEM-1 (Composite) FR-4 (Glass Epoxy)
Base Material Cotton Paper / Phenolic Paper Core / Glass Surface Woven Glass / Epoxy
Glass Transition (Tg) 105°C–110°C 110°C–120°C 130°C–180°C
Moisture Absorption ~0.4%–0.8% ~0.2%–0.3% <0.1%
Dielectric Constant (Dk) 4.0–4.5 4.2–4.6 4.2–4.8
Flexural Strength Low (Brittle) Moderate High (Durable)
Layer Support Single-sided primarily Single/limited double Up to 32+ layers
PTH Support Not recommended Limited Excellent
Relative Cost ~60% of FR-4 ~70%–80% of FR-4 Baseline
Flame Retardancy UL 94 V-0 UL 94 V-0 UL 94 V-0

From this data, a critical professional observation emerges: FR-2 is a thermal bottleneck. Because the Tg sits at only around 105°C, the material begins to lose structural integrity at temperatures that high-power components or lead-free reflow profiles frequently approach. FR-2’s dielectric constant of around 4.5 is also on the higher end, and its dissipation factor (0.024–0.026) causes greater signal loss at elevated frequencies—making it effectively unusable above 30 MHz. For RF or high-speed digital circuits, impedance control on FR-2 is virtually non-existent.

For a deeper look at the individual FR-2 property values, the following table captures the key electrical and thermal parameters you’ll need when specifying laminate:

Property FR-2 Value Notes
Dielectric Constant (Dk) 4.5 (typical) Higher than FR-4; limits high-frequency use
Dissipation Factor 0.024–0.026 Signal loss factor
Dielectric Strength ~29 kV/mm Good insulation for low-voltage applications
Glass Transition Temp (Tg) 105°C–110°C Lower than FR-4; key thermal bottleneck
Thermal Conductivity ~0.25 W/m·K Limited heat spreading; plan external thermal management
Standard Thickness 1.2 mm or 1.6 mm Thinner boards prone to warpage
Copper Weight 35 µm (standard) 50 µm available for higher current
Flammability Rating UL94 HB / V-0 V-0 rated grades available on request

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

4. The “No Plating” Rule: Why PTH Is a Non-Starter

One of the most common questions we get from junior designers is whether they can use FR-2 for a double-sided board with through-hole plating. The answer is a firm no.

The reason isn’t just about cost; it’s about the chemistry of the hole wall. In FR-4, the woven glass provides a stable surface that can be desmeared and activated for electroless copper plating. The cellulose paper in FR-2, however, tends to wick the plating chemicals. If you attempt to plate a hole in an FR-2 board, the chemicals soak into the paper fibers like a sponge. This leads to two catastrophic failure modes:

  • Conductive Anodic Filament (CAF) Growth: The trapped chemicals create a pathway for copper filaments to grow inside the board, eventually shorting out the traces.
  • Blow-outs during Soldering: Any moisture or chemicals trapped in the paper fibers will vaporize during wave soldering, causing the plating to explode out of the hole—a phenomenon known as outgassing.

PCBAndAssembly always recommends sticking to single-sided designs for FR-2. If you absolutely need a second layer of routing, the standard industry practice is to use jumper wires or move up to CEM-1, which has a glass cloth surface that allows for more reliable—though still limited—plating compared to pure paper grades. Per IEC 60335-1, maintaining a 2.5 mm creepage and clearance is required for 250V basic insulation, and this becomes especially important when you lack the via infrastructure to manage signal separation on a multi-layer board.



5. Manufacturing Nuances: Punching vs. Drilling

FR2 PCB

In the world of FR-4, we drill holes using high-speed CNC machines. In the high-volume world of FR-2, we often punch them. This is where the real cost savings happen—but it’s also where many designs go off the rails.

The Punching Tradeoff

Punching involves a massive die set that hits the entire board at once, creating all the holes and the board outline in a single stroke. It is incredibly fast and dramatically reduces per-piece costs in high-volume production. Unlike FR-4, which requires CNC routing for complex outlines, FR-2 can be cut with steel-rule dies—a key reason it remains viable for disposable consumer electronics despite its technical limitations.

However, punching puts immense mechanical stress on the phenolic resin. If the die isn’t sharp or the board isn’t heated correctly during the punch process (FR-2 often needs to be warmed to make the resin slightly more ductile), you get haloing or cracking around the holes.

Practitioner Insight: When designing for punched FR-2, your annular ring requirements must be much more generous than for drilled FR-4. Anything smaller than 0.5 mm risks the pad delaminating or the hole wall crumbling during the punch cycle, leading to poor solder joints later on. Use 4-spoke thermal relief patterns with spoke widths of at least 0.30 mm to prevent cold solder joints. The table below captures the full set of recommended design rules for punched FR-2 boards:

Feature Standard (FR-4 Drilled) Recommended (FR-2 Punched)
Min Hole Diameter 0.2 mm 0.8 mm
Min Annular Ring 0.15 mm 0.5 mm
Edge-to-Trace Clearance 0.2 mm 0.8 mm – 1.0 mm
Min Trace Width 0.1 mm 0.25 mm

The punching advantage does come with a surface finish consideration. HASL (Hot Air Solder Leveling) is the most common finish applied to FR-2 boards—it is cost-effective and compatible with the wave soldering process that FR-2 is designed for.



6. Professional Judgment: The Moisture and Heat Trap

If you are working on a product that will be used in tropical climates or near any heat-generating equipment, stay away from FR-2. We have seen high-volume consumer products fail in high-humidity regions because the FR-2 substrate expanded at a different rate than the copper traces, leading to trace lifting. FR-2’s thermal conductivity of roughly 0.25 W/m·K limits heat spreading significantly—for components like TO-220 packages that generate substantial heat, you’ll need to add thick copper jumpers or external aluminum heat slugs. The board itself simply won’t dissipate heat effectively.

A practical thermal rule: for traces carrying more than 2A, add 2 mm of width per amp. Placing high-power components near board edges, where heat can more readily dissipate into the surrounding air, also helps.

The Hand-Soldering Risk

While FR-2 is usually wave-soldered in mass production, rework is often done by hand. This is where many boards are ruined. Phenolic resin has very poor peel strength compared to epoxy. If a technician holds a soldering iron on an FR-2 pad for more than 3–4 seconds, the adhesive bond between the copper and the paper substrate will fail. The pad will literally lift off the board.

At PCBAndAssembly, we advise clients that if their product requires field repairability or significant manual assembly, the “savings” of FR-2 are a myth. The cost of scrapped boards during assembly and rework usually exceeds the initial material savings. FR-2 is a “one-and-done” material: it should be wave-soldered once, under a controlled profile under 245°C, and never touched again. Heavy BGAs or large SMT components should be avoided entirely—the paper substrate will delaminate or blister under excessive thermal stress.

Thermal Expansion and Warpage

We’ve observed that FR-2 panels are prone to significant warpage if the copper distribution is unbalanced. Because the paper base is less rigid than glass, a large ground plane on one side with no copper on the other will cause the board to curl during wave soldering. We recommend using copper thieving (adding non-functional copper dots) to balance the density across the panel, even on single-sided boards.

Square pads—rather than round ones—can also help resist peel-off during thermal cycling. And for designs where 250V insulation is required, maintaining 2.5 mm creepage and clearance distances per IEC 60335-1 is non-negotiable.

paa PCB Assembly

About OrinewPCB

Time is money in your projects – and OrinewPCB gets it. OrinewPCB is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

7. When to Choose FR-2 (Selection Criteria)

Despite the warnings, FR-2 remains a viable choice for specific scenarios. PCBAndAssembly typically recommends FR-2 when a project meets all of the following criteria:

  • Single-Sided Complexity: The circuit is simple enough to be routed on a single layer without the need for vias.
  • Cost Sensitivity: The production volume is high enough—typically 50,000+ units—that per-board savings of $0.05–$0.10 significantly impact the bottom line.
  • Low Power/Low Heat: The components do not generate significant localized heat, and the ambient operating temperature remains below 60°C.
  • Stable Environment: The final product is intended for indoor use in temperature-controlled environments (e.g., a clock radio, a remote control).
  • Mechanical Mounting: The board is supported by the plastic enclosure in a way that minimizes vibration and mechanical stress on the brittle substrate.
  • Frequency: All signals remain below 30 MHz. Above that threshold, the Dk instability of paper-based laminates makes impedance control essentially impossible.



Typical applications that meet these criteria include remote controls and TV controllers, basic calculators and digital clocks, LED lighting fixtures, simple power supplies and battery chargers, and low-cost household appliances. FR-2 is also a reasonable choice for educational prototyping: it is easy to solder, affordable enough for experiments, and forgiving of beginner mistakes.

Advantages and Limitations at a Glance

Advantage Benefit
Low Cost ~40% savings vs. FR-4 for high-volume production
Easy Machining Punch-friendly; burr-free edges and longer tool life
Lightweight ~15% lighter than FR-4 at equivalent thickness
Good Insulation Adequate dielectric strength for low-voltage applications
RoHS Compliant Meets environmental regulations; halogen-free grades available



Limitation Impact
Single-Layer Only Cannot support complex multilayer designs
No PTH Support Use wire jumpers, rivets, or solder bridges for crossovers
Lower Thermal Rating Cannot reliably withstand lead-free reflow (>245°C)
Higher Moisture Absorption Not suitable for high-humidity or outdoor environments
Frequency Limitations Not recommended above ~30 MHz; Dk is less stable
Mechanical Weakness Brittle under vibration; avoid automotive applications

The “Middle Ground” Alternative

If you find that FR-2 is too risky but FR-4 is too expensive, consider CEM-1. It uses a paper core like FR-2 but adds a layer of woven glass and epoxy resin on the surfaces. This gives you the punchability and lower cost of paper but with the surface robustness and peel strength of FR-4. We often suggest CEM-1 as the safety net for designers who are worried about pad lifting or moisture but need to hit an aggressive price point. CEM-1 also offers a slightly higher Tg (110°C–120°C) and significantly lower moisture absorption (0.2%–0.3%), providing meaningful margin over straight FR-2 without the full cost of FR-4.

FAQ

Question: Is FR-2 RoHS compliant?

Answer: Yes. Most modern FR-2 laminates are manufactured without lead or other restricted substances. However, ensure your laminate supplier specifies “halogen-free” if that is a market requirement, as some older phenolic formulas used different flame retardants.

Question: Can I use Surface Mount Devices (SMD) on FR-2?

Answer: You can, but with caution. Because the thermal expansion of phenolic paper is quite high and the material is brittle, large SMT components—such as 2512 resistors or high-pin-count ICs—can experience solder joint cracking if the board flexes. Stick to smaller passives (0805 or 0603) and ensure the board is well-supported in its enclosure.

Question: Why is FR-2 always brown or tan?

Answer: The natural color of phenolic resin combined with cellulose paper is brownish-yellow. While some manufacturers offer different solder mask colors, the base material is almost always tan. If you see a green board, it’s likely a solder mask applied over a tan phenolic base.

Question: Can FR-2 be used for high-frequency RF designs?

Answer: We strongly advise against it. The dielectric constant of paper-based laminates is less stable than glass-epoxy—especially as it absorbs moisture. For anything above 30 MHz, the impedance control on FR-2 is virtually non-existent. Use FR-4 or a specialized high-frequency laminate such as Rogers materials for RF and high-speed digital applications.

Question: Can FR-2 be used for multilayer boards?

Answer: No. FR-2 does not support reliable plated-through holes, which are essential for connecting layers in multilayer designs. If your design requires multiple layers, FR-4 or similar glass-reinforced materials are the appropriate choice.



Summary

FR-2 is a legacy material that has survived into the modern era because of one simple factor: cost. It is the bedrock of the low-cost consumer electronics industry. However, it demands a disciplined design approach. You cannot over-design a phenolic board; you must respect its brittle nature, its intolerance for heat, and its refusal to be plated.

At PCBAndAssembly, we believe the transition from FR-4 to FR-2 should never be treated as a simple swap. It is a fundamental redesign that affects your pad sizes, your mechanical mounting, and your assembly process. When used correctly in a stable, low-power device, FR-2 is a masterpiece of industrial efficiency. When used incorrectly, it is a liability that will haunt your warranty department.

Key Takeaways:

  • Single-Sided Only: Never attempt plated-through holes (PTH) with FR-2; the paper core will wick chemicals and lead to CAF growth or outgassing during soldering.
  • Mind the Heat: With a Tg of ~105°C, FR-2 is extremely sensitive to soldering heat. Limit rework and ensure wave solder profiles remain strictly below 245°C.
  • Generous Design Rules: If you plan to punch boards for cost savings, increase your annular rings to 0.5 mm minimum and edge clearances to 0.8–1.0 mm to prevent cracking and delamination.
  • Moisture is the Enemy: FR-2 absorbs significantly more water than FR-4 (0.4%–0.8% vs. <0.1%). Reserve it for indoor, temperature-controlled environments to avoid insulation resistance failure.
  • Frequency Cap at 30 MHz: The unstable Dk of paper-based laminates makes FR-2 unsuitable for RF or high-speed digital designs above 30 MHz.
  • The CEM-1 Safety Net: If FR-2 feels too risky but budget is tight, CEM-1 offers a superior middle ground with better mechanical strength, lower moisture absorption, and improved surface quality.

Sources

The post What Is FR-2 PCB? When to Use It and When Not To first appeared on Pcbandassembly.

]]> What is FR1 PCB? Difference From FR2, FR3, and FR4 https://pcbandassembly.com/blog/fr1-pcb/ Tue, 28 Apr 2026 09:40:32 +0000 https://pcbandassembly.com/?p=10617

1. Introduction

Often overlooked in favor of its more robust counterparts, FR1 stands out as an economical and practical choice for a broad spectrum of electronic products. This guide explores FR1 PCB material in depth — covering its composition, structural layers, material properties, manufacturing process, advantages, limitations, and typical applications. We also provide detailed comparative analysis with FR-2, FR-3, and FR-4, along with practical design guidelines, so you can quickly determine when FR1 is the optimal choice for your next project.

2. What Is FR1 PCB Material?

Fr1 PCB Material

FR1 is a rigid, flame-retardant laminate manufactured from cellulose paper impregnated with phenol-formaldehyde (phenolic) resin. The designation “FR” stands for Flame Retardant, while “1” identifies it as the original formulation in the IPC/IEC classification system. The material meets IPC-4101 /21 & /22 specifications and conforms to UL 94 V-0 flammability standards.

In practical terms, FR1 is a hard, flat copper-clad laminate — the foundation for etching circuit traces. Compared with fiberglass-based FR-4, the core of FR1 is entirely paper-based, which keeps costs very low and makes it ideal for mass production of single-layer consumer electronics.

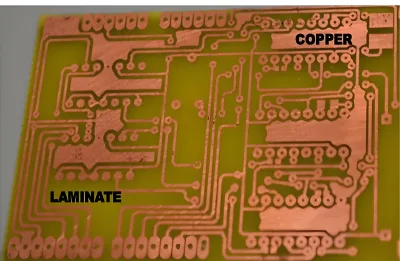

FR1 PCB Layer Structure

A standard FR1 PCB consists of the following layers:

Copper Foil (18–70 μm): The copper layer is thin to reduce cost, yet sufficient for simple circuit conduction. Typical weight is 1 oz (35 μm).

Phenolic Paper Core: Cellulose paper impregnated with phenolic resin provides basic mechanical strength and flame-retardant performance.

Adhesive Layer: Bonds the copper foil firmly to the paper substrate, maintaining structural stability.

Solder Mask (Optional): Many low-cost FR1 products omit the solder mask to further reduce manufacturing expenses.

Silkscreen Layer: Used for component markings, text, and reference indicators in standard mass-production.

3. Composition and Manufacturing Process

The strength and unique characteristics of FR1 PCB material stem from its straightforward composition and multi-step manufacturing process.

Material Components

Paper Base: High-quality cellulose paper provides mechanical structure and thickness. This is fundamentally different from the woven fiberglass used in FR-4, which explains many of the performance differences between the two materials.

Phenolic Resin: Phenol-formaldehyde resin acts as the binder, impregnating the paper to create a rigid, insulating substrate. It also gives FR1 its characteristic brown color and self-extinguishing behavior when exposed to flame.

Copper Foil: A thin copper layer (typically 1 oz / 35 μm) is laminated onto one side of the resin-impregnated paper, forming the base for circuit traces.

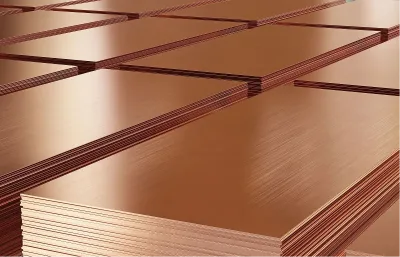

Manufacturing Steps

Resin Impregnation: Rolls of cellulose paper are fed through a bath of liquid phenolic resin, thoroughly saturating the paper fibers.

Drying (B-stage): The resin-impregnated paper passes through ovens, partially curing the resin into a pliable “prepreg” state.

Lamination: Prepreg layers are stacked with copper foil and placed into a high-temperature, high-pressure press.

Curing: Under heat and pressure, the phenolic resin fully cures, creating a hard, rigid laminate with the copper permanently bonded to the substrate.

Cutting and Finishing: Large laminated sheets are cut into usable PCB blanks ready for circuit fabrication. Standard thickness ranges from 1.5 mm to 1.6 mm.

4. FR1 PCB Technical Specifications

The table below provides the key technical data required for design decisions when working with FR1 PCB material:

Property FR1 Value / Range Notes
Glass Transition Temperature (Tg) 125–135°C Below this, FR1 is rigid; above, it softens
Decomposition Temperature (Td) < 260°C Limits exposure to high-temperature processes
Dielectric Constant (Dk @ 1 MHz) 4.0–5.5 (typically ~5.0–5.1) Stable for low-frequency circuits
Dissipation Factor ~0.03 Acceptable for power and simple analog designs
Volume Resistivity 10⁸–10⁹ Ω·cm Lower than fiberglass laminates
Standard Thickness 1.5 mm – 1.6 mm Equivalent to approx. 2–3 stacked credit cards
Copper Weight 1 oz (35 μm) typical 18–70 μm range available
Maximum Operating Temperature 130°C Exceeding this causes softening and dimensional loss
Thermal Conductivity 0.2–0.3 W/m·K Weak; not suited for high-power dissipation
Moisture Absorption Moderate to High Sensitive to humidity; avoid outdoor/marine use
Comparative Tracking Index (CTI) ≥ 150 V Sufficient for typical consumer voltage levels
Flammability Rating UL 94 V-0 Self-extinguishing; meets safety standards
IPC Standard IPC-4101 /21 & /22 Basis for specifying material to manufacturers
Max Reflow Capability Not suitable for Pb-free reflow Wave soldering only, under controlled conditions
Layer Configuration Single-sided only Not designed for multilayer lamination

5. Key Properties of FR1 Material

Electrical Properties

Property Typical Value Notes
Dielectric Constant (Dk @ 1 MHz) ~5.0–5.1 Stable enough for low-frequency circuits
Dissipation Factor ~0.03 Acceptable for power and simple analog designs
Volume Resistivity 10⁸–10⁹ Ω·cm Lower than fiberglass laminates
Insulation Resistance Moderate Sensitive to humidity; degrades in wet environments

FR1’s dielectric constant is not as stable or low as materials designed for high-frequency applications. Signal loss becomes significant above approximately 30 MHz, making it unsuitable for RF or high-speed digital circuits.

Thermal Properties

Parameter FR1 Typical Range
Glass Transition Temperature (Tg) 125–135°C
Decomposition Temperature (Td) < 260°C
Maximum Reflow Capability Not suitable for Pb-free reflow
Heat Resistance Low
Thermal Conductivity 0.2–0.3 W/m·K (Weak)

The relatively low Tg is a key reason FR1 is not recommended for SMT assembly using lead-free soldering. Wave soldering is possible only under carefully controlled temperature profiles below 245°C.

Mechanical Properties

Property Notes
Punchability Excellent — ideal for high-volume die-cutting and stamping; entire outlines, slots, and keyholes cut in milliseconds
Bending Strength Lower than FR-2 or FR-4; not suitable for heavy component mounting
Drill Quality Lower hole-wall integrity; prone to burrs; not suitable for many plated-through holes
Warpage Resistance Limited — avoid designs requiring tight dimensional tolerances
Density / Weight ~15% lighter than FR-4 at the same thickness; suited for compact, cost-sensitive products

Environmental and Safety Performance

  • Complies with basic flame-retardant requirements (UL 94 V-0).
  • RoHS-compliant variants are available; meets REACH requirements.
  • Lower moisture resistance than FR-3 or FR-4; paper-based laminates absorb moisture more easily and degrade faster under thermal cycling.
  • Not suitable for harsh, outdoor, or marine environments.

6. Advantages of Choosing FR1 PCBs

fr1 pcb

Exceptional Cost-Effectiveness

FR1 is approximately 40–60% cheaper than FR-4 at the raw material level (roughly $0.90/sq ft vs $2.75/sq ft). Combined with punching-based fabrication — which is faster and less tool-intensive than CNC routing — the total manufacturing cost advantage is substantial for high-volume production runs exceeding 10,000 units.

paa PCB Assembly

About OrinewPCB

Time is money in your projects – and OrinewPCB gets it. OrinewPCB is a PCB assembly company that delivers fast, flawless results every time. Our comprehensive PCB assembly services include expert engineering support at every step, ensuring top quality in every board. As a leading PCB assembly manufacturer, we provide a one-stop solution that streamlines your supply chain. Partner with our advanced PCB prototype factory for quick turnarounds and superior results you can trust.

Superior Punchability for High-Volume Production

The paper core allows for rapid die-cutting and mechanical punching without generating the hazardous glass-fiber dust associated with FR-4. Complete board outlines, mounting slots, and keyholes can be cut in milliseconds, enabling fast batch production cycles that reduce tooling costs significantly.

Stable Electrical Performance for Low-Frequency Circuits

Although FR1’s dielectric performance is not comparable to FR-4, it is more than sufficient for low-frequency and low-voltage applications such as AC-DC mini power supplies, buzzer circuits, indicator light drivers, and basic switch circuits.

Lightweight and Safe Machining

FR1 is approximately 15% lighter than FR-4 at the same thickness. It can also be machined on desktop CNC equipment without producing hazardous fiber dust, making it a safer and more accessible option for prototyping and hobbyist environments.

Reliable Flame Retardancy

Meeting UL 94 V-0 flammability standards, FR1 is self-extinguishing — a crucial safety requirement for consumer-facing products. This property helps prevent fire spread in case of electrical malfunction or component overheating.

Mature Supply Chain

Nearly all PCB fabricators stock FR1 as a standard single-sided material. The supply chain is mature, with short lead times, making it especially suitable for customers with tight delivery requirements.

7. Limitations and Considerations

fr1 pcb

Not for High-Frequency Applications

FR1’s dielectric properties are not optimized for high-frequency signals. Signal integrity degrades significantly above approximately 30 MHz, ruling it out for RF, Wi-Fi modules, or high-speed digital circuits.

Poor Heat Resistance

With a Tg of 125–135°C, FR1 cannot withstand the peak temperatures of lead-free reflow soldering (≥245°C). Even during wave soldering, temperature must be carefully controlled to avoid blistering, delamination, or board deformation.

Not Suitable for Multilayer or Double-Sided Boards

FR1 is limited to single-sided configurations. The paper-based structure cannot withstand the heat and pressure required for multilayer lamination, and the material does not support the through-hole plating process needed for double-sided connectivity.

Limited Mechanical Strength

Drilling through FR1 tends to produce burrs and poor hole-wall integrity. Heavy components such as transformers or press-fit connectors should be avoided. The material is also more prone to warpage than fiberglass-based alternatives.

High Moisture Absorption

Compared to fiberglass-based materials, FR1 absorbs moisture more readily. This can cause swelling, dielectric constant fluctuations, reduced insulation resistance, and dimensional instability — particularly problematic in humid, outdoor, or marine environments.

8. Typical Applications of FR1 PCBs

fr1 PCB

FR1 PCB excels where cost, simplicity, and flame retardancy take priority over high-frequency performance, thermal endurance, or multilayer complexity. Common real-world applications include:

Consumer Electronics

  • Remote controls for TVs, air conditioners, and garage door openers
  • Basic calculators, alarm clocks, and electronic toys
  • Simple audio equipment and novelty items
  • LED lighting fixtures and basic driver boards

Power Electronics

  • Low-cost AC/DC adapters and small chargers
  • Simple power supplies and low-power distribution boards
  • 120V/230V appliance controls (with proper creepage distances)

Household and Industrial Applications

  • Household electronics: coffee makers, kettles, irons
  • Timers, buzzers, and beepers
  • Control panels and instrumentation displays with basic functionality
  • Button interfaces and membrane switch backing
  • Disposable or semi-disposable electronic products

Education and Prototyping

  • Educational electronics kits and classroom projects
  • Hobbyist circuits and prototyping (desktop CNC milling preferred over FR-4 for its dust-free machining)

9. FR1 vs. FR-2, FR-3, and FR-4: Complete Comparison

The tables below provide a structured comparison to support material selection decisions across the full FR material family.

9.1 Core Material Properties

Property FR1 FR-2 FR-3 FR-4
Base Material Cellulose Paper + Phenolic Resin Cotton Paper + Phenolic Resin Paper + Epoxy Resin Woven Fiberglass + Epoxy Resin
Tg (°C) 125–135°C ~105°C 105–150°C 130–180°C+
Flammability UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Moisture Resistance Poor Fair Good Excellent
Thermal Conductivity 0.2–0.3 W/m·K 0.2–0.3 W/m·K Moderate 0.3–0.4 W/m·K
Color Brown Brown / Yellow Brown Green / Yellow
Market Share ~5% ~3% ~2% ~90%

9.2 Thermal Performance

Material Tg Heat Endurance Pb-Free Reflow
FR1 125–135°C Low Not supported
FR-2 ~105°C Low–Medium Not supported
FR-3 105–150°C Medium Limited
FR-4 130–180°C+ High Fully supported

9.3 Manufacturing Compatibility

Process FR1 FR-2 FR-3 FR-4
Punching / Die-Cutting Excellent Good Poor Not suitable
Drilling Poor (burrs) Medium Medium Excellent
Through-Hole Plating Limited Good Good Excellent
Lead-Free SMT Reflow Not supported Not supported Partial Fully supported
Wave Soldering Yes (controlled) Yes Yes Yes
Multilayer Lamination No No Rarely Yes (standard)

9.4 Electrical and Mechanical Performance

Property FR1 FR-2 FR-3 FR-4
High-Frequency Performance Poor (> ~30 MHz) Poor Fair Excellent
Dielectric Constant (Dk) 4.0–5.5 ~4.5–5.0 ~4.0–4.5 ~4.0–4.5
Mechanical Strength Low Low–Medium Medium High
Punchability Excellent Good Limited None
Layers Supported Single only Single / limited double Single / double Multi-layer standard
Through-Hole Quality Poor Poor–Fair Fair Excellent

9.5 Cost and Production Economics

Factor FR1 FR-2 FR-3 FR-4
Raw Material Cost (approx.) ~$0.90/sq ft (Lowest) Low Medium ~$2.75/sq ft (Highest)
Relative Cost Index 100% (baseline) ~110% ~160% ~300%
Processing Method Punch / die-cut Punch / drill Drill CNC route / drill
Typical Scrap Rate ~3% ~2% ~1% ~0.5%
Best Volume 10,000+ units 10,000+ units 1,000+ units All volumes

Need PCB Manufacturing or Assembly?

Get a free quote within 24 hours. We specialize in prototype-to-production PCB/PCBA for hardware teams worldwide.

Get a Free Quote

10. Material Selection Guide

Use the decision criteria below to determine which FR material is the best fit for your project:

If your project requires… Choose
Lowest possible cost, single-layer, wave soldering, high volume, short product lifecycle FR1
Better mechanical strength with paper-based economics, epoxy resin reliability, wave soldering FR-2
Higher Tg than FR1/FR-2, limited SMT, double-sided capability, improved electrical stability FR-3
Multilayer stackups, lead-free reflow, high-speed/RF circuits, long-term reliability, harsh environments FR-4

11. Design Guidelines for FR1 PCB Projects

If FR1 has been selected for your project, the following practical guidelines will help avoid common pitfalls during design and fabrication.

Trace and Spacing Recommendations

Parameter Minimum Recommended
Trace Width 0.2 mm (8 mil) 0.3 mm+ (12 mil+)
Trace Spacing 0.2 mm (8 mil) 0.3 mm+ (12 mil+)
SMD Pad Size 0.4 mm 0.5 mm+
Drill / Hole Size 0.6 mm 0.8 mm+
Board Edge Clearance 0.3 mm 0.5 mm+

Soldering and Assembly Considerations

  • Keep wave or selective solder profiles below 245°C to prevent delamination or warpage.Use Sn-Pb solder:
  • (e.g., large transformers or press-fit connectors) due to limited mechanical strength.Avoid BGA packages and heavy components
  • HASL (tin-lead), ENIG, Immersion Silver, and OSP all work with FR1.Supported surface finishes:
  • can be applied for trace protection; solder mask is optional and often omitted on the lowest-cost boards.Standard LPI solder mask
  • Peak temperatures of ≥245°C in lead-free soldering will damage the material.Do not use lead-free reflow:

How to Specify FR1 for Manufacturing

When ordering FR1 PCBs from PCBAndAssembly, please include the following information in your technical documentation:

  • Material: FR1 per IPC-4101/21 or /22
  • Thickness: 1.6 mm (or specify)
  • Copper Weight: 1 oz (35 μm)
  • Surface Finish: HASL (Sn-Pb), ENIG, or Immersion Silver
  • Solder Mask: Green LPI (or specify color)
  • Silkscreen: White (single side)

12. FR1 PCB FAQ

Q: What does “FR” in FR1 PCB stand for?

A: “FR” stands for Flame Retardant. The material is self-extinguishing, preventing fire spread in the event of an electrical malfunction. The “1” designates it as the original formulation in the IPC/IEC classification system.

Q: Can FR1 PCBs be used for double-sided or multilayer boards?

A: No. FR1 is designed exclusively for single-sided applications. Its paper-based composition cannot support through-hole plating (needed for double-sided connectivity) or the high-temperature, high-pressure process required for multilayer lamination. FR-4 is the standard choice for those requirements.

Q: Is FR1 suitable for high-frequency applications like Wi-Fi modules?

A: No. FR1’s dissipation factor causes significant signal loss above approximately 30 MHz. RF, Wi-Fi, and high-speed digital designs require FR-4 or specialized RF laminates with tightly controlled dielectric properties.

Q: Is FR1 PCB suitable for lead-free reflow soldering?

A: No. Lead-free reflow peaks at ≥245°C, which exceeds FR1’s thermal limits and will cause blistering, delamination, or deformation. FR1 boards must be assembled using Sn-Pb wave or selective soldering with carefully controlled temperature profiles.

Q: What is the key difference between FR1 and FR-2?

A: Both use a paper-based core, but FR1 uses cellulose paper with a higher Tg (125–135°C) while FR-2 uses cotton paper with a lower Tg (~105°C). FR-2 uses an epoxy resin binder (vs. phenolic in FR1), giving it slightly better mechanical and moisture performance. In practice, FR1 is generally preferred when available due to its higher temperature tolerance.

Q: Can FR1 PCB be machined on a desktop CNC?

A: Yes, and it is actually preferred for desktop PCB milling precisely because it does not produce the hazardous glass-fiber dust that FR-4 generates. Use 0.003″ or 0.005″ engraving bits for trace isolation and a 1/32″ flat end mill for outlines. Secure the board flat with double-sided tape before milling.

Q: Is FR1 RoHS compliant?

A: Yes. Standard FR1 materials meet RoHS 2 and REACH requirements. However, because FR1 cannot withstand lead-free reflow, Sn-Pb solder processes are typically required, which carries its own compliance considerations depending on your target market.

Summary

FR1 PCB material — composed of cellulose paper impregnated with phenolic resin — remains a cornerstone of cost-effective electronics manufacturing. Its UL 94 V-0 flame retardancy, exceptional punchability, and lowest-in-class material cost make it an enduring choice for high-volume, single-layer consumer electronics. At approximately 40–60% cheaper than FR-4 in raw material terms, it delivers compelling economics for simple designs where every fraction of a cent matters.

That said, FR1 is not a universal solution. It cannot support multilayer stackups, lead-free reflow soldering, high-frequency circuits, or operation in harsh environments. Understanding these boundaries is the key to leveraging FR1’s value effectively. For projects with more demanding thermal, mechanical, or electrical requirements, FR-3 or FR-4 are the appropriate choices. Used in the right context, FR1 remains an irreplaceable substrate in the electronics engineer’s toolkit.

Key Takeasways

  • FR1 is a paper-phenolic composite, the lowest-cost rigid PCB substrate, ideally suited for single-sided, high-volume consumer electronics.
  • Its primary strengths are exceptional cost-effectiveness (40–60% cheaper than FR-4), excellent punchability for die-cutting, and reliable UL 94 V-0 flame retardancy.
  • Technical limits include a Tg of 125–135°C, incompatibility with lead-free reflow, poor through-hole quality, high moisture absorption, and no multilayer capability.
  • FR1 is best matched to remote controls, toys, calculators, LED lighting, basic chargers, and similar low-complexity consumer products.
  • Always evaluate the full set of project requirements — temperature, signal frequency, assembly process, environment, and volume — before selecting a PCB substrate.

The post What is FR1 PCB? Difference From FR2, FR3, and FR4 first appeared on Pcbandassembly.

]]>
