Advanced Equipment
Advanced Equipment
We have successively introduced advanced production and testing equipment and various software from countries and regions such as the United States, Germany, and Japan.We are a professional integrated service company providing one-stop services including PCB manufacturing, component procurement, PCB assembly, and testing.
Our PCB factory is fully equipped, and we warmly welcome you to visit our facility in person.
Lead-free reflow oven: This ensures precise thermal profiling for optimal solder joint integrity, high-density component mounting, and superior electrical connectivity while minimizing thermal stress.

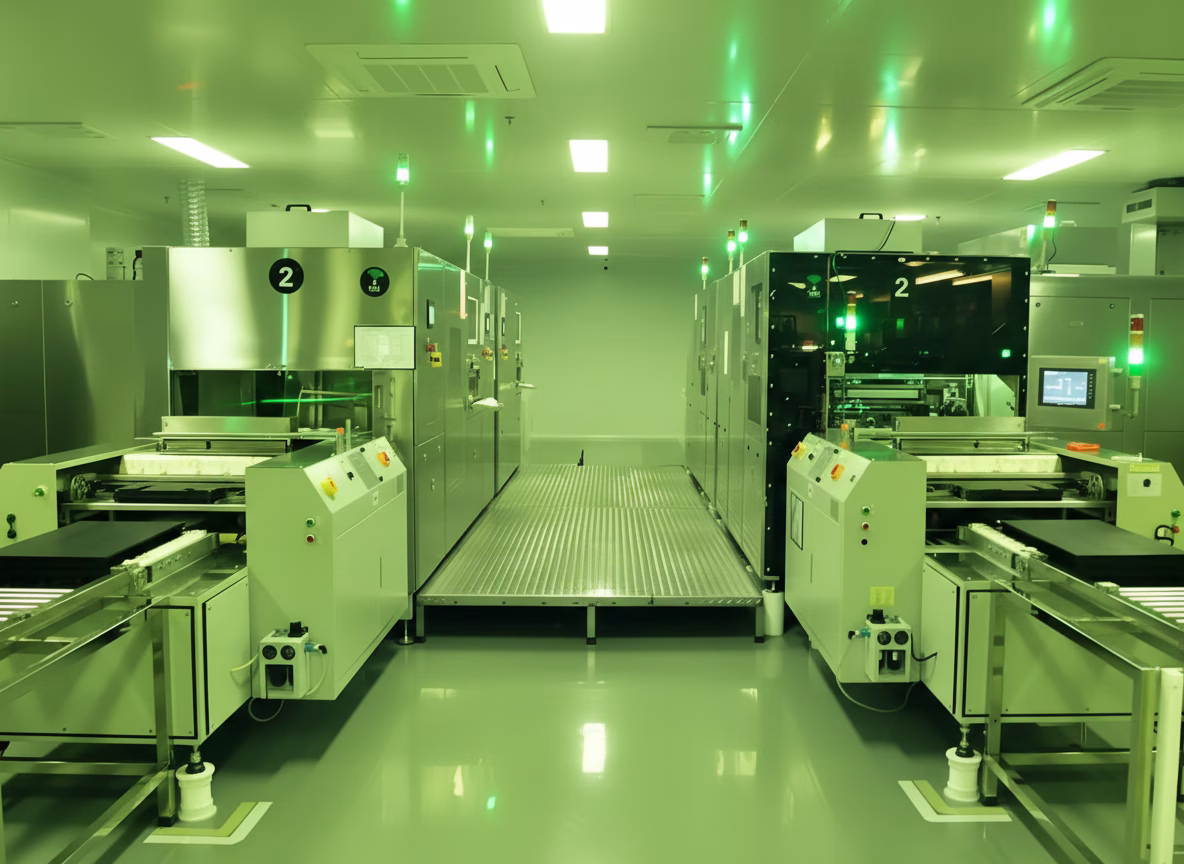

Automatic Exposure Process: High-precision double-sided exposure with 10Kw powerful lamps. Supports max panel sizes up to 630mm x 530mm, ensuring accurate pattern transfer for complex circuits and solder masks with high consistency and efficiency.

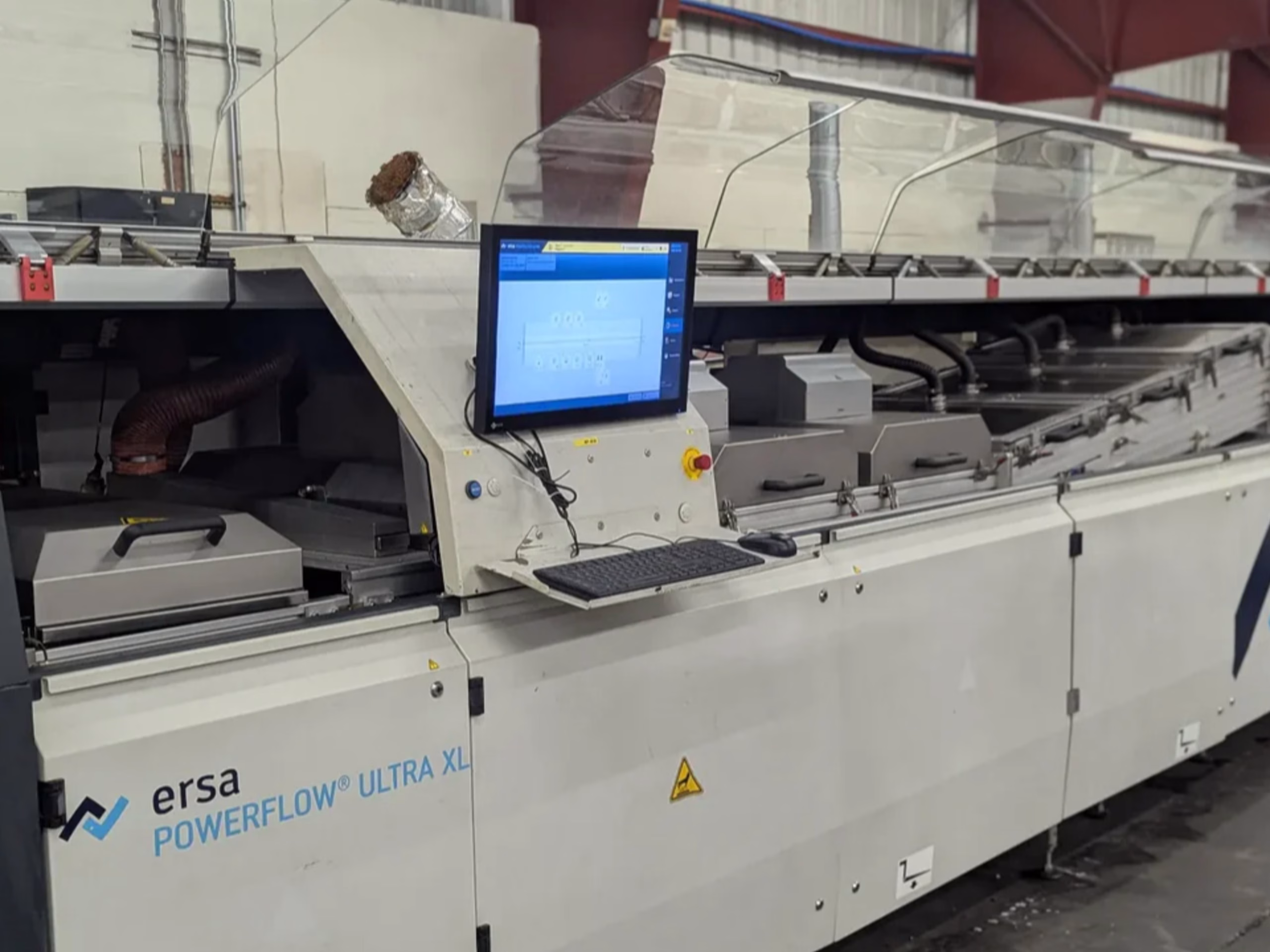

Nitrogen Wave Soldering: High-throughput nitrogen tunnel system featuring a 500mm pallet conveyor. It provides a stable, oxygen-free environment for maximum soldering flexibility, ensuring high-reliability solder joints and minimal dross for complex through-hole assemblies.

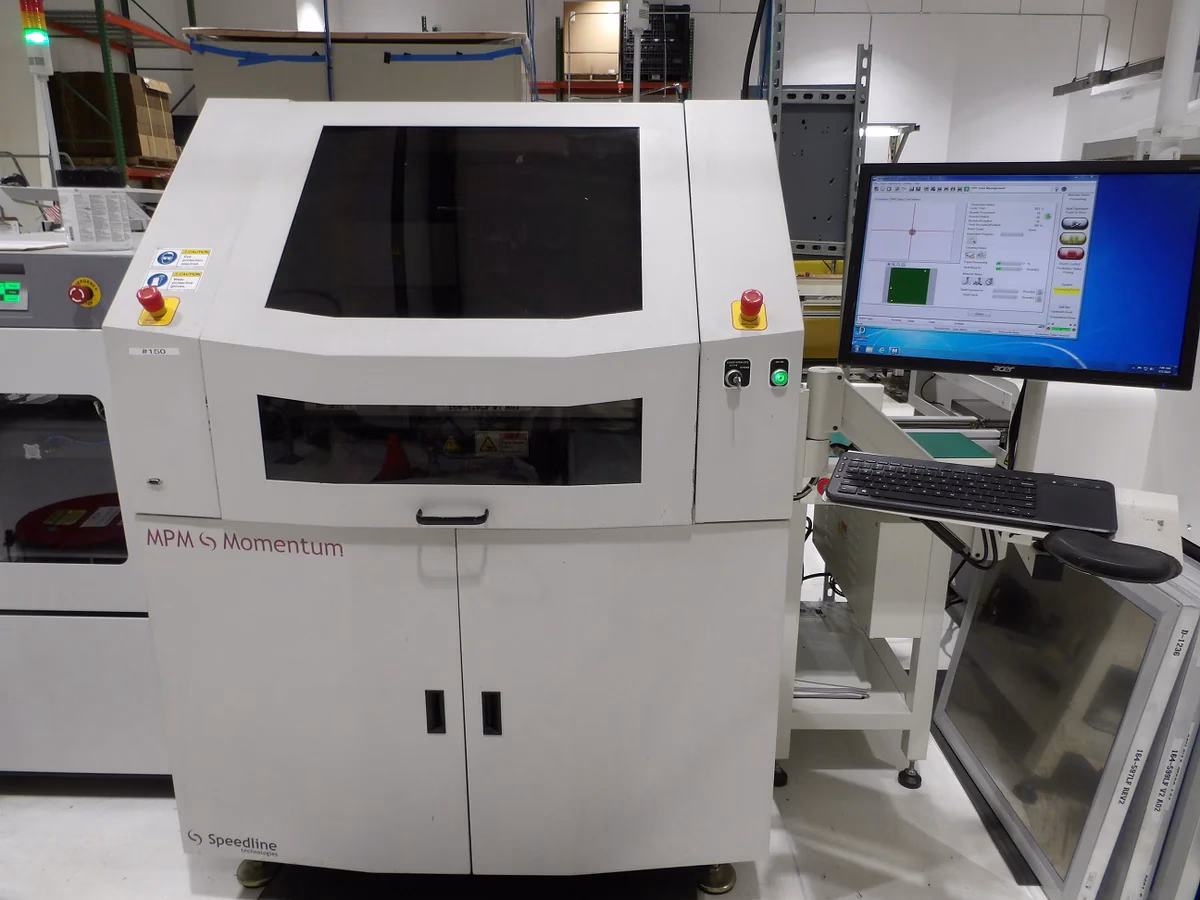

Automatic Screen Printer: Utilizing the Speedline MPM Momentum for high-precision stencil printing. Its advanced vision system ensures perfect alignment and uniform paste deposition, providing a flawless foundation for SMT assembly.

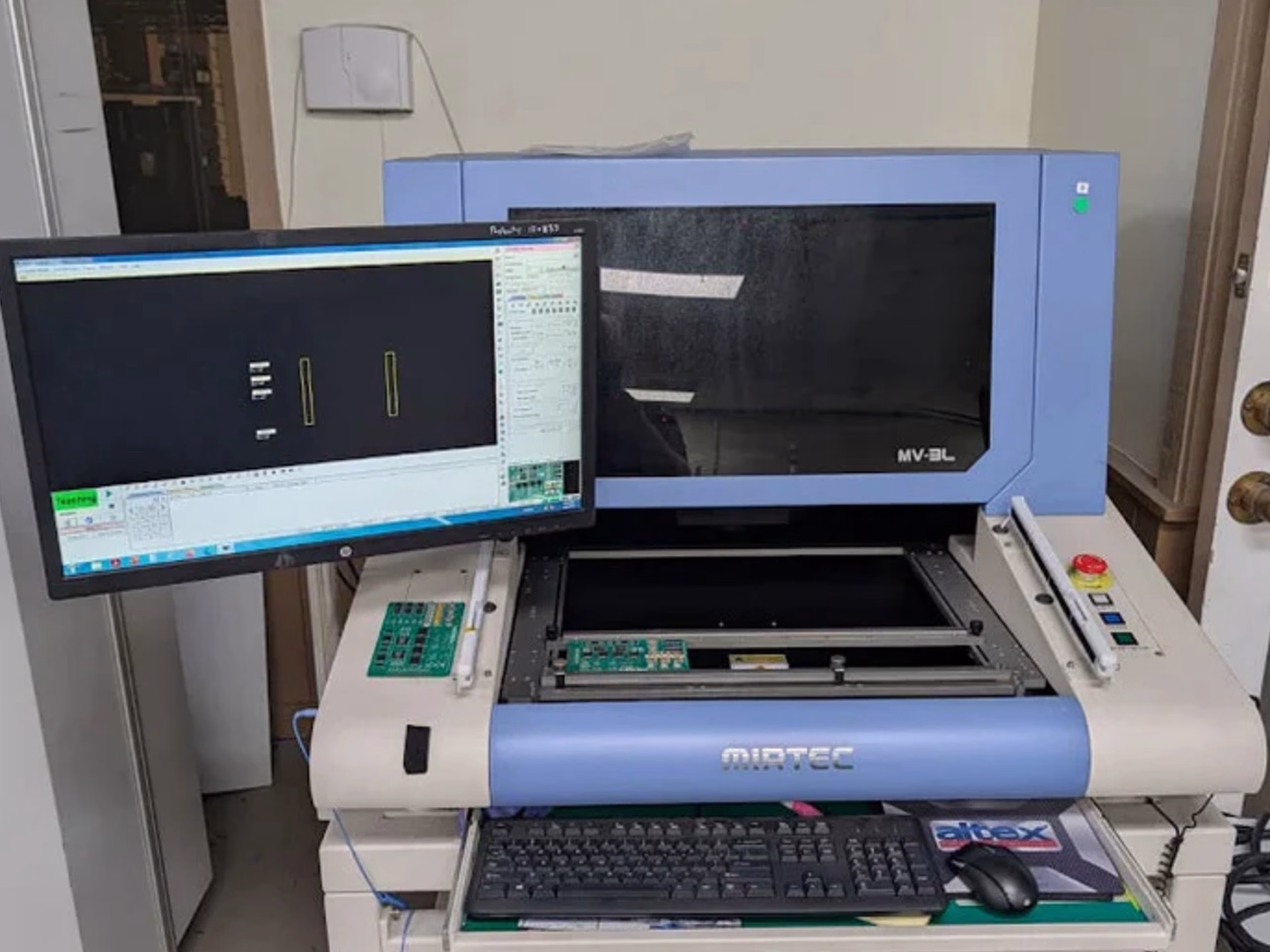

AOI Automated Inspection: Utilizing high-resolution MIRTEC MV-3L technology to identify defects like missing components, polarity errors, and solder bridge. It ensures 100% inspection accuracy and zero-defect board delivery.
Conformal Coating Cure: High-performance ASYMTEK TCM-3300 IR oven with a 10-zone heating system. Its unique downdraft exhaust efficiently removes VOCs, ensuring uniform curing and superior protection for PCBA reliability.
Automatic Screen Printer: Utilizing the Speedline MPM Momentum for high-precision stencil printing. Its advanced vision system ensures perfect alignment and uniform paste deposition, providing a flawless foundation for SMT assembly.

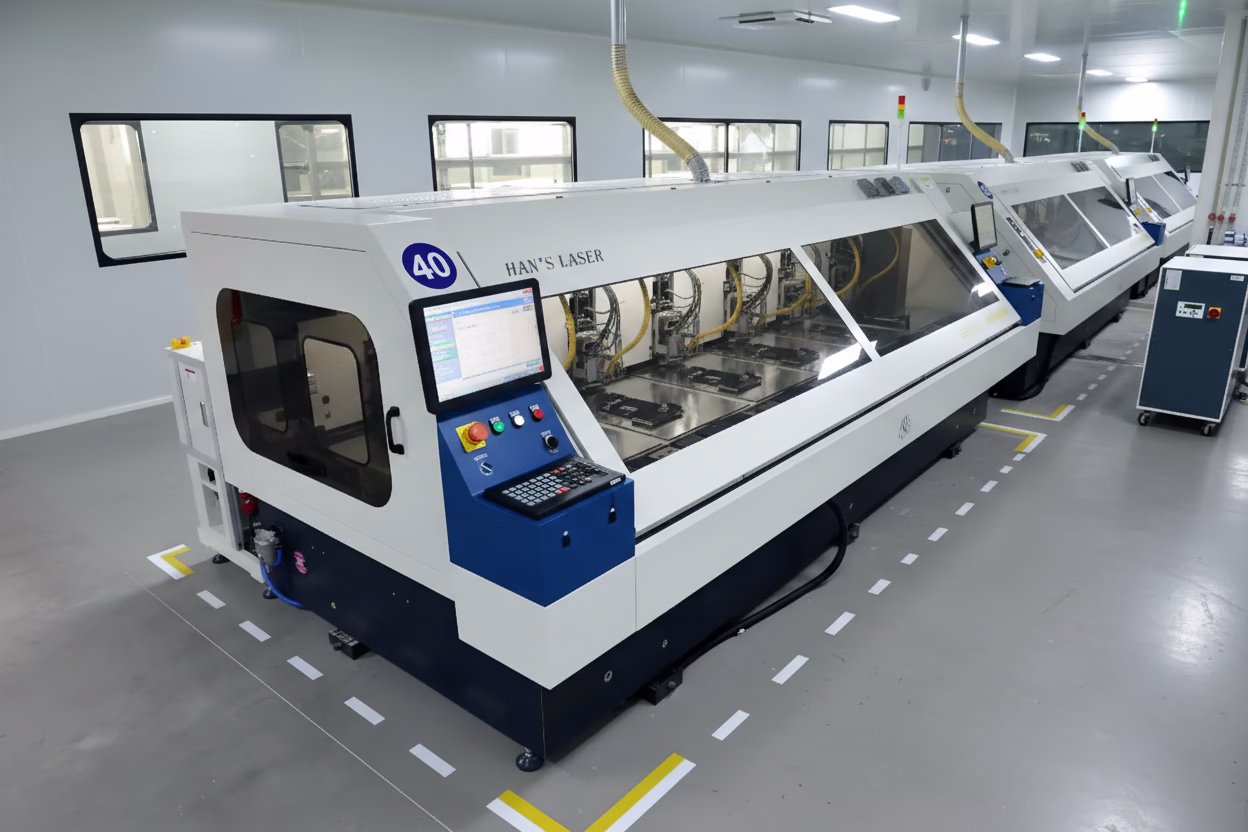

Automatic Drilling Holes High Precision Drilling Machine, Positioning Accuracy ±0.05mm, Self-Drilling Accuracy ±0.018mm, Automatic Detection Of Tool Diameter, Broken Tool, Drilling After The Hole, Completely Eliminate Slot Skew, Leakage Hole
X-Ray Inspection: Nikon XT V 160 with a 160kV NanoTech tube for submicron feature recognition. Features 5-axis manipulation and 360° views, providing high-resolution internal inspection for complex BGA and micro-SMD joints.
