What is Circuit Card Assembly (CCA) Manufacturing?

Circuit Card Assembly (CCA), after assembling all components, forms a complete Printed Circuit Board. Circuit Card Assembly is required to manufacture a printed circuit board that has no electronic components. CCA manufacturing is a process used to create printed circuit boards. Electrical components printed on circuit boards are used in various products from mobile phones to household appliances. Many industries use it, including aerospace and the military.

1. What Is Circuit Card Assembly?

Circuit card assembly are thin, flat pieces of dielectric material that have conductive paths or traces etched in them. CCA production is automated using SMT or through-hole machines. Professionals with experience in the field design and assemble circuit cards. Circuit card assembly, also known as printed circuit board assembly (PCBA), can be found in many household appliances like televisions and laptops, phones, microwave ovens, security cameras, and smoke detectors – not forgetting navigation systems, power supplies, and automotive displays!

2. Different Components of Circuit Card Assembly

All electronic devices have circuit assembly. Circuit components are found in even the simplest of electronic devices. Circuit board assembly is a process that connects electronic components with PCB wiring. The traces on the copper sheet are what create this assembly, which is also known as a printed circuit board assembly (PCBA). A CCA or PCBA is composed of four main components. Understanding the fundamental principles of circuit assembly is important. Circuit boards are made up of these parts, regardless of their type.

Substrate

All electronic devices have circuit assembly. Circuit components are found in even the simplest of electronic devices. Circuit board assembly is a process that connects electronic components with PCB wiring. The traces on the copper sheet are what create this assembly, which is also known as a printed circuit board assembly (PCBA). A CCA or PCBA is composed of four main components. Understanding the fundamental principles of circuit assembly is important. Circuit boards are made up of these parts, regardless of their type.

Copper

Copper foil is a common layer on printed circuit boards. Heat is used by manufacturers to laminate the CCA substrate or PCBA with copper foil. The electronic components are connected with conductive tracks. The PCB may have one or several layers of copper, depending on its type. A single-sided PCB, for example, requires a copper layer on the one side.

Solder Mask

The circuit board’s yellow or green color is due to the solder mask. Solder masks can be used to reduce solder shorts and stop corrosion. The manufacturers apply solder to the circuit boards, which protects the copper layer. The copper will not come into contact with any metals from the board. The solder mask is used to help the manufacturer solder the components.

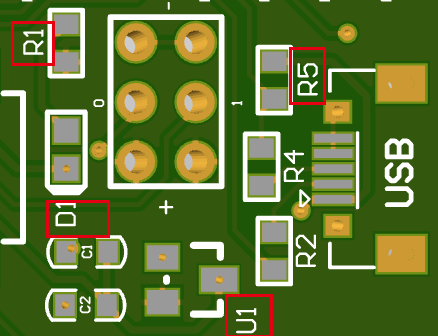

Silkscreen

The silkscreen is the topmost and final layer of any circuit board. This layer contains elements that are in the form of symbols and text. This layer helps engineers better understand the board. Silkscreen is used to add symbols, letters, and numbers to the board. The different LEDs and pins are easier to understand.

3. Types of Circuit Card Assembly

Surface Mount Technology Assembly (SMT Assembly)

Surface Mount Technology assembly, more commonly referred to as SMT assembly since its invention in the 1960s. Since then, many CCA or PCB manufacturers have used these components. The flexible and efficient SMT assembly method allows modern electronics to be produced in a smaller footprint. This method allows segments with metal sheets to be connected successfully to the PCB. The circuit density will be high when the segments are attached to the PCB on both sides using the right fastening technique.

SMT can be highly automatized and is very configurable, which makes it an ideal choice for manufacturers that need to produce large volumes of circuit boards. SMT assembly is frequently done with automated machinery. Automated machines are more expensive, but they reduce the number of manual steps required in SMT assembly. This improves production efficiency, and over time, labor costs. SMT is the right choice if you require a custom-made circuit board. Surface mount devices, such as microprocessors, are permanently mounted with a surface mounting packaging technology known as a ball grid arrangement (BGA). The BGA package has more connector pins than a flat package or dual-inline package. Each pin has a soldering ball.

Box Build

Box build assemblies (also called system integration) range from a PCBA in a small enclosure up to a cabinet that houses a complex electromechanical unit. It involves design, production, construction, etc. Electronic components are assembled onto printed circuit boards by using tools like looms and wire wheels.

A complete box build requires the enclosure to be designed, produced, and installed, along with the PCBA, cables, harness assemblies, and, possibly, even electrical or pneumatic systems. It is the technology that drives the packaging and hardware industry to a modern, better future. These PCB boards are strong and precise, ensuring that electrical devices work accurately and efficiently.

Through-Hole Assembly

This type of circuit board assembly involves placing the leads of the electrical components into the holes of the circuit board. Next, they are soldered either manually or automatically to pads on the opposite side. Over time, PCB boards have advanced from single-sided boards to double-sided and eventually multi-layer ones. Today’s electronics require through-hole assembly techniques which must meet modern specifications for success.

Surface mount PCB gained enormous popularity in the 1980s. SMT has replaced through-hole technology in today’s PCB manufacturing. Through-hole assembly is still required for certain applications such as electrolytic capacitors and connections. Large transformers are also included.

4. Summary

Circuit Card Assembly is an important component of modern electronics. It serves as the basis for the operation and maintenance of various devices. CCA is essentially electronic components integrated into a printed circuit board (PCB). The PCB is the spine, a well-structured layout that allows electronic components like resistors and capacitors to be mounted.

This article provides some essential information on circuit assembly. Circuit Card Assembly is a superior technology for creating circuit cards. CCA has many advantages, including the ability to design more complex designs. CCA can connect components without drilling holes. The drill restrictions are no longer a concern. CCA is also much faster than any other method. One machine can perform the entire process. It is no longer necessary to move circuit cards between systems, saving time.
