How to Efficiently Assemble PCBs: Tips on PCB and Assembly Best Practices

Every electronic device including smartphones and laptops to industrial control systems as well as medical devices depends on Printed Circuit Boards as their fundamental component. The need for precise and efficient PCB assembly grows as electronic devices become smaller and more complex.

Whether you are part of a manufacturing team or an electronics hobbyist you will enhance device performance and lower costs by mastering PCB and Assembly techniques. This post highlights the important ways of designing, planning, and final inspection of the product

1.Begin with a thoughtful design

Start off the right way.

Design considerations:

• Component Position: Arrange the components according to their function and signal flow.  Isolating and digitalization of PCB parts can be beneficial for minimizing noise interference.
• Thermal Management: It is an effective technique with thermal vias and heat sinks, helping to isolate heat-producing components from sensitive components.
• Trace RoutingEnsure that traces are short. This is especially important for signals with high frequency. For power lines, use wider traces to handle higher current.
• Design For Manufacturability: Avoid complicated geometries, and ensure spacing between components is compatible with manufacturing capabilities.

2.Choose the Right Components

It’s not just about picking the cheapest and smallest components. It will directly impact how easy or difficult it is to assemble the circuit board.

Component Tips:

• Use Standard Package Sizes: Do not use exotic or obsolete packaging unless absolutely required.
• Check Availability: Ensure that components are available throughout the supply chain.

3.Create accurate BOM and assembly files

Clean and complete documentation is also essential for efficient PCB and assembly. Errors are possible in the Bill of Materials or Gerber files, leading manufacturing deadlines and costly mistakes.

Store your Files:

• Producer details, Bill of Materials (BOM), product description, and part numbers
• Pick and Place Fileis for automatic component placement machines.
• Gerber Files for PCB fabrication.
• Assembly Drawings visually illustrate how components are arranged.

Documentation that is accurate keeps everyone, from suppliers to assembly technicians, on the same page.

4.Select a Reliable Manufacturer

It’s now time to send your components and files to a Printed Circuit Board PCBA company. Establishing connection with the reputable partner can save your effort, time, and money.

Essential points to ensure

• Experience on Similar ProjectsAsk them if they have worked with your industry or type of board.
• CertificationsLook for ISO 9001 and IPC-A-610 certificates, which show commitment to quality.
• Clear Information:A trusted partner provides transparent and clear information about timelines, pricing, and other issues

Consider starting small to test quality.

5.When possible, use automated tools

Modern assembly tools are extremely efficient and precise, ranging from pick-and place machines to AOI systems (Automated Optical Inspection). Automation can reduce error rates and turnaround time.

Benefits from Automation:

• Consistent placement: Robots do not get tired or distracted.
• Quick Assembly process: Manufacturers implement state-of-the-art techniques and machines, incorporating dozens of components within hours
• Reduced Rework: Early error detection helps prevent issues in the future.

Automation is essential for companies that produce high volumes of goods.

6.Prioritize Soldering Quality

Soldering is an important step in Printed Circuit Board PCBA, whether you use Surface Mount Technology (SMT), Through-Hole Technology or both. Circuit failures are often caused by poor solder joints.

Best Practices

• Don’t compromise with the product quality in terms of solder paste
• Monitor reflow oven profiles: Make sure the temperature is ramped up and cooled down properly.
• Conduct X – Ray Inspection: Especially useful to inspect BGAs and multilayer boards.

The reliability of your products will increase if you invest in high-quality soldering equipment.

7.Test in-Process and Final

It is important to never forget about testing. In-process testing and final quality checks can help catch problems early and ensure that every board is fully functional.

Test Methods Include:

• Visual Inspection: Basic but effective for obvious defects.
• Functional Test: Verifies that the board is working as intended.
• In Circuit Testing (ICT): Probes each component on the board in order to verify connections and values.

It may be more time consuming to add a testing phase, but it will help reduce warranty claims.

8.Understanding the role of PCBA

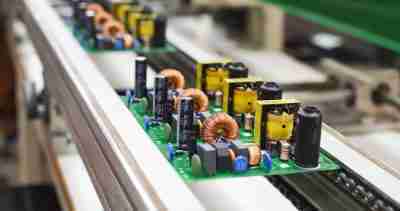

pcb assembly

A Printed Circuit Board (PCBA) is a PCB with all of its components soldered together and ready to use. The final product is fully assembled and goes into the device.

Turning a PCB blank into an assemble PCBAs require component placement, soldering and inspection. Understanding the flow from start to finish helps teams identify inefficiencies and improve turn-around.

9.Take Care when handling and storing boards

Even PCBs that are perfectly assembled can be damaged by handling or storage. When not in use, follow ESD guidelines. Keep boards in antistatic packaging.

Storage Tip:

• Use Anti-Static Bags: Prevents electrostatic damage.
• Stay away from moistureUse desiccant packets and sealed containers.
• Label everything clearly: This helps to avoid confusion, especially when running larger quantities.

The right handling will ensure that the investment you make in quality assembly won’t be wasted.

10.Every Project Offers Opportunities to Learn and Improve

There is no assembly process that will ever be 100% perfect. After final approval, make sure you have checked all the necessary points from starting to end. To improve continuously, create checklists and standard operational procedures based upon past experiences.

Get feedback from:

• Technicians
• Staff for quality control
• Customers or end-users

This feedback loop will improve your process over time. It will become more reliable, efficient and scalable.

Final Thoughts

It takes more than technical skills to learn how to assemble a PCB efficiently. You need a system. Every step is important to delivering a reliable, functional end product.

Following these best practices for assembly and PCB will minimize errors and lead times and produce better quality boards at lower costs. The provided tips enable efficient production processes for both prototype and complete production stages.

Because of revolutionizing technology in the production, the popularity of accurate, effective, and quick electronic manufacturing has been grown. Meeting these demands requires the proper approach together with attention to details.
