Mini 3.5-Inch Industrial Control Motherboards SMD Processing

-The Pcbandassembly mini 3.5 motherboards are produced using an SMT machine, correct?

– Yes.

As a professional manufacturer of SMT (Surface Mount Technology) components, the operational principle is straightforward: electronic components such as capacitors and resistors are mounted onto the circuit board via an SMT machine, followed by a reflow soldering process to complete the assembly. SMT chip processing technology is particularly well-suited for electronic products that require high integration and precision components, including mobile phone motherboards, tablet computers, and industrial computer motherboard. The systematic arrangement of capacitors and resistors in these devices is achieved through advanced chip processing techniques; thus, this production method is collectively called patch processing.

There are two primary production technologies:

1. SMT technology (involving component mounting with a mounter followed by reflow soldering);

2. DIP technology (through-hole insertion requiring wave soldering post-insertion). Currently, pure DIP processes are relatively rare; however, they remain prevalent in outdoor display lamp board manufacturing. Typically, products undergo initial processing via SMT before transitioning to the DIP process—these methods are often used in conjunction.

The high-end chip-type products manufactured by pcbandassembly include mini industrial motherboards characterized by their substantial chip value; these motherboards feature embedded CPUs specifically designed for industrial control applications.

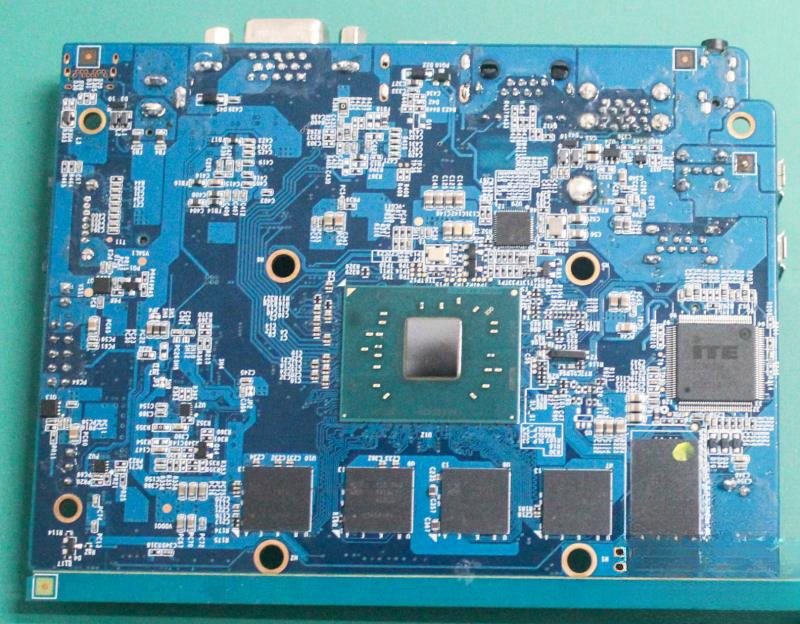

This is the reverse

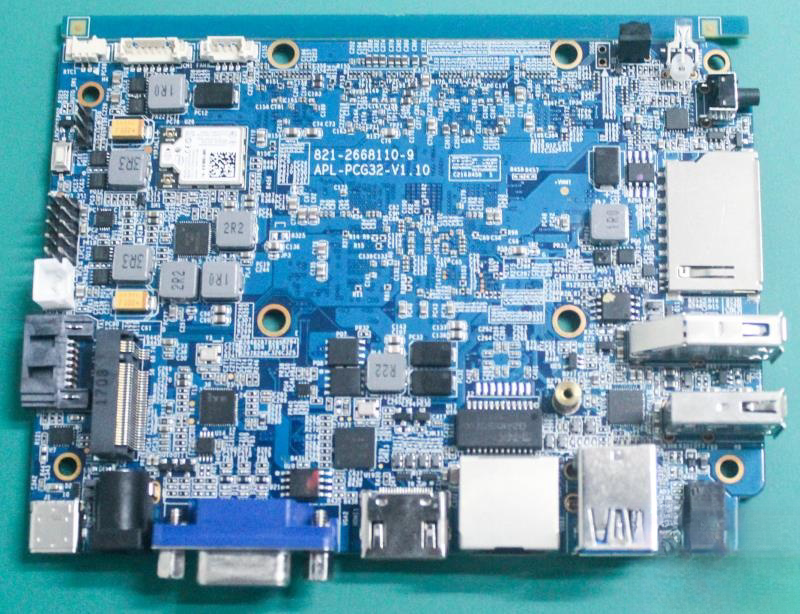

Double-sided patch technology is a hallmark of high-end processing products characterized by superior quality. The product’s front features embedded chip patch technology;

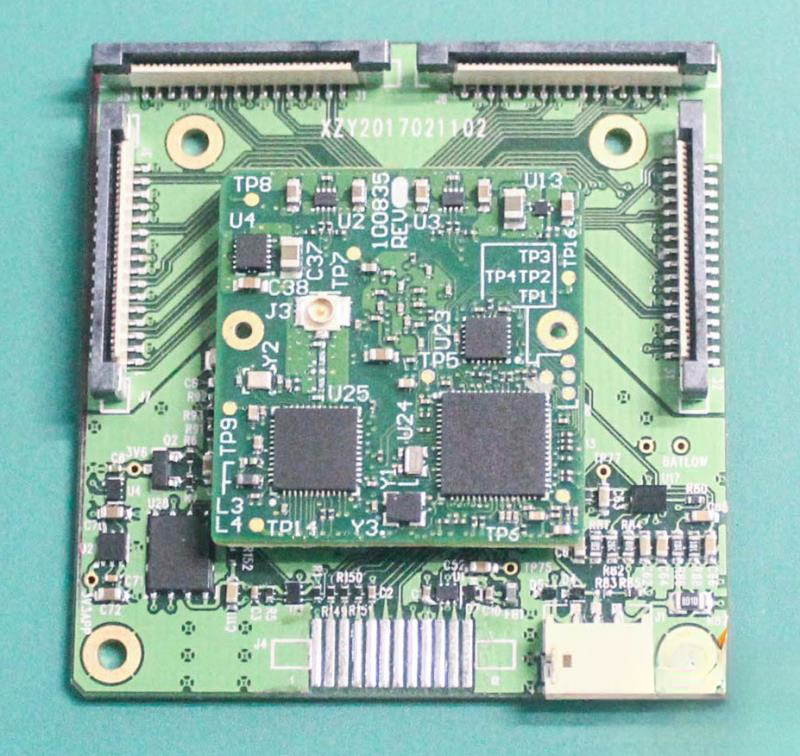

VR industrial control board
