What Are PCB Boards? What Are PCB Boards Used For?

As technology has advanced, PCB (Printed Circuit Board) is now an essential part of various electronic devices ranging from mobile phones and home appliances to medical equipment and industrial control systems. So, what is PCB?

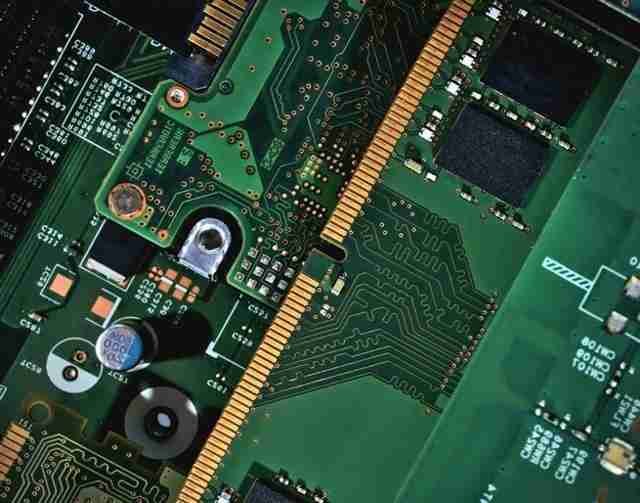

1. What Exactly Is a PCB Board?

PCB stands for “Printed Circuit Board”, and it is used to assemble electronics. Usually composed of multiple layers of insulating materials with copper traces to connect all parts of a circuit together and complete its circuit, PCB boards are commonly made out of glass fiber reinforced plastic and feature copper foil as their conductive element.

Printed Circuit Board (PCB) is thin, flexible sheets used to house electrical components in an economical and convenient manner. Used to mount and connect various electrical components, PCB boards play an essential role in society and our everyday lives – with commercial buildings sometimes housing more PCB boards than employees themselves!

2. The Function of PCB Boards

PCB boards can be seen throughout our daily lives, so what purpose do they serve? A primary aim for any PCB board should be facilitating smooth connectivity among its components that make up its circuit board.

Integrating the Circuit

Copper traces on PCB boards can be used to connect electronic components like resistors and capacitors, creating circuit systems. This efficient connection method simplifies circuit design while improving reliability.

Supporting Components

A PCB board offers reliable support for components, enabling them to be compactly assembled on it. Through welding or other methods, components can be securely attached to it – increasing both structural integrity and portability of devices.

Controlling Current

Electrical appliances require accurate current management in order to avoid burning out their equipment, and PCB resistances provide this control by blocking or restricting current flow according to its value.

Protecting the Circuit

PCB boards contain an insulating material designed to effectively isolate electromagnetic interference and protect circuitry from environmental influences (such as humidity or dust). Such protection can prolong service life of electronic equipment operating in harsh industrial settings.

Dispersing Heat

Electronic devices utilizing high performance, high power electronics have the inescapable challenge of heat dissipation. In response, specific metal layers on PCB boards – particularly copper foil – have been carefully designed as heat dissipation channels. They quickly absorb and dissipate heat generated when the circuit operates, protecting components from being damaged due to overheating. Design elements may include increasing the thickness and optimizing layout of copper foil in order to increase heat dissipation efficiency on PCB boards. Furthermore, new heat dissipation structures like heat dissipation holes and heat sinks may be introduced, such designs not only increase dissipation effectiveness but also maintain compactness and aesthetics of PCB boards while offering technical support for creating high performance long-life electronic devices.

Optimizing Space

PCB board designs must not only serve their intended function, but must also take into account production cost, production efficiency and subsequent maintenance and replacement requirements.

Hole-in-disk manufacturing processes allow components to be more easily assembled within limited spaces on PCB boards by providing more flexible component placement and placement, optimal space use is achieved through carefully controlling position and height of components, thus improving layout, wiring and leakage issues while creating more compact electronic devices with beautiful internal structures.

Assemble Easily

“Silk Screen Printing” on PCB boards helps identify the exact location of parts by letters, making assembly simpler.

3. Common PCB Types

PCB is widely utilized due to its versatility, it can be found in almost every product on the market today. Here are several popular types of PCB boards which will show how you can shape them to best fit any device they design.

Rigid PCB

These PCB boards are extremely complex and sturdy boards with solid circuitry all around, enabling repairs and maintenance tasks to be handled easily. Components on such a board tend to be clearly marked while signal paths are organized effectively.

Flexible PCB

These types of PCB boards are manufactured using flexible materials that make up most flexible products, enabling easy assembly for fragile devices or smaller PCB boards, saving space while making devices lightweight – this feature also makes these PCB boards ideal for temperature-sensitive work conditions or industries with related equipment. They’re available as single or double-sided designs, multilayered versions may also exist. They’re often multilayered to reduce assembly times.

Flexible boards come with single sided, double-sided, or multilayered options available and allow easy assembly in fragile devices with small PCB boards allowing easy assembly into delicate devices or smaller PCB boards allowing easy assembly in fragile devices and small PCB boards as well as saving space-saving space when making devices lightweight while saving weight on space usage, as such flexible boards are best suited to working conditions or industries where temperature controls must be strictly observed such as electronics devices used.

Rigid-Flex PCB

These circuit boards combine rigid and flexible PCB boards into one solution. Constructed of flexible circuits connected to rigid boards, Rigid-Flex boards are compact, lightweight, space-saving solutions ideal for medical or military uses.

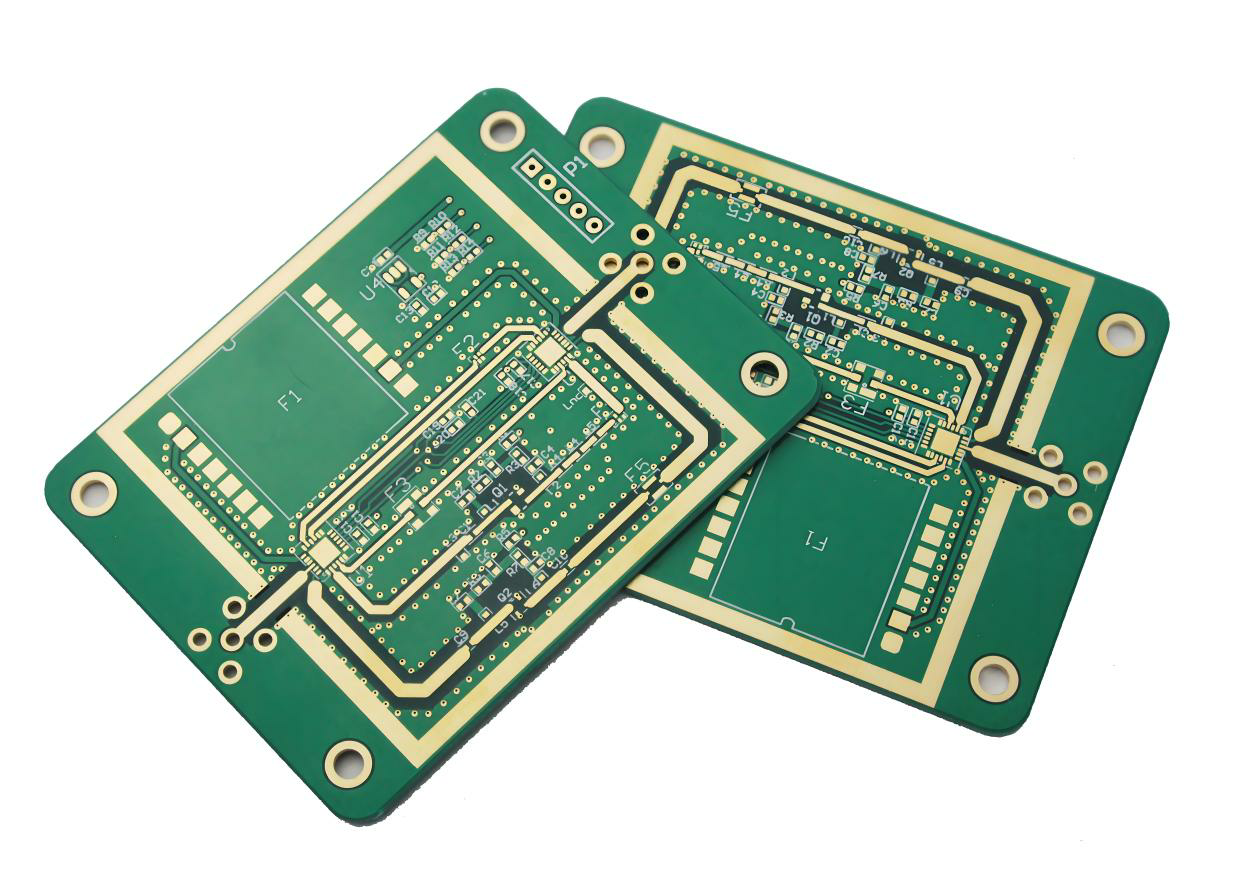

High Frequency PCB

These PCB boards are utilized by devices operating between 500MHz-2GHz in frequency. Applications utilizing such boards include communication systems and microwaves.

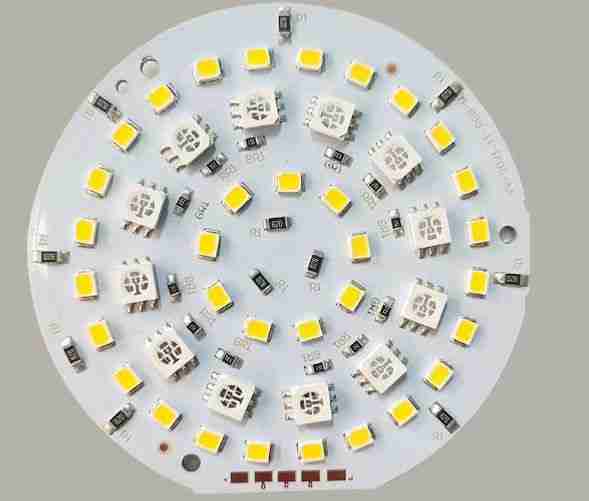

Aluminum PCB

These boards feature aluminum supports that regulate heat while offering rigidity and low thermal expansion rates, making them suitable for high-powered appliances such as LED boards or power supplies.

PCB boards can be seen in many devices from desktop computers to medical devices. By connecting electrical components on an optimized circuit board with resistors and capacitors built-in for control purposes, many appliances have become smaller, more powerful, and more convenient. They’re the ideal choice for any industrial or consumer device!

4. Application Fields of PCB Boards

Printed circuit boards (PCB boards) can be found across numerous industries and application fields, making them highly adaptable. PCB boards play a pivotal role in communication devices like mobile phones, telephones and radios by providing a solid path for signal transmission to ensure accurate data transfer. Medical devices rely on PCB boards for high precision and reliability, playing an essential role in diagnosing patients, monitoring equipment and surgical instruments. PCB boards also play a vital part in industrial automation and control equipment such as robots, CNC machines and other machinery used for automation purposes – providing precise control and operation. Automotive electronics, home appliances, computers/servers/IoT devices all utilize PCB boards in one form or another.

PCB circuit boards are at the core of modern technology, yet many remain confused as to their purpose. One example of PCB boards would be computer motherboards, most electronic devices come equipped with them too – from digital clocks and televisions to light switches! They come in many colors including green, black, red and blue for maximum visibility!

PCB boards serve a wide range of uses in many fields, making their use distinct. Let’s examine some types of PCB boards used across these fields.

Consumer Electronics

The PCB boards we rely on daily include everything from audio-video systems (TVs, cameras, stereos, DVD players and digital cameras) to computers, laptops, tablets mobile phones and kitchen appliances.

PCB circuit boards play an essential part in the computer industry, from motherboards and graphics cards to memory sticks – serving as support structures in all of these components and often looking similar between devices.

Medical Device Products

PCB boards can be found in all kinds of medical devices ranging from pacemakers to large X-ray and CAT machines, monitoring equipment, imaging devices and diagnostic instruments. With the rapid advancement of medical technology, more PCB circuit boards are being employed by devices like electrocardiographs, blood pressure monitors and glucose meters – all rely on them for proper functioning. High density boards may also be suitable, since their designs support testing advanced medical technologies while simultaneously making manufacturing small lightweight medical devices simpler.

Industrial Machinery Products

PCB boards are often found in high-power machinery, PLC (programmable logic controller), industrial robots and automated production lines. Thick copper PCB boards can often meet equipment requirements when used for machinery applications like motor controllers and load testers.

Automotive Electronics Products

As automotive electronics become increasingly prevalent, PCB circuit boards have become more prominently utilized in car audio, navigation systems and safety control systems, all require PCB circuit boards in order to perform their intended functions effectively.

Aerospace Equipment

Flexible PCB boards for dampening the vibration generated during aircraft and car movement, adapting to very small spaces designed within equipment while withstanding extreme vibration environments. Furthermore, they’re lightweight yet sturdy – important characteristics in industries that demand low weight yet high impact levels.

Communication Equipment

Printed circuit boards also play a crucial role in communication equipment like base stations, routers and switches, where data transmission and processing must occur. All require PCB circuit boards in order to function optimally.

LED Lighting

LED light is another common PCB device. Although relatively new technology, most LED lights still use aluminum substrate PCB boards as mounting platforms despite increasing energy consumption. LED boards often employ these boards as heat sinks allowing for higher heat transfer levels than typical PCB boards – these principles also apply to basic lighting solutions using aluminum PCB boards as heat transfer mediums.

As technology develops, applications of PCB circuit boards have grown ever more sophisticated and varied. PCB boards now play a critical role in areas like Internet of Things (IoT), smart homes and artificial intelligence (AI).

5. Summary

The PCB industry reflects the pace and technical proficiency of electronic products’ development. With the advancement of technology, more types of flexible circuit boards (FPC), rigid boards, and rigid-flex boards are becoming more and more popular in the market.

High-Density Interconnect Boards (HDI) are widely used across communications, computing and consumer electronics due to their dense wiring density and improved signal integrity. Their market demand is also rising – particularly due to advances in AI computing power improvement and terminal innovation which has greatly increased demand for HDI products.
