Offshore PCB Assembly Services: Complete Guide to Cost-Effective Global Manufacturing

Many electronics companies discover that domestic PCB assembly pricing simply doesn’t work for high-volume production or margin-sensitive products. That’s when offshore PCB assembly services become a strategic necessity—not just a cost-cutting tactic.

Key Takeaways

• Offshore PCBA can reduce manufacturing costs by 30-50% compared to US or European domestic assembly, particularly at high volumes
• Popular offshore destinations include China, Taiwan, Vietnam, Thailand, and Malaysia—each with distinct specializations
• Quality does not have to suffer: IPC-A-610 Class 2/3, ISO 9001, and UL certifications are standard at reputable offshore factories
• Turnkey services (where the assembler handles PCB fabrication, component sourcing, and assembly) simplify offshore logistics significantly
• The hidden costs to watch for include tariffs, shipping, communication delays, and IP protection measures



What Are Offshore PCB Assembly Services?

Offshore PCB assembly services involve contracting a manufacturer in another country—typically in Asia—to handle some or all of your PCBA production. This includes component sourcing, solder paste printing, SMT placement, through-hole assembly, testing, and inspection.

The scope of services varies depending on the provider:

Service Type	What’s Included	Best For
Full Turnkey	PCB fab + component sourcing + assembly + testing + shipping	Most offshore projects; simplifies logistics
Partial Turnkey	Assembly + testing; you supply critical components	When you have preferred suppliers for key ICs
Consignment	You supply all components; factory does assembly only	Maximum BOM control, higher management overhead
Hybrid	Factory sources common passives; you supply hard-to-find parts	Balancing control with convenience

The offshore model works best when your volumes justify the logistics investment. For prototype quantities, domestic assembly often makes more sense. For production runs of 500+ boards, offshore becomes increasingly attractive.



Why Companies Choose Offshore PCB Assembly

The decision to move assembly offshore usually comes down to three factors:

1. Cost Savings

Labor accounts for 20-30% of PCBA costs in high-cost countries. Offshore destinations reduce this dramatically.

Country	Typical Labor Cost (PCBA/hr)	Savings vs US/EU
China	$6-8	50-65%
Vietnam	$4-6	60-75%
Taiwan	$8-12	40-55%
Thailand	$5-7	55-70%
Malaysia	$6-9	50-65%
India	$5-8	55-70%
US	$20-30	Baseline
Western Europe	$22-35	Baseline

The net savings after accounting for shipping, tariffs, and management overhead typically land at 30-50% for established programs.



2. Manufacturing Scale

Asian assembly factories operate massive, highly automated SMT lines. A mid-tier Chinese PCBA factory runs 10-20 SMT lines, each capable of placing 60,000+ components per hour. This capacity makes them well-suited for high-volume production runs that would overwhelm smaller domestic shops.



3. Component Availability

Many offshore assembly hubs sit within dense electronics ecosystems. In Shenzhen or Taipei, you can source virtually any component within 24-48 hours. This proximity to component distributors and manufacturers reduces procurement lead times and often results in better pricing for bill-of-materials (BOM) items.



Key Risks and How to Mitigate Them

Offshore PCB assembly comes with real risks. Understanding them upfront helps you build a mitigation strategy.

Risk	Impact	Mitigation
Communication delays	Design iterations take 2-3x longer	Use a partner with local-language account managers; establish weekly calls
Quality inconsistency	Rework cycles, field failures	Specify IPC-A-610 Class 2/3; require first article inspection (FAI) and third-party QA
IP theft	Design leaks, cloned products	Sign NDA + non-compete; use trusted partners; avoid sharing full BOM details
Tariffs & customs	5-25% duties on final products	Classify HTS codes correctly; use DDP (Delivered Duty Paid) Incoterms
Shipping damage	1-5% defect rate from transit	Specify moisture-proof, shock-resistant packaging; use air freight for prototypes
Lead time variability	6-8 week total cycle	Build buffer stock; maintain 2-3 week safety inventory

The key lesson: choose your partner carefully, define specifications clearly, and invest in the upfront qualification process. Cutting corners on vetting is where most offshore horror stories begin.



Offshore PCB Assembly Costs: What to Expect

Understanding the full cost picture prevents surprises. Here’s how pricing breaks down for a typical offshore PCBA project:

Cost Component	% of Total	Notes
PCB Fabrication	15-25%	Depends on layers, material, and quantity
Component Sourcing	40-55%	Usually the largest cost; varies with BOM complexity
Assembly (SMT + THT)	10-20%	Lower in offshore locations
Testing	3-8%	ICT, flying probe, or functional testing
Shipping & Logistics	5-15%	Air freight vs sea freight
Customs & Duties	3-10%	Depends on product category and origin
Setup & Engineering	2-5%	Stencil, programming, first article

For a typical 4-layer board with 100 components at 1,000-unit volume, the total cost from a Chinese offshore assembler might range from $8-15 per board (turnkey, including shipping), compared to $18-35 per board from a US assembler.



How to Choose an Offshore PCBA Partner

Selecting the right partner is the most important decision in your offshore strategy. Here’s a structured evaluation framework:

Step 1: Verify Certifications

Every credible offshore assembler should hold these certifications:

Certification	What It Covers	Why It Matters
ISO 9001:2015	Quality management system	Baseline requirement for all reputable shops
IPC-A-610	Electronics assembly acceptability	Industry standard for solder quality, component placement
IPC-6012	Rigid PCB qualification	Ensures bare board reliability
UL 94	Flammability rating (V-0)	Safety compliance for end products
RoHS / REACH	Restricted substance compliance	Required for EU market access

Step 2: Evaluate Technical Capabilities

Match the factory’s capabilities to your product requirements:

• SMT line count: More lines = higher capacity and redundancy
• Component types supported: BGA, QFN, 0201, 01005, micro-BGA
• Inspection equipment: AOI, SPI, X-ray, AXI
• Testing capabilities: ICT (flying probe or fixture), functional testing, burn-in
• Materials experience: FR-4, high-Tg, Rogers, flex, rigid-flex
• Layer count support: Can they handle your PCB complexity?
• Minimum order quantity (MOQ): Some shops require 100+ units; others accept 5-10

Step 3: Assess Communication

This is where many partnerships fail. Look for:

• English-speaking account managerswith engineering background
• Time zone overlap: At least 4 hours of working day overlap
• Responsiveness: Quote turnaround within 48 hours; issue response within 24 hours
• Technical documentation: Clear DFM reports, inspection reports, and shipping documents

Step 4: Start with a Pilot Run

Never commit to a full production order without first completing a pilot run of 10-50 boards. This validates:

• Quality: Does the output meet your IPC class specification?
• Communication: How smoothly does the issue resolution process work?
• Timing: Can they meet your schedule commitments?
• Hidden costs: Are there unexpected charges (setup, testing, packaging)?



Turnkey Offshore PCB Assembly: The Recommended Approach

For most companies new to offshore PCBA, full turnkey services are the safest starting point.

Under a turnkey model, your offshore partner handles:

• PCB fabrication— Bare board production to your Gerber specifications
• Component sourcing— Procuring all BOM items from their vetted supply chain
• Assembly— SMT placement, through-hole soldering, and any specialized processes
• Testing— AOI, X-ray, ICT, or functional testing as specified
• Packaging and shipping— Export documentation, customs clearance, and delivery

The single-point-of-responsibility structure means you have one contact for any issue. If a component is out of stock, the factory finds a substitute. If a solder joint fails inspection, they rework it. You don’t get caught in the middle of finger-pointing between separate fabrication, assembly, and testing vendors.

Quality Control for Offshore PCB Assembly

Maintaining quality across borders requires a structured approach. Here’s what experienced companies do:

Before Production

• Design for Manufacturing (DFM) review: Have the assembler audit your design before production begins
• Component verification: Confirm all BOM items are in stock and authentic
• First article inspection (FAI): Require inspection and approval of the first production batch
• Test fixture preparation: Ensure ICT or functional test fixtures are ready

During Production

• In-process inspection: SPI monitors solder paste quality; AOI checks component placement
• X-ray inspection: Required for BGA, QFN, and other hidden solder joints
• In-circuit testing: Verifies each component is correctly placed and soldered

Before Shipment

• Final visual inspection: IPC-A-610 criteria for all visible solder joints
• Functional testing: Power-on test that verifies complete board functionality
• Third-party inspection: Independent QA firm inspects a sample batch (recommended for first 3-5 orders)

Documentation to Require

Document	What It Shows
Inspection report	AOI/X-ray results with defect locations
Test report	ICT or functional test pass/fail data
Certificates of Compliance	RoHS, REACH, conflict minerals
FAI report	First article measurements and approvals
Packing list and photos	Proof of packaging quality before shipment



PCBAndAssembly: Your Strategic Offshore PCBA Partner

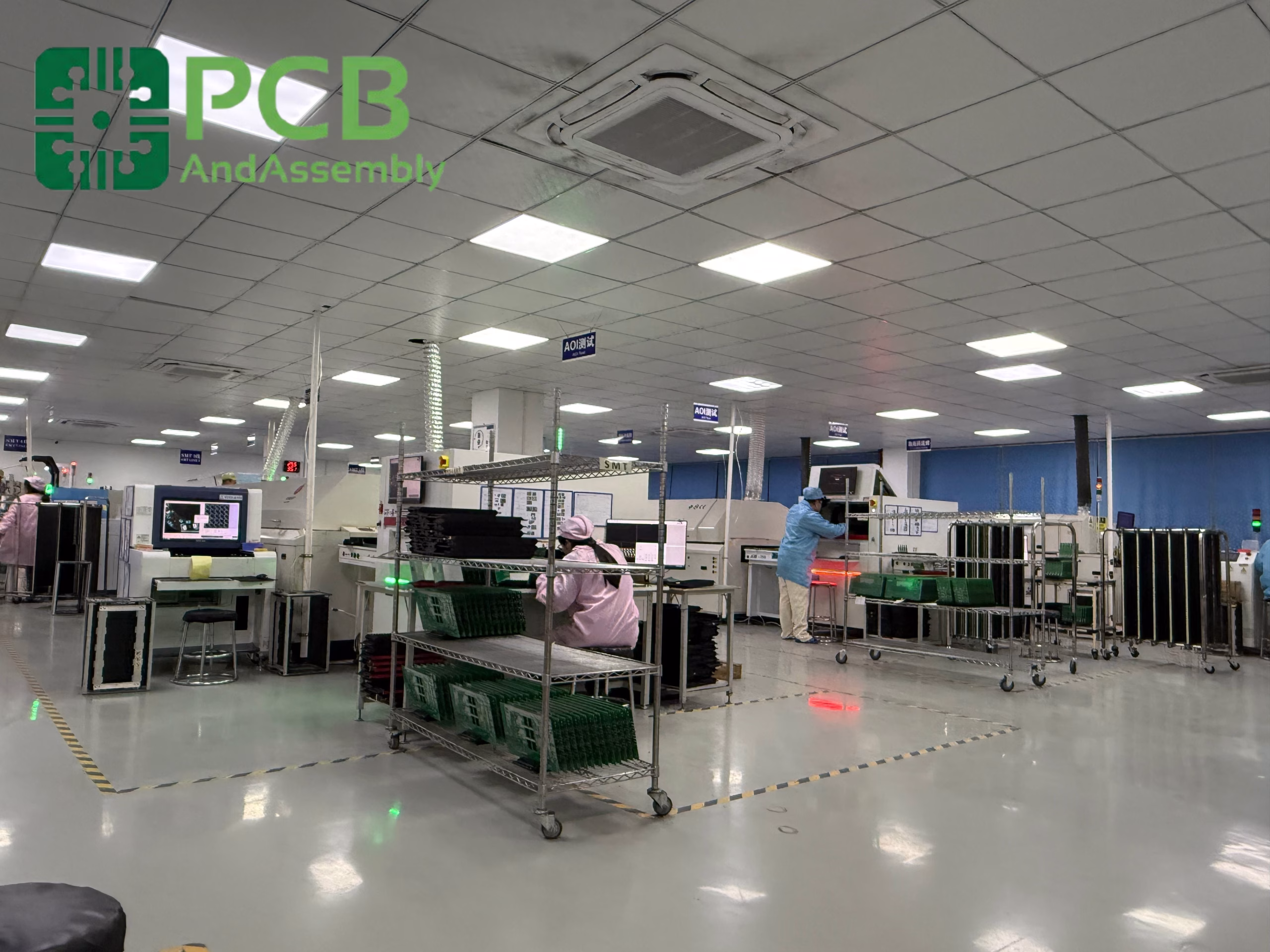

PCBAndAssembly is a Shenzhen-based PCB manufacturer and assembly provider with 14 years of experience serving North American and European customers. We combine the cost advantages of China-based manufacturing with the quality standards and communication practices that overseas clients expect.

Our Offshore PCBA Capabilities

Capability	Details
PCB Fabrication	1-54 layers, FR-4, Rogers, high-Tg, aluminum, HDI, flex, rigid-flex

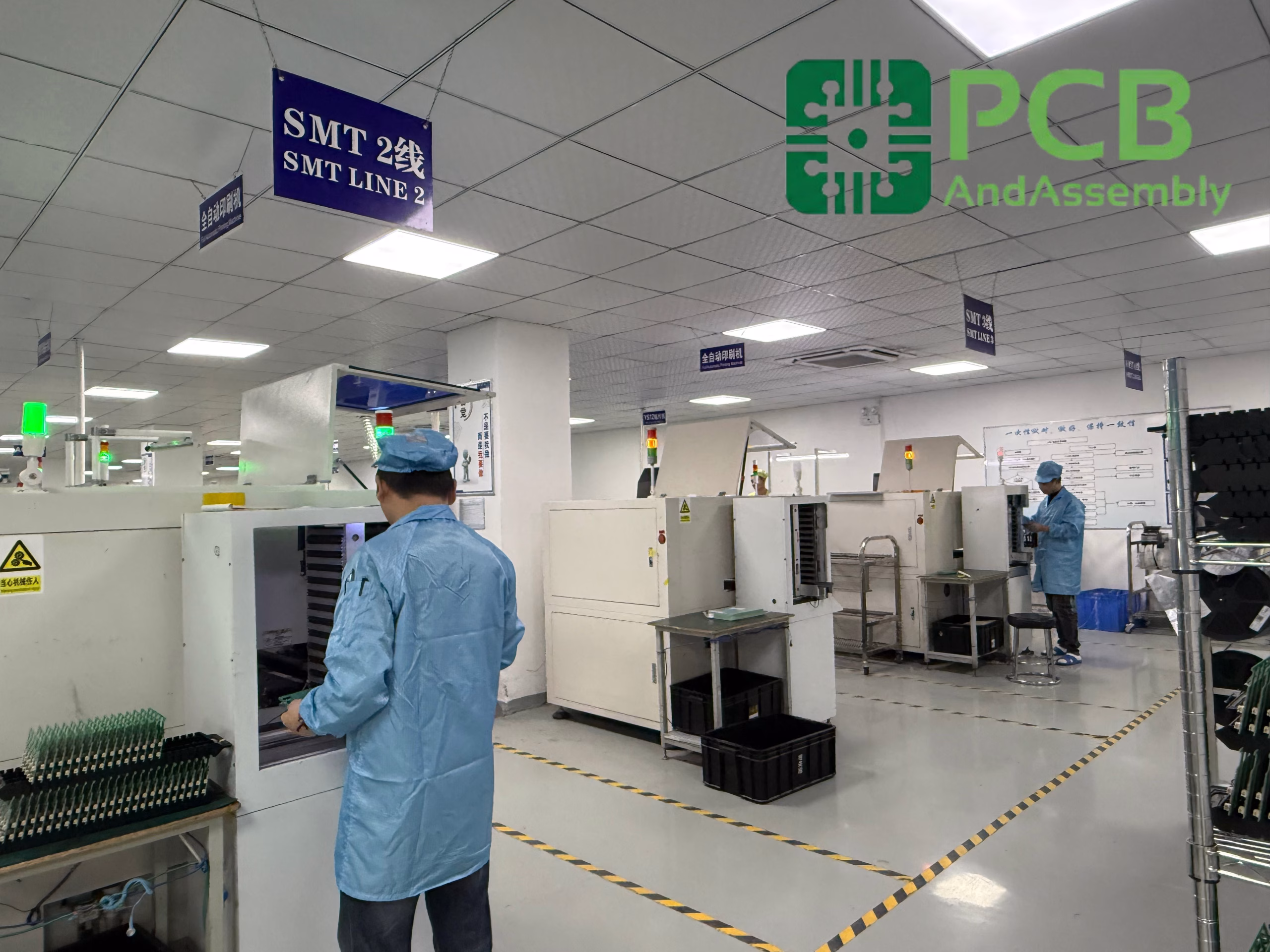

SMT Assembly	7 SMT lines with ASM SIPLACE placement (0201 to BGA)
Through-Hole	Selective soldering, wave soldering, hand soldering
Inspection	AOI, SPI, X-ray, AXI on every production board
Testing	Flying probe ICT, fixture ICT, functional testing, burn-in
Certifications	ISO 9001, UL, RoHS, REACH, IPC Class 2/3
Component Sourcing	Full turnkey sourcing from established supply chain
Shipping	DDP (Delivered Duty Paid) — we handle customs, you receive at your door



Why European and American Companies Work with Us

Cost advantage: Save 30-50% compared to domestic assembly without sacrificing quality.

Turnkey simplicity: We manage PCB fabrication, component procurement, assembly, testing, and shipping — you get working boards at your door.

English-speaking project managers: Dedicated account managers with engineering backgrounds who understand your specifications.

IPC Class 3 quality: We build to IPC-A-610 Class 3 standards on request, suitable for medical, aerospace, and industrial applications.

Factory-direct pricing: Three factories, 400+ employees, 15,000m² monthly PCB capacity — you get manufacturer pricing, not broker markup.



Frequently Asked Questions About Offshore PCB Assembly

What is offshore PCB assembly and how does it work?

Offshore PCB assembly means partnering with a manufacturer outside your home country to assemble printed circuit boards. The process works like domestic assembly: you provide Gerber files and a BOM, the manufacturer sources components, assembles the boards, tests them, and ships them to you.

How much can I save with offshore PCB assembly?

Most companies save 30-50% on total PCBA costs compared to US or European domestic assembly. The savings come primarily from lower labor rates and manufacturing overhead. After accounting for shipping, tariffs, and management, a typical Chinese turnkey PCBA costs 18-35 domestically for comparable quality.

Is offshore PCB assembly quality as good as domestic?

Yes, when you choose the right partner. Reputable offshore assemblers hold ISO 9001, UL, and IPC certifications and build to IPC-A-610 Class 2 or Class 3 standards. The key is verifying quality through first article inspection, third-party QA, and written specifications before full production begins.

What is the difference between turnkey and consignment offshore PCBA?

Turnkey means the assembler handles everything — PCB fabrication, component sourcing, assembly, and testing. Consignment means you supply all components, and the factory only does assembly. Turnkey is strongly recommended for offshore projects because it reduces logistics complexity and gives you a single point of responsibility.

What certifications should an offshore PCB assembly partner have?

Look for ISO 9001:2015, IPC-A-610 certification, IPC-6012 for bare boards, UL 94 for flammability, and RoHS/REACH compliance. These certifications demonstrate the factory has quality management systems and industry-standard processes in place.

How long does offshore PCB assembly take?

Production typically takes 2-3 weeks. Shipping adds 3-7 days by air freight or 4-6 weeks by sea. Total lead time for a typical turnkey offshore PCBA project is 3-6 weeks. Air freight is recommended for prototypes and time-sensitive orders.

What are the hidden costs of offshore PCB assembly?

The main hidden costs are tariffs and customs duties (5-25%), international shipping (especially for small orders), packaging for international transit, initial setup and engineering fees, and the management time required to coordinate across time zones. These typically add 10-20% to the base production cost.

How do I protect my intellectual property with an offshore PCBA partner?

Sign a comprehensive NDA and non-compete agreement before sharing design files. Use trusted, established partners with a track record of working with international clients. Consider splitting your BOM across multiple suppliers and sharing only what’s needed for assembly. Some companies also use encrypted file-sharing and avoid listing final product applications in their specifications.



Conclusion

Offshore PCB assembly services offer a proven path to reducing manufacturing costs by 30-50% while maintaining IPC Class 2 or Class 3 quality. The key is choosing the right partner—one with the certifications, capabilities, and communication practices that match your requirements.

Start with a turnkey model to simplify logistics. Invest in the upfront qualification process through first article inspection and pilot runs. And establish clear quality specifications and documentation requirements before production begins.

When executed correctly, offshore PCBA becomes a strategic advantage—not just a cost-saving measure—that helps you bring products to market faster and at lower cost.
