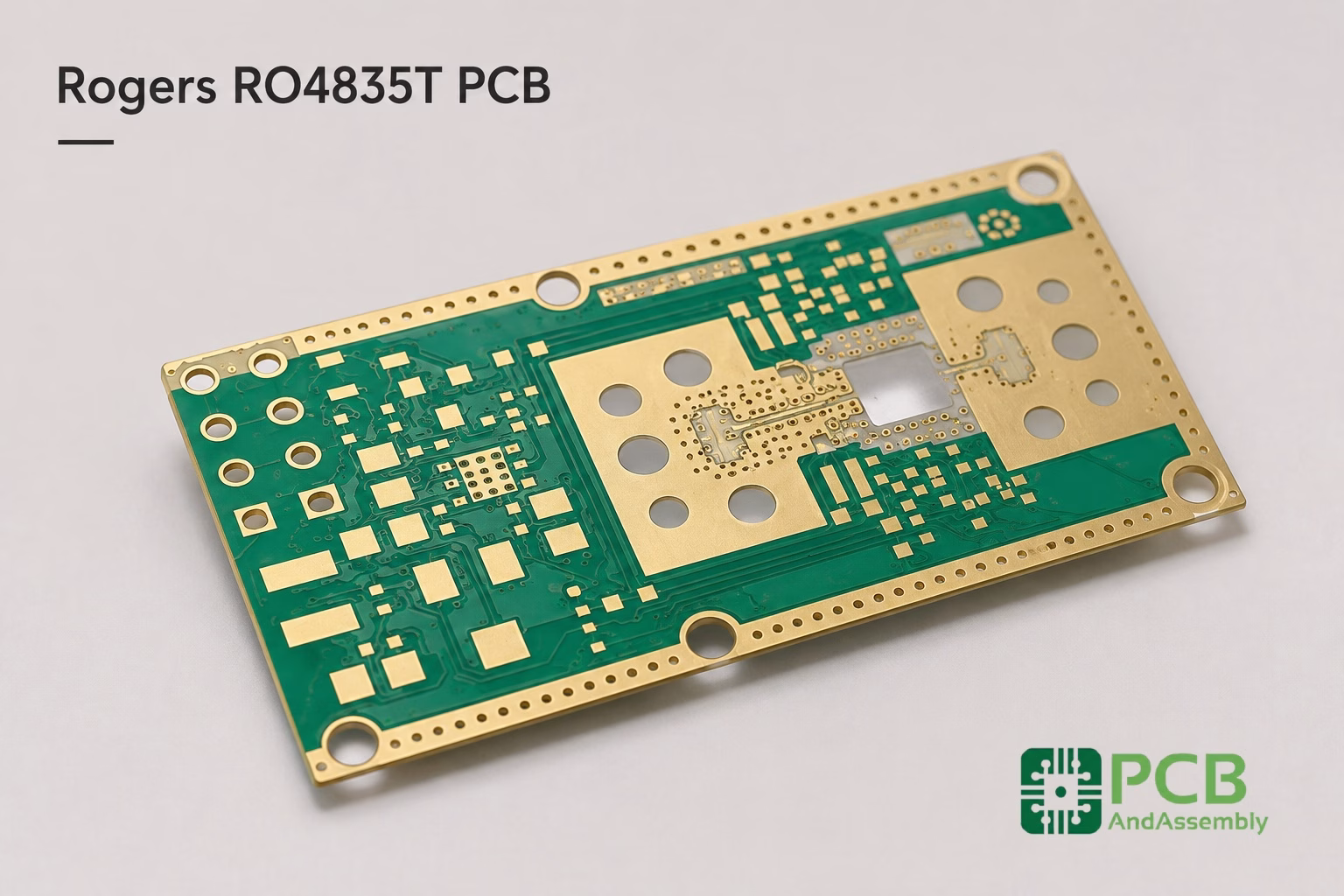

Rogers RO4835T PCB Fabrication, Assembly Services, & Materials Guide

If you have ever had to scrap an entire production run of 77 GHz radar boards due to PTFE drill wander or layer registration shifts, you know how punishing millimeter-wave manufacturing can be. After years of qualifying high-frequency automotive sensors, I have learned that Rogers RO4830 is the most practical laminate for scaling 76–8 1 GHz designs without destroying your fabrication yields.

Rogers RO4835 Material Overview

RO4835 is a hydrocarbon ceramic laminate in the Rogers RO4000 series. Its electrical profile closely matches RO4350B while adding an enhanced antioxidant package for long-term thermal and oxidation stability. Compared to PTFE-based RF laminates, RO4835 processes more like standard FR-4, reducing fabrication complexity and cost. Compared to standard FR-4, it delivers significantly better high-frequency electrical performance and tighter dielectric control.

The material is suitable for RF PCBs operating from microwave frequencies up to approximately 20 GHz. For millimeter-wave designs above 20 GHz (e.g., 77 GHz automotive radar), Rogers RO4830 or RO4830 Plus are more appropriate choices due to their lower Dk, lower Df, and glass-free options.

RO4830 Dataset: Download

RO4830 Plus Dataset: Download

Key Electrical and Mechanical Properties

Property	Typical Value	Manufacturing Significance
Dielectric Constant (Dk)	3.48 ± 0.05	Supports controlled impedance lines and stable RF circuit geometry.
Dissipation Factor (Df)	0.0037 at 10 GHz	Reduces insertion loss in RF and microwave transmission lines.
Thermal Conductivity	0.66 W/m·K	Better heat spreading than standard FR-4; supports active IC thermal management.
Z-Axis CTE	Low, controlled expansion	Reduces via-barrel cracking during thermal cycling.
Glass Transition Temperature (Tg)	>280°C (TMA)	Maintains dimensional stability through lead-free reflow.
Peel Strength	≥5.0 lbs/in (post solder float)	Prevents pad lift during rework and thermal stress.
Compliance	IPC-4103, RoHS, UL 94 V-0	Supports regulated RF, automotive, industrial, and communications products.
Copper Option	LoPro reverse-treated ED copper	Sub-micron surface roughness reduces conductor loss at microwave frequencies.

The most significant differentiator of RO4835 versus other RO4000 laminates is its oxidation resistance. For RF boards operating at elevated temperatures over long service lives — such as automotive electronics, industrial sensors, or outdoor communication systems — this improved stability can be more consequential than a marginal difference in dielectric value.

Copper Foil and Conductor Loss

At microwave frequencies, RF current concentrates in an extremely thin skin layer at the conductor surface. A rough copper profile forces current to follow the peaks and valleys of the foil surface, increasing effective path length and resistive loss. Standard electrodeposited copper foil (surface roughness Rq >3.0 µm) can be problematic for low-loss RF designs.

RO4835 is available with LoPro reverse-treated electrodeposited copper, which provides sub-micron surface roughness (typically Rq <0.5 µm). This smooth profile keeps the RF current path short and straight, reducing conductor loss without sacrificing foil-to-dielectric peel strength — a balance that standard smooth foils often cannot achieve.

Thermal Reliability and Via Integrity

Plated through-holes and microvias are vulnerable to mechanical failure when the substrate Z-axis CTE is poorly matched to copper. High CTE laminates — particularly PTFE, which can exceed 150 ppm/°C in the Z axis — expand rapidly during reflow or thermal cycling, placing tensile stress on via barrels. The highly cross-linked hydrocarbon resin of RO4835 limits Z-axis expansion to values that closely track copper, preserving via barrel integrity through thousands of thermal cycles.

Key thermal parameters:

• Z-Axis CTE (below Tg): Low and controlled, preventing via-barrel cracking during thermal shock.
• Glass Transition Temperature (Tg): >280°C (TMA) — dimensional stability through lead-free assembly.
• Thermal Conductivity: 0.66 W/m·K — improves heat dissipation from active transceiver ICs.
• Peel Strength: ≥5.0 lbs/in after solder float — pads remain attached through rework.

RO4835 is fully compatible with lead-free soldering processes, maintaining stability through peak reflow temperatures of 260°C.

RO4835 vs RO4350B: Choosing the Right Material

RO4835 and RO4350B are frequently compared because their electrical values are nearly identical and both belong to the RO4000 family. The decision between them is driven primarily by reliability and environmental requirements, not electrical performance.

Property	RO4350B	RO4835	Design Impact
Material Position	Standard RO4000 high-frequency laminate	RO4000 with improved oxidation resistance	RO4835 preferred for long-term stability.
Dk	~3.48	3.48 ± 0.05	Similar trace geometry in most designs.
Df @ 10 GHz	0.0037	0.0037	Both suitable for many RF and microwave boards.
Oxidation Resistance	Standard thermoset	Improved — advanced antioxidant package	RO4835 better suited for high-temperature or long-life designs.
Fabrication	FR-4-compatible process	FR-4-compatible process	Both easier to process than PTFE laminates.
Best Use Case	Cost-effective RF/microwave design	Designs requiring reliability margin and environmental stability	If oxidation or thermal exposure is not a concern, RO4350B may be sufficient.

If the product does not require the added oxidation resistance — for example, a short-cycle commercial device in a benign environment — RO4350B remains a cost-effective choice. For automotive-grade, industrial, or long-life outdoor designs where thermal exposure, humidity, or oxidation are design risks, RO4835 provides a meaningful reliability margin.

Stackup and Impedance Planning

A material callout alone does not guarantee RF performance. Final impedance depends on dielectric thickness, copper weight, copper profile, solder mask opening, surface finish, etching tolerance, and transmission line type. PCBAndAssembly reviews each RO4835 stackup before production to confirm that the board can be built to the customer’s impedance, thickness, and assembly requirements.

Stackup Review Items

Stackup Item	Review Focus	Why It Matters
RO4835 Thickness	Core thickness, tolerance, final board thickness	Controls impedance, line width, and mechanical fit.
Copper Weight	Finished copper, base copper, plating allowance	Affects impedance, etching compensation, and current capacity.
Copper Profile	Standard, reverse-treated, or LoPro ED copper	Lower-profile copper reduces conductor loss; critical for microwave signal paths.
Transmission Line Type	Microstrip, stripline, GCPW, or RF launch	Defines impedance model, manufacturing tolerance, and crosstalk behavior.
Solder Mask	Mask-over-trace vs. mask opening on RF lines	Solder mask changes effective Dk and impedance; keep mask clear of RF structures.
Bondply (Hybrid)	RO4400 series (e.g., RO4450F) between RF and FR-4 cores	Prevents lossy FR-4 resin from bleeding into RF fields; preserves impedance.

Common RO4835 Stackup Configurations

• Single-layer or double-sided RO4835: for antenna, RF filter, sensor, and microwave transmission-line boards.
• RO4835 multilayer: when RF layers, ground planes, control signals, and power routing must be combined.
• RO4835 + FR-4 hybrid: RO4835 for RF layers; FR-4 for low-speed control or mechanical support layers. Reduces material cost by up to 60% versus a full-stack RO4835 design.
• RO4835 with LoPro copper: for lower conductor loss on microwave signal paths.
• Controlled impedance RO4835: requires impedance notes, reference planes, and stackup approval before production.

Hybrid RO4835 + FR-4 Stackup Example

For cost-constrained designs, a hybrid stackup uses RO4835 as a thin cap layer on the outer RF layers while standard FR-4 handles inner digital and power routing. The adhesive between the RF core and the reference plane must be a low-loss bondply — Rogers RO4450F is the standard choice. Using standard FR-4 prepreg directly adjacent to RO4835 allows lossy FR-4 resin to couple into the RF fields, raising insertion loss and shifting impedance.

Layer	Material	Dielectric Thickness	Copper	Function
L1 (Top RF)	RO4835	0.005–0.010 in	0.5 oz LoPro ED	RF transmission lines and patch antennas
Bondply L1–L2	RO4450F	0.004 in	N/A	Low-loss thermoset adhesive for RF core attachment
L2 (Reference)	FR-4 Core	—	1.0 oz ED	Continuous RF ground plane and shielding
L3 (Routing)	FR-4 Core	0.020–0.030 in	1.0 oz ED	DC power rails and low-speed digital signals
L4 (Bottom SMT)	FR-4 Substrate	—	1.0 oz ED	Power management ICs, MCU routing, digital SMT

Transmission Line Geometry and Solder Mask

RO4835 supports microstrip, stripline, and grounded coplanar waveguide (GCPW) configurations. GCPW is often preferred for higher-frequency applications because coplanar ground pours provide isolation between adjacent RF feeds and suppress parasitic waveguide modes. For critical RF lines — feeds, matching networks, antenna areas, and RF launches — PCBAndAssembly recommends keeping solder mask clear of the conductor to prevent impedance shifts from mask Dk loading.

Fabrication Process and Process Control

Although RO4835 is compatible with standard FR-4 process lines, its high ceramic filler content changes tooling wear characteristics and desmear chemistry. Fabricators who apply FR-4 parameters without adjustment will encounter plated through-hole voids, resin smear, and delamination. PCBAndAssembly tightens process controls at each critical step.

Key Fabrication Parameters

Process	Critical Parameter	Target Specification	Consequence of Deviation
Mechanical Drilling	Tool Hit Limit	Max 500 hits per bit	Worn bits cause rough hole walls, resin smear, and inner-layer opens.
Drilling Feed & Speed	Chip Load	1.5–2.0 mils per revolution	Low chip load causes frictional heating that melts resin and blocks copper contacts.
Chemical Desmear	Permanganate Exposure	Modified cycle (extended pre-bake)	Over-exposure degrades ceramic-to-resin bond; causes plating voids.
Lamination	Peak Temperature	177°C to 190°C (350–375°F)	Insufficient temperature prevents full thermoset cross-linking.
Solder Mask Application	Surface Preparation	Chemical clean only — no aggressive mechanical scrub	Mechanical scrubbing deforms thin cap laminates.

Drilling Note: Ceramic Filler Wear

The ceramic fillers in RO4835 are highly abrasive — carbide drill bits wear up to three times faster than on standard FR-4. A worn bit at standard FR-4 hit-count limits will punch rather than cut through the material, generating frictional heat that melts the hydrocarbon resin and coats inner-layer copper contacts. This creates open-circuit failures that are difficult to detect before final assembly. PCBAndAssembly limits tool hit counts and monitors feed/speed parameters to prevent this failure mode.

Material Handling and Lamination

• Material verification: RO4835 core and copper type checked against the approved stackup.
• Layup control: layer order, copper orientation, and tooling alignment reviewed before pressing.
• Hybrid stackup review: RO4835 and FR-4 combinations checked for thickness, bonding, and dimensional stability.
• Post-lamination inspection: thickness, surface quality, registration, bow, and twist verified before drilling.

Drilling, Plating, and PTH Reliability

• Drilling: hole size, aspect ratio, density, and registration reviewed before production.
• Desmear: hole-wall preparation supports copper adhesion and inner-layer connection quality.
• Electroless copper: initial conductive coverage in drilled holes.
• Electrolytic copper: builds required copper thickness on hole walls and board surfaces.
• Microsection: cross-section inspection available to verify plating thickness and hole-wall quality.

Etching and RF Geometry Control

RF lines, antenna patterns, filters, and matching circuits are sensitive to line width, spacing, copper thickness, and etching compensation. PCBAndAssembly reviews copper weight and minimum line/space before production to ensure the finished trace geometry meets design intent. Controlled impedance coupons or RF test coupons can be added to production panels as required.

Surface Finish, Assembly, and Quality Control

Surface Finish Selection

Surface finish affects conductor loss, solderability, shelf life, wire bonding compatibility, and assembly yield. For RF designs, flat finishes that avoid signal distortion are strongly preferred — HASL is generally not recommended for controlled-impedance RF boards.

Surface Finish	Best Use	Key Consideration
ENIG	General RF/microwave assembly; flat pads; longer shelf life.	Nickel layer may affect loss at very high frequencies — confirm against design targets.
Immersion Silver	Low-loss RF transmission lines and microwave circuits.	Storage and handling must be controlled to prevent tarnish.
ENEPIG	Mixed soldering and wire bonding requirements.	Higher cost; useful for advanced assembly flows requiring both processes.
OSP	Cost-sensitive assembly with short storage requirements.	Not recommended for long-storage RF programs.

PCB Assembly Support

PCBAndAssembly supports SMT assembly, RF component placement, connector assembly, BGA assembly, component sourcing, solder paste process review, AOI, X-ray inspection, and functional test according to customer procedures.

• BOM review: part number, quantity, package, polarity, and sourcing status checked before assembly.
• Pick-and-place review: centroid data and component rotation verified against the assembly drawing.
• RF area review: solder mask opening, RF launch clearance, and component footprints reviewed as needed.
• Reflow profile: selected according to board structure, copper weight, finish, and component requirements.
• Inspection: AOI, visual, X-ray, and functional test applied according to assembly complexity.

Quality Documentation

• Electrical test report
• Controlled impedance test report (when required)
• Microsection report (when required)
• Material certificate or Rogers lot reference (when required)
• Final visual inspection report
• Assembly inspection report for PCBA projects
• RoHS/REACH compliance declaration (when applicable)



FAQ

What is the difference between RO4835 and RO4350B?

Their electrical values are nearly identical. The key difference is that RO4835 includes an enhanced antioxidant package that improves long-term oxidation resistance. Choose RO4835 when elevated-temperature operation, long service life, or environmental exposure is a design constraint.



Can RO4835 be processed with lead-free reflow?

Yes. RO4835 maintains excellent thermal stability through peak reflow temperatures of 260°C, making it fully compatible with lead-free soldering processes.



What bonding material is recommended for hybrid RO4835 + FR-4 stackups?

The Rogers RO4400 series bondply (e.g., RO4450F) is recommended. It is chemically compatible with RO4835’s hydrocarbon resin system and cures at standard FR-4 lamination temperatures, preventing lossy FR-4 resin from coupling into the RF field region.



Is RO4835 suitable for millimeter-wave designs above 20 GHz?

RO4835 is designed for RF and microwave applications up to approximately 20 GHz. For 76–81 GHz automotive radar or other millimeter-wave designs, Rogers RO4830 or RO4830 Plus — with lower Dk, lower Df, and optional glass-free construction — are the more appropriate material choices.



Why does copper foil profile matter for RF boards?

At microwave frequencies, RF current travels only in the outermost skin layer of the conductor. A rough foil surface forces current to follow peaks and valleys, increasing resistive loss. LoPro copper foil (Rq <0.5 µm) keeps the current path straight, reducing conductor losses without compromising adhesion.

Getting a Quote

PCBAndAssembly provides RO4835 PCB prototype, small-batch, volume manufacturing, and turnkey PCBA. The table below summarizes what to include for the fastest, most accurate quotation.

Required Item	Notes
Gerber + Drill Files	Preferred starting point for all fabrication quotations.
Stackup / Material Notes	RO4835 thickness, copper weight, hybrid structure details.
Impedance Requirements	Single-ended or differential values, tolerance, reference layers.
Surface Finish Callout	ENIG, immersion silver, ENEPIG, or OSP.
Assembly Files (PCBA)	BOM and Pick-and-Place files for turnkey assembly projects.
Test Requirements	Electrical test, impedance report, AOI, X-ray, functional test, or RF inspection.
Quality Documentation	Material certs, IPC class, RoHS/REACH declaration as needed.

If files are not yet finalized or the project is still at the design stage, contact the PCBAndAssembly engineering team directly. We provide one-on-one engineering support to confirm file requirements, fabrication details, and PCBA quotation needs.
